Overview

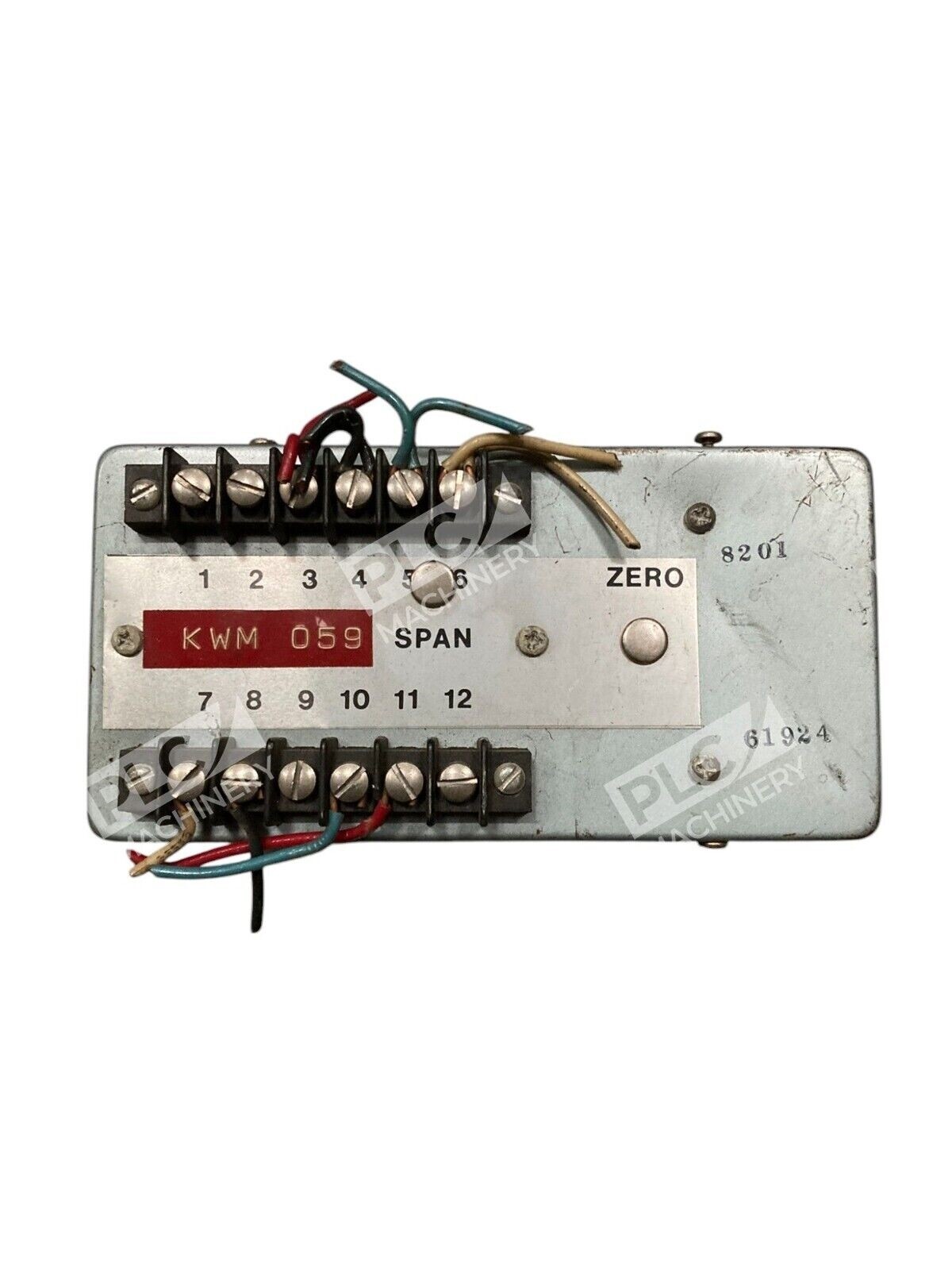

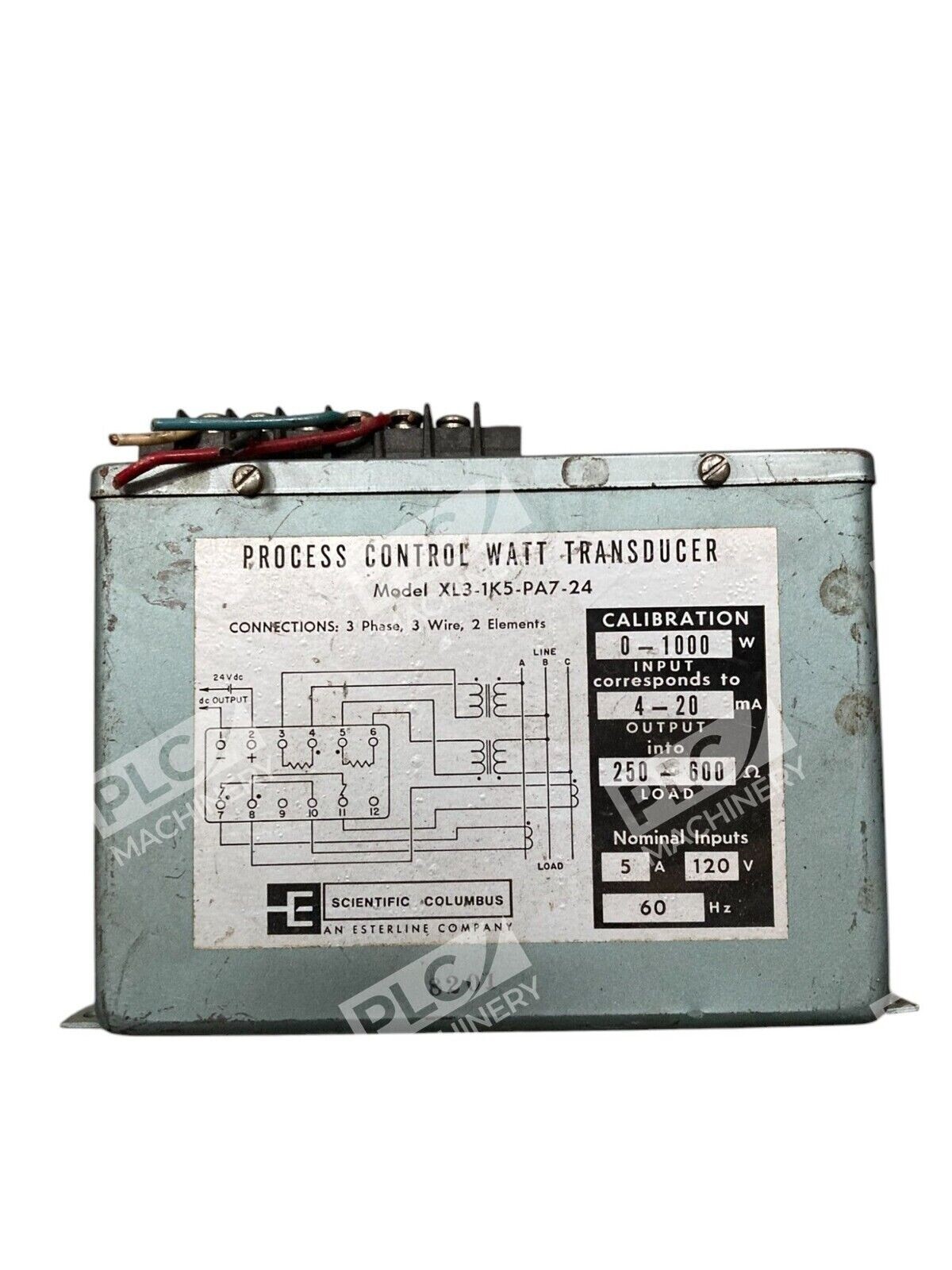

The Esterline XL3-1K5-PA7-24 is a discontinued 3-phase watt transducer manufactured by Scientific Columbus (AMETEK). This signal conditioner/transmitter converts 3-phase power measurements into a standardized 4-20 mA DC output, making it ideal for industrial process monitoring and control loops where real-time watt feedback is essential. The unit operates at 120 VAC, 60 Hz with a maximum measurement range of 0–1000 watts.
Key Features
- 3-phase, 3-wire configuration with 2 measurement elements
- 4-20 mA DC output for seamless integration with control systems
- Rated for 5 amp input current
- 120 VAC, 60 Hz supply voltage
- 0–1000 watt measurement range
- Compact, robust design suitable for industrial environments
Technical Specifications
The transducer operates on standard industrial power while delivering precise analog output proportional to 3-phase power consumption. Its measurement elements are designed to capture power data across all three phases simultaneously, ensuring accurate total power readout in polyphase systems.
Typical Applications
- Three-phase motor power monitoring
- Industrial equipment power metering
- Process control power feedback loops
- Energy management and load monitoring systems
- Legacy SCADA and DCS integration
Compatibility & Replacements
Compatible With
- Industrial PLC and DCS systems accepting 4-20 mA analog inputs
- SCADA control platforms with analog data acquisition modules
- Process control instruments and recorders
- Any system requiring real-time 3-phase power measurement feedback
Replaces / Drop-In Replacement For
The XL3-1K5-PA7-24 is a direct replacement for original Esterline/Scientific Columbus watt transducers in legacy systems. Verify the exact configuration (output range, voltage rating) with your system integrator before installation to ensure full compatibility with your existing control loop settings.
Works With
- Analog input modules (PLC, DCS, RTU)
- Industrial data acquisition systems
- Analog display meters and recorders
- 4-20 mA DC signal transmission protocols
