Overview

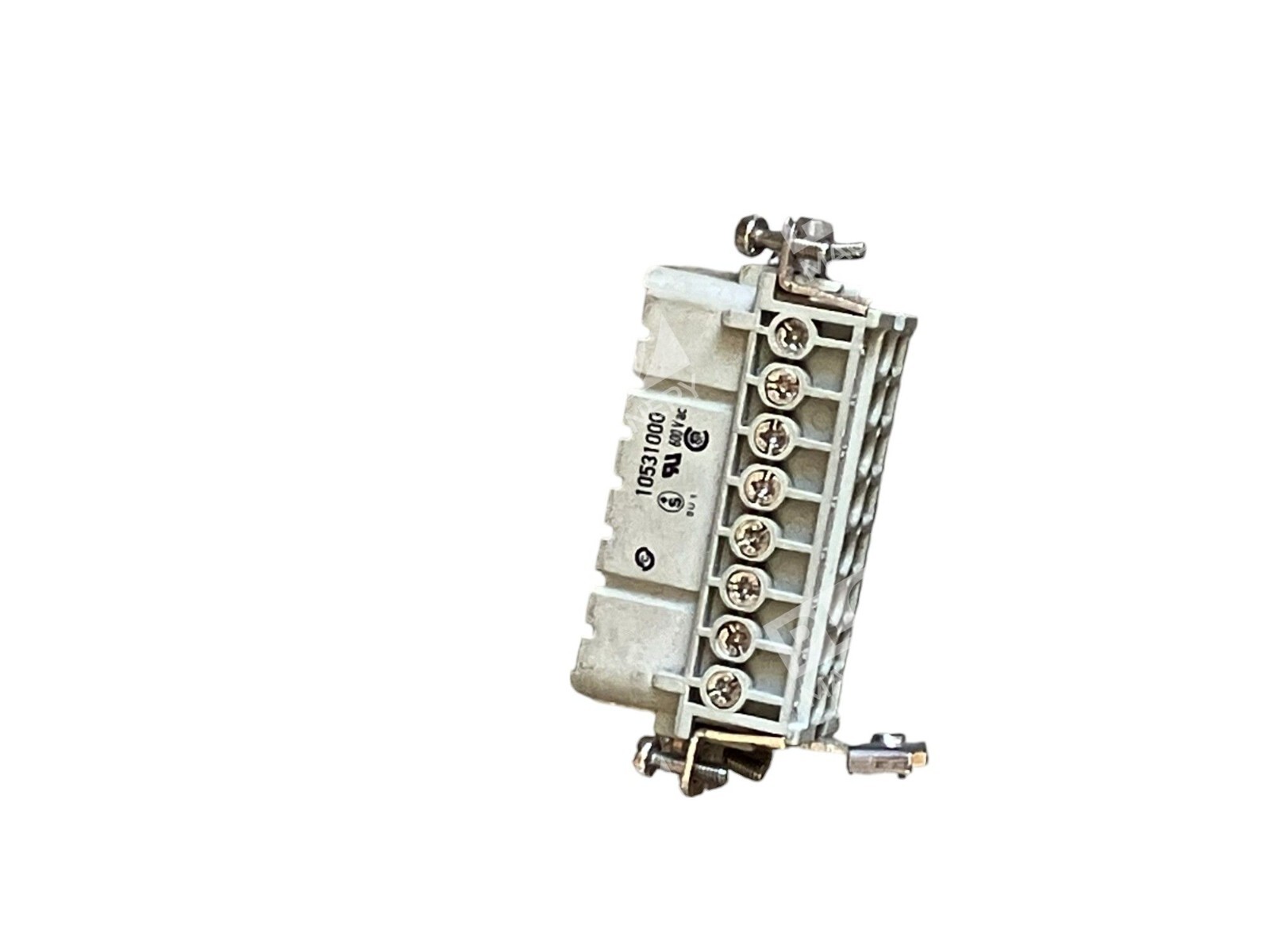

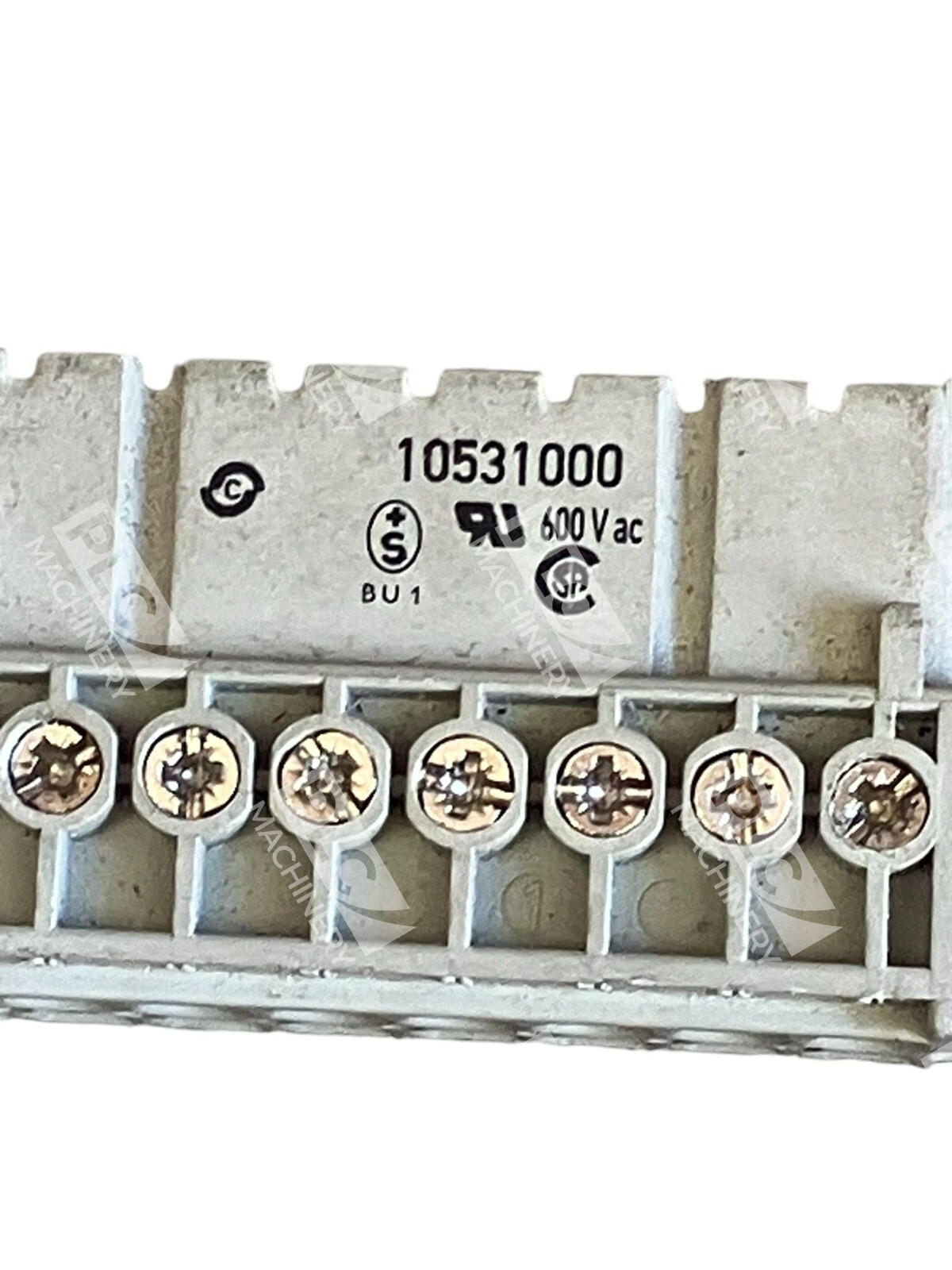

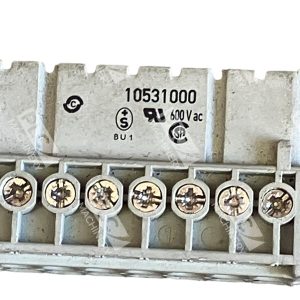

The EPIC 10531000 is a heavy-duty rectangular connector insert designed for reliable power distribution in industrial control and machine-building applications. As a female insert in the H-A series, it provides 16 screw-terminated contacts arranged in a 2-row configuration, delivering 14A continuous current at 600V per contact.
Key Features
- 16 contacts arranged in two rows for compact, efficient space utilization
- Screw termination accepts wire up to 2.5 mm² without soldering
- Individual protective earth terminal on each contact position for enhanced safety
- Silver-plated copper alloy contacts provide corrosion resistance in harsh environments
- Modular H-A design compatible with all standard HA hoods and bases
- IP65 compression gland option protects against dust and water spray
Technical Specifications
- Part Number: 10531000
- Manufacturer: EPIC (Lapp Group)
- Series: H-A
- Type: Connector Insert, Female, Straight
- Contact Count: 16 poles
- Rows: 2
- Current Rating: 14A
- Voltage Rating: 600V
- Contact Material: Copper Alloy
- Contact Plating: Silver
- Termination Method: Screw Down
- Wire Capacity: 0.5 – 2.5 mm²
- Mounting Type: Cable Mount
- Country of Origin: Germany
- Compliance: RoHS compliant
Typical Applications
The EPIC 10531000 is commonly used in:
- Industrial machinery control cabinets and junction boxes
- Power distribution and signal interface modules
- CNC machines and automation equipment
- Outdoor and harsh-environment installations where corrosion resistance is critical
- Heavy equipment and multi-axis servo motor drive systems
- Modular control panel buildouts requiring quick-disconnect capability
Compatibility & Replacements
Compatible With
- All EPIC H-A series hoods and bases
- EPIC H-A rectangular connector housings
- Modular connector systems requiring H-A format inserts
- Industrial machinery control circuits operating at 600V or less
Replaces / Drop-In Replacement For
The EPIC 10531000 is a standard H-A series insert. Verify compatibility with your system integrator before ordering replacement units, as connector configuration depends on the mating housing assembly.
Works With
- EPIC H-A standard hoods and bases (all sizes)
- Compression glands and strain relief accessories
- Standard industrial PLC and servo control enclosures
- Machine building and automation panel integrators
