Overview

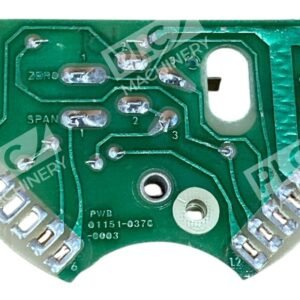

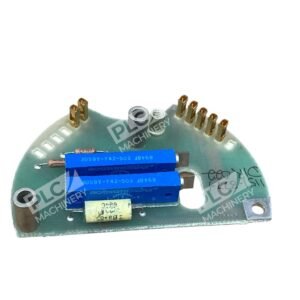

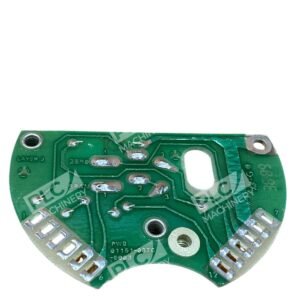

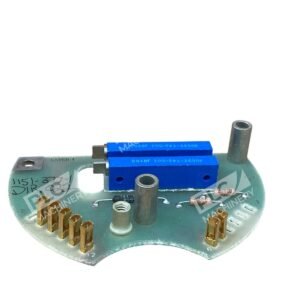

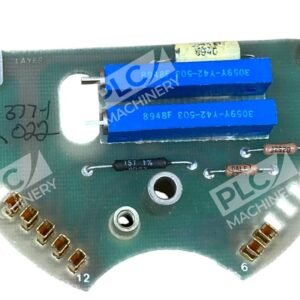

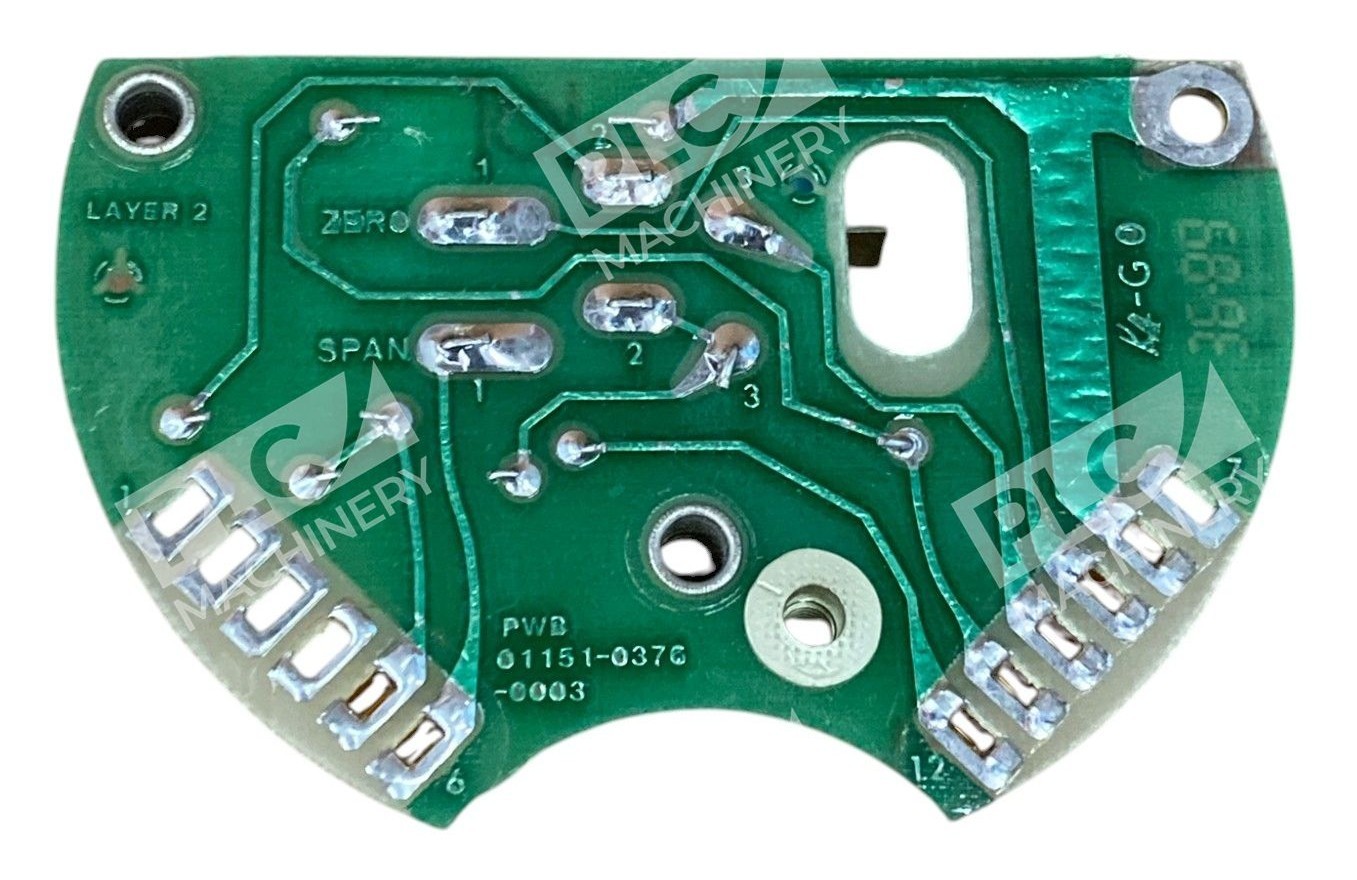

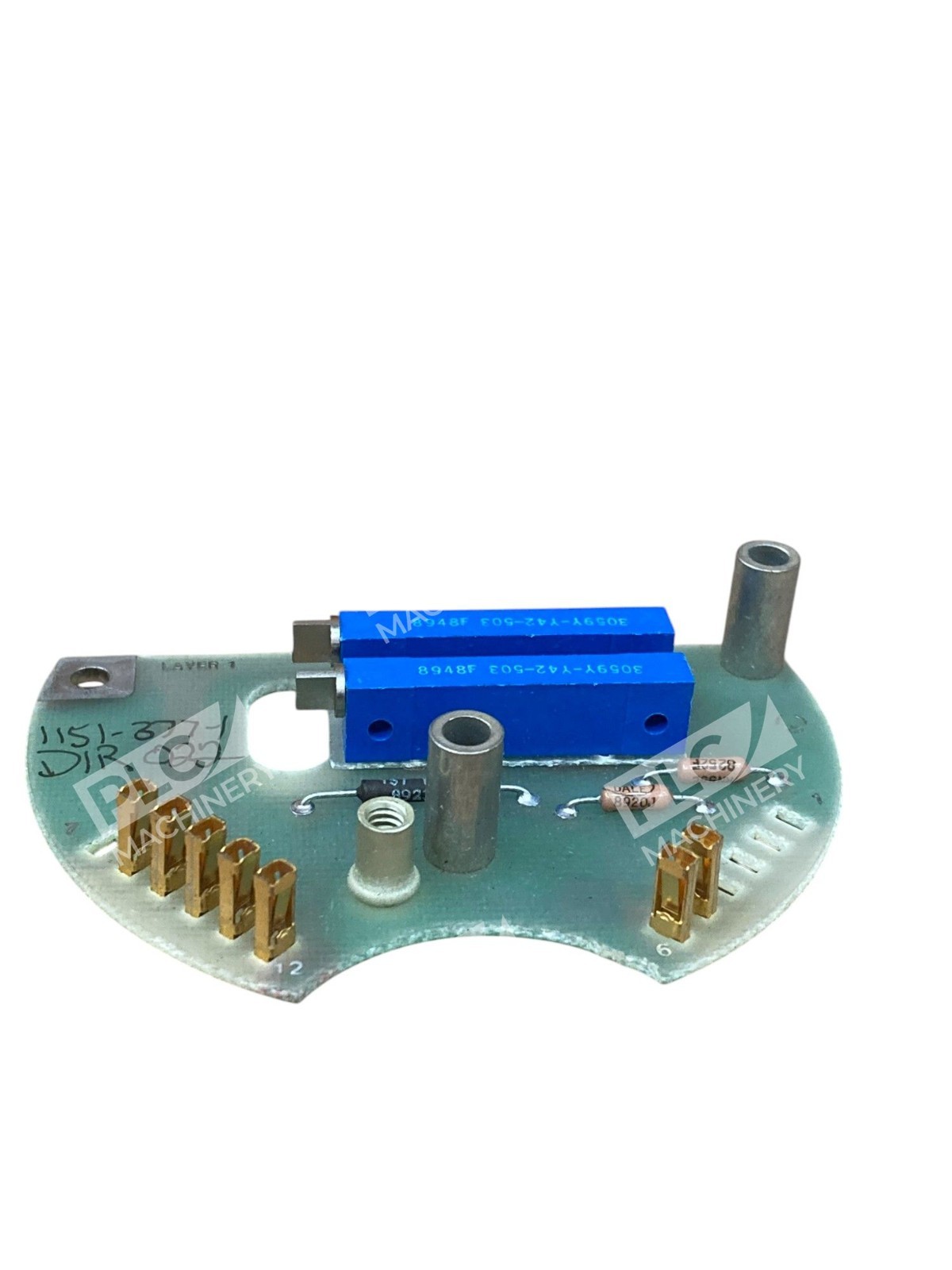

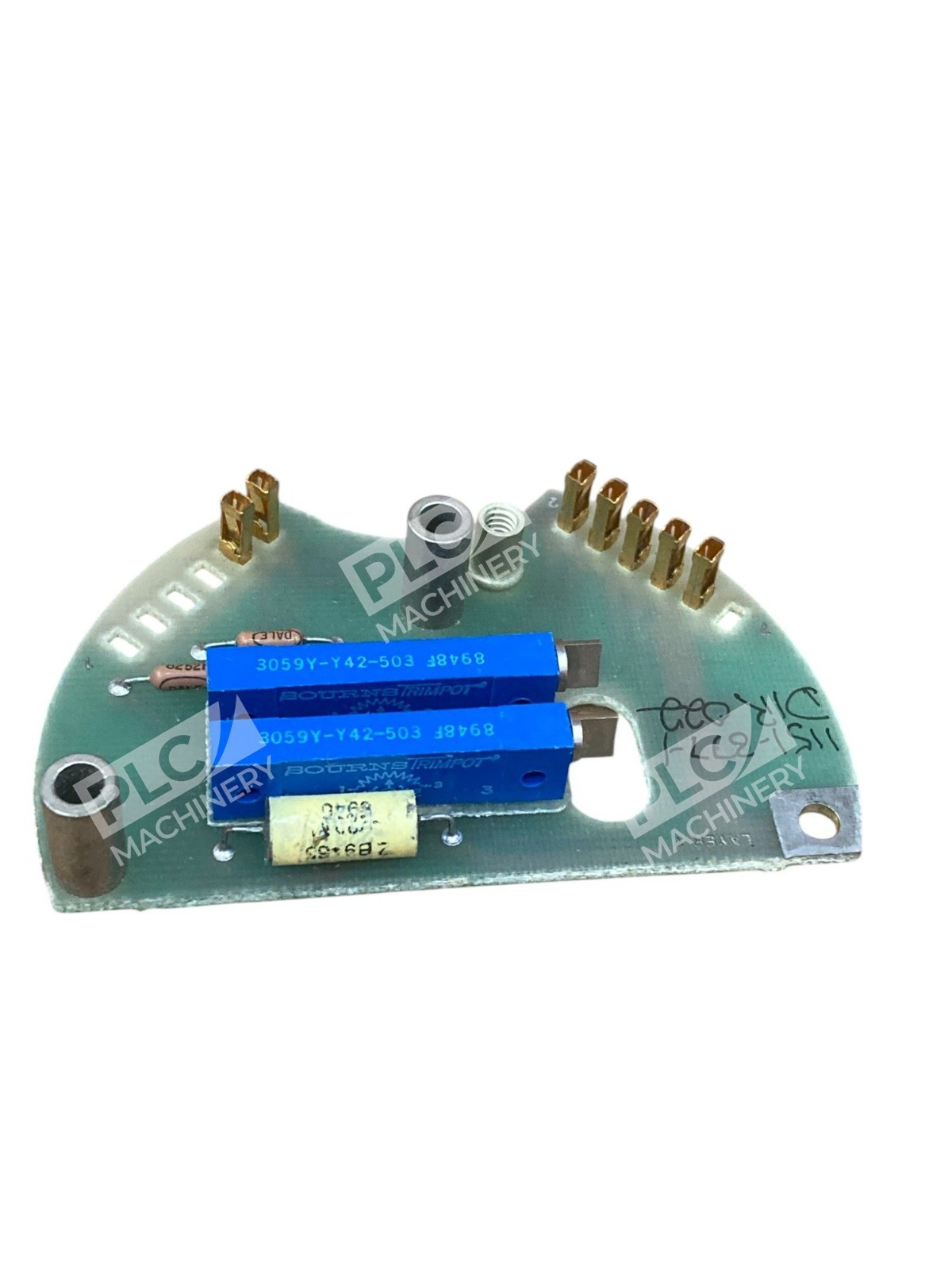

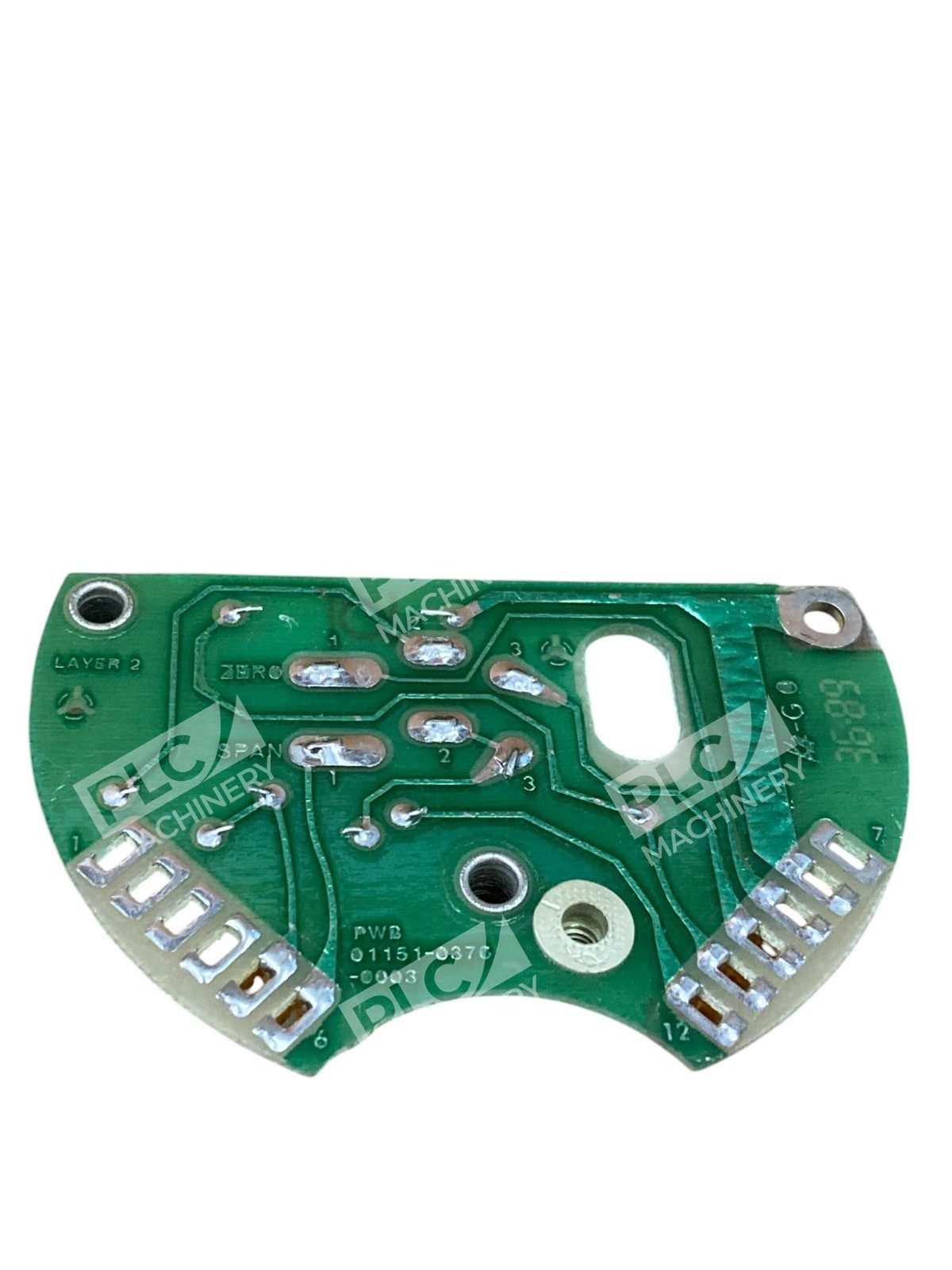

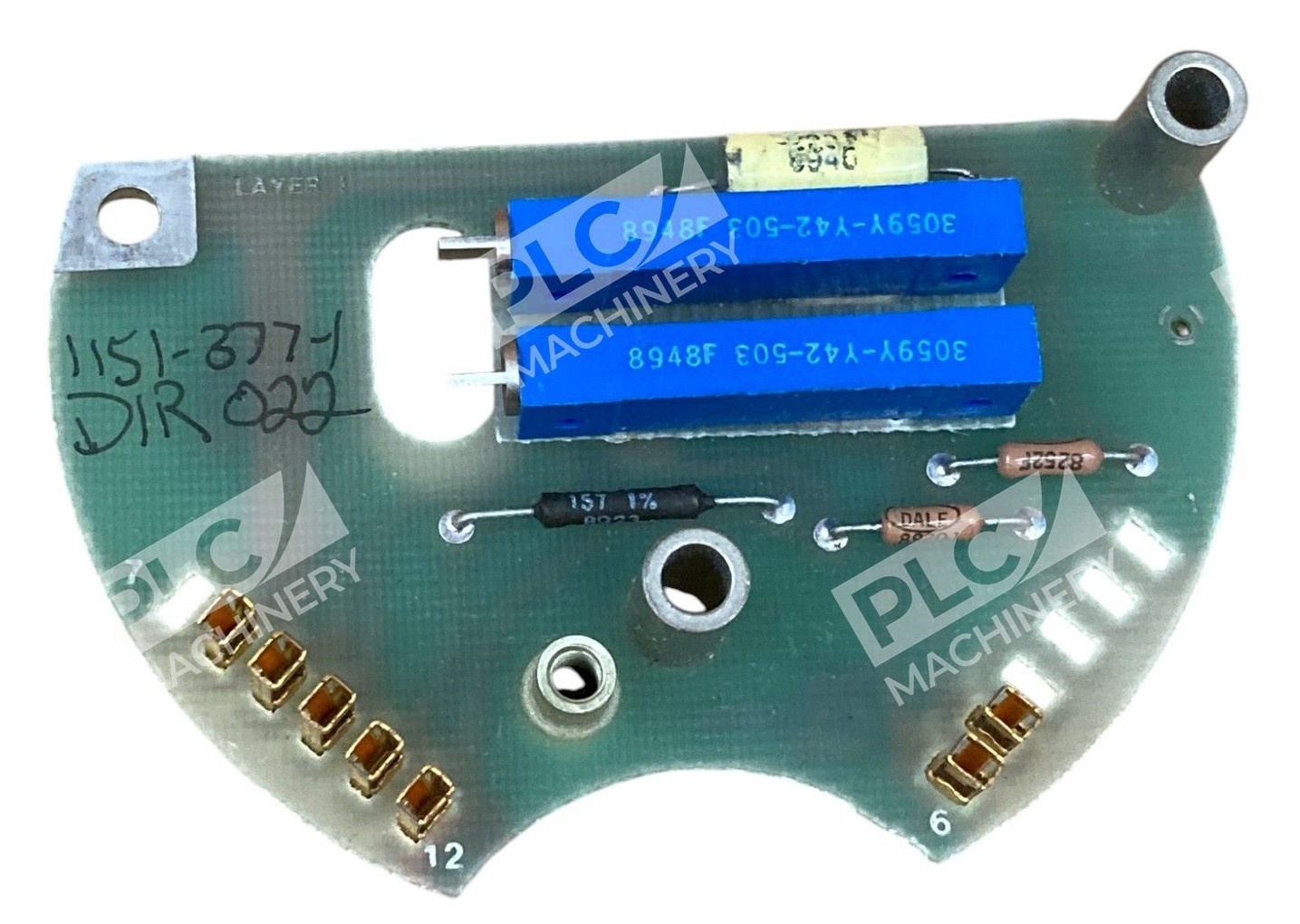

The Emerson 1151-377-1 DIR 022 pressure transmitter board (01151-0376-0003) is a discontinued component from Emerson’s Rosemount Analytical division. This pressure transmitter board is part of the Rosemount 1151 series, which has been the industry standard for process pressure measurement for over 40 years. The 01151-0376-0003 is designed for accurate pressure measurement and transmission in industrial automation and process control applications.
Key Features
- Industry-proven Rosemount 1151 design with eight million+ units deployed globally
- 4–20 mA output with user-selectable linear or square root response
- Integrated electronics for direct transmitter operation
- Compatible with legacy pressure measurement systems
- Suitable for refurbishment and system upgrades
Technical Specifications
Verify compatibility with your system integrator before ordering. The exact specifications for this DIR 022 variant board should be confirmed with the original system documentation or manufacturer.
Typical Applications
- Process pressure monitoring in chemical plants and refineries
- Pressure measurement in HVAC and utility systems
- Industrial process control loops requiring legacy component replacement
- System upgrades and retrofits for established installations
- Maintenance and spare parts inventory for existing Rosemount 1151 systems
Compatibility & Replacements
Compatible With
- Rosemount 1151 transmitter series installations
- Legacy process control systems requiring pressure measurement boards
- Industrial automation platforms using 4–20 mA analog inputs
- HART communicator-equipped control systems (where applicable)
Replaces / Drop-In Replacement For
The 01151-0376-0003 board is a direct fit for Rosemount 1151 transmitter systems using the 1151-377-1 DIR 022 configuration. Verify compatibility with your system integrator before ordering.
Works With
- Emerson Rosemount 1151 pressure transmitter assemblies
- Industrial process control systems with 4–20 mA analog inputs
- HART protocol-enabled monitoring systems (where configured)
- Legacy distributed control systems (DCS) and PLC platforms
