Overview

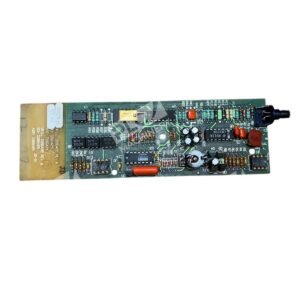

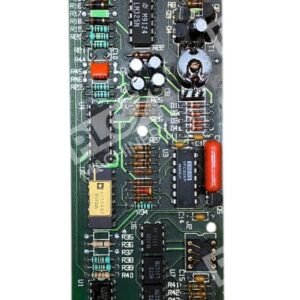

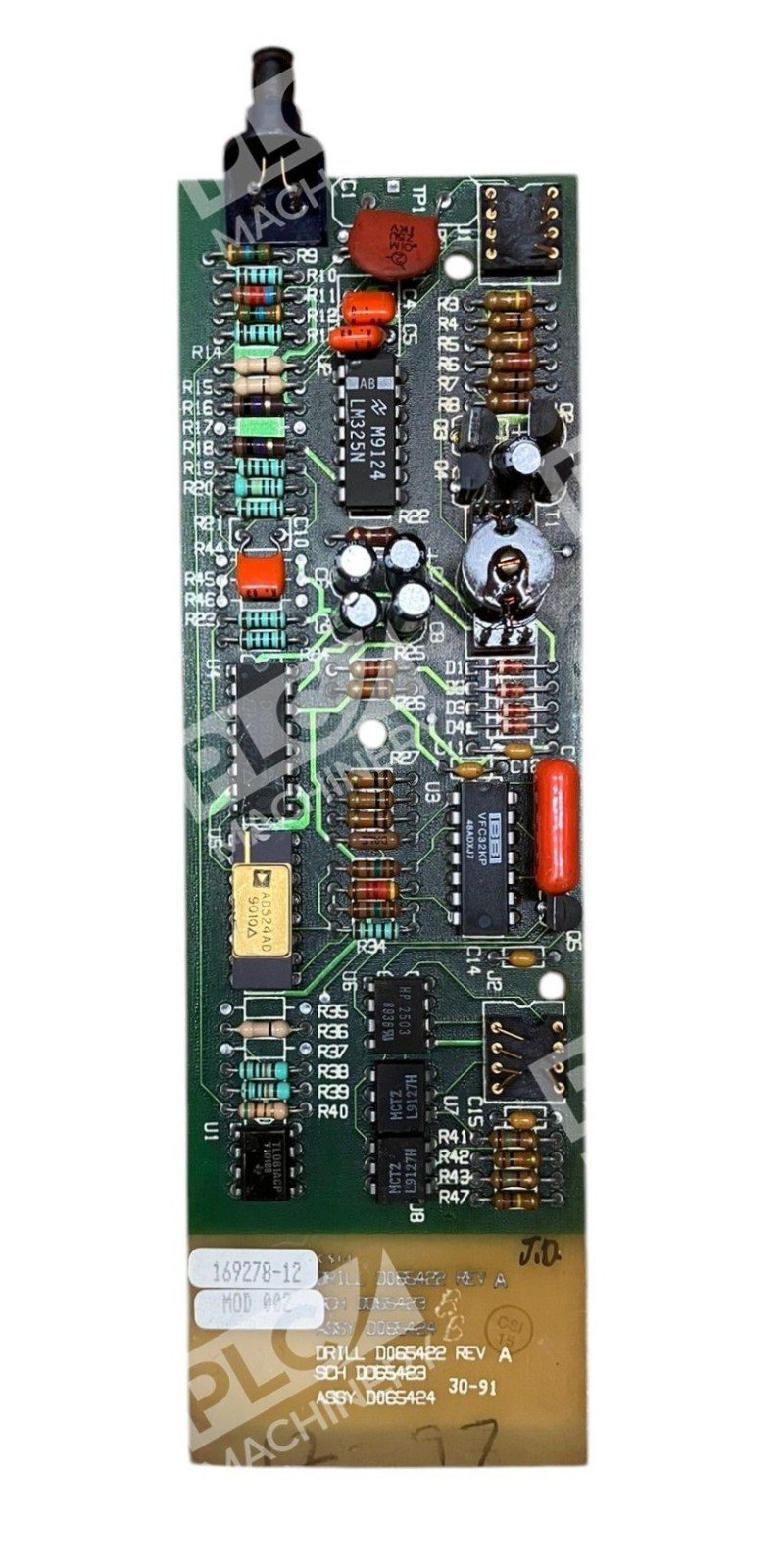

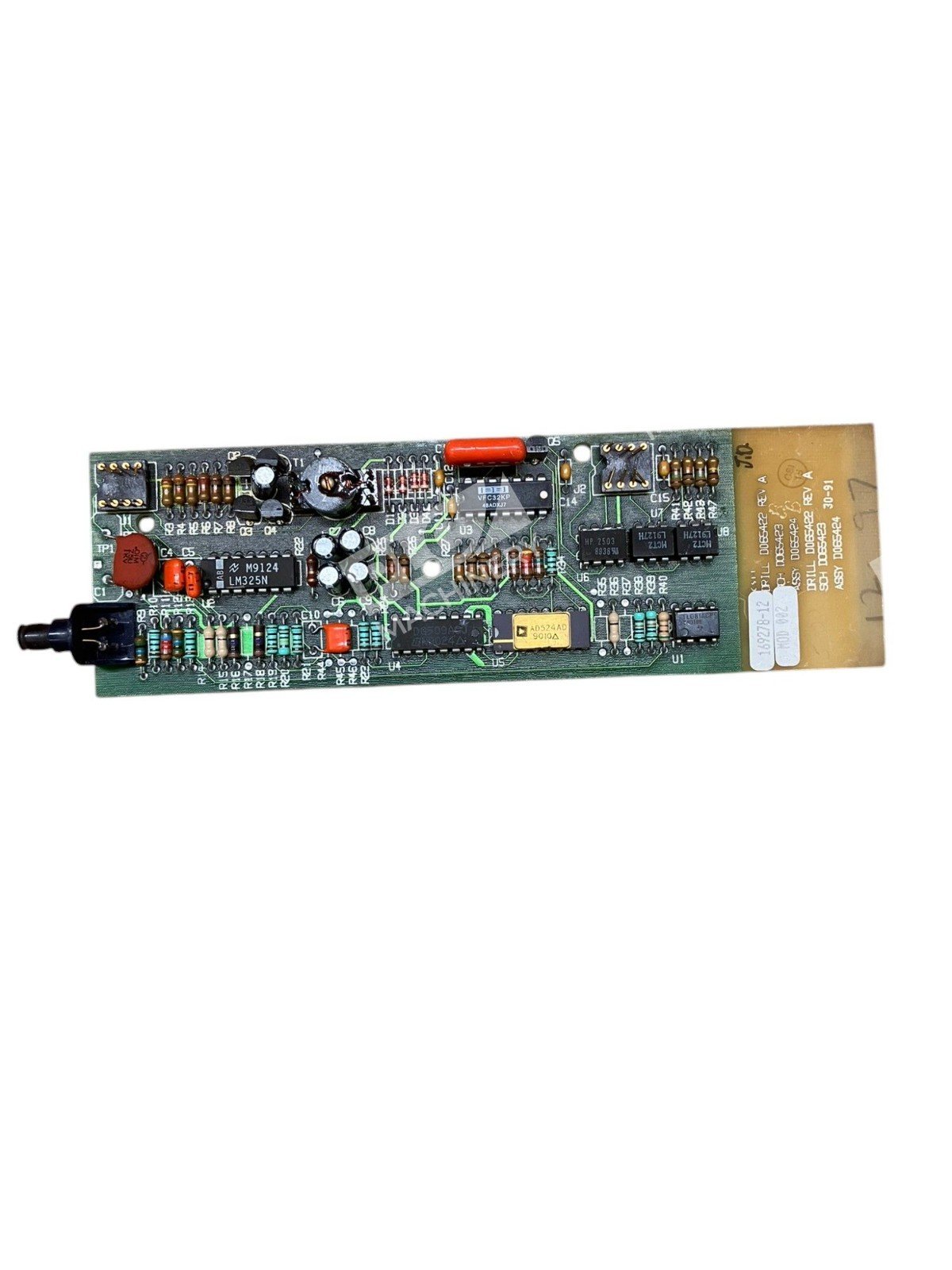

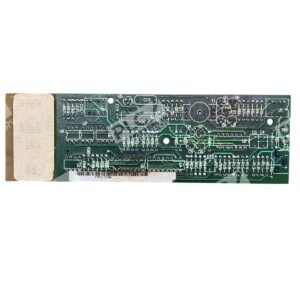

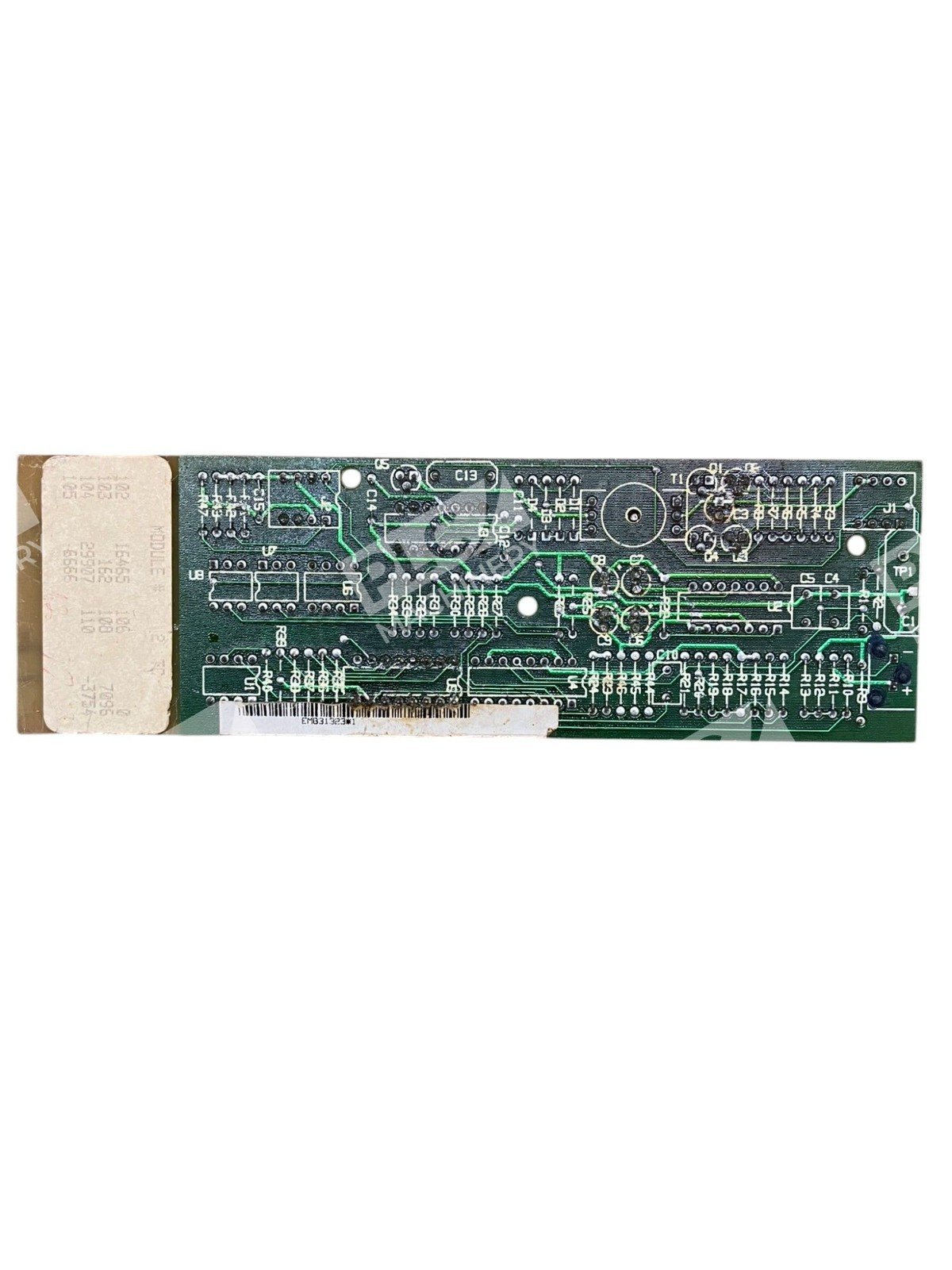

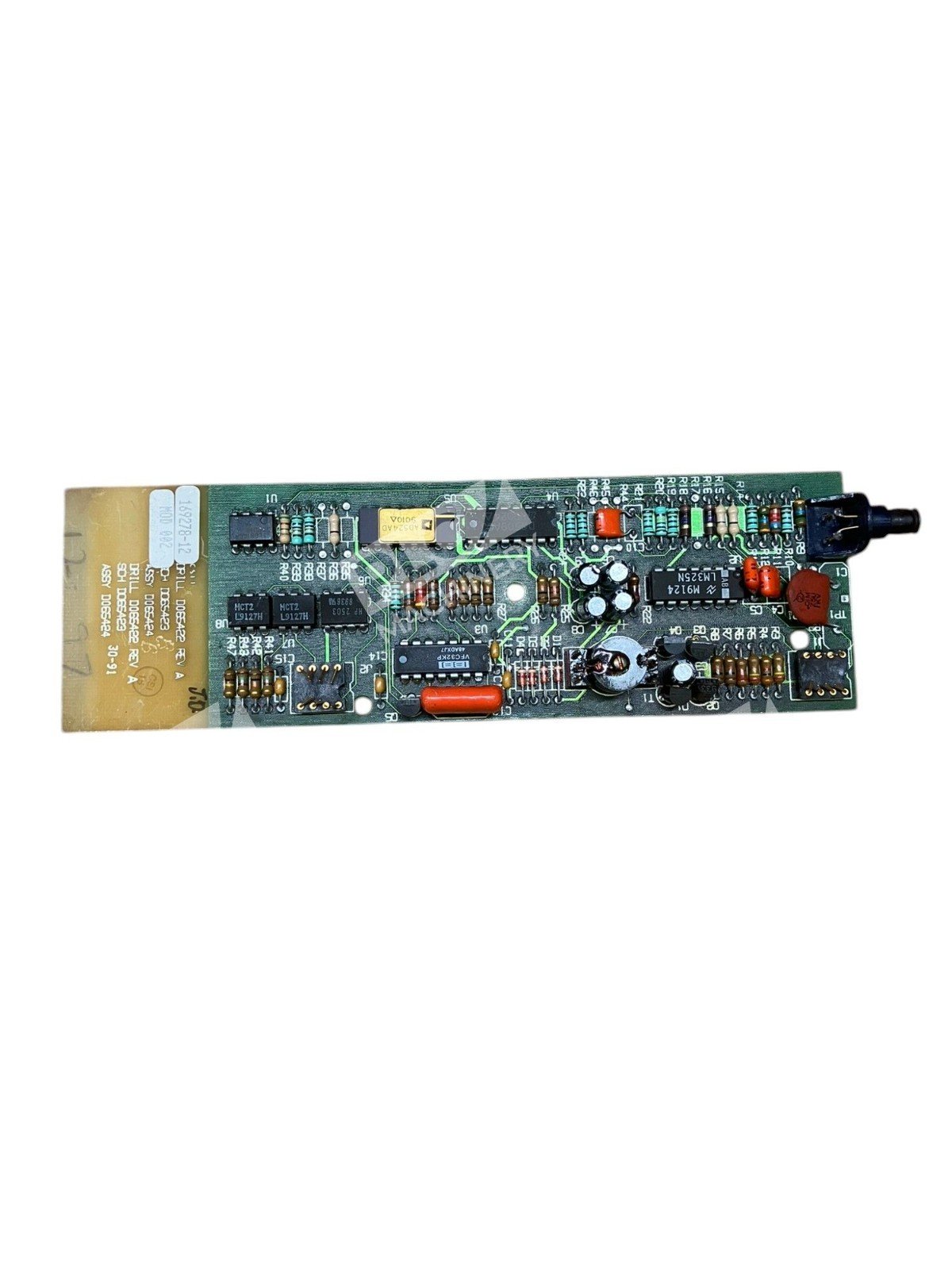

The Emerson EMB31323 furnace control board is a printed circuit board assembly engineered for HVAC and refrigeration system management. Designated as model 169278-12, this component provides reliable control logic for furnace ignition, heating cycle sequencing, and safety interlocks in residential and light commercial applications.
Key Features
- Furnace ignition and flame-sensing control
- Heating sequence management with timing logic
- Integrated safety shutdown circuits
- Thermostat integration and demand response
- Compact design for standard furnace mounting
- Reliable through-hole and surface-mount component design
Technical Specifications
- Manufacturer: Emerson
- Model Number: EMB31323

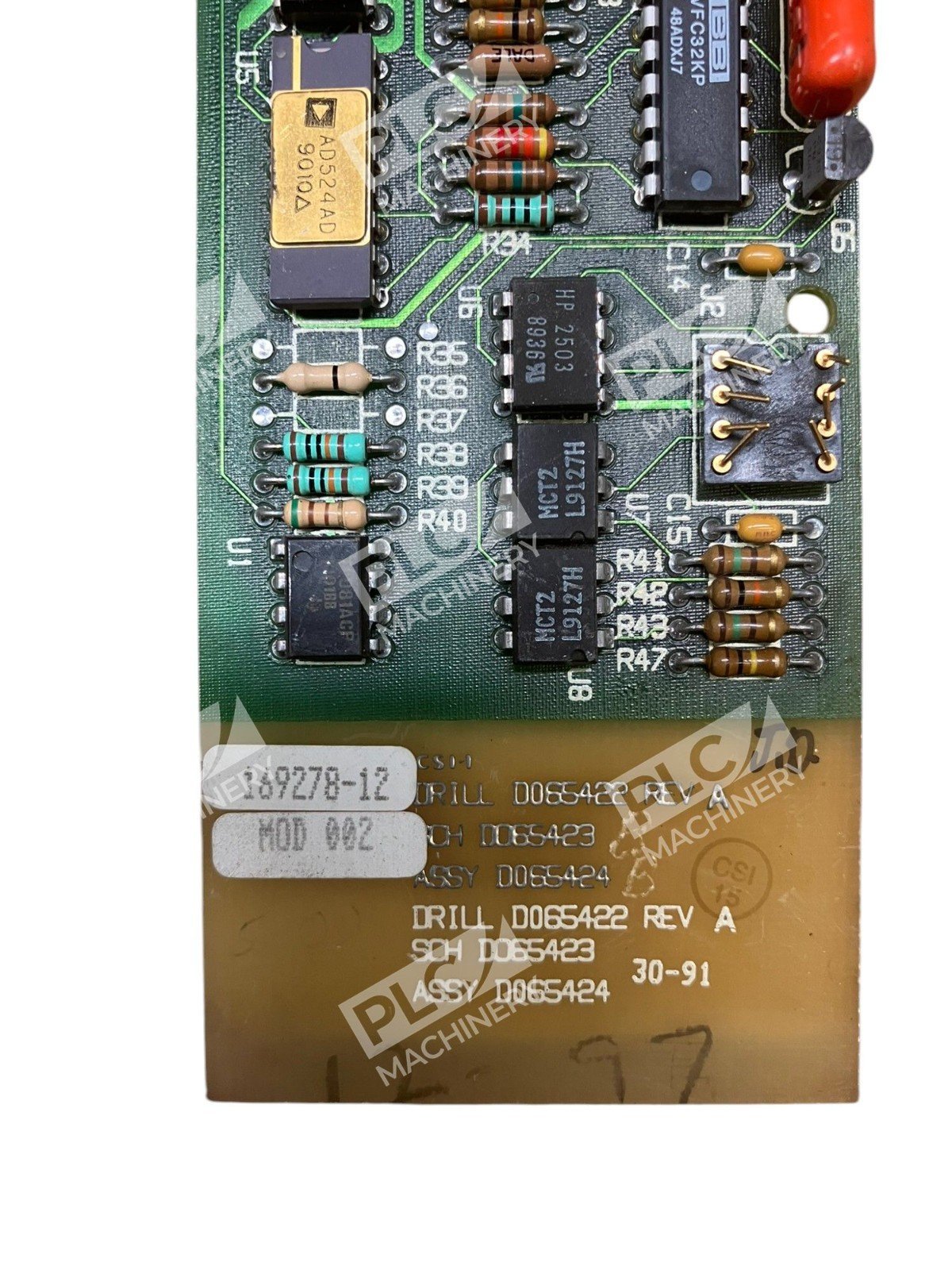

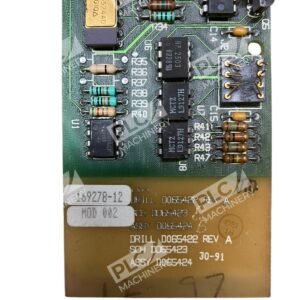

- Revision/Assembly: 169278-12
- Application: Furnace control and sequencing
- Form Factor: Standard PCB assembly with mounting bracket
- Certifications: UL/CSA (typical for HVAC controls)
Typical Applications
The EMB31323 control board is commonly used in:
- Gas furnaces (forced-air heating)
- Oil furnaces (burner management)
- Heat pump systems with auxiliary heating
- Rooftop packaged heating units
- Light commercial HVAC equipment
Compatibility & Replacements
Compatible With
- Emerson/Copeland furnace and heat pump systems
- Standard 24VAC thermostat control circuits
- Conventional burner and ignition modules
- Industry-standard safety relays and contactors
Replaces / Drop-In Replacement For
- Emerson 150-1096 (alternate designation)
- Original OEM furnace control assemblies matching EMB31323 footprint
- Verify exact mounting and connector compatibility before ordering
Works With
- 24VAC thermostat systems
- Conventional furnace control modules
- Standard HVAC diagnostic tools and test equipment
