Overview

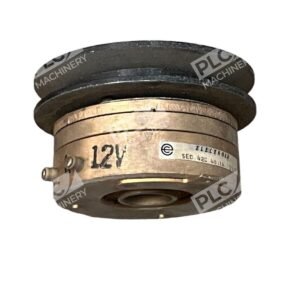

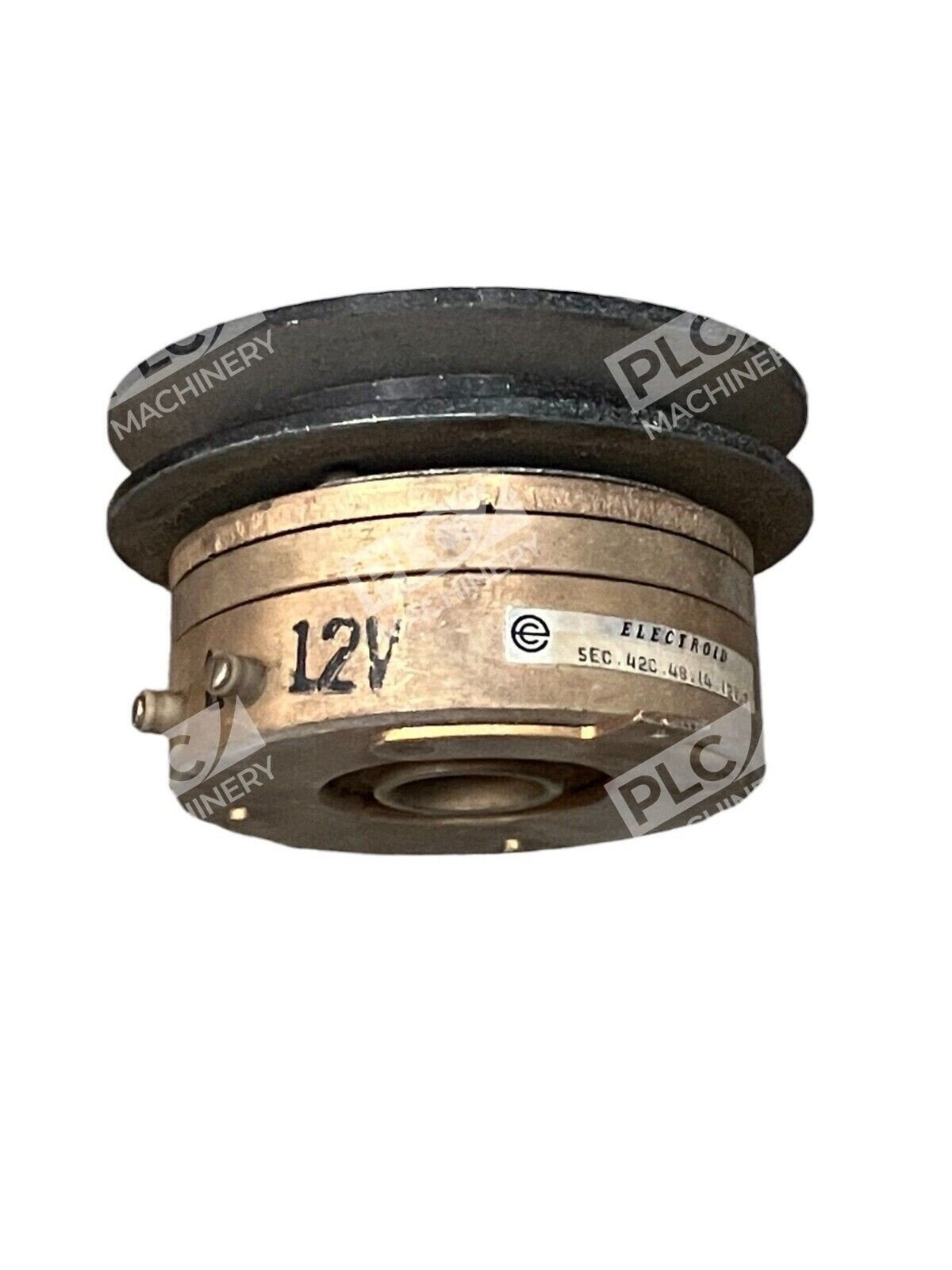

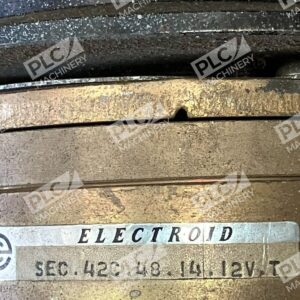

The Electroid SEC.42C.48.14.12V.T is a compact magnetic particle clutch brake engineered for precise engagement, disengagement, and torque control in industrial automation systems. This 12V electromagnetic clutch provides zero-backlash operation and is built for demanding production environments where reliable motion control and repeatable torque delivery are critical. Commonly used in conveyors, machinery automation, and controlled start/stop applications, this SEC series unit combines durability with precision engineering.
Key Features
- Magnetic particle engagement for smooth, controlled torque transfer
- Zero-backlash construction ensures precise positioning and repeatability
- Compact flange-mounted design for straightforward integration into existing equipment
- 12V DC operation suitable for low-voltage automation circuits
- Proven SEC series platform with broad industrial installed base
Technical Specifications
The following specifications are based on Electroid SEC-42C series datasheets:
- Torque Rating: 20.0 Ft-lbs (27.12 N-m)
- Maximum Speed: 5,000 rpm
- Engagement Type: Magnetic particle
- Operating Voltage: 12V DC
- Shaft Type: Parallel
- Mounting Style: Flange
- Diameter: 4.25 inches (108 mm)
- Length: 3.32 inches (84.33 mm)
- Weight: 5.5 lbs (2.49 kg)
- Backlash: Zero-backlash design
- Condition: Used, tested and fully operational
Typical Applications
- Conveyor belt systems and material handling equipment
- Printing presses and paper machinery
- Automated assembly lines and production machinery
- Textile machinery and thread winding systems
- Packaging equipment requiring precision start/stop control
- Machine tool and CNC equipment spindle control
Compatibility & Replacements
Compatible With
- 12V DC control circuits and relay-based automation systems
- Industrial machinery with parallel-shaft flange mounting
- Legacy and modern automation equipment using magnetic particle clutches
- Precision motion control applications requiring zero-backlash engagement
Replaces / Drop-In Replacement For
The Electroid SEC.42C.48.14.12V.T is functionally equivalent to other SEC-42C variants with 12V ratings. For specific cross-reference information, verify compatibility with your system integrator before ordering, particularly if replacing a different voltage variant (90V models are more common in the field).
Works With
- 12V DC power supplies and industrial control panels
- Relay logic and PLC-based control systems
- Pneumatic and hydraulic drive systems requiring electromechanical clutch engagement
- Mechanical power transmission applications using flange-mounted couplings
