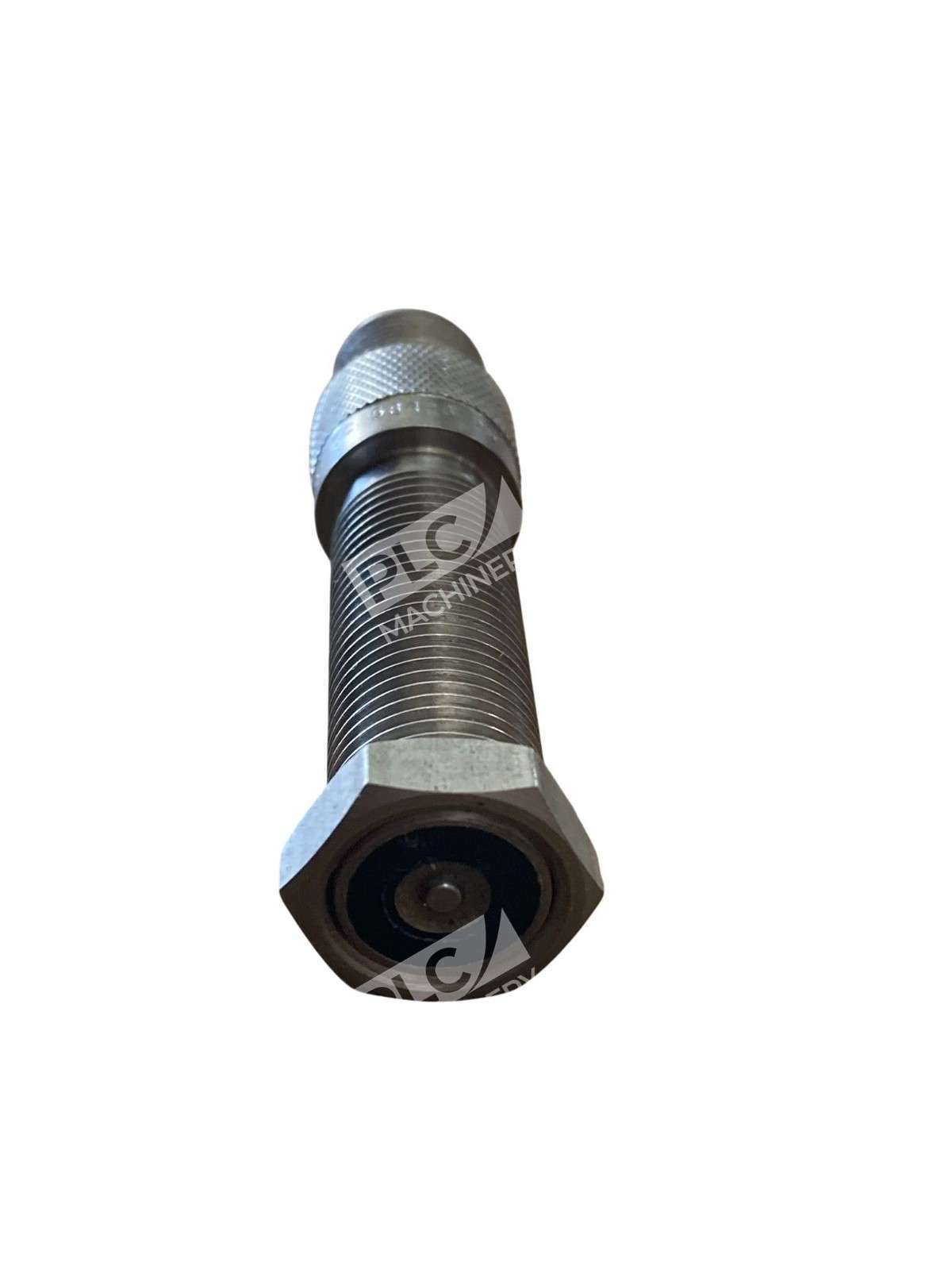

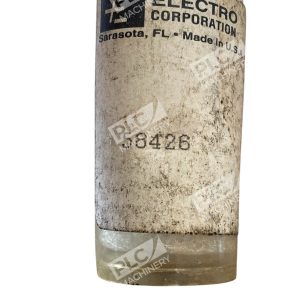

Overview

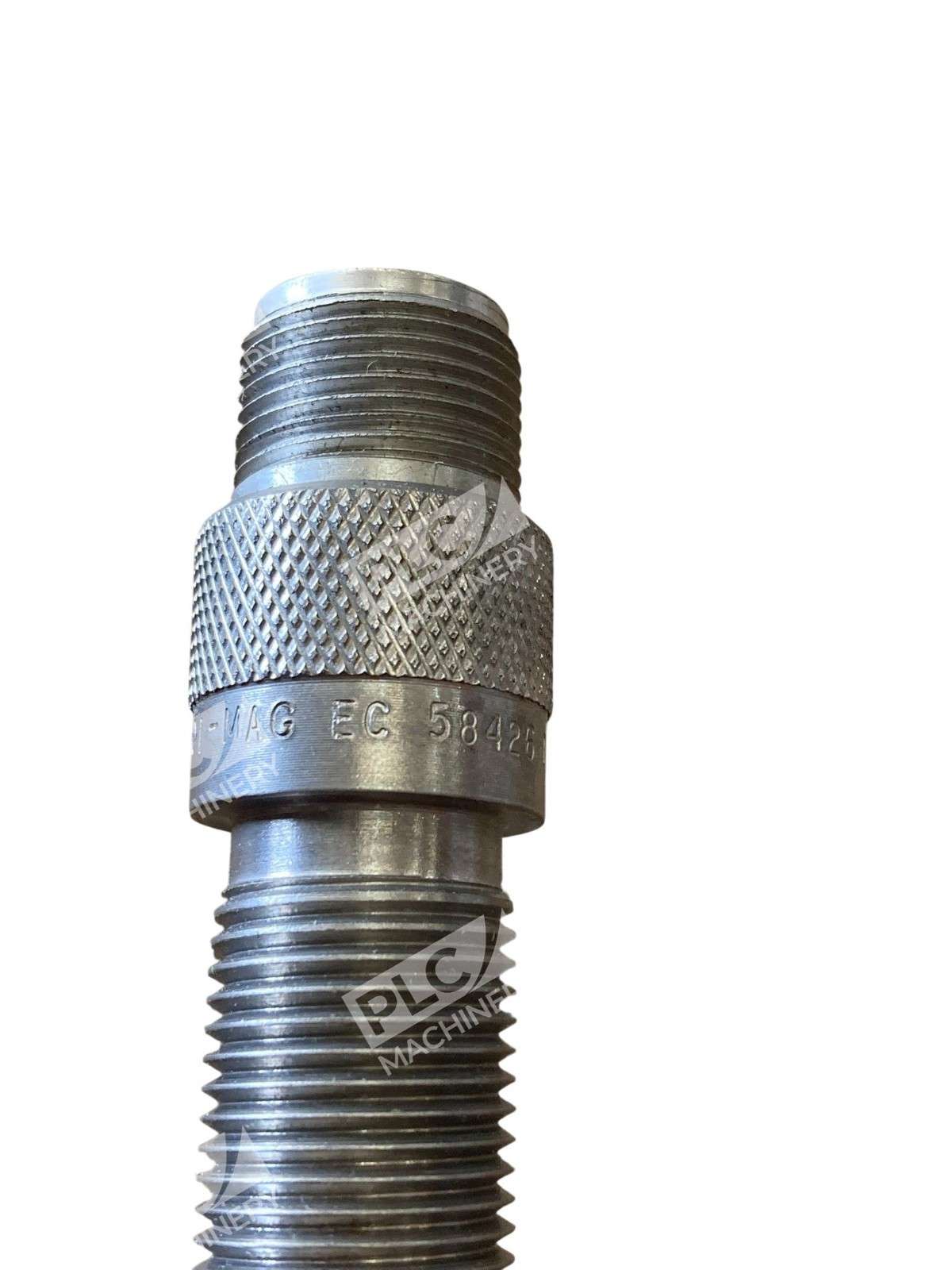

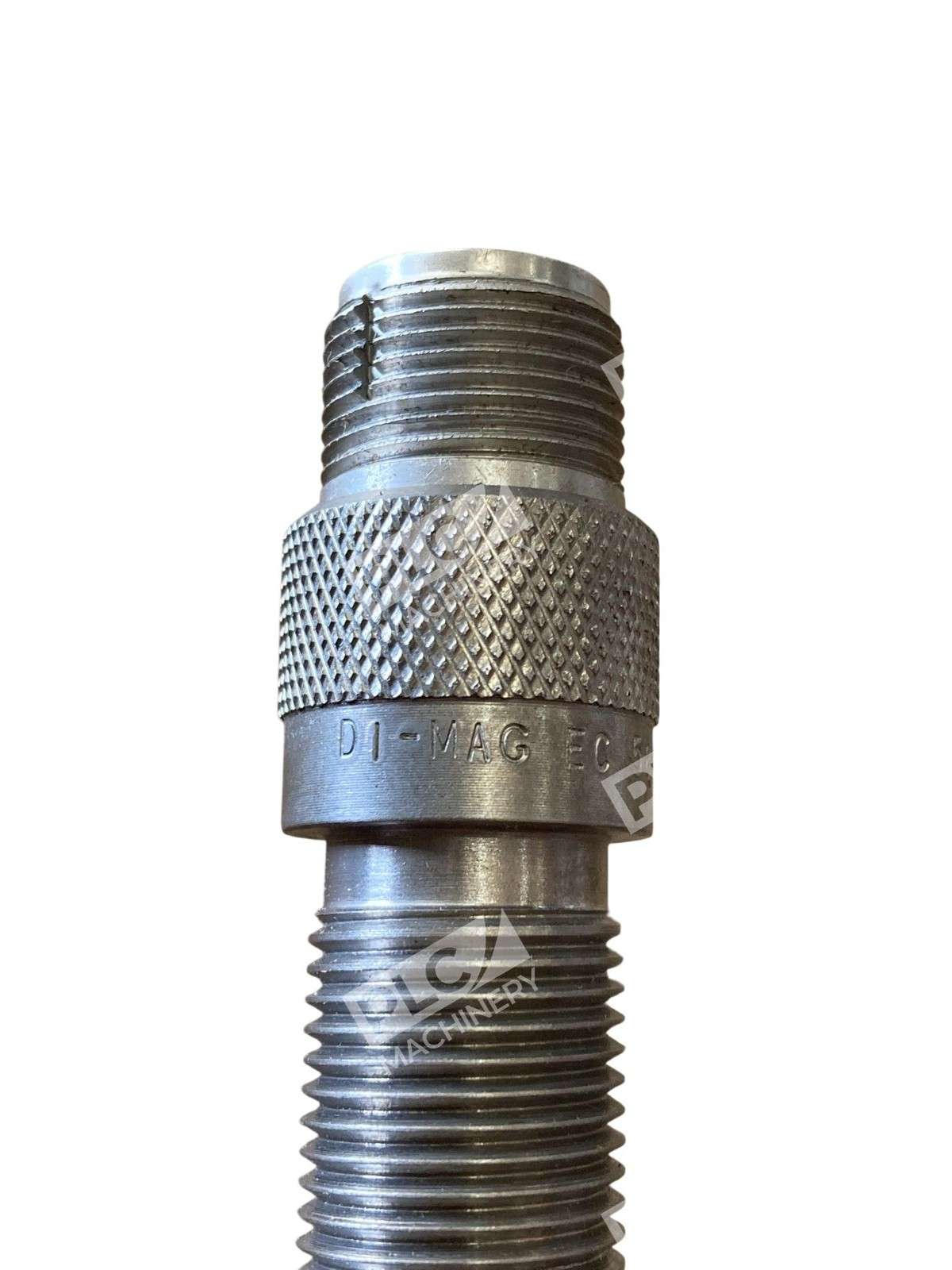

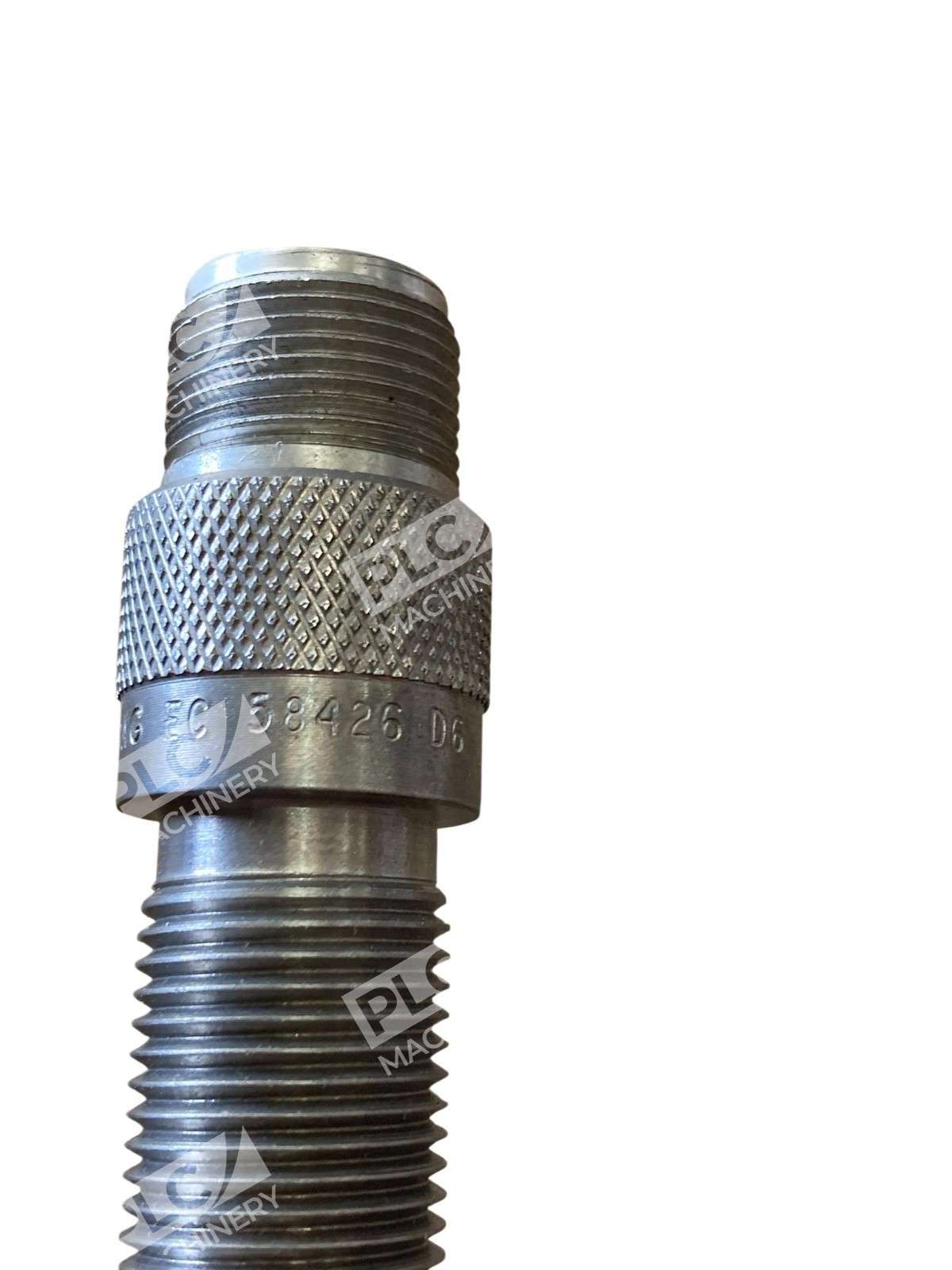

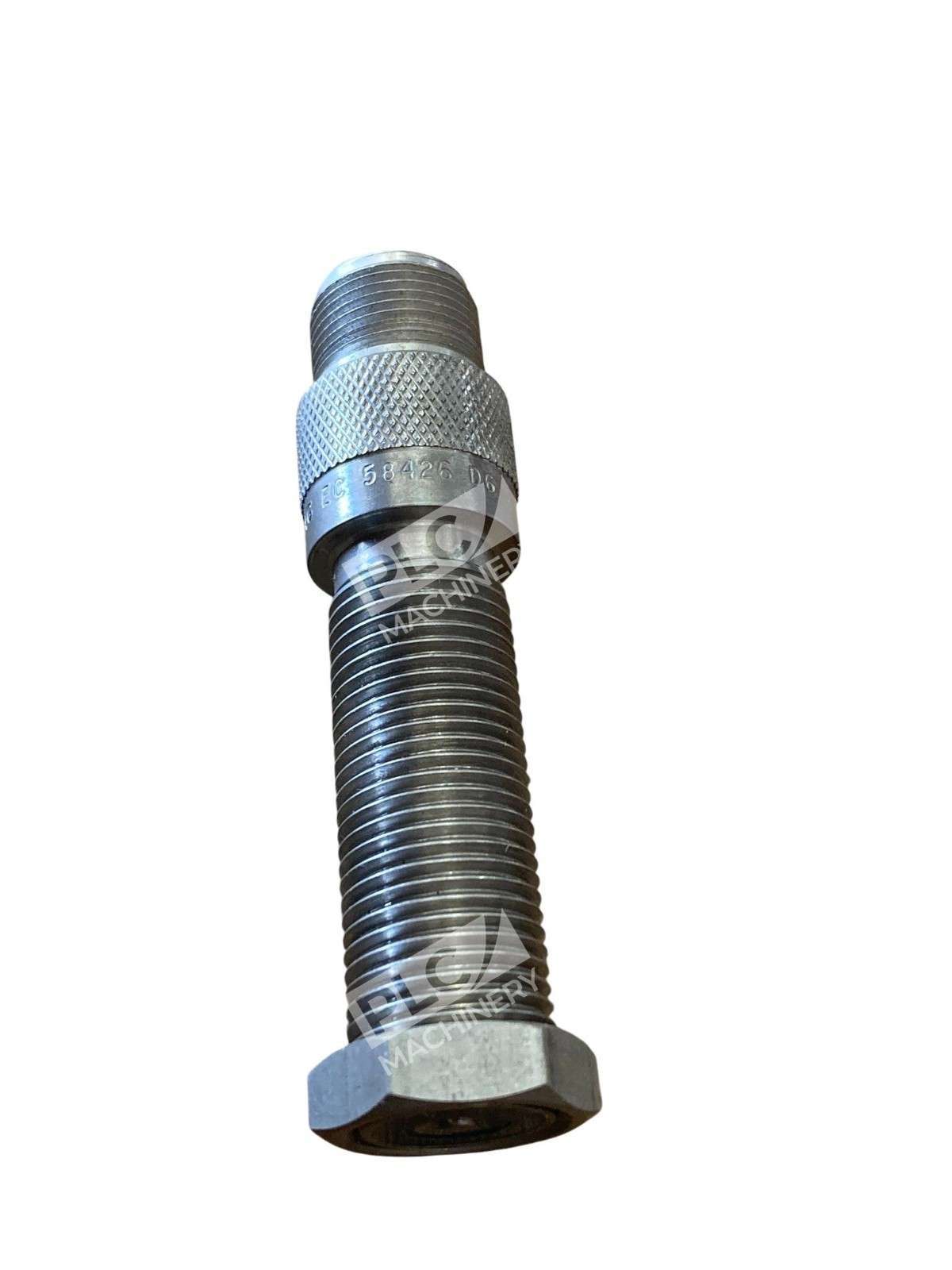

The Honeywell 58426 digital magnetic speed sensor is a precision variable reluctance sensor (VRS) designed for aerospace and industrial speed measurement applications. This sensor combines active electronics with traditional variable reluctance principles in a compact package, delivering a digital square-wave output suitable for immediate integration into control systems.
Key Features
- Internal Signal Conditioning – Converts analog waveforms to digital signals internally, eliminating the need for external interface circuitry
- Constant-Amplitude Output – Produces stable square-wave signals ideal for digital and logic control applications
- Variable Reluctance Design – Detects ferrous gear teeth or encoded targets without external power to the sensing element

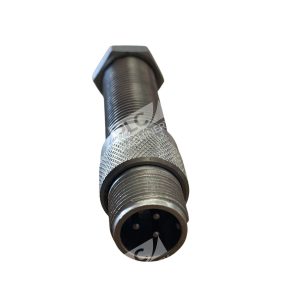

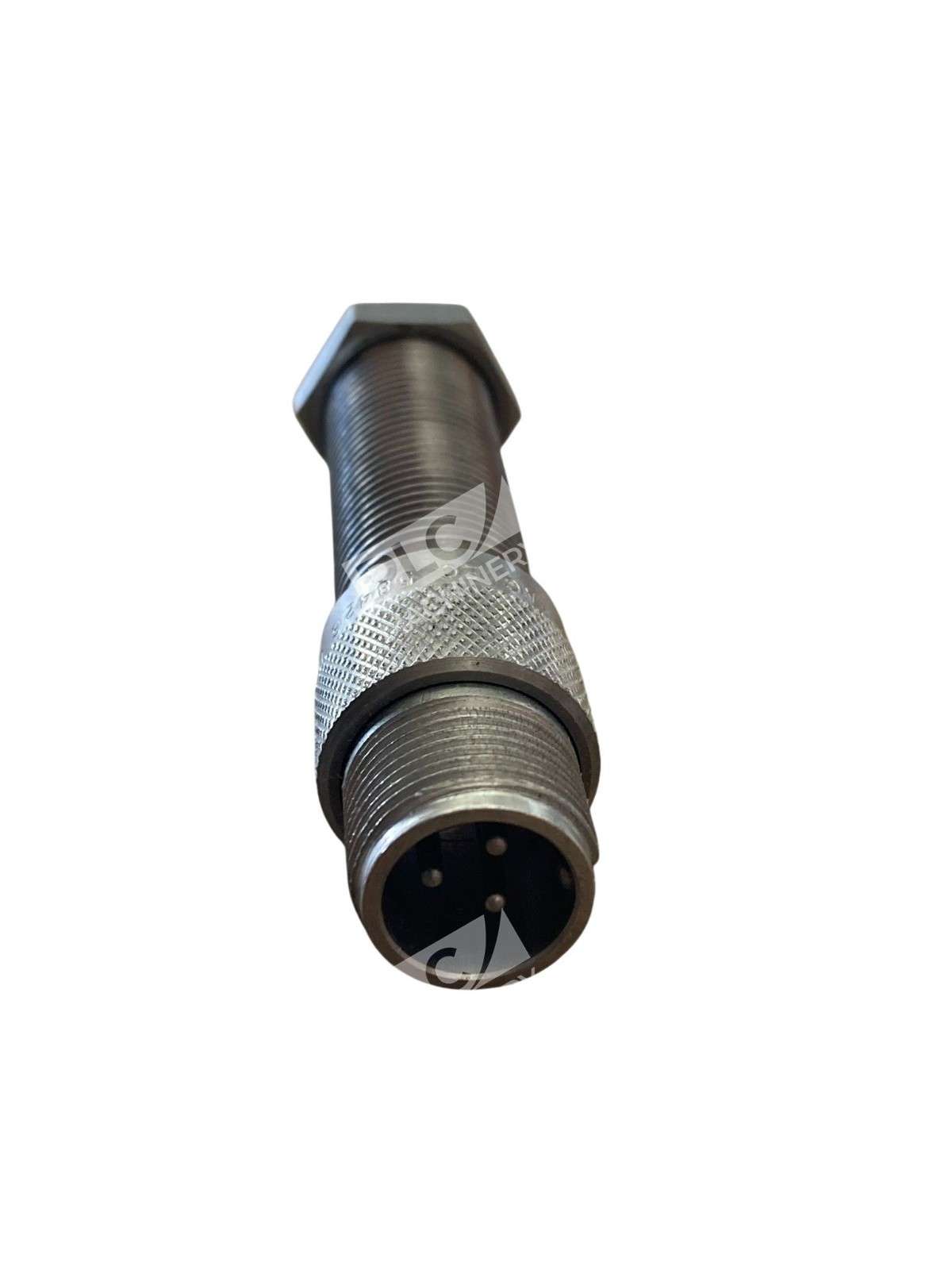

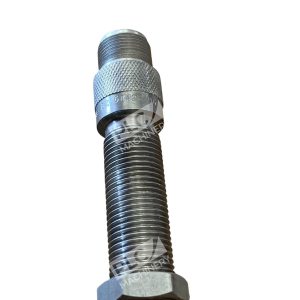

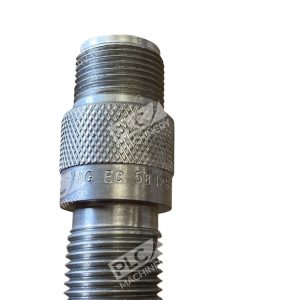

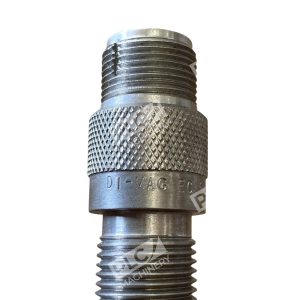

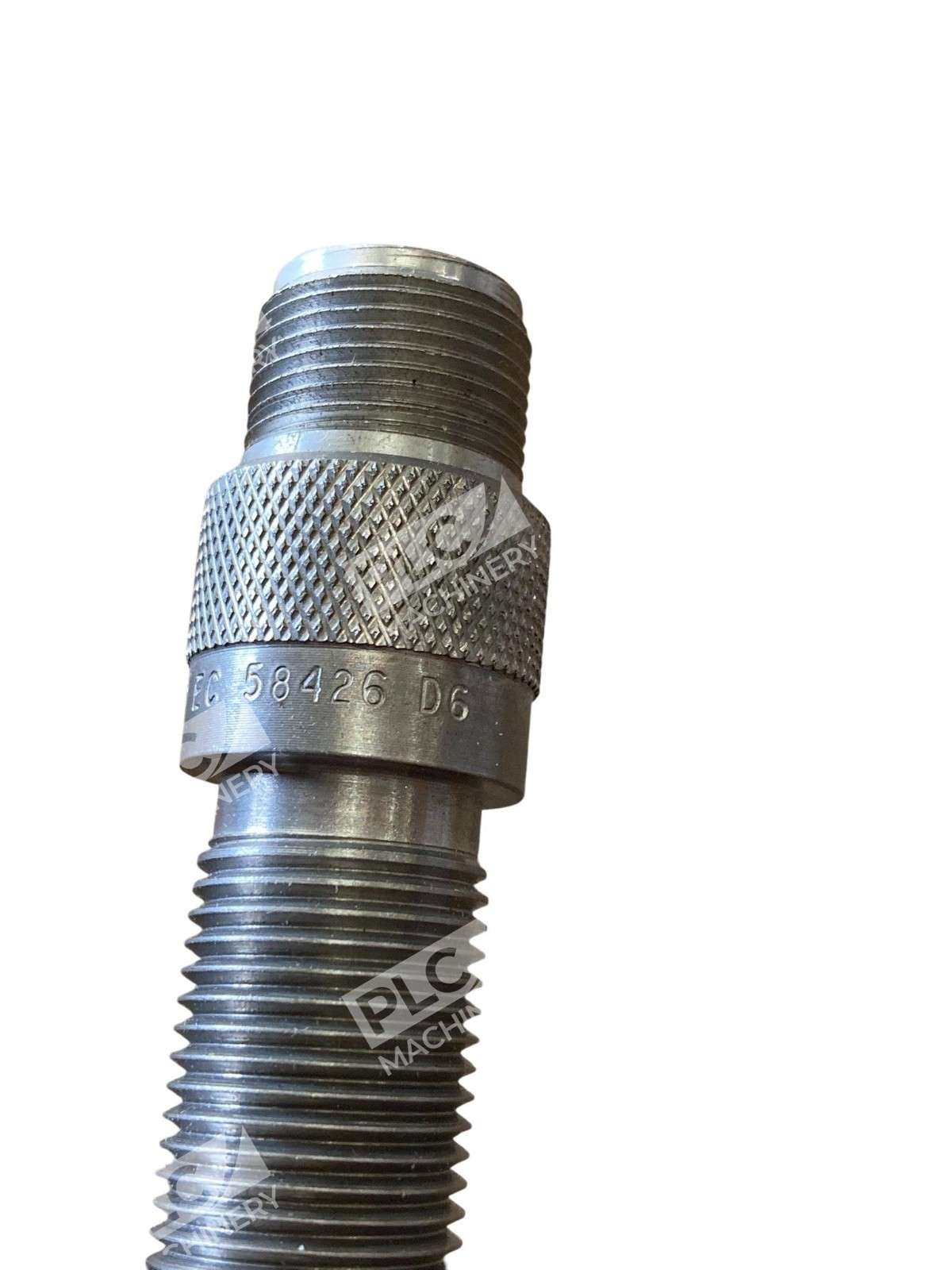

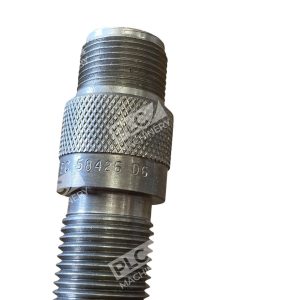

- Connector or Cable Termination – Available with leads or MS3106A connector for aerospace environments
- Wide Supply Voltage Range – 5 to 15 Vdc operation with minimal current draw

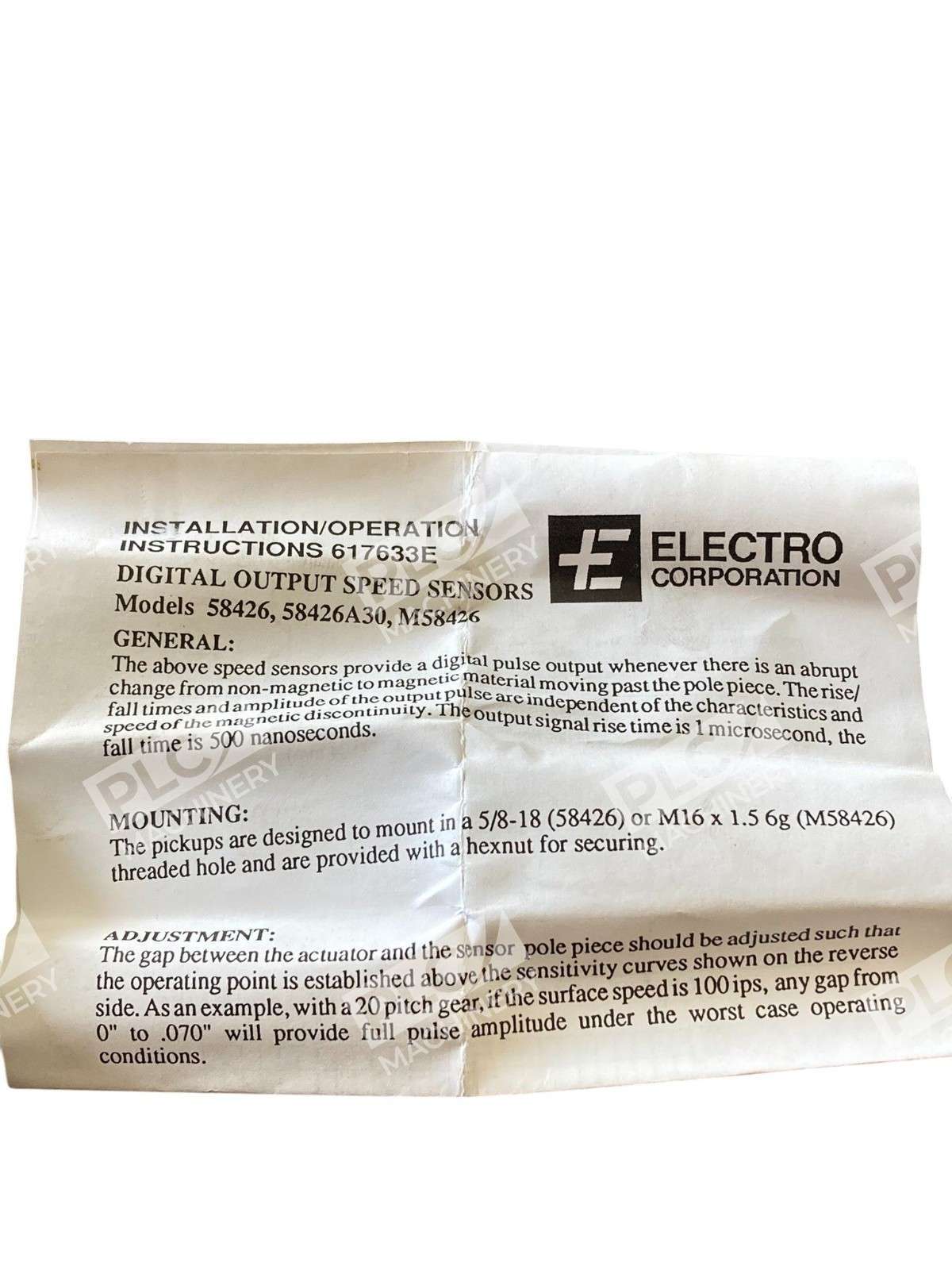

Technical Specifications
- Supply Voltage: 5 to 15 Vdc (0.13 mA typical at 10 V no load)
- Output Type: Digital square-wave
- Sensor Type: Variable Reluctance (VRS)
- Housing Diameter: 15.87 mm (0.562 in)
- Operating Temperature Range: –40°C to +107°C (–40°F to +225°F)
- Series: 584XX Series
- Aerospace Certified: Suitable for aerospace applications
Typical Applications
- Aircraft engine speed monitoring and tachometer systems
- Gas turbine speed feedback and control
- Helicopter rotor speed measurement
- Industrial motor and gearbox monitoring
- Rotating equipment diagnostics and protection
- Frequency-based control and synchronization circuits
Compatibility & Replacements
Compatible With
- Aerospace and general-purpose digital control systems requiring VRS speed input
- Frequency counters and tachometer displays
- Engine control units (ECUs) with variable reluctance sensor inputs
- PLC and industrial control systems with digital sensor modules
- Systems designed for 5 to 15 Vdc variable reluctance sensors
Replaces / Drop-In Replacement For
- Honeywell 58423LV (lower-speed variant)
- Honeywell 58424LV (intermediate-speed variant)
- Other Honeywell 584XX Series models with identical mounting and connector interfaces
Works With
- Honeywell 584XX Series ecosystem
- Systems using MS3106A-10SL connector termination
- Digital frequency measurement and control circuits
- Cable-based installations (1651 mm / 65 in or 2007 mm / 79 in variants)
