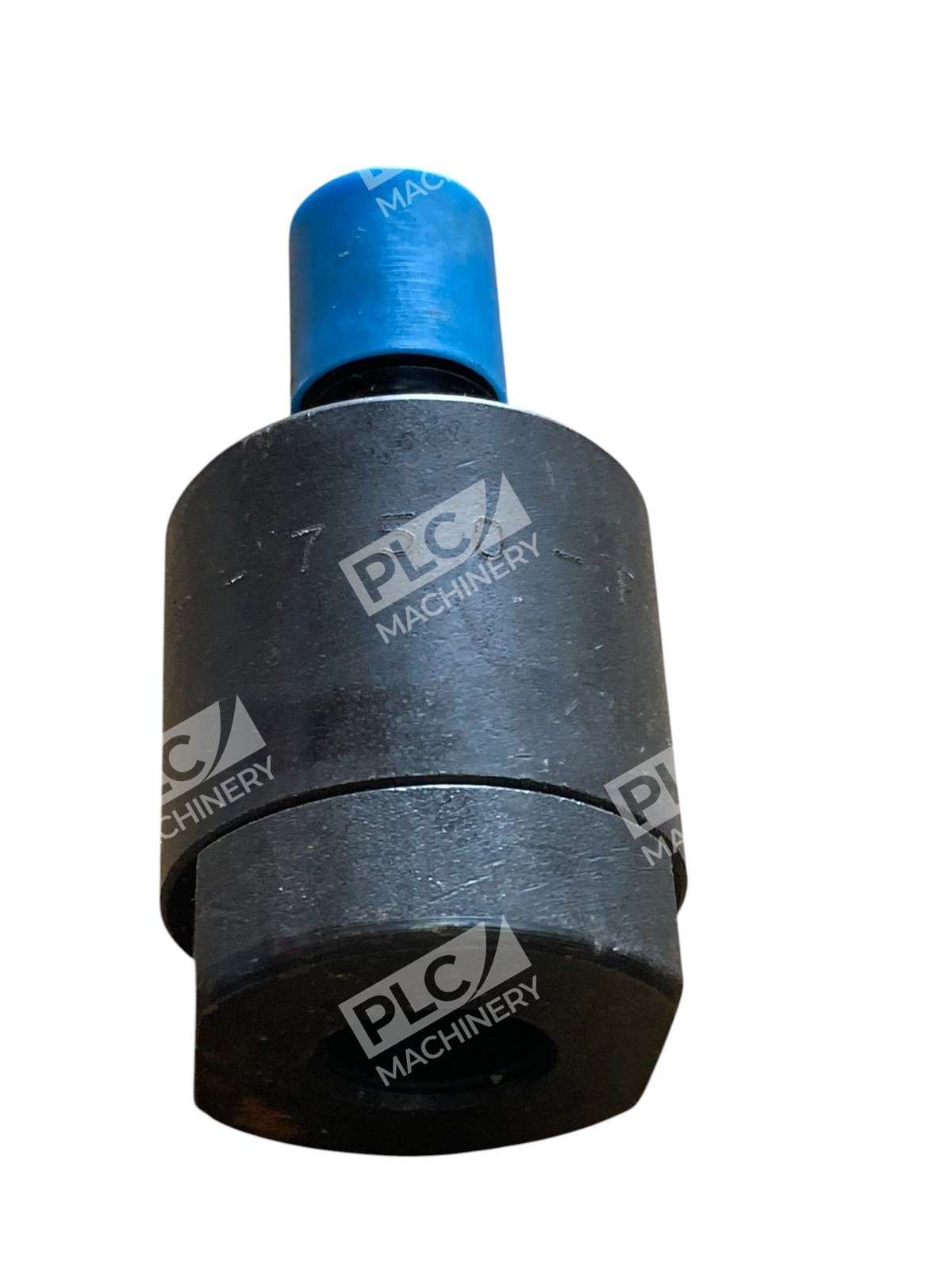

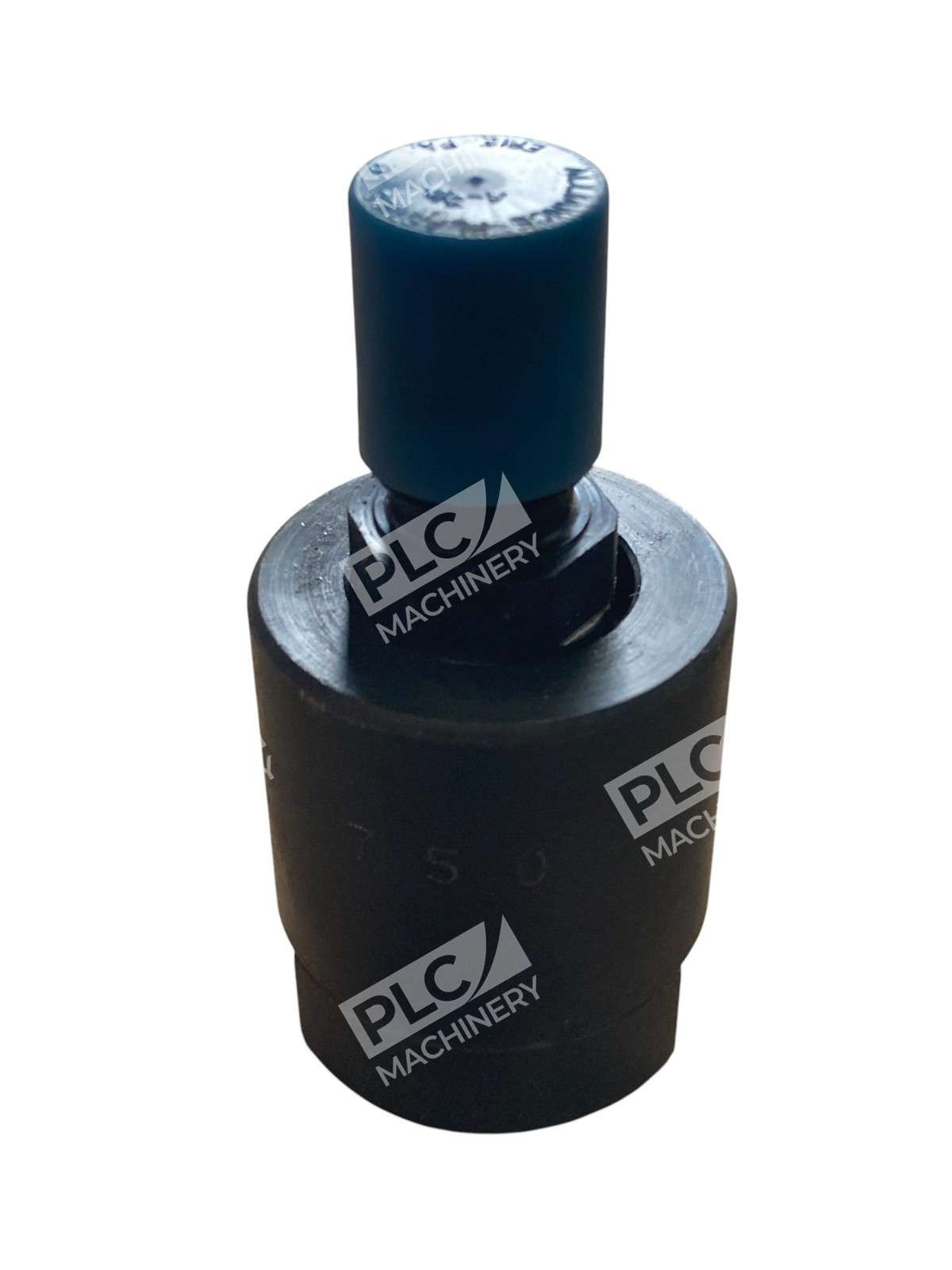

E&E EAC-750-F Self-Aligning Coupler
The E&E EAC-750-F Self-Aligning Coupler is engineered to enhance the performance and longevity of hydraulic and pneumatic systems by addressing misalignment issues between connected components. This coupler is particularly beneficial in applications where precision alignment is challenging or where components are subject to movement during operation.
Key Features
- Compensation for Misalignment: The EAC-750-F is designed to accommodate up to 2° of angular misalignment and 1.6 mm of lateral misalignment during both push and pull strokes. This capability reduces the stress and wear on connected components, leading to improved system reliability.
- Enhanced Efficiency: By mitigating friction caused by misalignment, the coupler increases the efficiency of cylinders and other connected machinery, ensuring smoother operation and reduced energy consumption.
- Durable Construction: Constructed from high-quality steel, the EAC-750-F offers robust performance and durability, making it suitable for demanding industrial environments.
- Simplified Installation: The self-aligning design simplifies the installation process by eliminating the need for precise alignment during assembly, saving time and reducing the potential for installation errors.
Specifications
- Thread Size: 3/4-16
- Weight: Approximately 3 lbs
- Dimensions: 7″ (Length) x 7″ (Width) x 4″ (Depth)
The E&E EAC-750-F Self-Aligning Coupler is an essential component for systems requiring reliable and efficient compensation for misalignment, thereby enhancing overall system performance and reducing maintenance needs.
