Overview

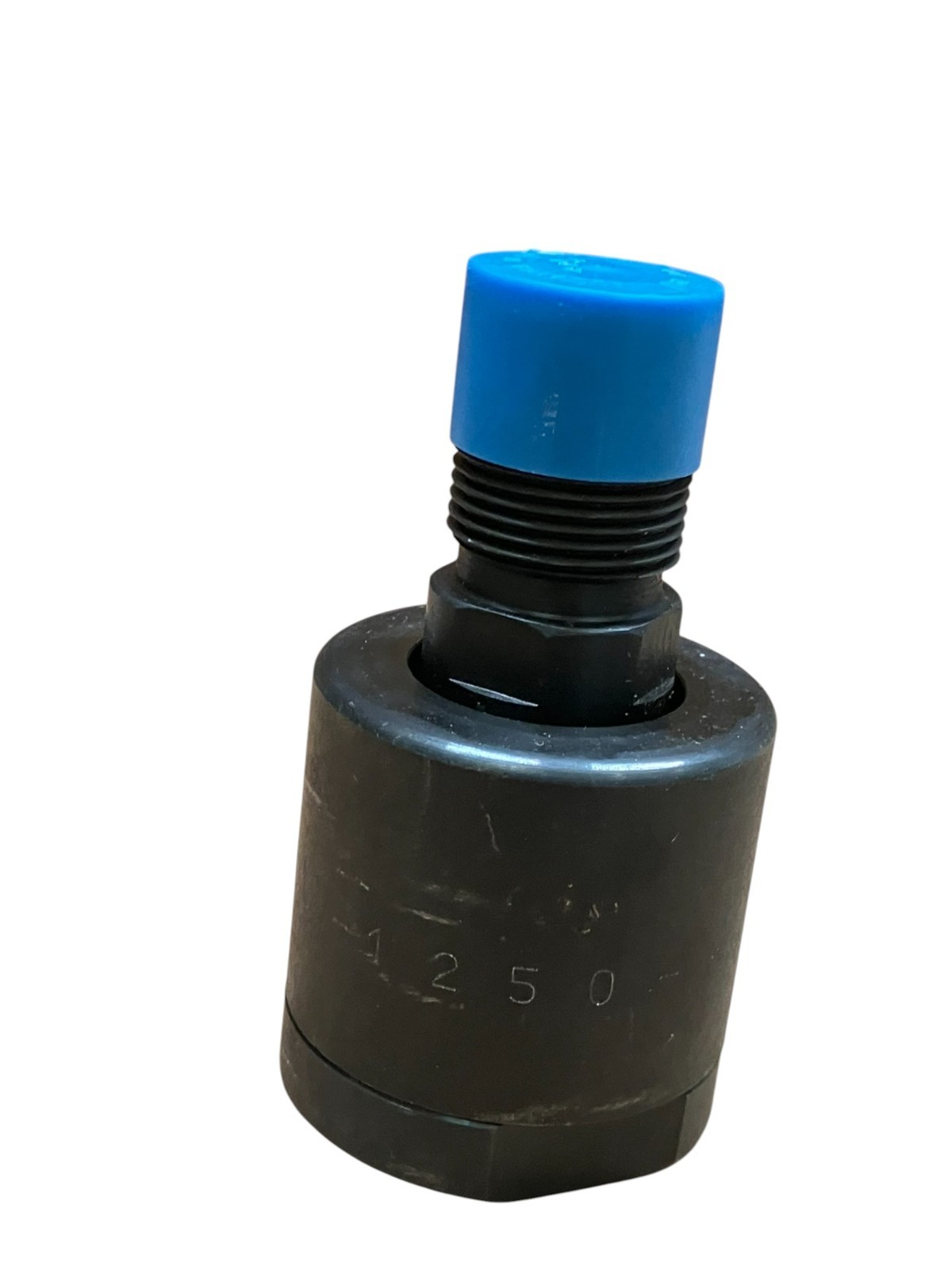

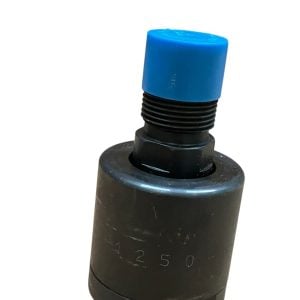

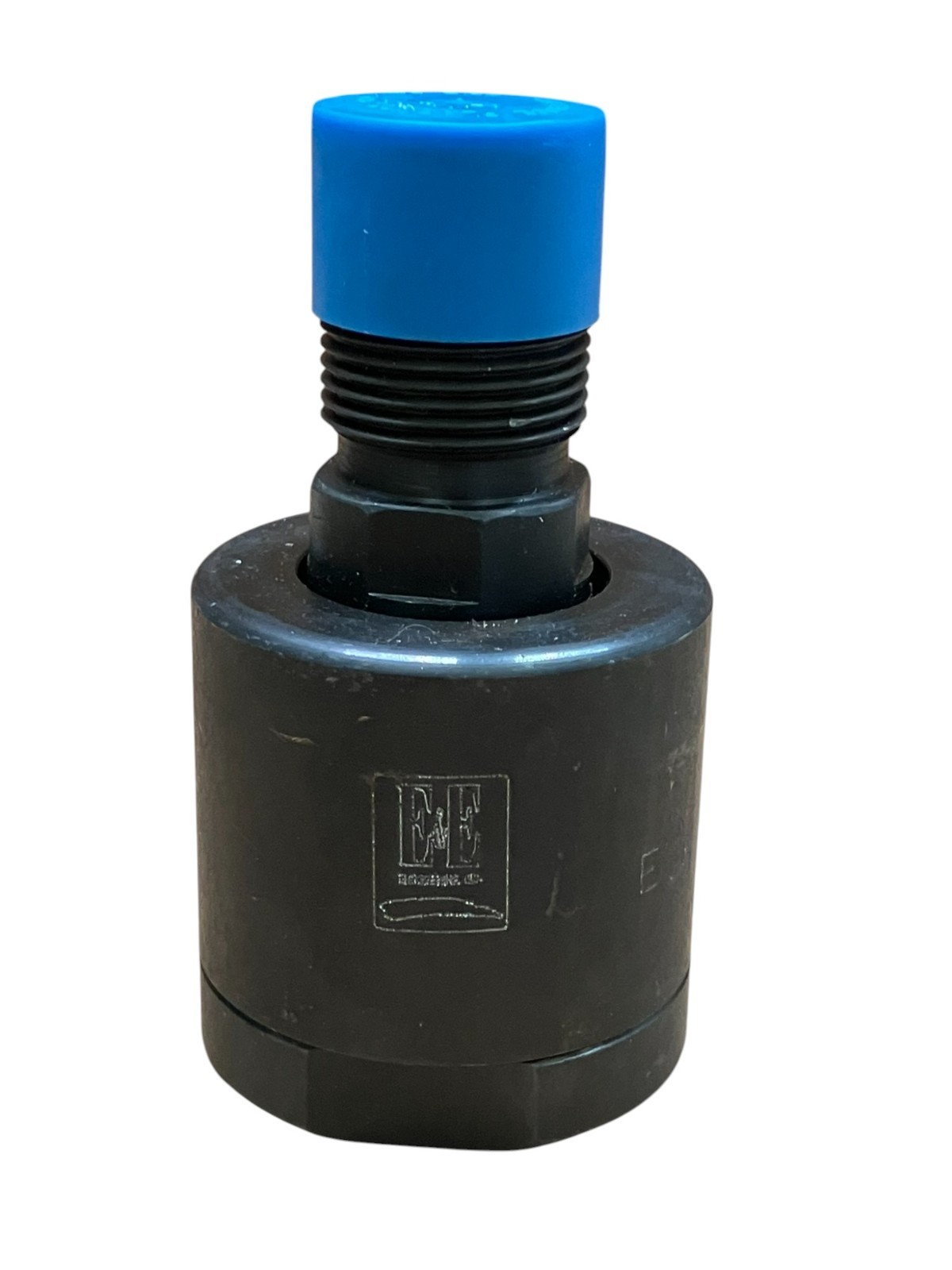

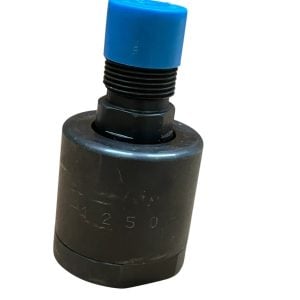

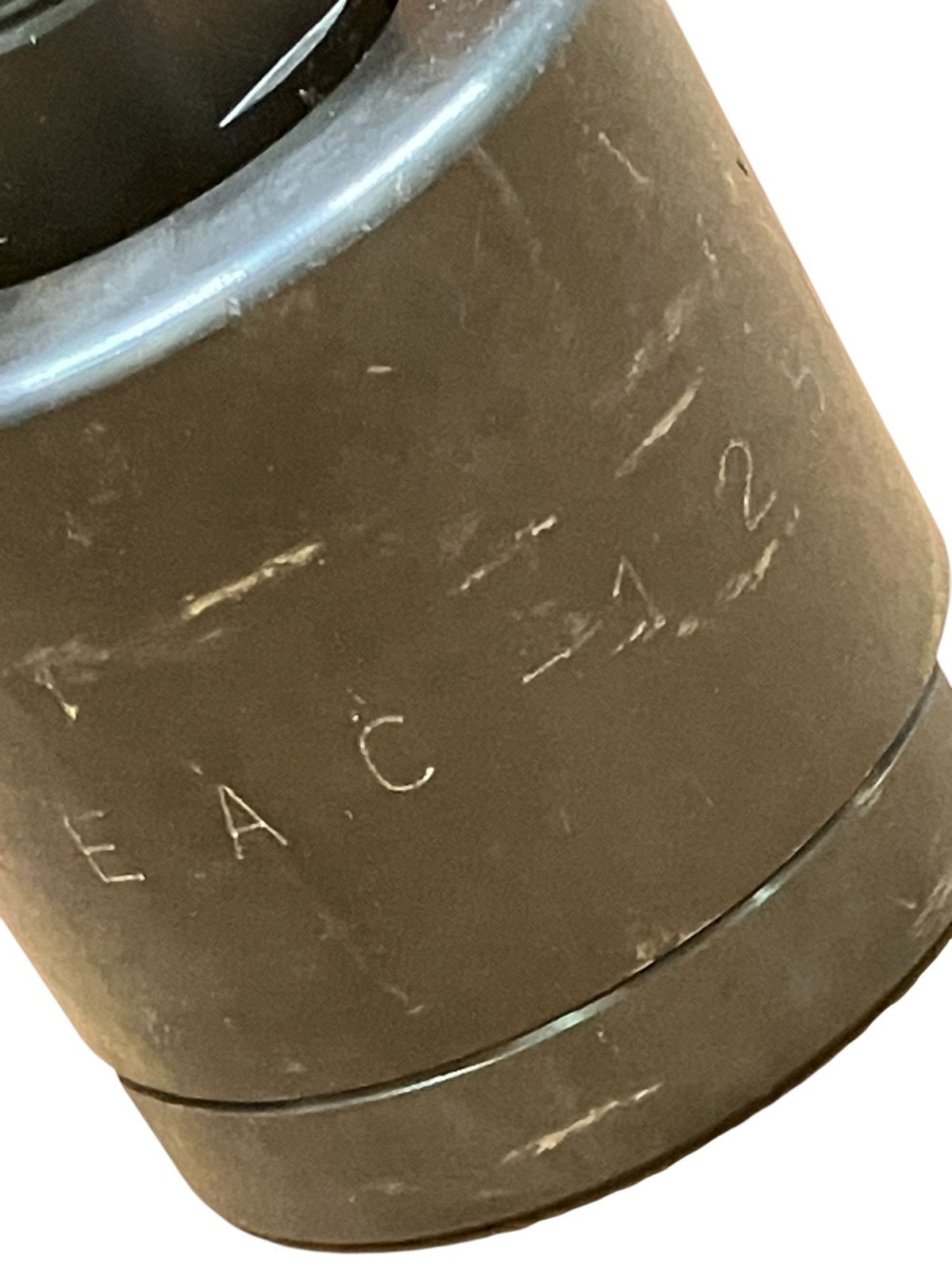

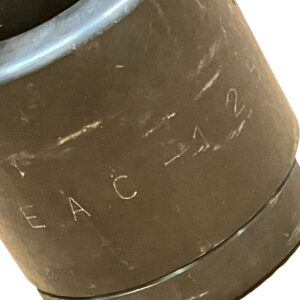

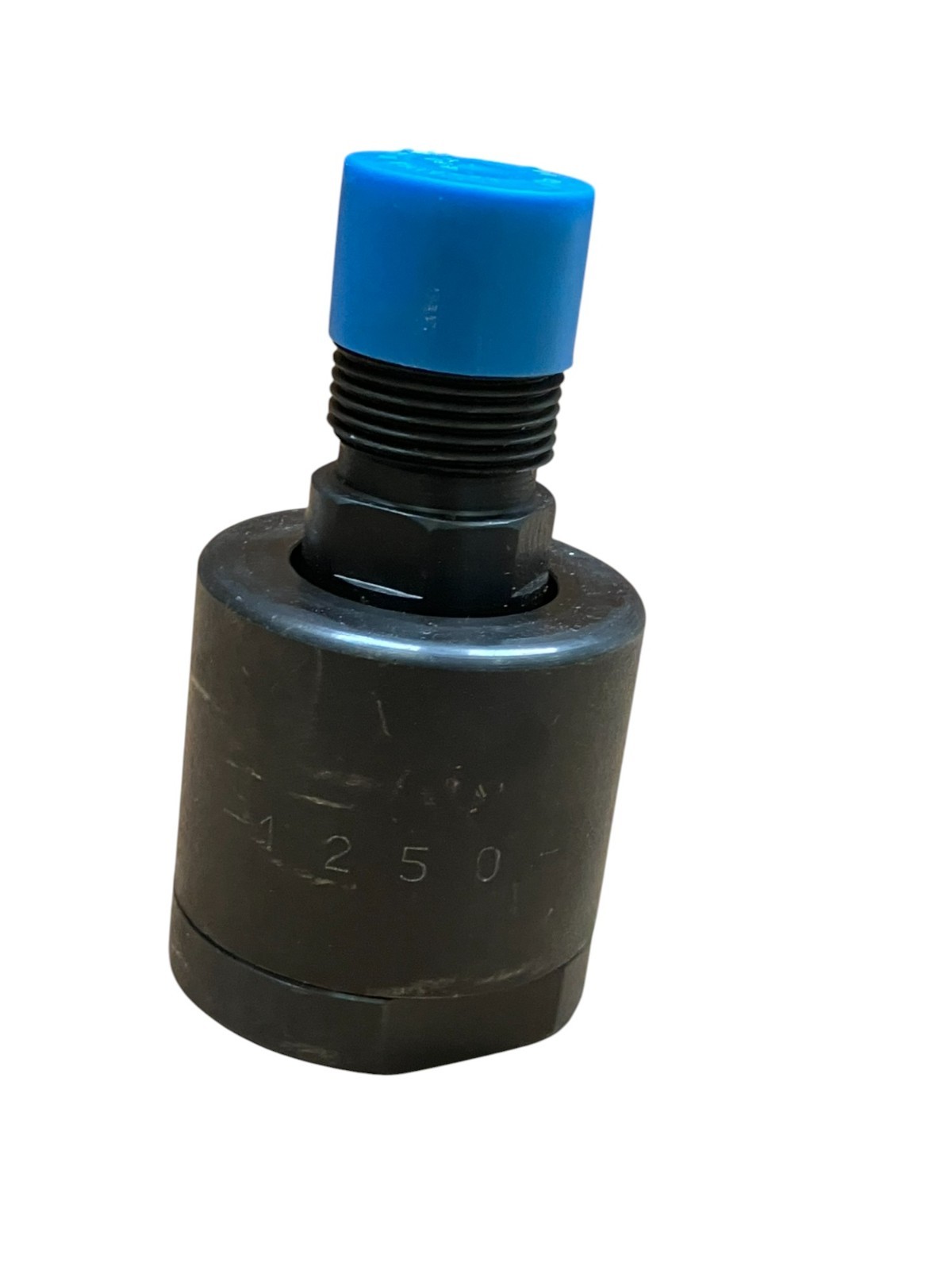

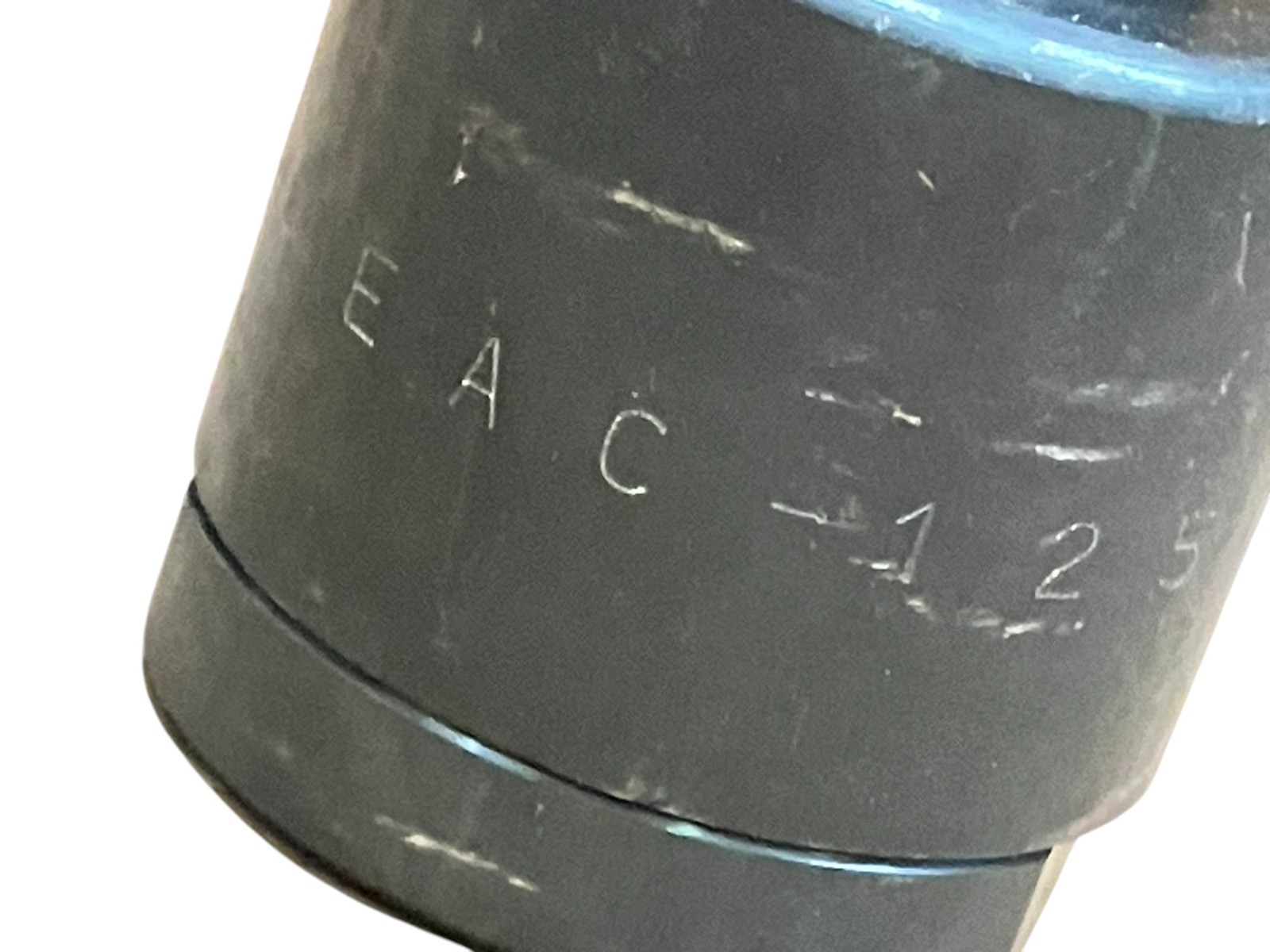

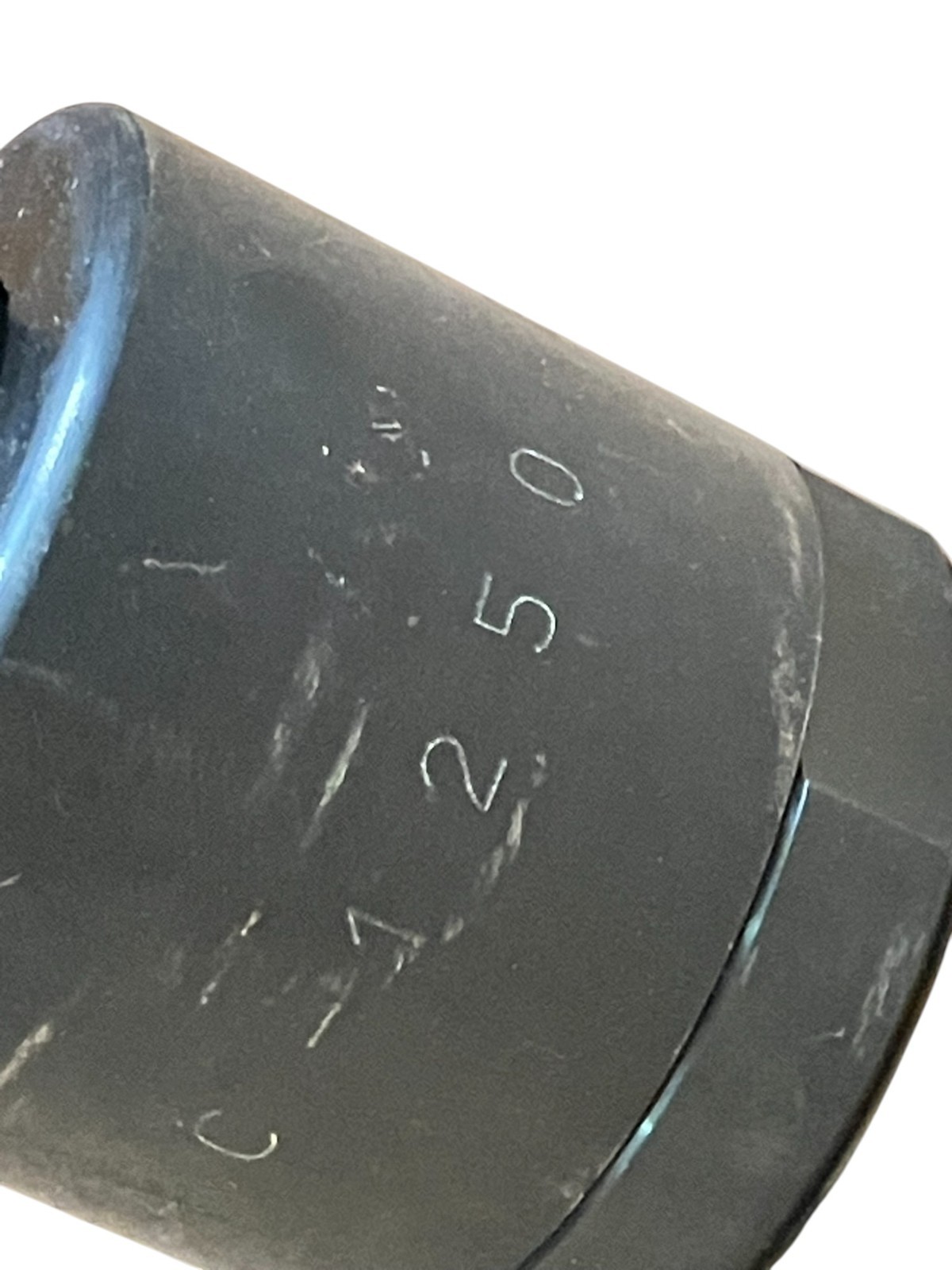

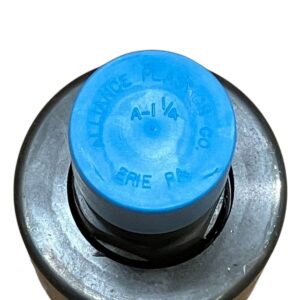

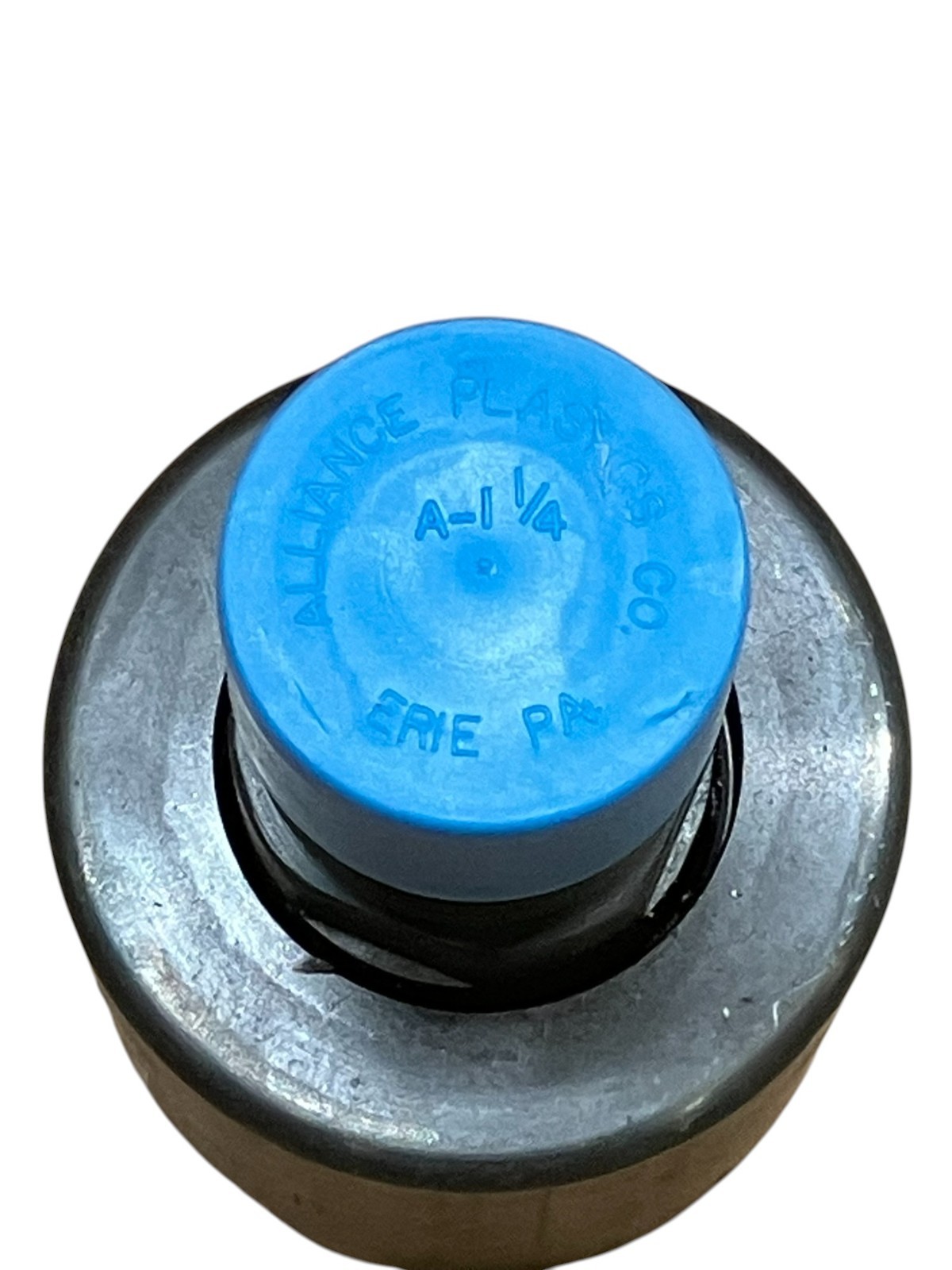

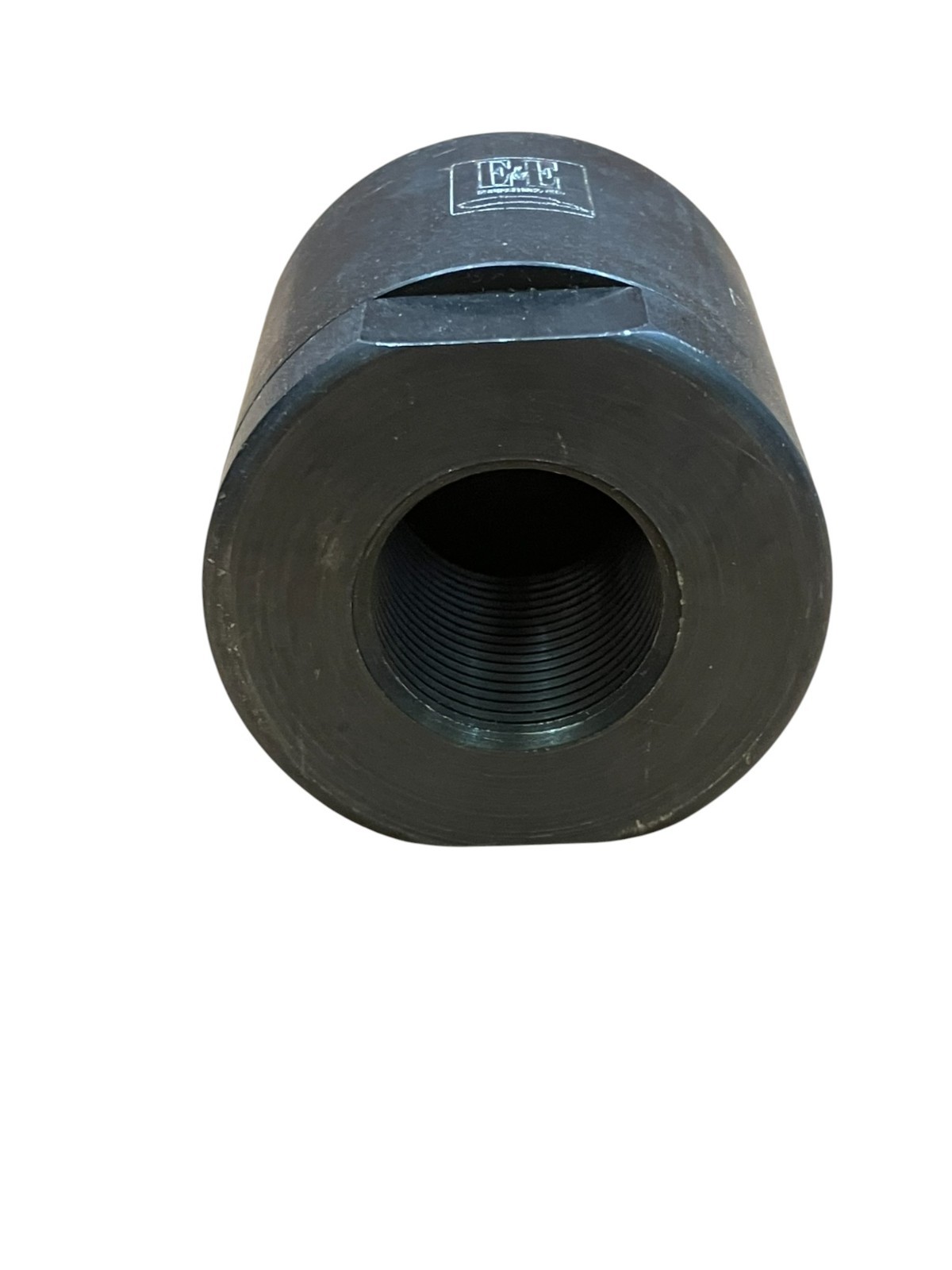

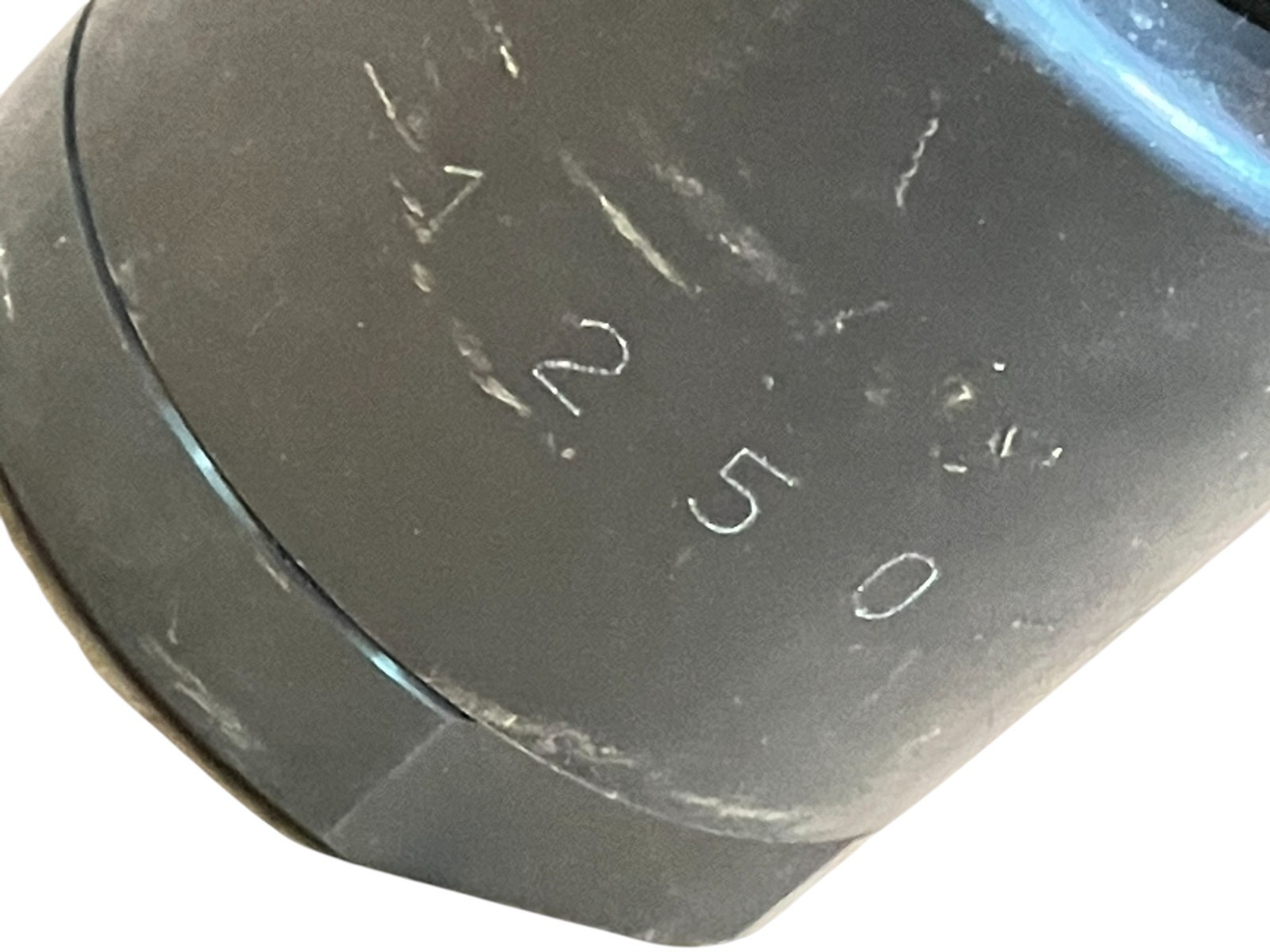

The EAC-1250-F self aligning coupler from E&E Special Products is engineered for pneumatic and hydraulic cylinder applications requiring precise yet flexible shaft alignment. This coupler eliminates expensive precision machining for mounting fixed or rigid guide in cylinder for slide applications. It compensates for 2° angular error and 1/16 lateral misalignment compensation on push and pull stroke, enabling seamless installation without rigorous alignment procedures.
Key Features
- Increases cylinder efficiency by eliminating friction caused by misalignment
- Greater reliability and reduces cylinder component wear
- Self aligning couplers simplify alignment problems by being able to adjust them in the field
- Designed for both push and pull stroke applications
- Sturdy 1-1/4″ bore construction for industrial duty
Technical Specifications
Detailed specifications from E&E’s official datasheet:
- Bore Size: 1-1/4″ – 12 UNC thread
- Body Length: 2-1/2″
- Overall Length: 2-15/16″
- Body Diameter: 1/2″
- Nut Size: 1-5/8″
- Stud Length: 1-3/8″
- Thread Length: 1-1/4″
- Adjustment Range: 2-1/4″
- Maximum Load Capacity: 64,000 lbs
- Angular Compensation: 2°
- Lateral Compensation: 1/16″ (on both push and pull)
Typical Applications
- Pneumatic and hydraulic cylinder slide applications
- Industrial machinery requiring flexible shaft coupling
- Systems where precise alignment is difficult or costly to achieve
- Push-pull cylinder rod connections
- Equipment with repetitive stroke or reciprocating motion
Compatibility & Replacements
Compatible With
- Standard 1-1/4″ bore cylinder rods
- Industrial pneumatic and hydraulic systems
- Fixed and rigid guide mounting applications
- Metric coupler equivalents available from E&E Special Products
Replaces / Drop-In Replacement For
- Direct replacement within E&E EAC series applications
- Verify compatibility with your system integrator or application engineer before ordering for specific model cross-references
Works With
- Standard UNC threaded cylinder rods and mounting points
- Both push and pull stroke pneumatic/hydraulic systems
- Field-adjustable alignment procedures per E&E specifications
- Stainless steel versions available (consult manufacturer for metric and specialty variants)
