Overview

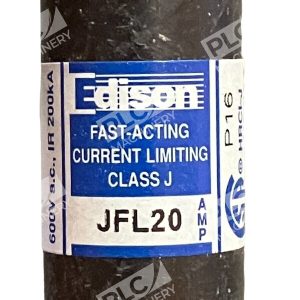

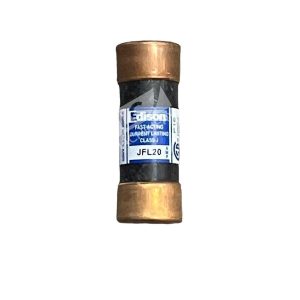

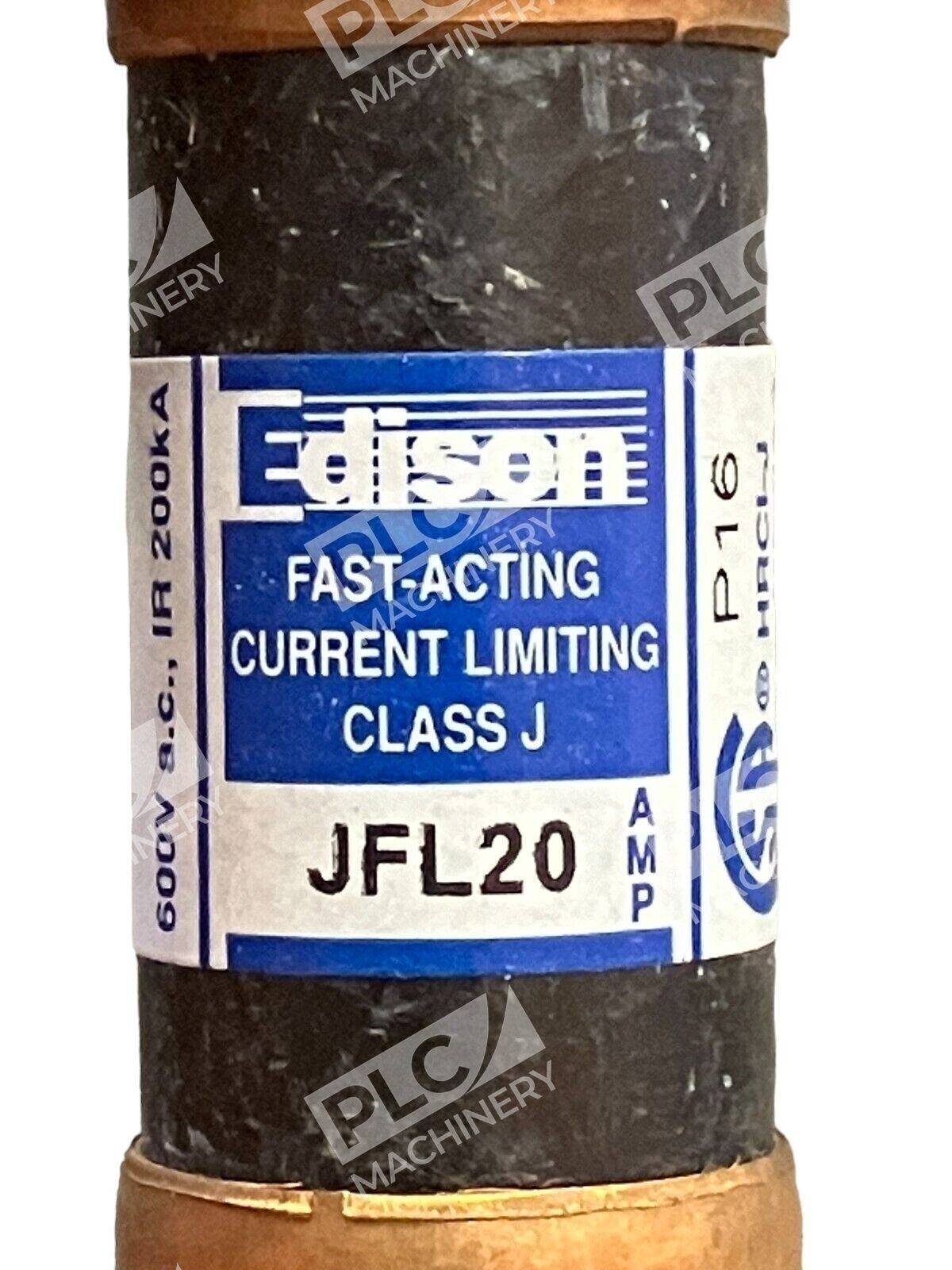

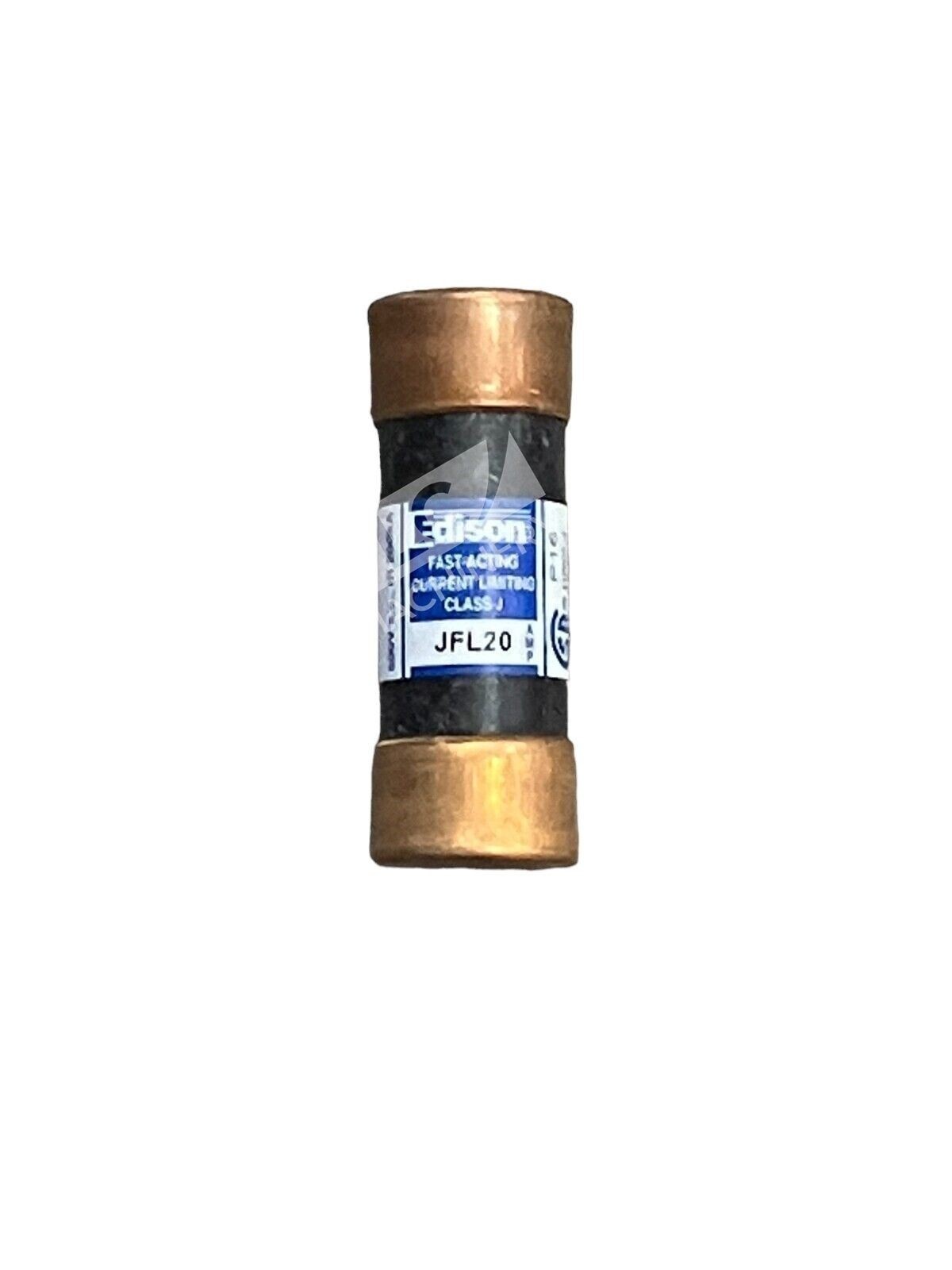

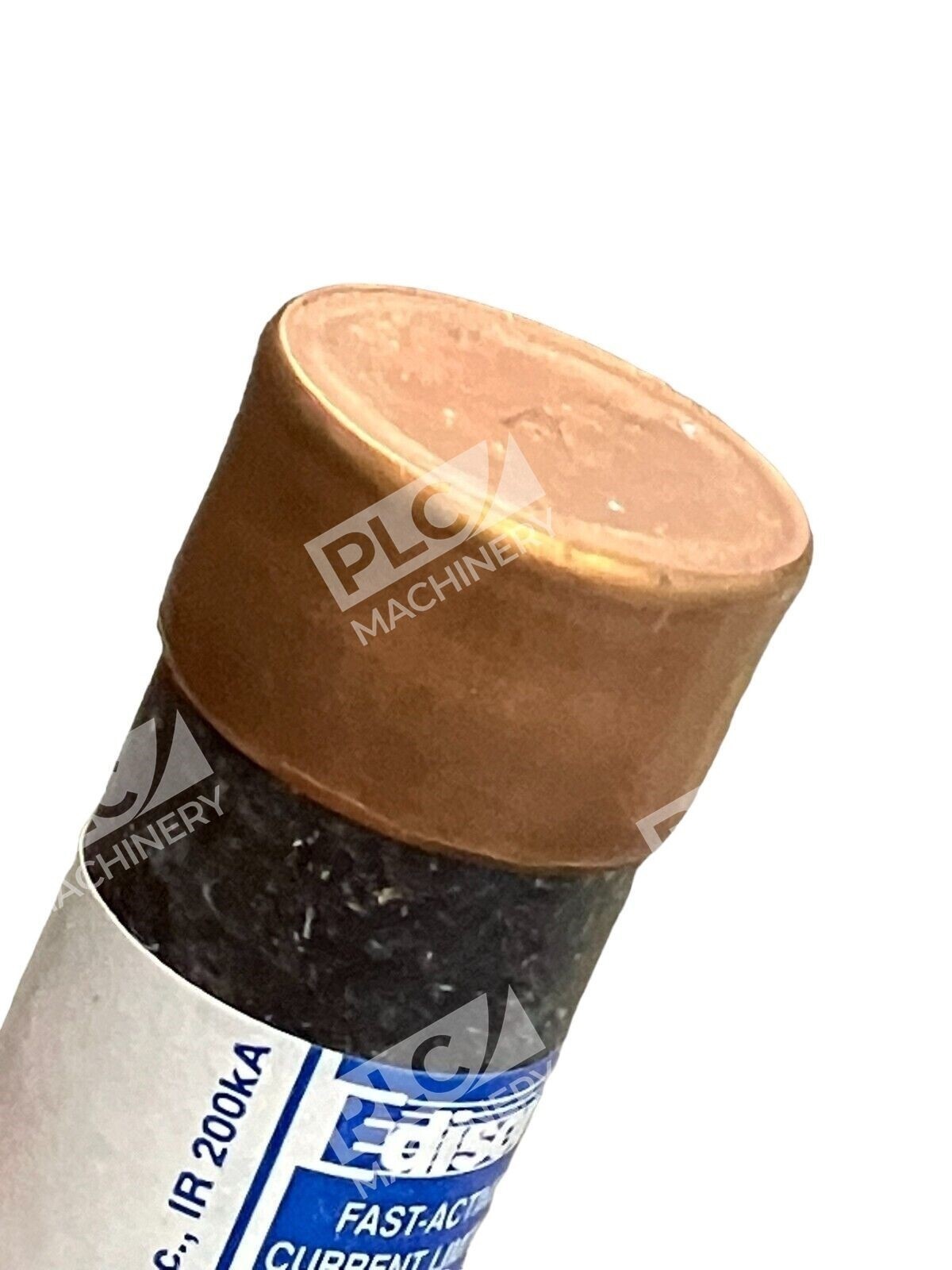

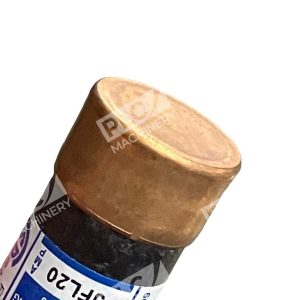

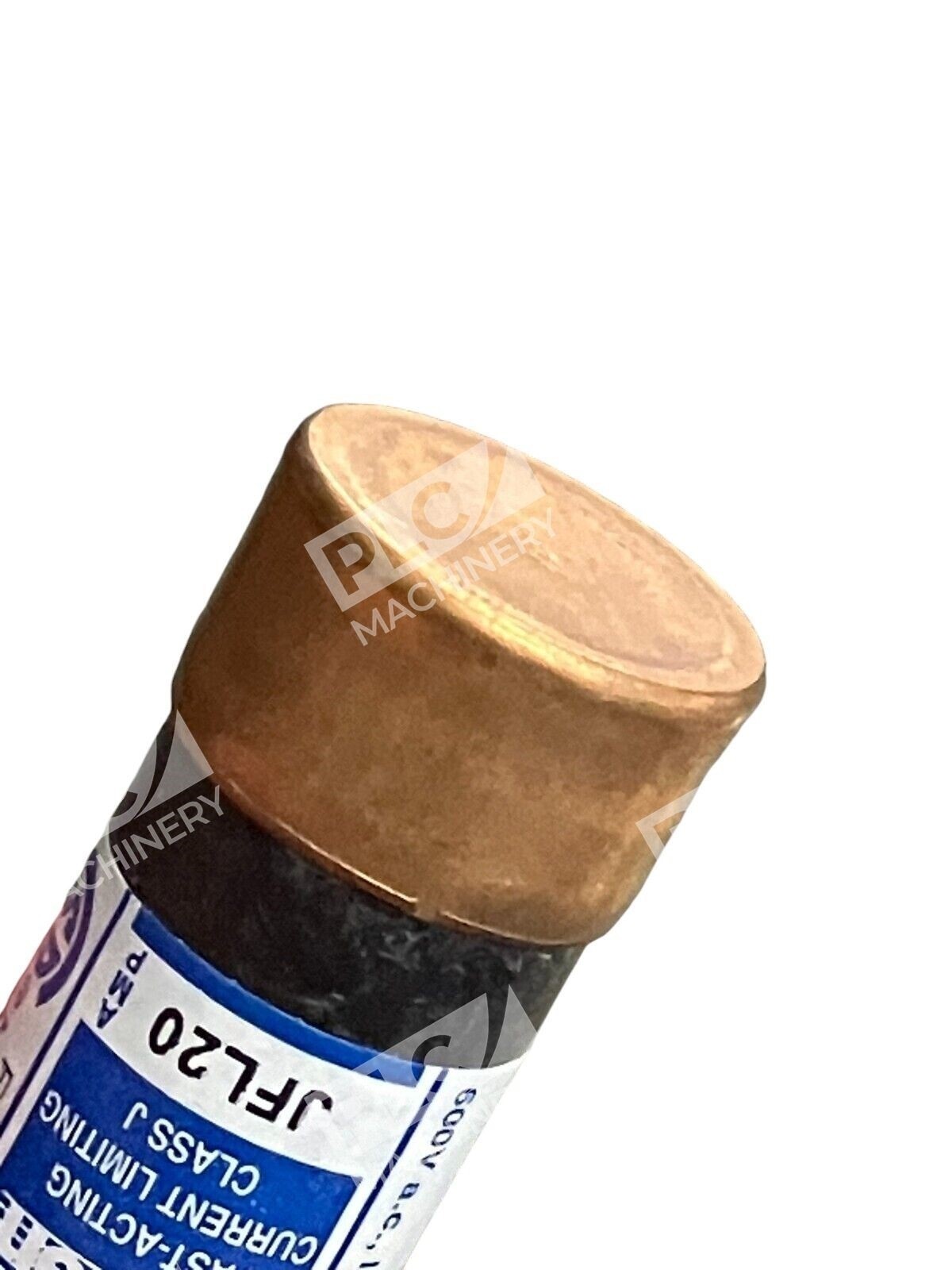

The Edison JFL 20 is a Class J fast acting current limiting fuse engineered for branch circuit and equipment protection in industrial and commercial electrical systems. Manufactured by Eaton (Edison brand), this 20A, 600V fuse features a single-element design and 200,000 amp interrupting rating (200 kAIC) at 600V AC. The compact Class J form factor makes it ideal for space-constrained applications where high short-circuit protection is required.
Key Features
- Single-element current-limiting design — Provides rapid response to short circuits and superior fault protection
- 200 kAIC interrupting rating — Meets high fault current requirements of modern electrical systems
- Fast-acting (JFL) type — Optimized for non-inductive loads including resistive heating and lighting circuits
- Compact Class J size — Space-efficient design suitable for equipment with limited panel room
- Non-indicating body — Mel amine tube construction with silver fuse element
- NEC 110-10 compliant — Clears faults without extensive damage to protected components
Technical Specifications
- Ampere Rating: 20A
- Voltage Rating: 600V AC (or less)

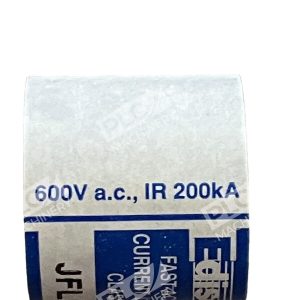

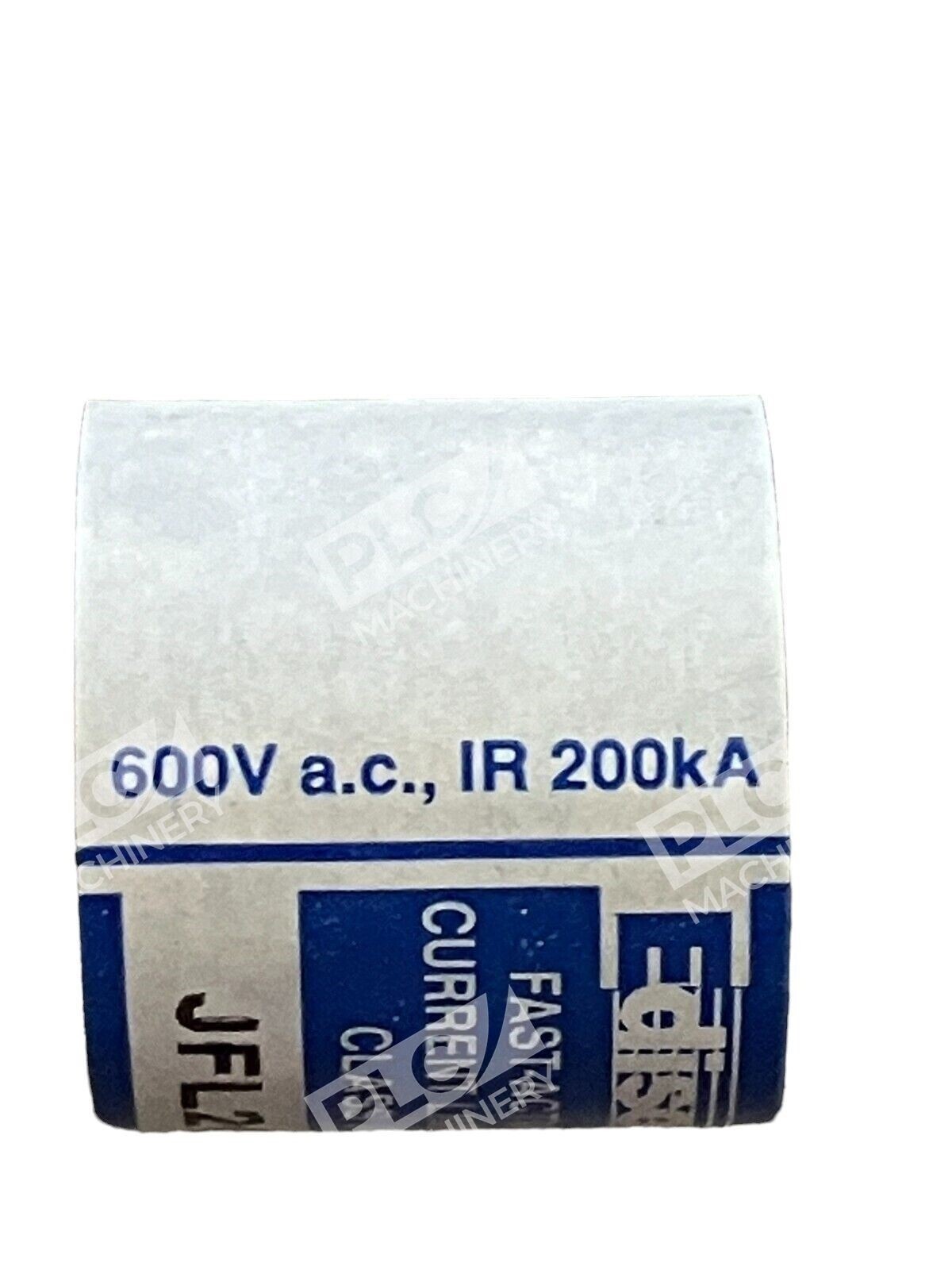

- Interrupting Capacity: 200,000A (200 kAIC) at 600V
- Fuse Class: UL Class J
- Type: Fast Acting (Single-Element)
- Body Material: Melamine tube
- Fuse Element: Silver
- Indication: Non-indicating

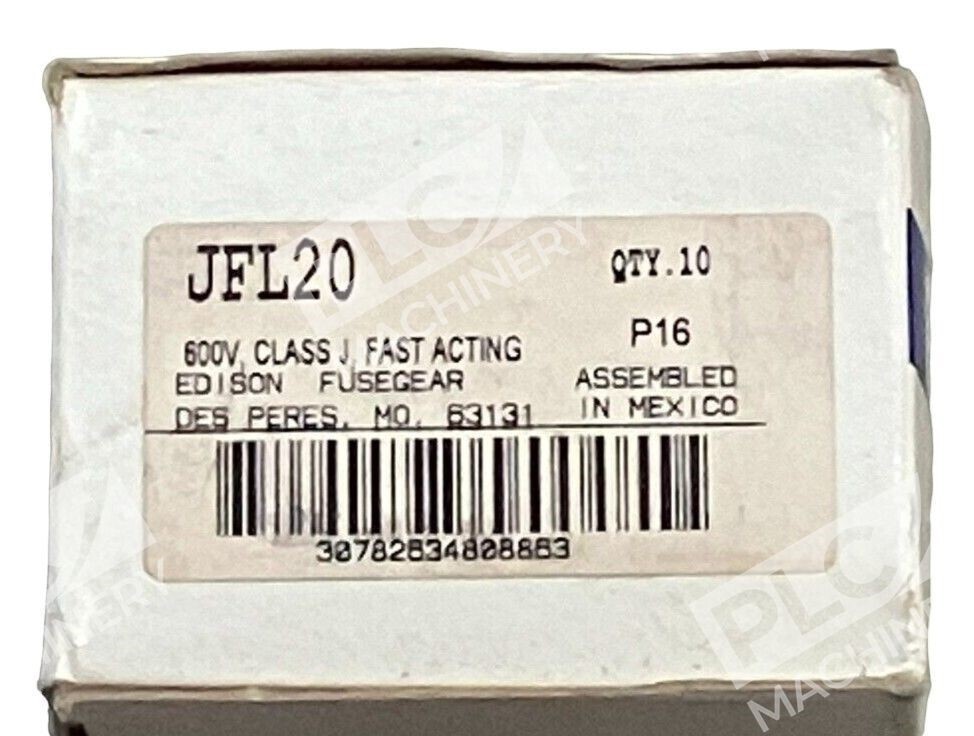

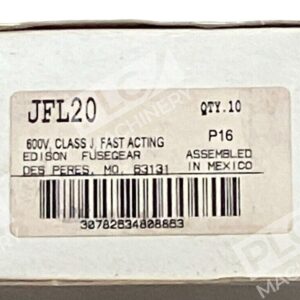

- Packaging: Box of 10

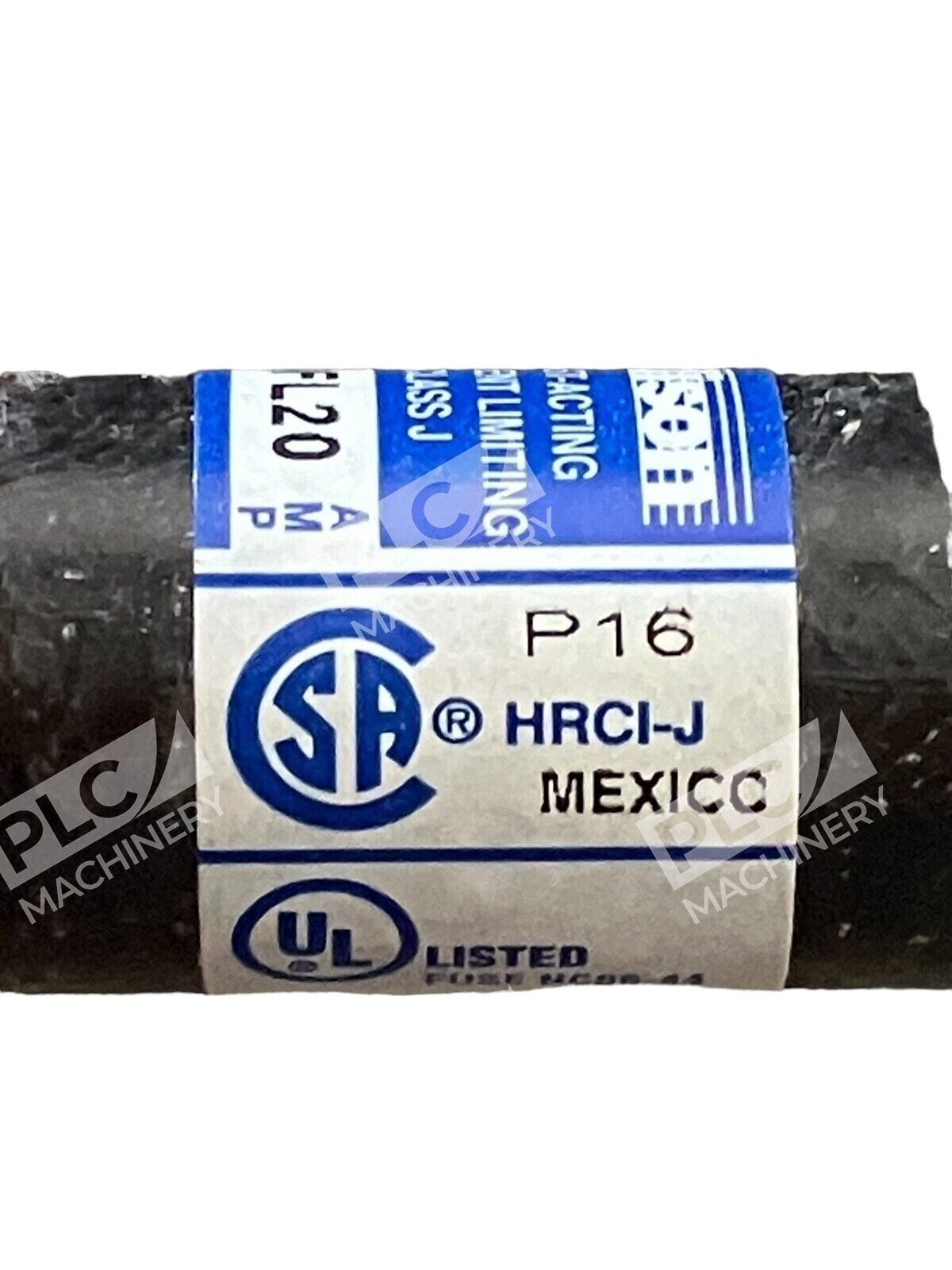

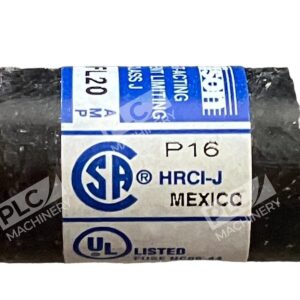

- Standards: UL Listed, NEC 110-10, IEC compliant
Typical Applications
The Edison JFL 20 is well-suited for:
- Resistive heating and lighting branch circuits
- Non-inductive electrical loads
- Equipment with low interrupting capacity circuit breakers (used in series for system protection)
- Older electrical systems requiring retrofitted short-circuit protection
- Compact industrial control panels and distribution boards
- Compliance with NEC requirements for short-circuit protection without component damage
Compatibility & Replacements
Compatible With
- Standard Class J fuse holders and clips
- 600V AC electrical distribution systems
- Branch circuit and equipment protection applications per NEC Article 240
- Panelboards and industrial control enclosures rated for Class J fuses
- Retrofit installations on older low-interrupting-capacity systems
Replaces / Drop-In Replacement For
The Edison JFL 20 directly replaces other UL Class J 20A fast-acting fuses. Verify compatibility with your system integrator before ordering, as some applications may require the JDL 20 time-delay variant instead of fast-acting.
Works With
- Class J fuse holders (fixed or cartridge style)
- Industrial control system wiring and branch circuits
- Standard electrical distribution equipment rated 600V AC or less
- Equipment protection schemes per UL, NEC, and IEC standards
