Overview

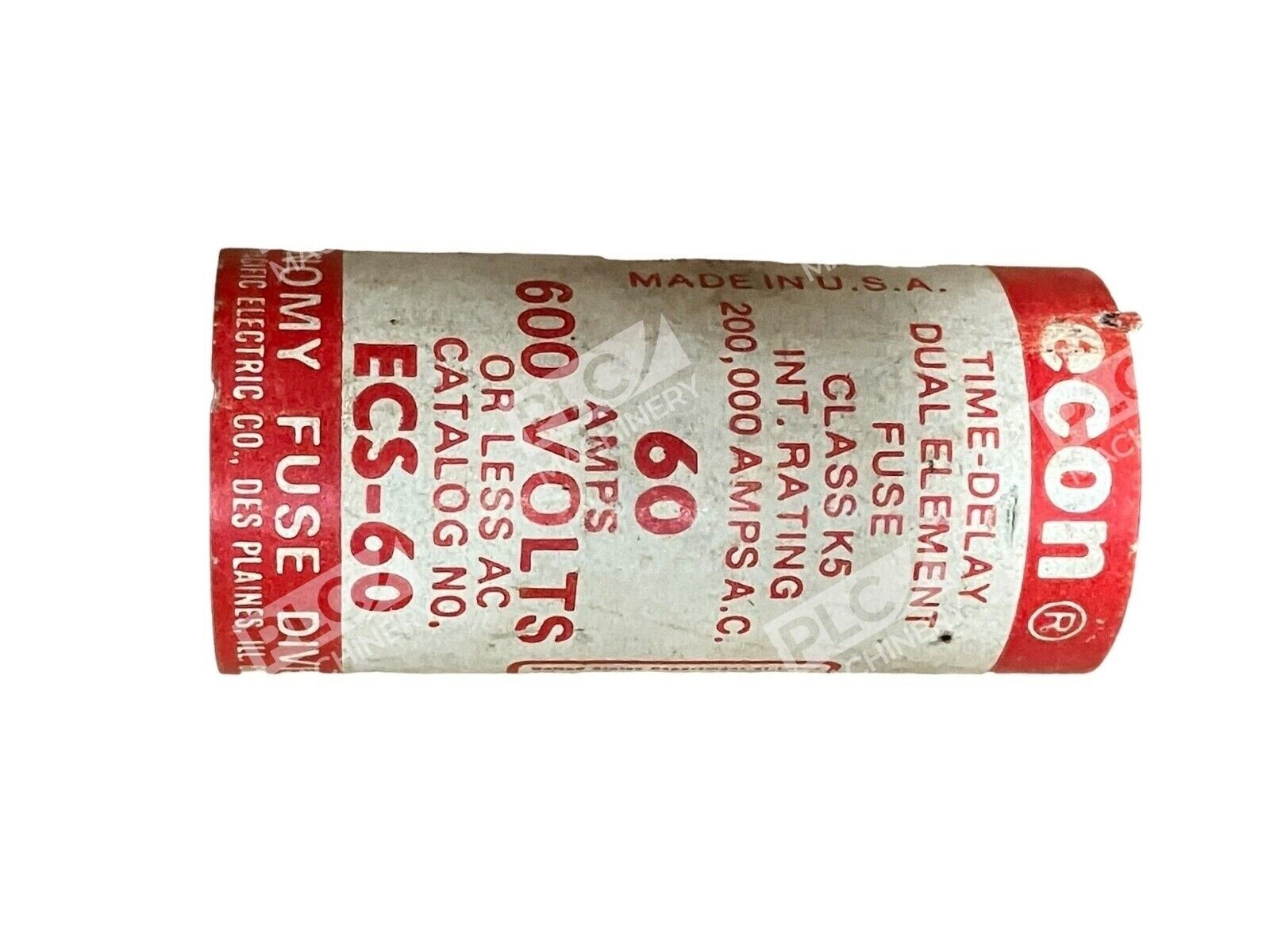

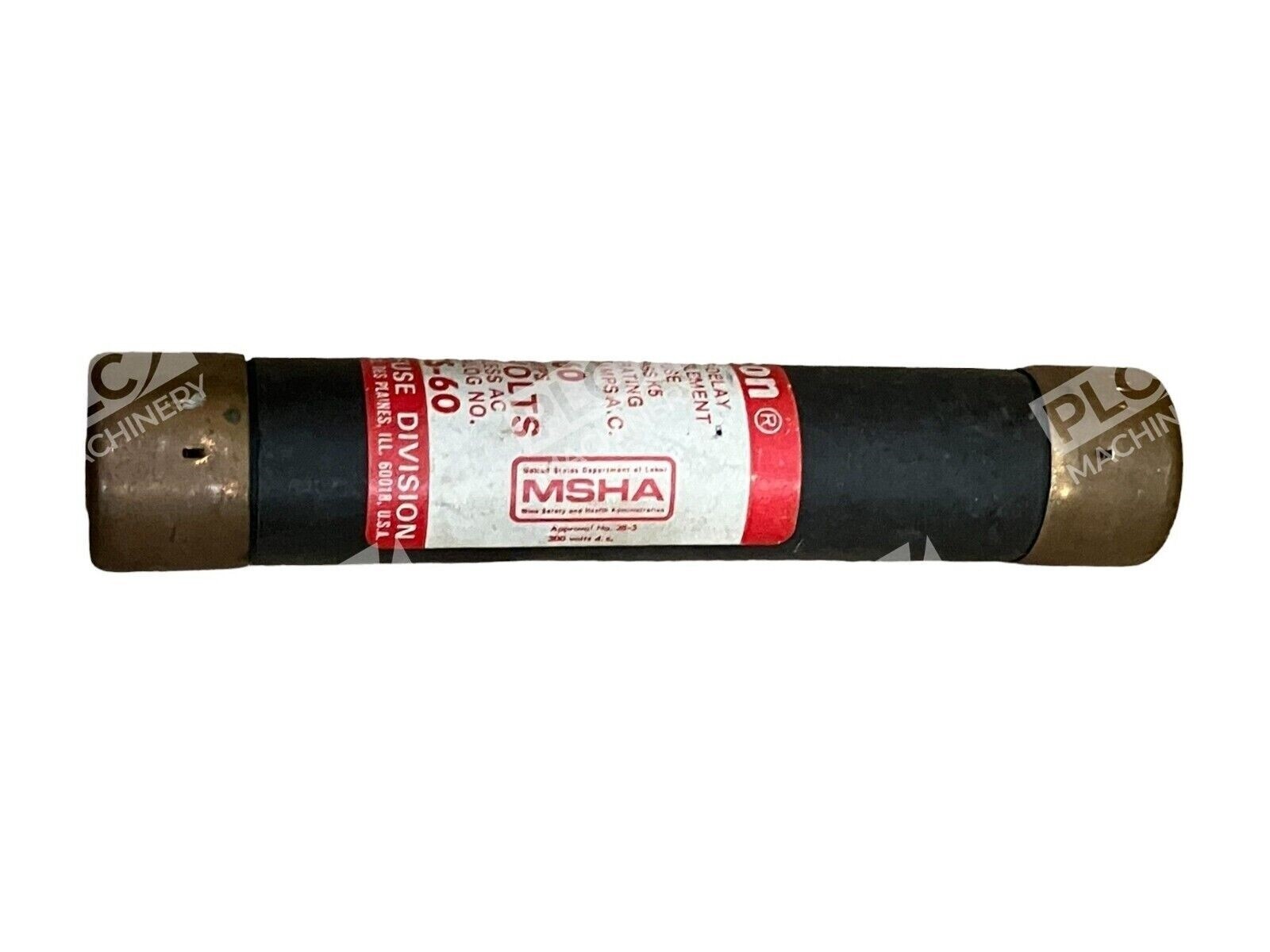

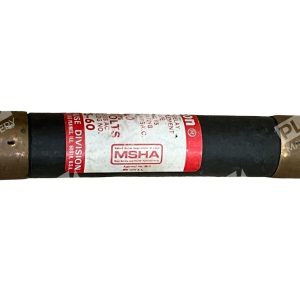

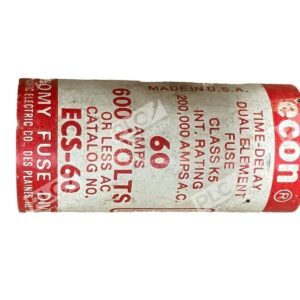

The Econ ECS-60 600V 60A fuse is a time delay dual-element Class K5 cartridge fuse designed for use in AC power distribution systems. This versatile protective device provides reliable overcurrent and short-circuit protection with a 200,000 amps interrupt rating. The ferrule-end construction fits standard fuse holders and is widely used in industrial panels, motor circuits, and commercial electrical systems where surge current tolerance is required.
Key Features
- Time delay (dual-element) design minimizes nuisance blows on inductive load surges
- Class K5 rating suitable for motors, transformers, and general industrial applications

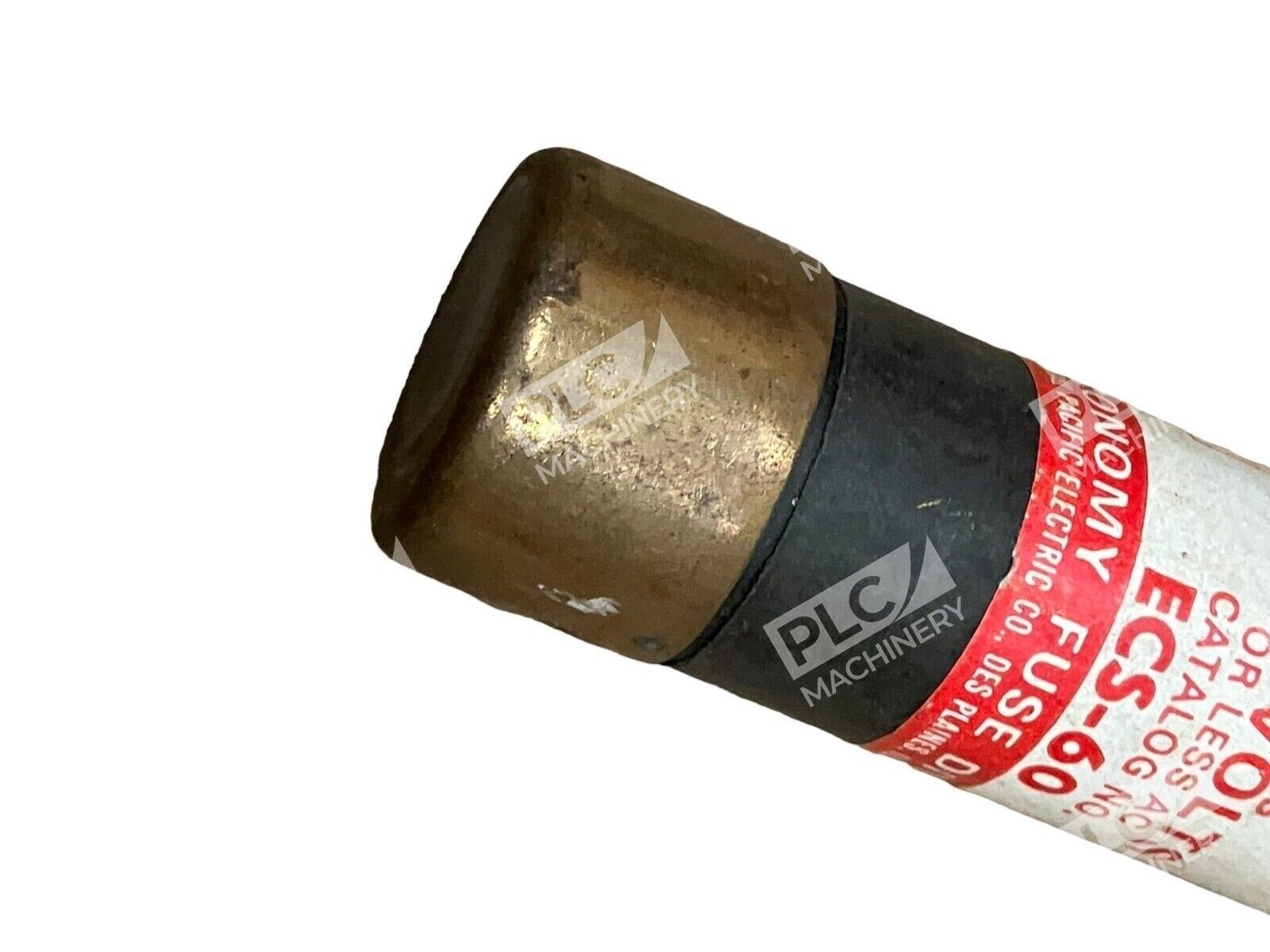

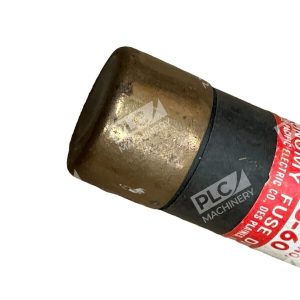

- Ferrule end × ferrule end connection for standard cartridge fuse holders
- 200,000 amps symmetrical interrupt capacity (RMS)
- Meets industry standards for AC power distribution mains, feeders, and branch circuits
- Made in USA
Technical Specifications
- Ampere Rating: 60 A
- Voltage Rating: 600 V AC
- Class: K5 (Dual-Element Time Delay)
- Type: Cartridge Fuse, Ferrule End
- Interrupt Rating: 200,000 A (symmetrical)
- Time Delay: 10 seconds at 500% rated current
- Physical Diameter: Approximately 1.06 inches
- Physical Length: Approximately 5.5 inches
- Weight: ~3.1–3.6 lbs
- Manufacturer: Econ (Federal Pacific Electric Co.)
Typical Applications
The Econ ECS-60 is commonly specified for:
- AC power distribution system mains and feeder protection
- Motor branch circuits and motor control center protection
- Transformer primary and secondary circuits
- Industrial facility electrical panels and switchboards
- Commercial HVAC and large equipment circuits
- Any application requiring time-delay fuse protection up to 60 amps at 600V
Compatibility & Replacements
Compatible With
- Standard ferrule-end fuse cartridge holders rated for 600V and 60A or higher
- Eaton/Cutler-Hammer panels and disconnect switches
- Square D and Siemens industrial panelboards
- Any Class K5 fuse-rated electrical distribution system
- AC circuits rated for 600V or less at 60A nominal load
Replaces / Drop-In Replacement For
- Edison ECSR60 (RK5 Class equivalent, identical form factor)
- Cooper Bussmann ECSR60
- Eaton/Cutler-Hammer A60 series time-delay fuses
- Other Class K5 dual-element 60A 600V cartridge fuses
Works With
- Industrial electrical distribution systems following NEC Article 240
- AC power systems with symmetrical fault currents up to 200 kA
- Motor circuits protected by magnetic motor starters and overload relays
- Standard fuse holders, clips, and cartridge fuse blocks
