Overview

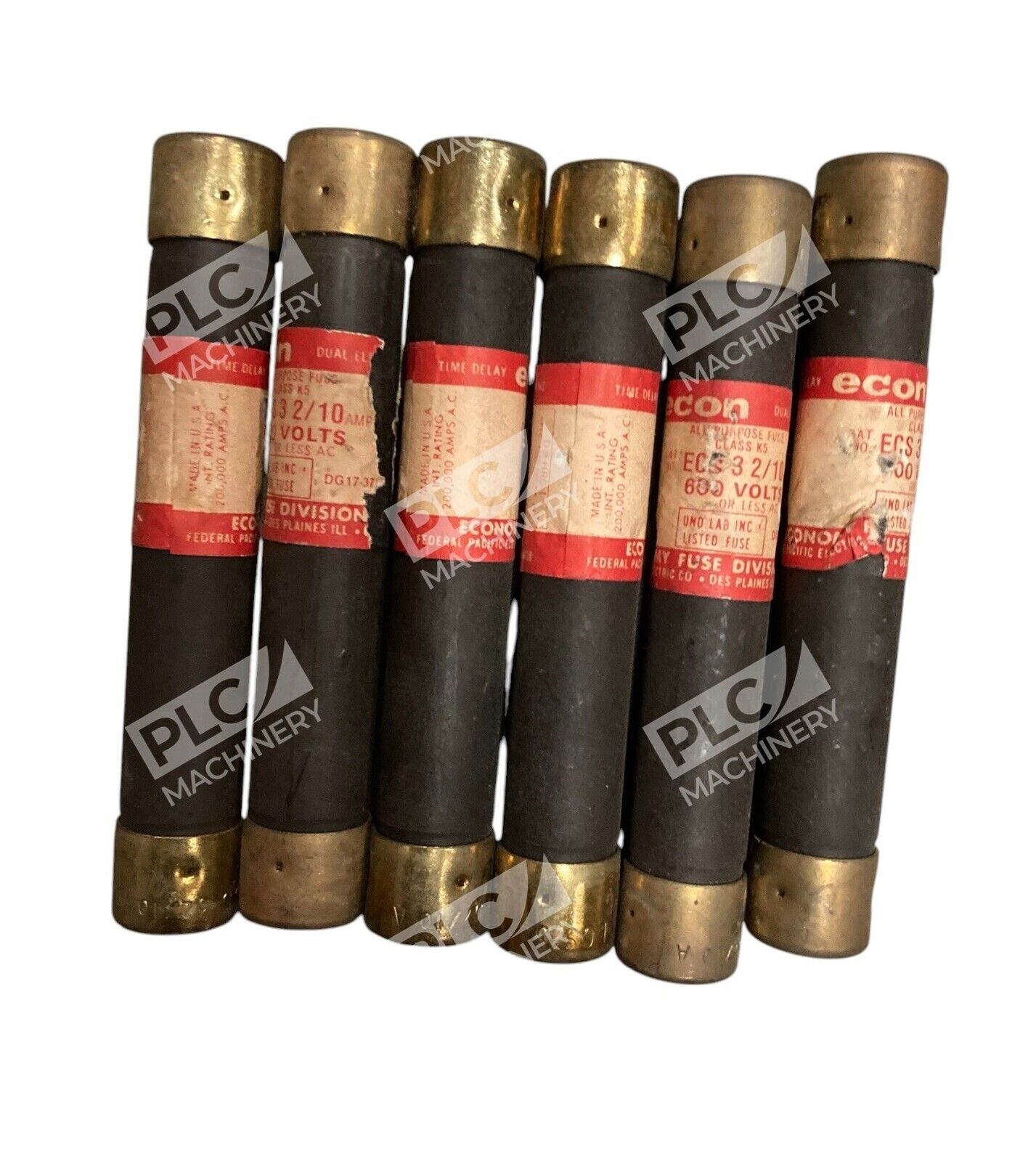

The Economy Fuse ECS3-2/10 is a Class K5 dual-element all-purpose fuse designed for 600-volt AC circuits up to 10 amps. These time-delay fuses are engineered to provide reliable overcurrent protection in electrical panels, machinery, and control circuits where both overload and short-circuit protection are required. This lot contains six individual fuses.
Key Features
- Dual-element construction for reliable overload and short-circuit protection
- Class K5 rating provides enhanced interrupting capacity and fast clearing
- Time-delay element reduces nuisance trips on inrush currents
- Cartridge design fits standard fuse holders and blocks
- UL-listed for safety compliance in industrial applications
- Lot of six fuses for convenient stocking
Technical Specifications
These all-purpose fuses meet industry standards for general electrical protection:
- Rated Voltage: 600V AC
- Amperage: 10A
- Class: K5
- Type: Dual-Element Time Delay
- Interrupting Rating: 200,000 amps (typical for Class K5)
- Form Factor: Cartridge (fits standard fuse blocks)
- Quantity per Lot: 6 pieces
Typical Applications
- Industrial control panels and equipment cabinets
- Motor circuits and feeder protection
- General-purpose distribution panels
- Manufacturing and processing equipment
- HVAC and refrigeration systems
- Commercial electrical installations
Compatibility & Replacements
Compatible With
- Standard Class K cartridge fuse holders and blocks
- 500V and 600V AC panelboards
- Industrial control circuits rated for Class K fuses
- OEM equipment designed for 600V cartridge fuses
Replaces / Drop-In Replacement For
The Economy Fuse ECS3-2/10 is a direct replacement for equivalent Class K5 600V, 10A fuses in the same form factor. Verify compatibility with your system integrator before ordering to ensure proper fit in your fuse block or holder.
Works With
- Ferraz-Shawmut fuse blocks and holders
- Eaton/Cutler-Hammer fuse equipment
- Square D and Schneider Electric panelboards
- General-purpose industrial switchgear and control systems
- Any 600V Class K-rated fuse holder or mounting block
