Overview

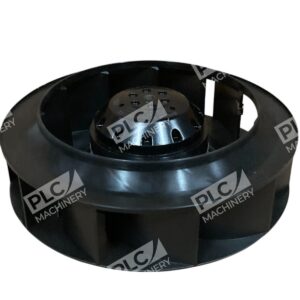

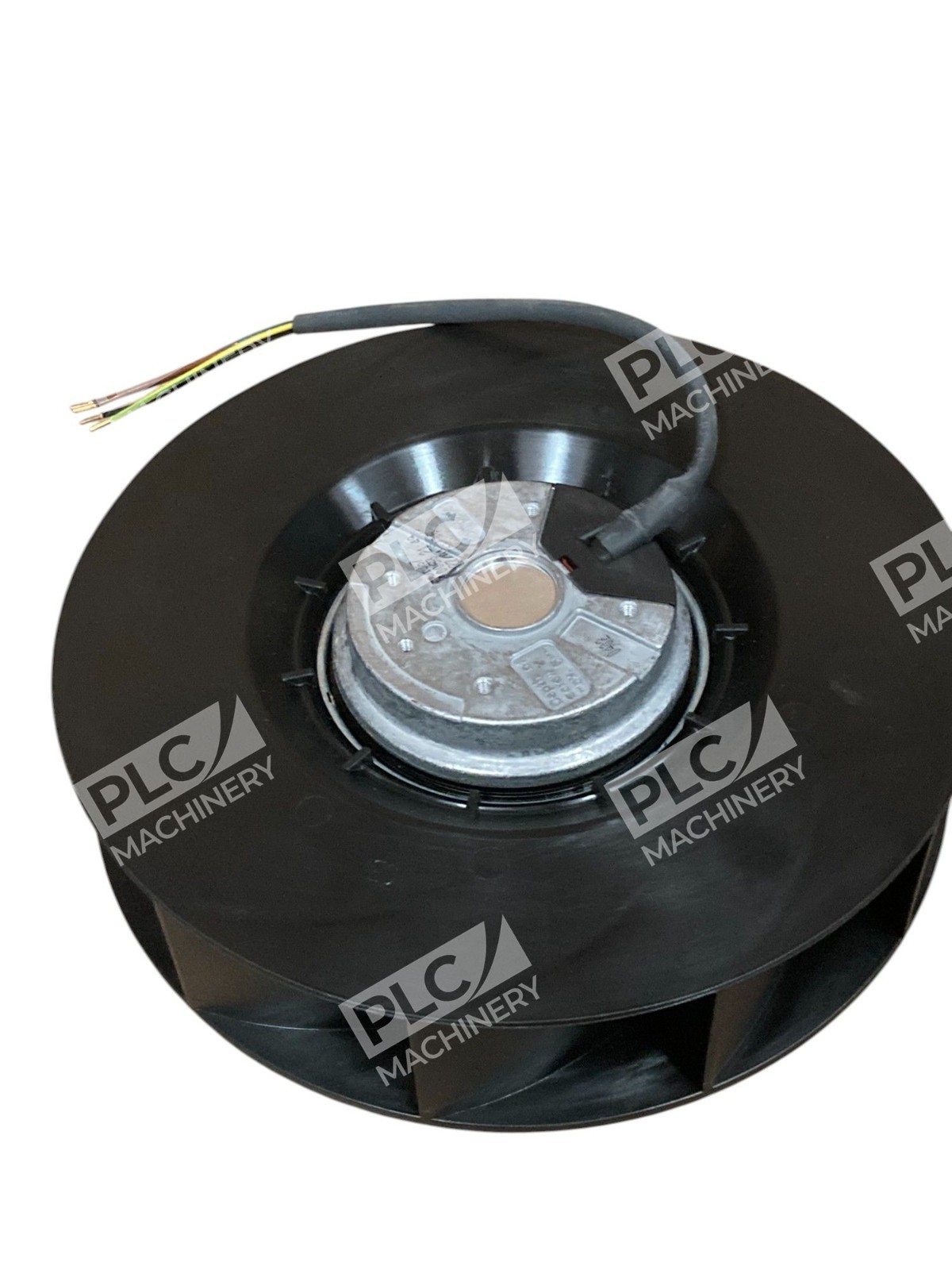

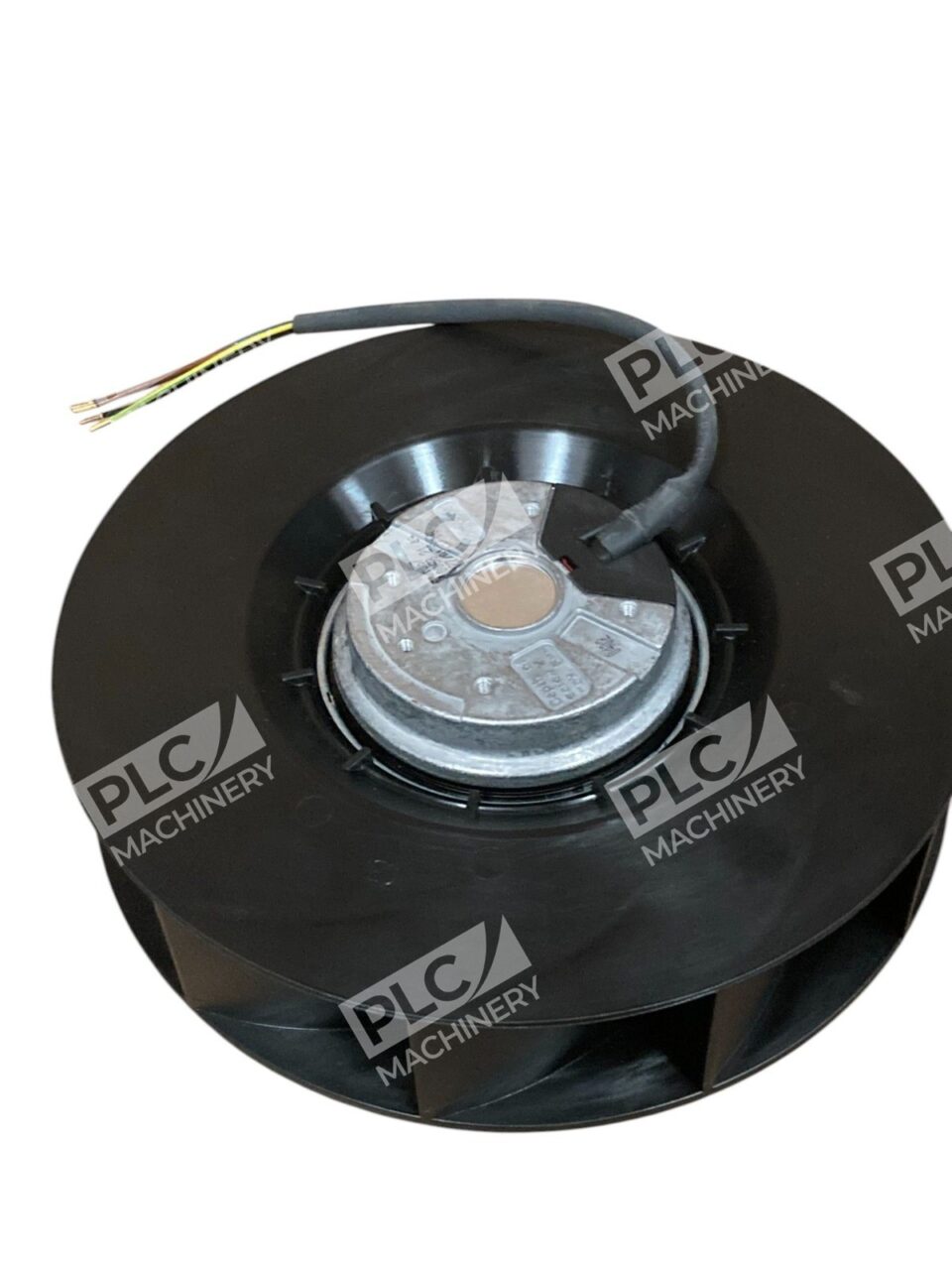

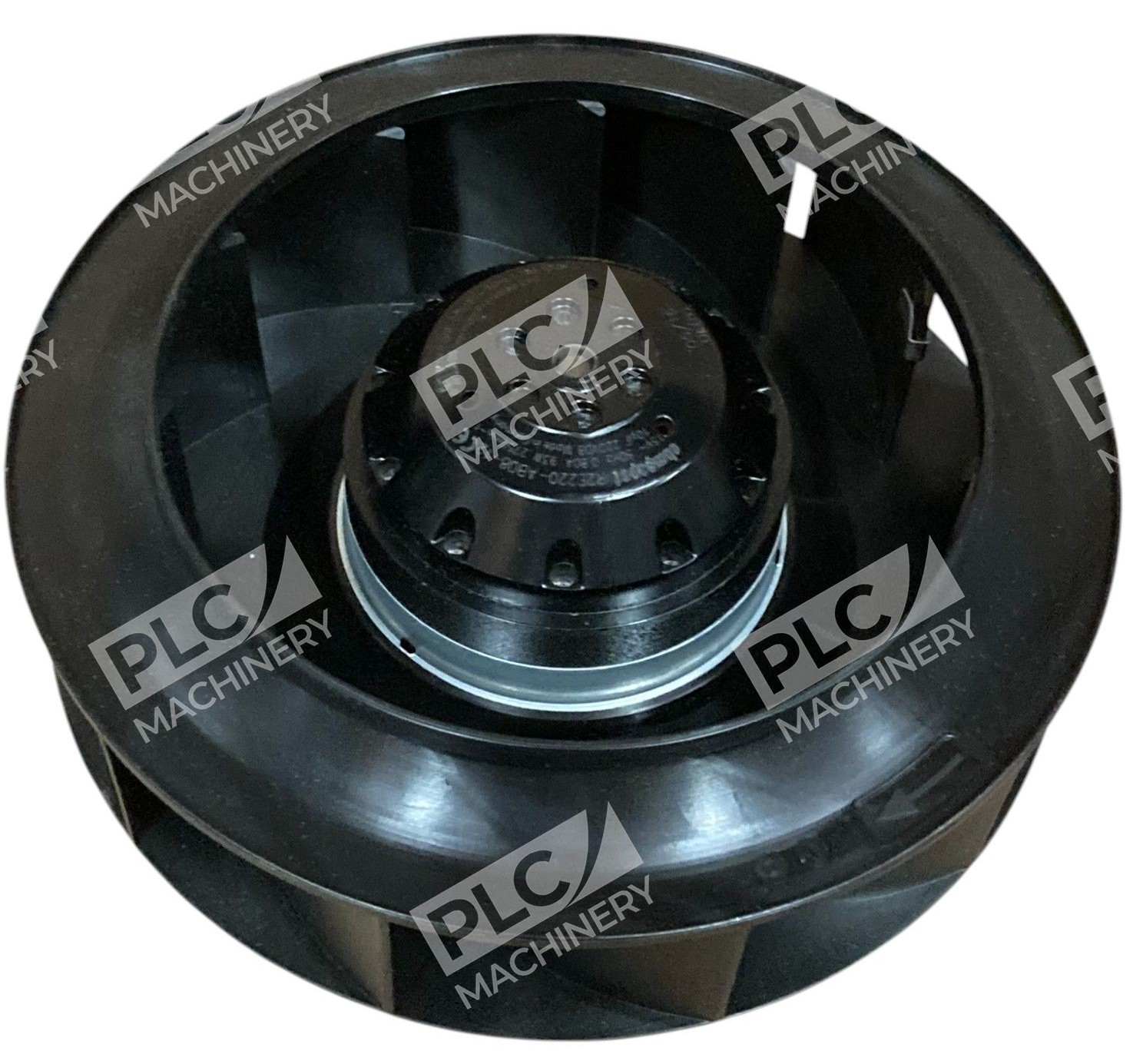

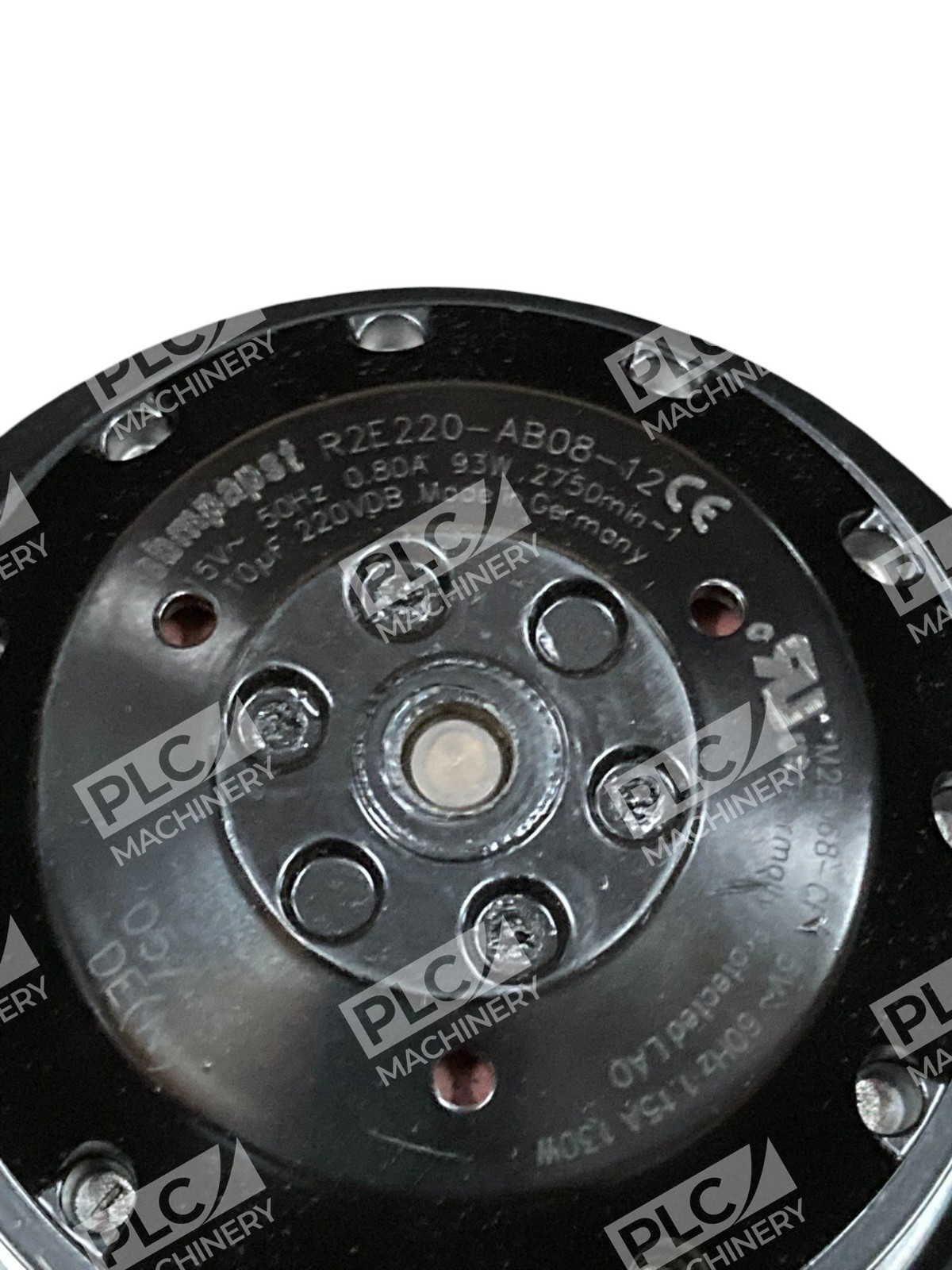

The EBMpapst R2E220-AB08-12 centrifugal fan delivers efficient thermal management for electrical equipment, industrial machinery, and cabinet cooling applications. This 220mm motorized impeller unit operates on standard 115VAC single-phase power at 93W, achieving 2750 RPM with exceptionally low noise and high hydraulic efficiency. The M2E068-CF motor integrates thermal overload protection (TOP) for enhanced reliability in demanding environments.
Key Features

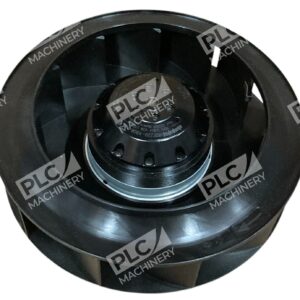

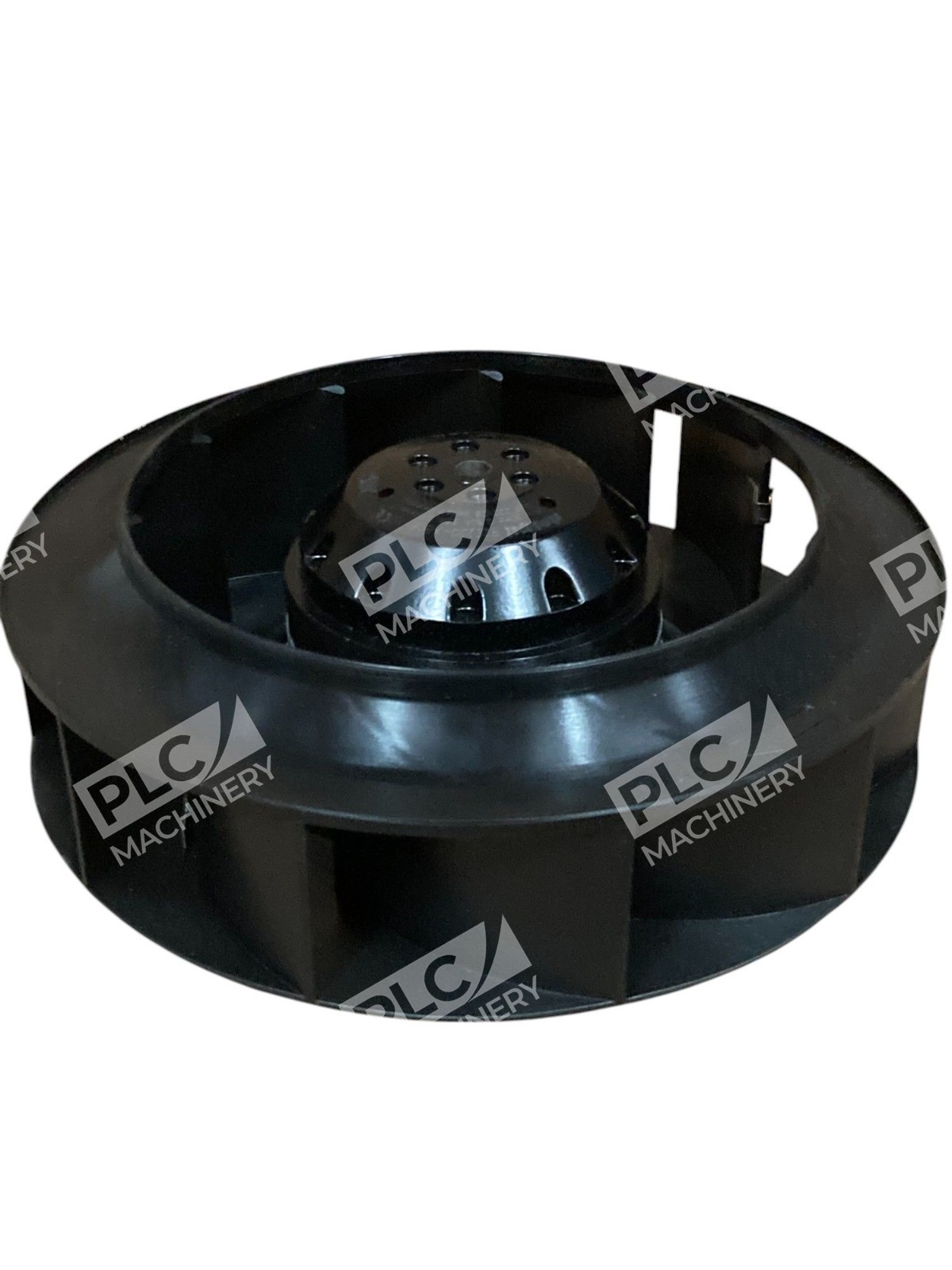

- Backward-Curved Impeller: Optimized aerodynamic design with 11 blades for efficient airflow and reduced operating noise
- High-Efficiency Construction: Glass-fiber reinforced PA6 plastic impeller with ball bearing support; extremely resistant to dust and dirt
- Integrated Protection: Thermal overload protection and IP44-rated housing for robust operation in industrial conditions
- Operating Capacitor: 10µF / 220VDB capacitor ensures stable single-phase AC performance

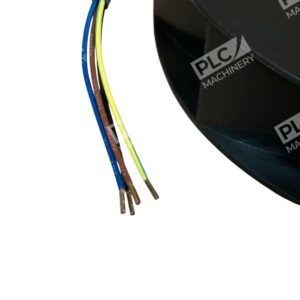

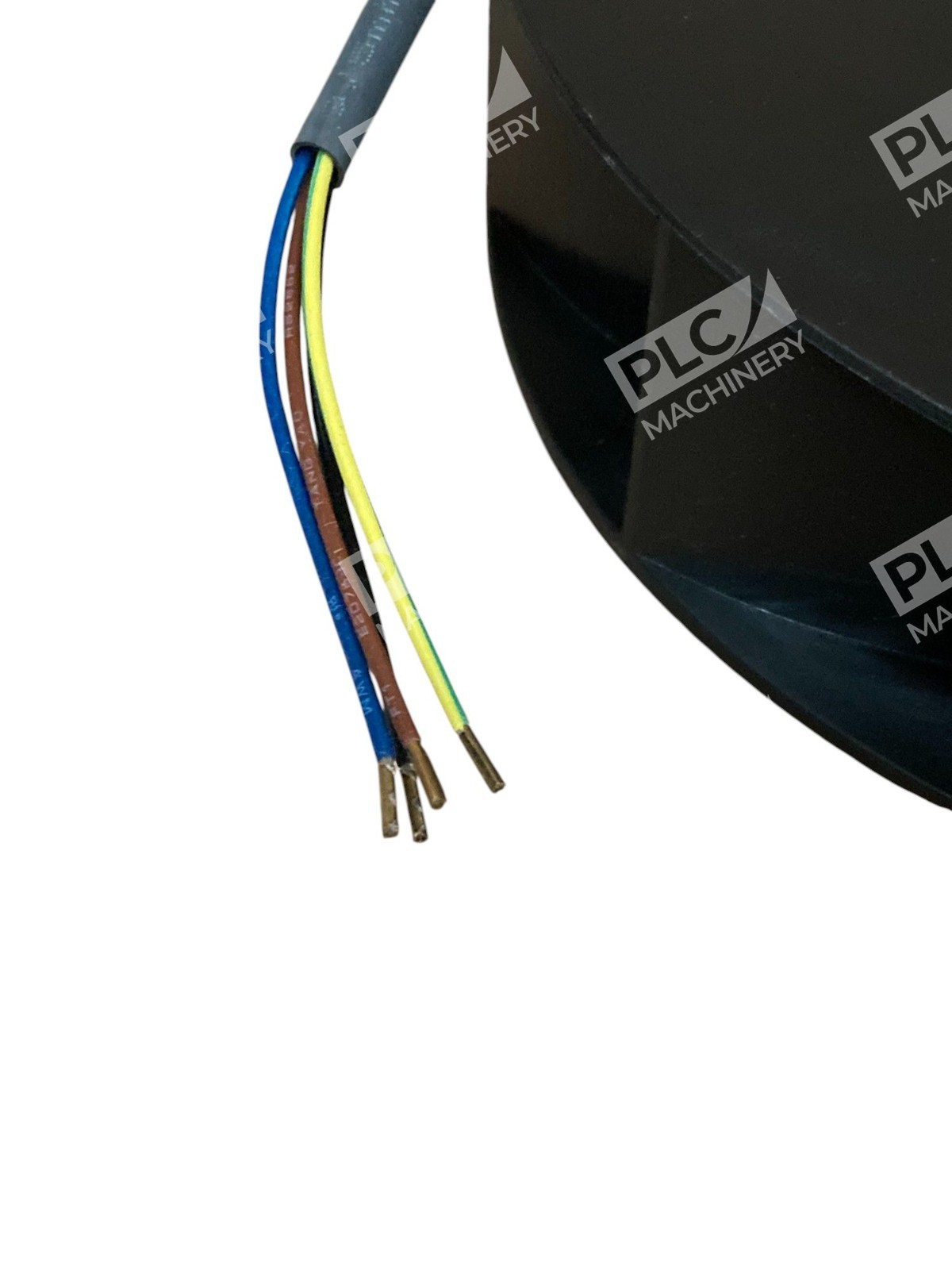

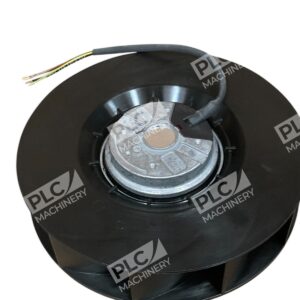

- Wire-Leaded Connection: Standard AC motor connection with variable cable exit for flexible installation
Technical Specifications

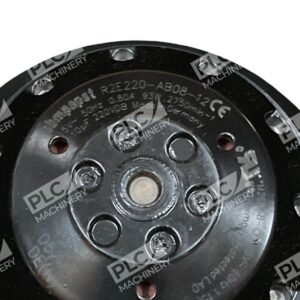

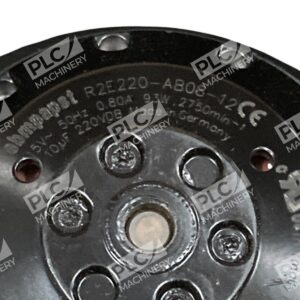

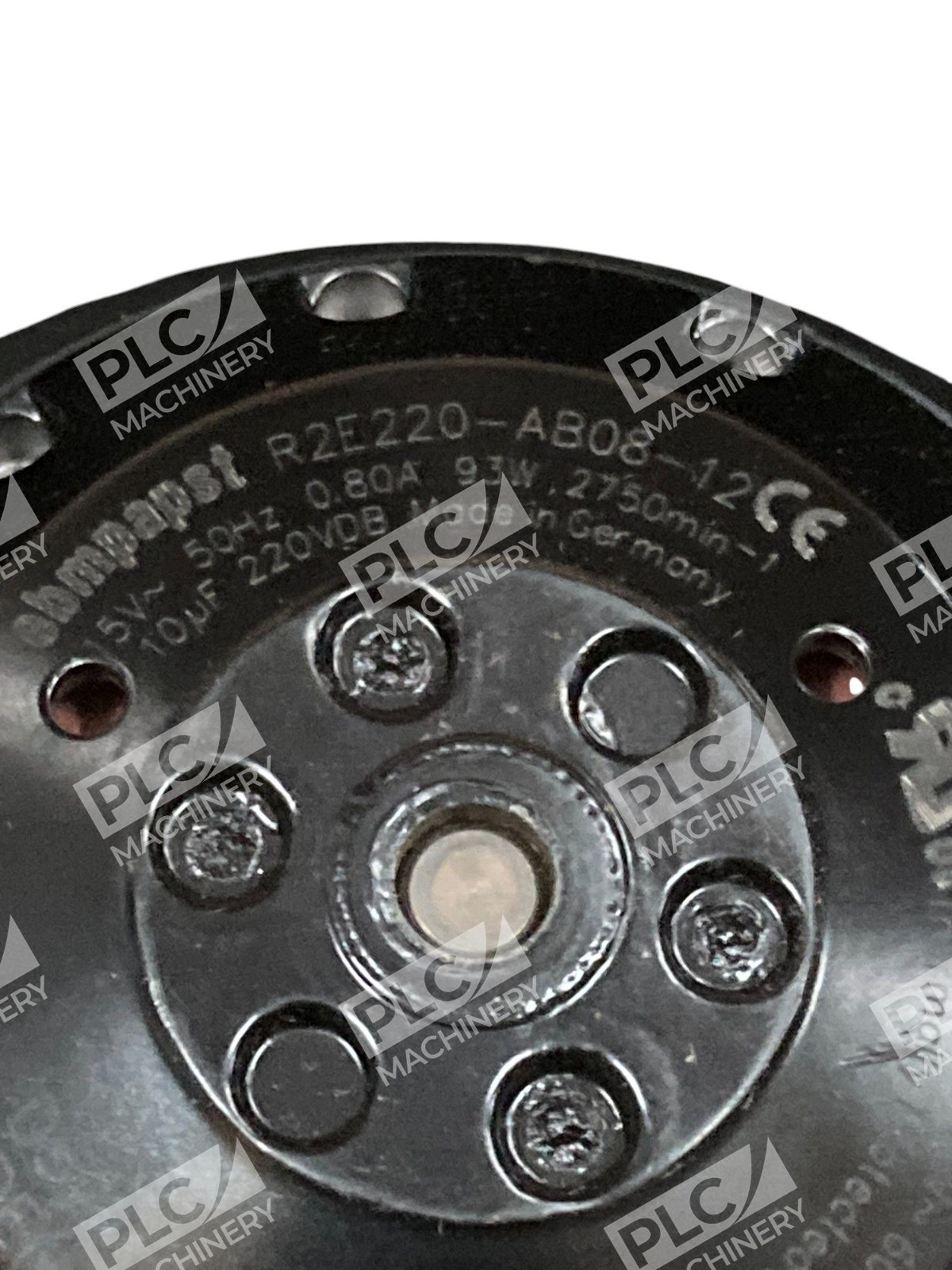

- Model: R2E220-AB08-12
- Motor Model: M2E068-CF
- Impeller Size: 220mm diameter × 70mm depth
- Supply Voltage: 115VAC
- Power Consumption: 93W (at 2750 RPM)
- Current Draw: 0.8A (at 2750 RPM)
- Speed: 2750 / 3050 RPM (dual-speed capable)
- Frequency: 50 / 60Hz
- Airflow: 900 m³/h (900.0 m³/h at 2750 RPM); max 1070 m³/h
- Bearing Type: Ball bearing, maintenance-free
- Impeller Material: Glass-fiber reinforced PA6 plastic
- Insulation Class: B
- Protection Rating: IP44
- Capacitor: 10.0 µF / 220VDB
- Weight: 1.7–1.8 kg
- Operating Temperature Range: −25°C to +35°C
- Certifications: UL, CSA, VDE, CE
Typical Applications
The EBMpapst R2E220-AB08-12 is engineered for:
- Industrial variable-frequency drive (VFD) and inverter cooling systems
- Low-voltage HVAC filtration and ventilation units
- Slim-profile electrical cabinet thermal management
- Electronic equipment heat dissipation and air circulation
- Refrigeration and commercial cooling systems requiring reliable 115V AC airflow
Compatibility & Replacements
Compatible With
- Single-phase 115VAC electrical systems and industrial control cabinets
- Inverter and VFD cooling modules
- Standard electrical enclosures with variable cable routing
- HVAC and refrigeration platforms requiring motorized centrifugal impellers
Replaces / Drop-In Replacement For
- R2E220-AB08-62 (alternative variant within R2E220 series)
- Other 220mm backward-curved centrifugal fans in industrial cooling applications requiring 115VAC operation
Works With
- Standard single-phase 115VAC power supplies (50/60Hz)
- Run capacitors rated 10µF / 220VDB or equivalent
- Motor starters and thermal overload protection devices
- Inlet rings (recommended accessory: 9609-2-4013, sold separately)
