Overview

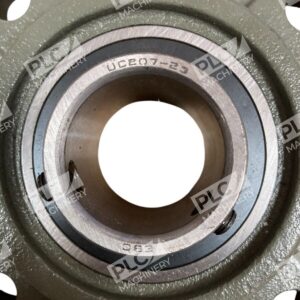

The UC207-23 is a precision radial insert ball bearing manufactured to ISO standards for industrial applications requiring reliable shaft support and load carrying capacity. This bearing features a wide inner ring, spherical outer ring, and set screw locking mechanism for secure mounting. The UC207-23 delivers consistent performance across diverse industries including agriculture, automotive, textiles, printing, conveyors, and HVAC systems.
Key Features
- Wide inner ring design with 1 7/16″ (35mm) bore diameter
- Set screw locking mechanism for positive shaft retention
- Spherical outer ring self-aligns within the housing, accommodating minor misalignment
- Dual heavy-duty slinger-type contact seals for contamination protection
- Lubrication groove with oil hole on set screw side for re-lubrication capability
- Anti-rotation pin on opposite side to prevent creep
Technical Specifications
- Bore Diameter (d): 35 mm (1 7/16″)
- Outside Diameter (D): 72 mm (2.83″)
- Bearing Width (B): 42.9 mm (1.69″)
- Dynamic Load Rating: 25,710 N
- Static Load Rating: 15,302 N
- Bearing Type: Radial Insert Ball Bearing, Wide Inner Ring
- Locking Method: Set Screw (Grub Screw)
- Seal Type: Dual Contact Seals (Slinger)
- Standard: ISO 6006
Typical Applications
The UC207-23 insert bearing is widely used in agricultural machinery, industrial conveyors, textile equipment, printing machines, automotive assemblies, HVAC fans, and construction equipment. Its self-aligning spherical outer ring makes it ideal for applications where housing bores cannot be perfectly aligned. The re-lubrication capability supports long-term operation in high-contamination environments when proper maintenance is performed.
Compatibility & Replacements
Compatible With
- Standard pillow block housings designed for UC207 bore size
- Shaft diameters of 1 7/16″ (35 mm)
- ISO 6006 compliant mounting systems
- Industrial equipment requiring radial insert bearings with set screw locking
Replaces / Drop-In Replacement For
- Browning UC207-107D1
- NTN SC115FF
- SKF 123368
- Dodge UG223NL
- FAF 479207-107
Works With
- Any standard UC207 series housing mounting assembly
- Agricultural and industrial drive systems
- Conveyor and material handling equipment
- Textile and printing machinery
- HVAC and fan assemblies
