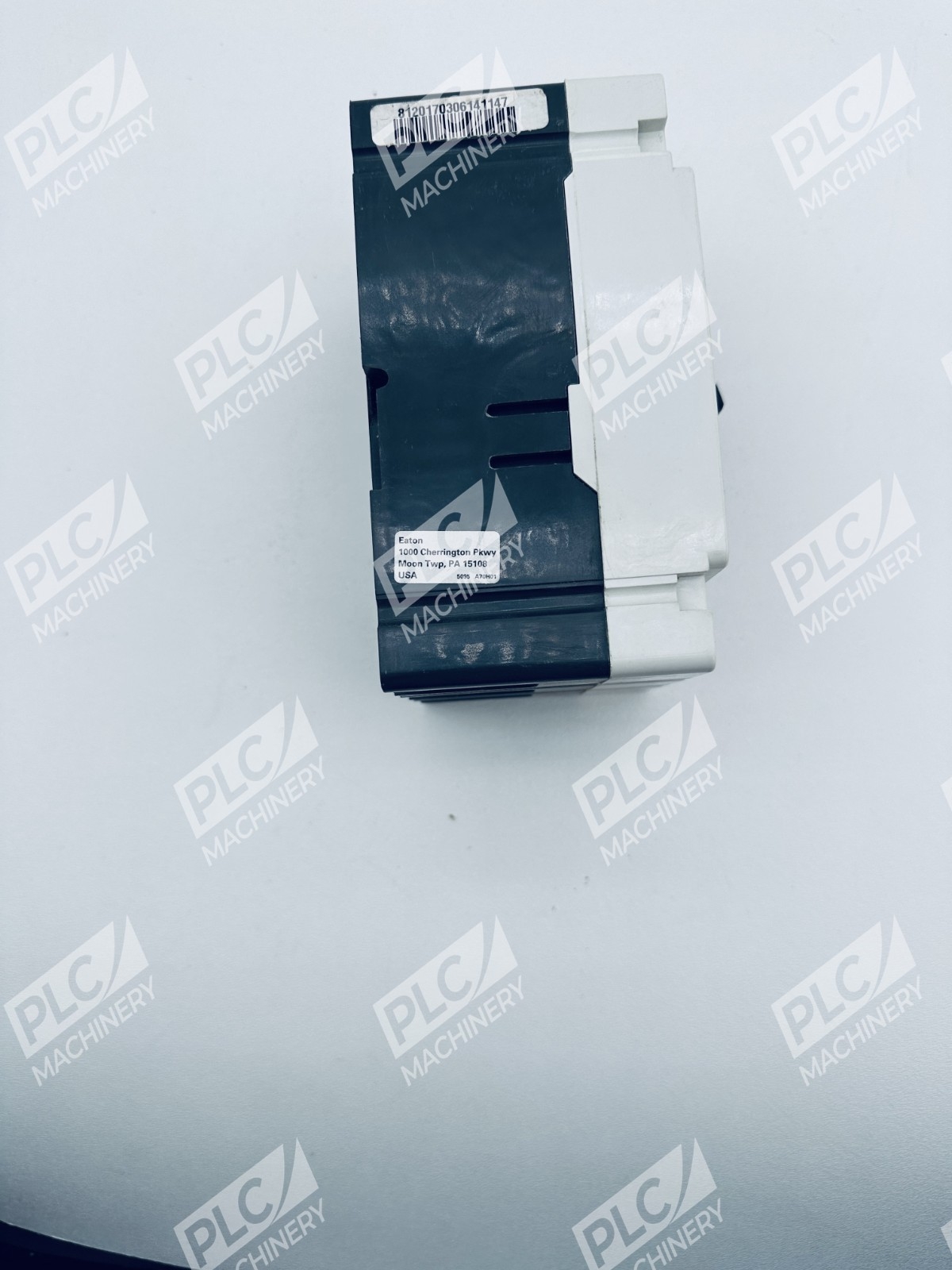

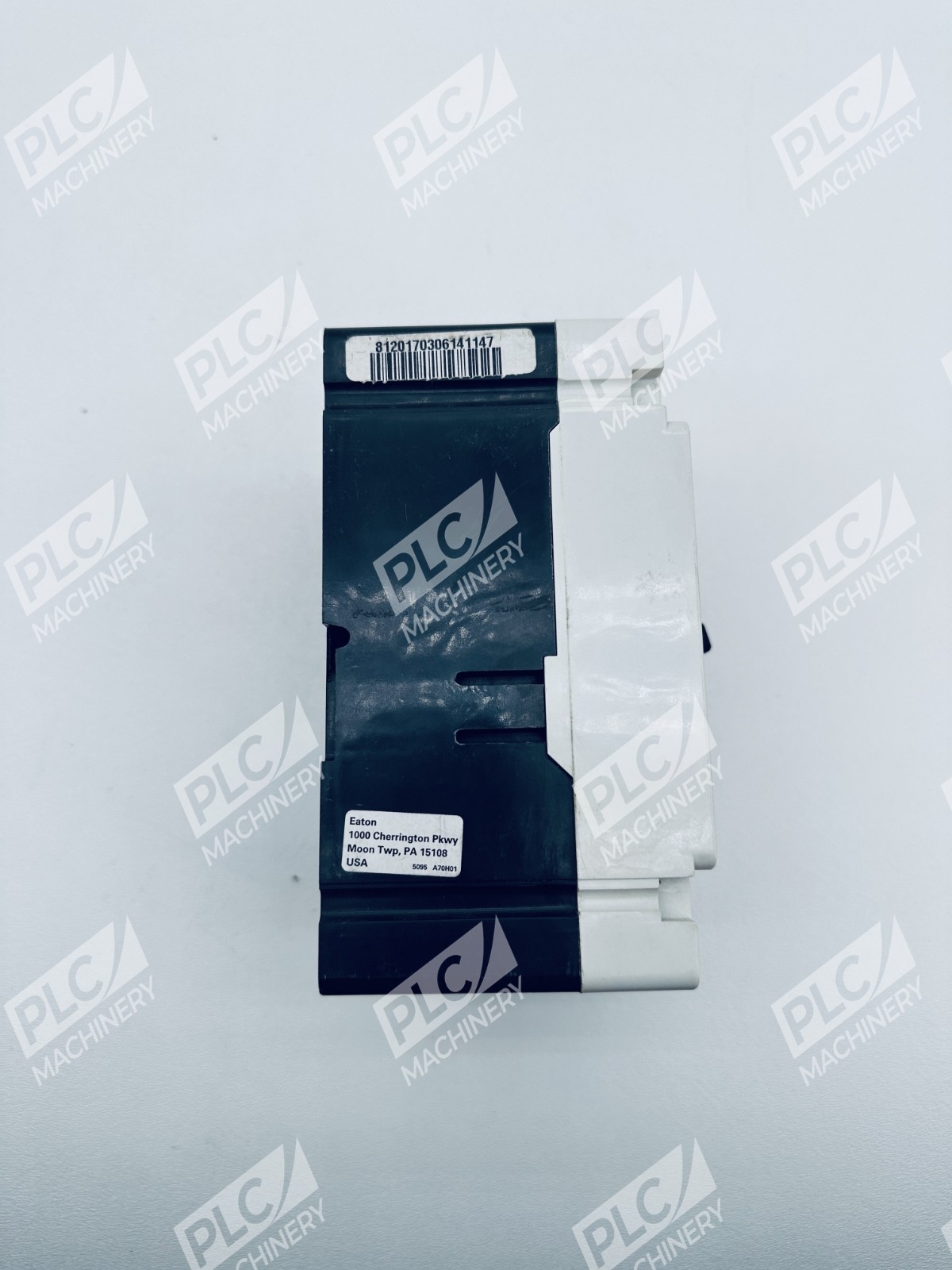

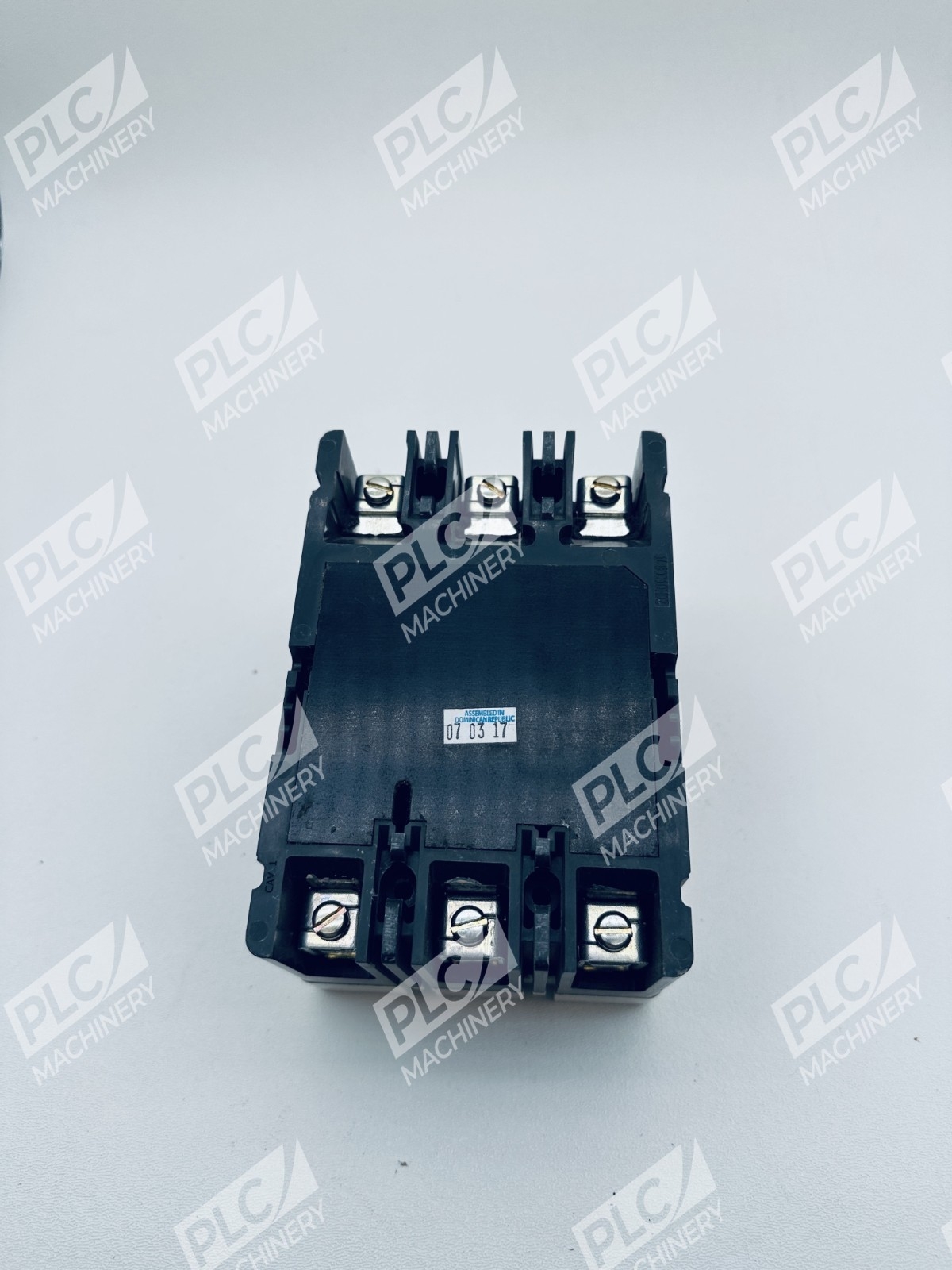

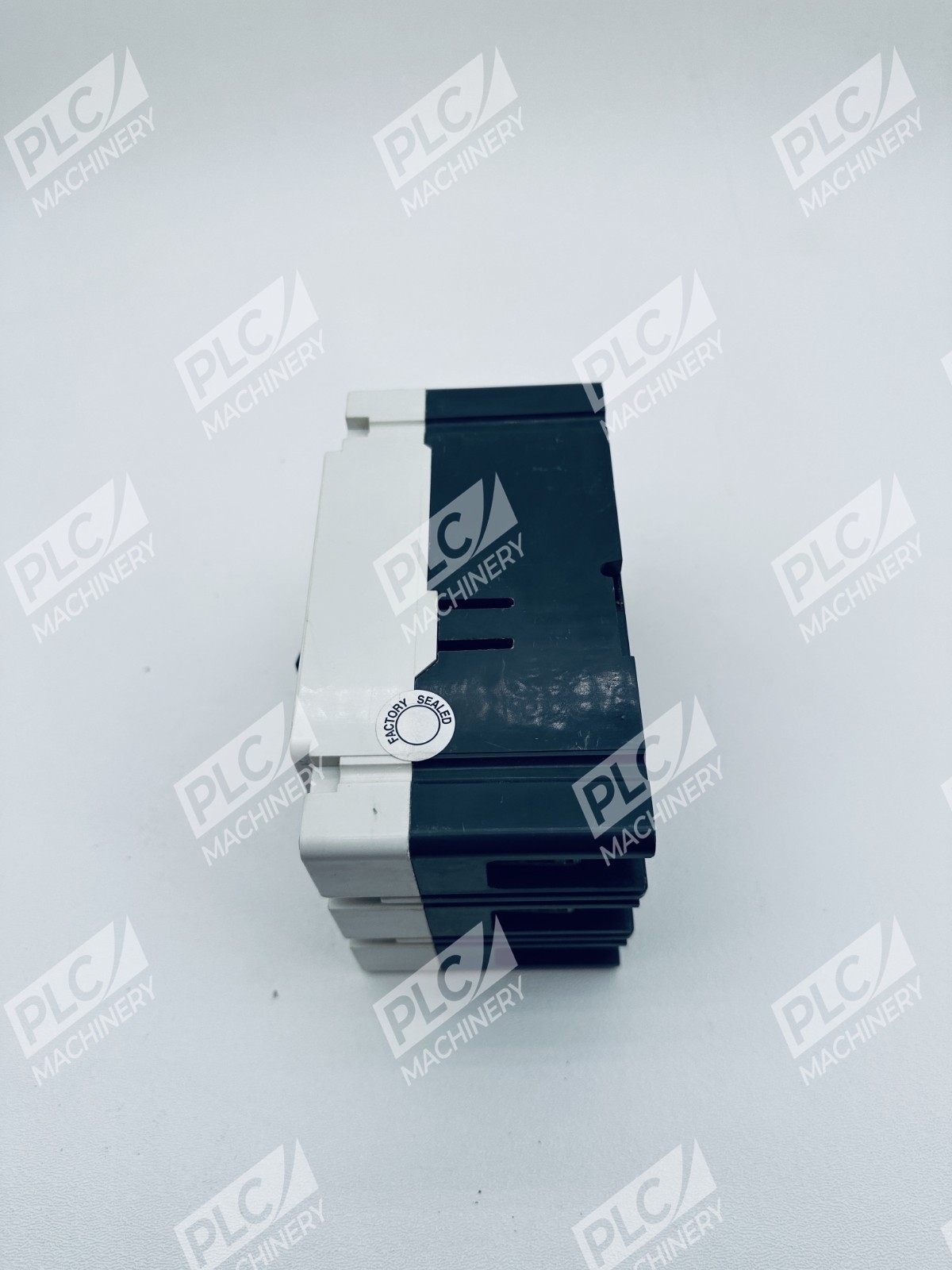

Overview

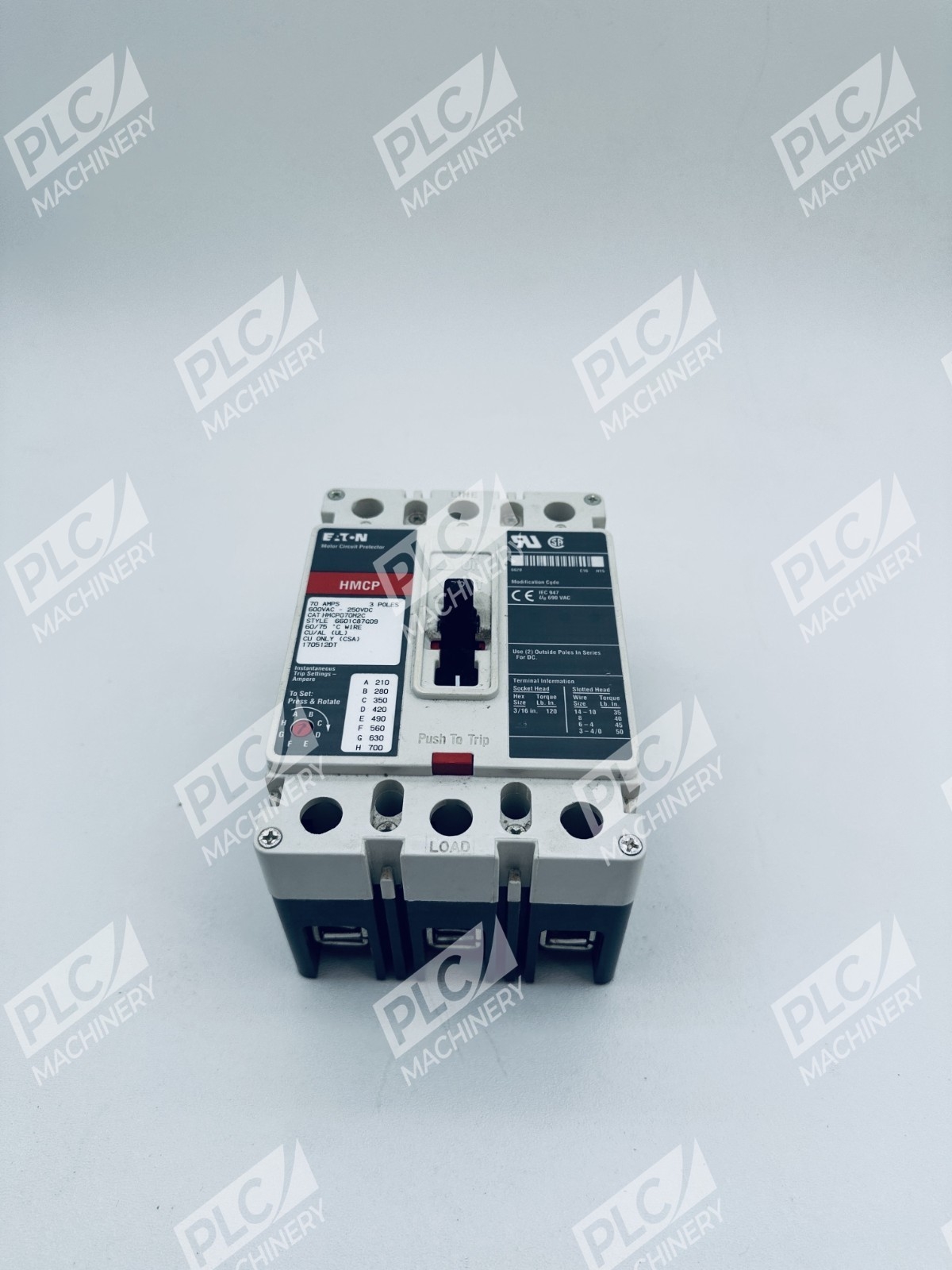

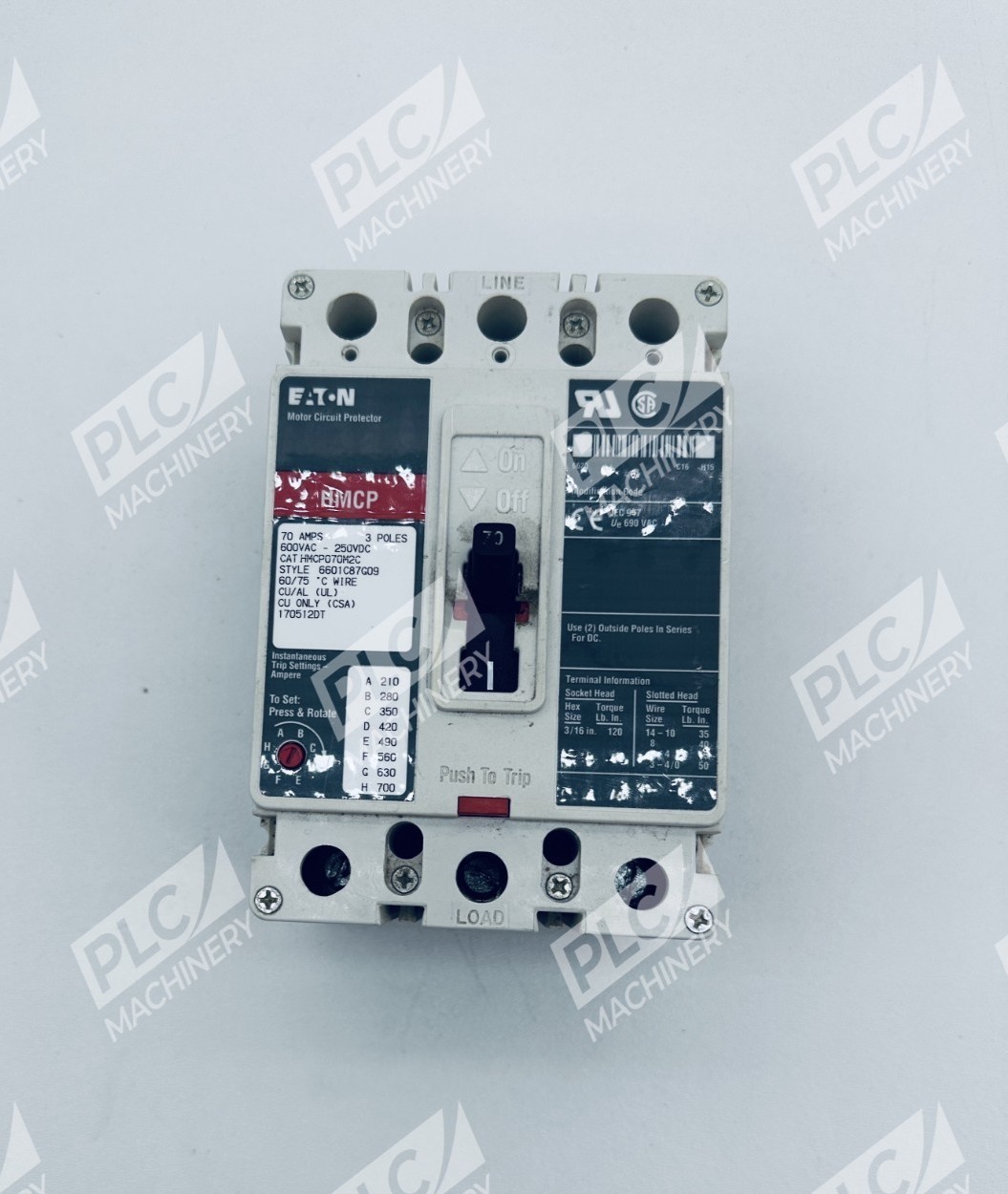

The Eaton HMCP070M2C motor circuit protector is molded case, 3-pole, Series C device engineered for short-circuit protection in motor circuits. Rated at 70 amperes, 600V AC / 250V DC, this protector features a magnetic instantaneous trip mechanism with adjustable range from 210 to 700 amperes. Frame size J-K accommodates NEMA Starter Size 2 motors with full-load current ratings from 16.1 to 59.1 amperes. Non-aluminum terminals ensure superior corrosion resistance and long service life in demanding industrial environments.
Key Features
- Magnetic Trip Only—instantaneous short-circuit protection without thermal overload elements (separate motor starter overload protection required)
- Adjustable Trip Range—210–700A selectable via cam dial, covering multiple motor sizes in a single frame
- Compact J-K Frame—saves panel space while delivering robust protection
- Non-Aluminum Terminals—superior reliability and corrosion resistance for long-term performance
- UL Listed, CSA Certified—meets international safety standards for industrial motor control
- Panel-Mount Design—standard installation in motor control centers and industrial enclosures
Technical Specifications
- Poles: 3
- Rated Current: 70 Amperes
- Voltage Rating: 600V AC / 250V DC
- Trip Type: Magnetic (Instantaneous)
- Adjustable Trip Range: 210–700 Amperes
- Frame Size: J-K (NEMA Starter Size 2)
- Motor FLA Range: 16.1–59.1 Amperes
- Dimensions: Width 4.9 in × Height 4.9 in × Depth 7.7 in
- Weight: 4.5 lb

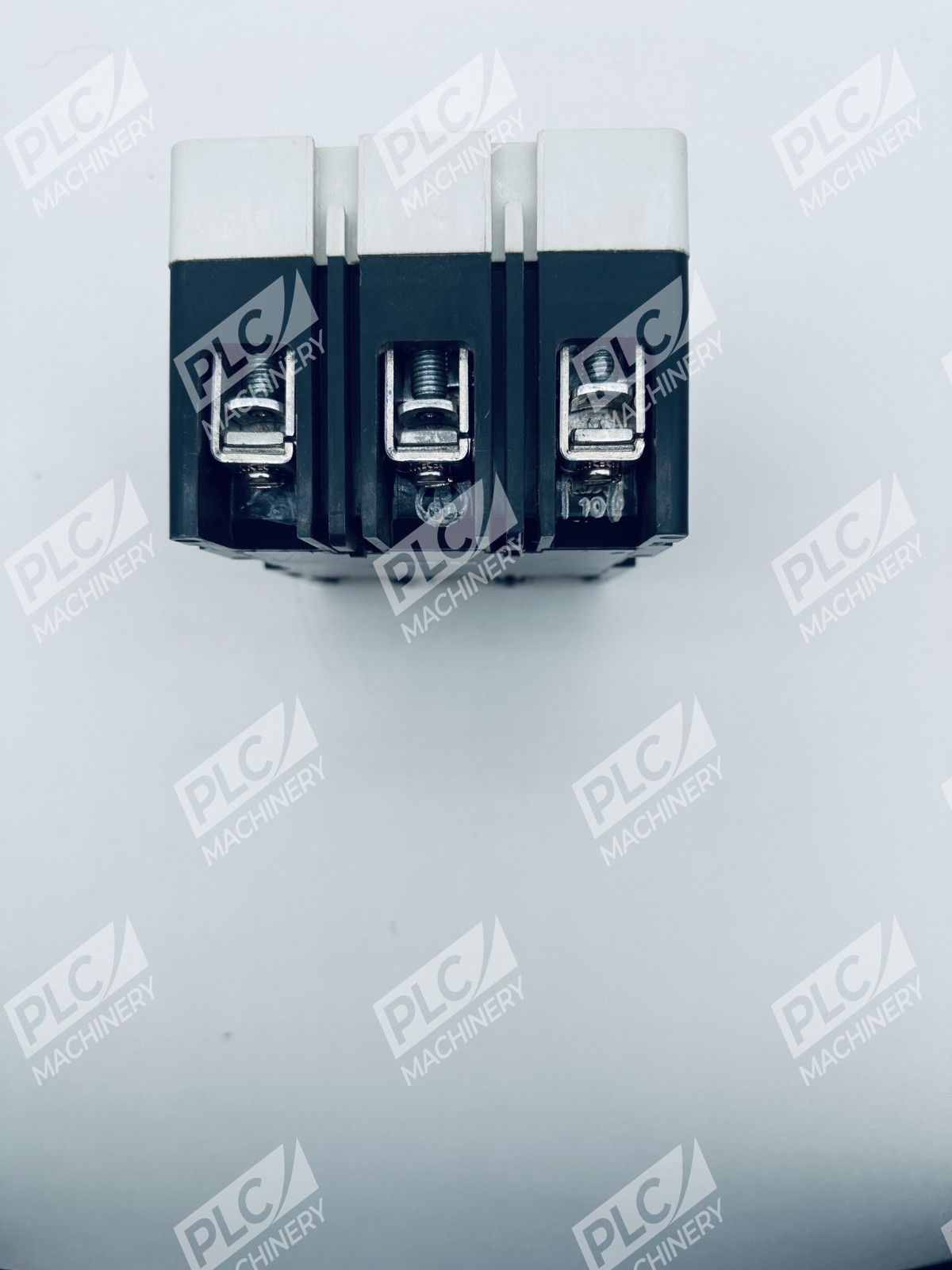

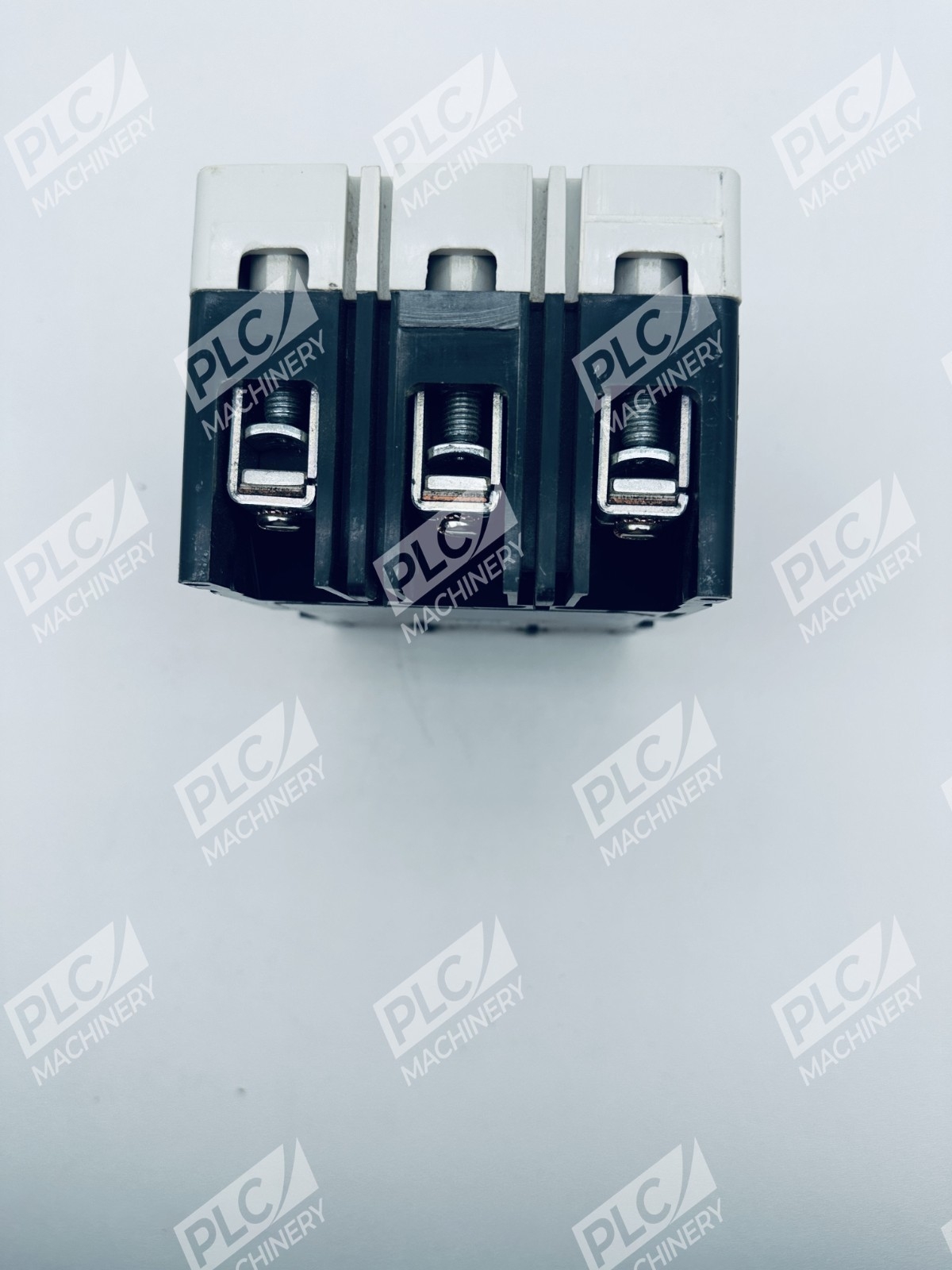

- Terminal Type: Non-Aluminum, Standard Line and Load
- Series: C
- Certifications: UL Listed, CSA Certified
- UPC: 786679150849
Typical Applications
The HMCP070M2C is suitable for motor protection in manufacturing facilities, commercial HVAC systems, industrial pump and compressor circuits, food processing plants, and light industrial machinery. Its compact frame and adjustable trip range make it ideal for facilities running multiple motor sizes on a single protection device. Commonly installed in motor control centers (MCCs), industrial panelboards, and starter-disconnected equipment where fast short-circuit response is critical to preventing equipment damage.
Compatibility & Replacements
Compatible With
- Eaton molded case circuit breaker panelboards and motor control centers
- NEMA Starter Size 2 motor starters and soft-starts
- Industrial control systems and motor control enclosures
- Panel-mount installations (DIN-rail and bolt-down configurations)
Replaces / Drop-In Replacement For
Verify with manufacturer documentation for exact model interchangeability. The HMCP070M2C is the standard 70A motor circuit protector in Eaton’s Series C lineup. Consult the Eaton product selection guide or your system integrator for compatible predecessors or equivalent cross-references.
Works With
- Eaton HMCP series circuit protectors and accessories
- Standard industrial motor starter and relay controls
- Overload relay heaters (required for motor overload protection—not included in this device)
- Standard panelboard wiring and terminal lugs
