Overview

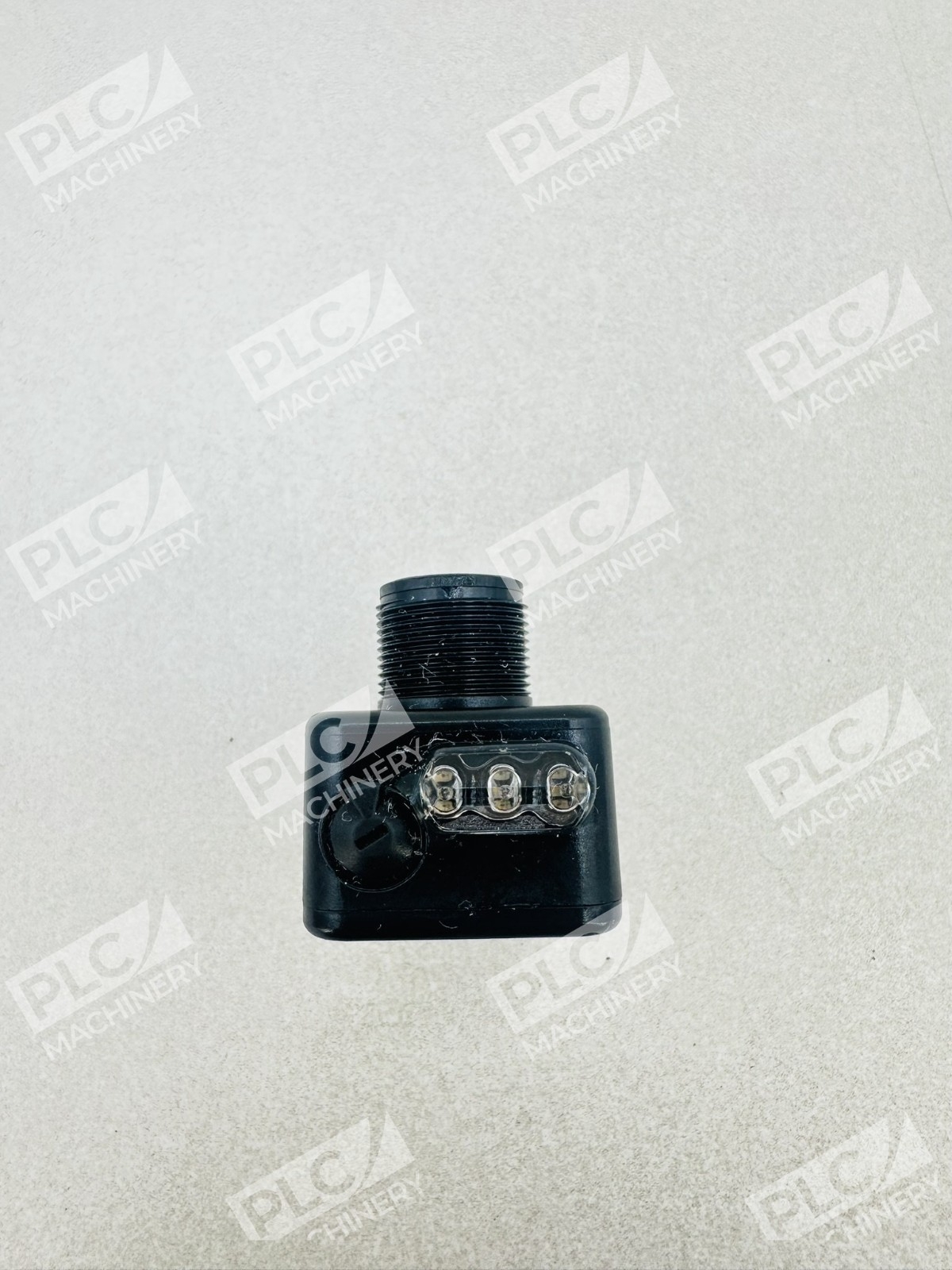

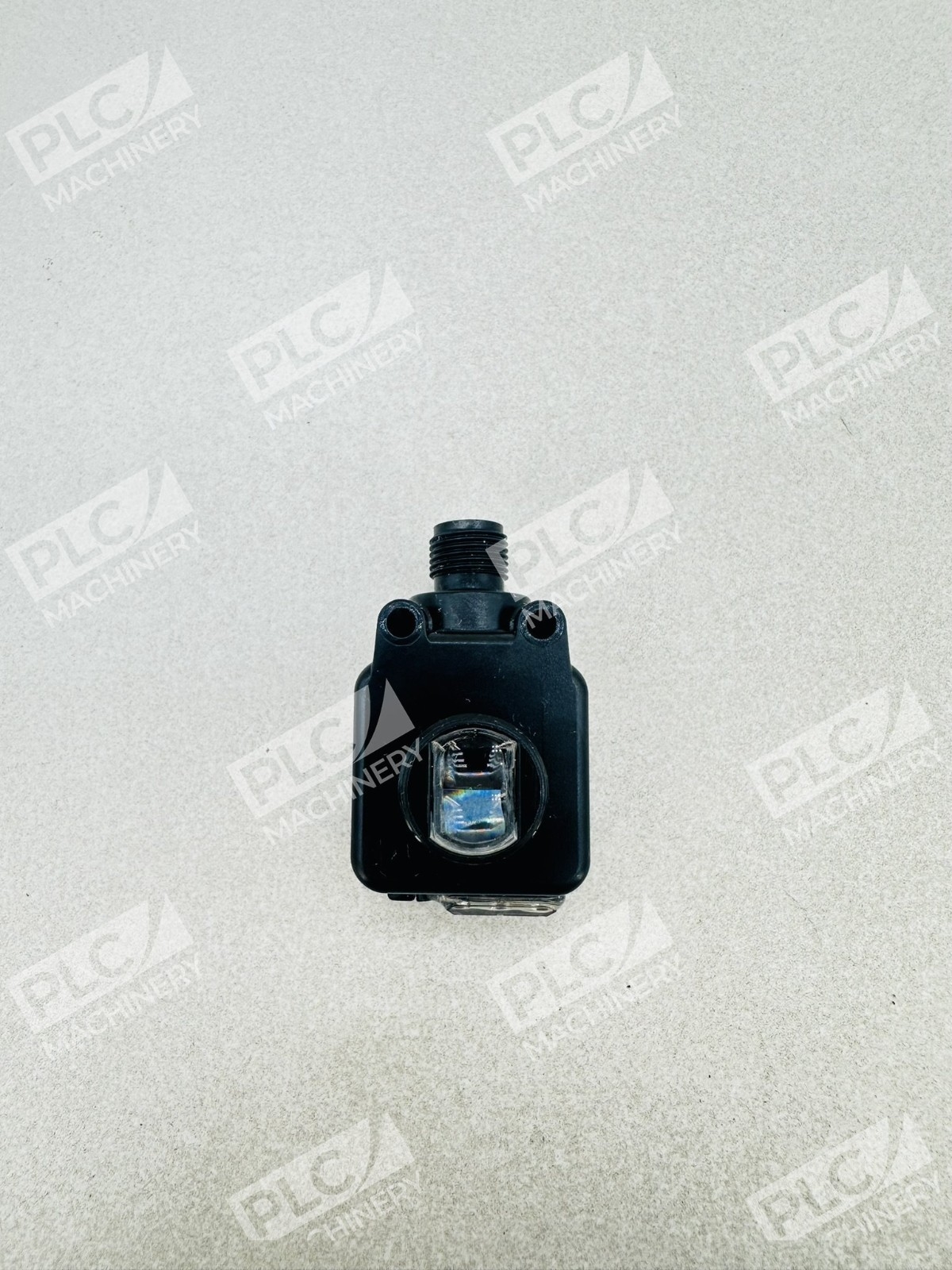

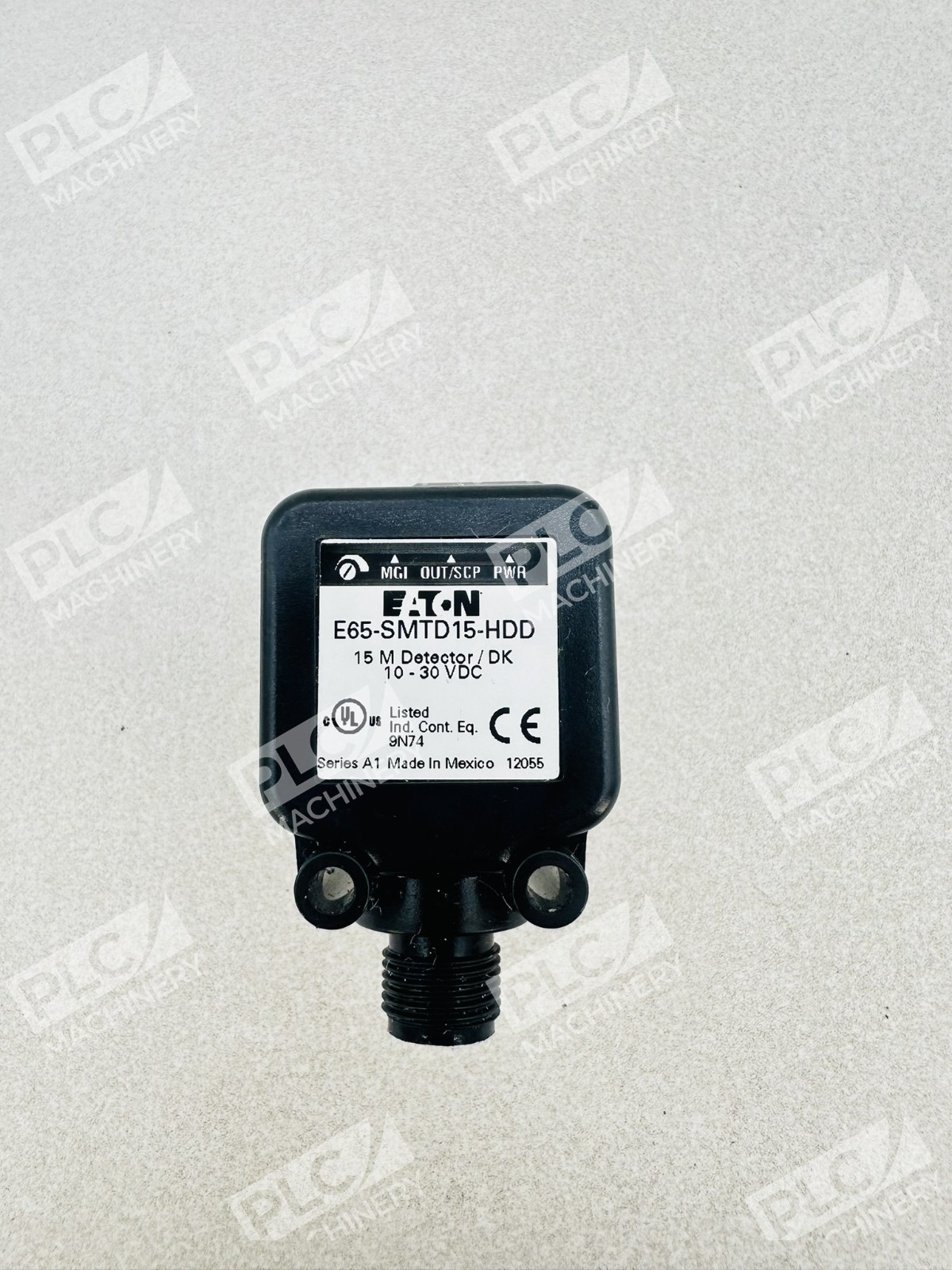

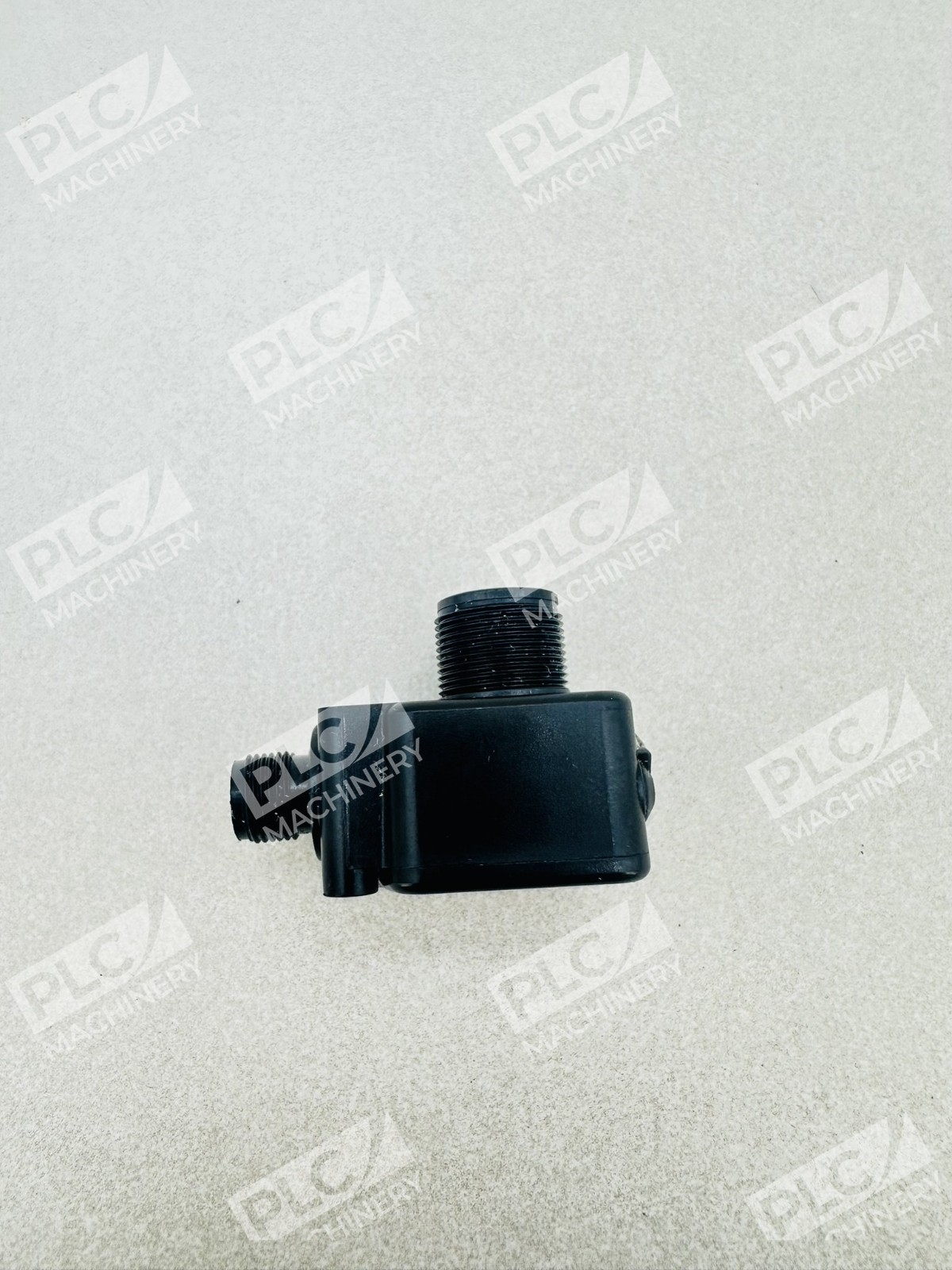

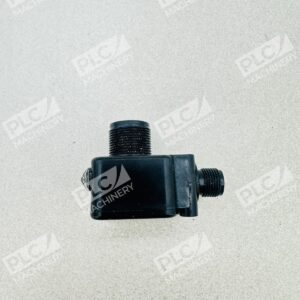

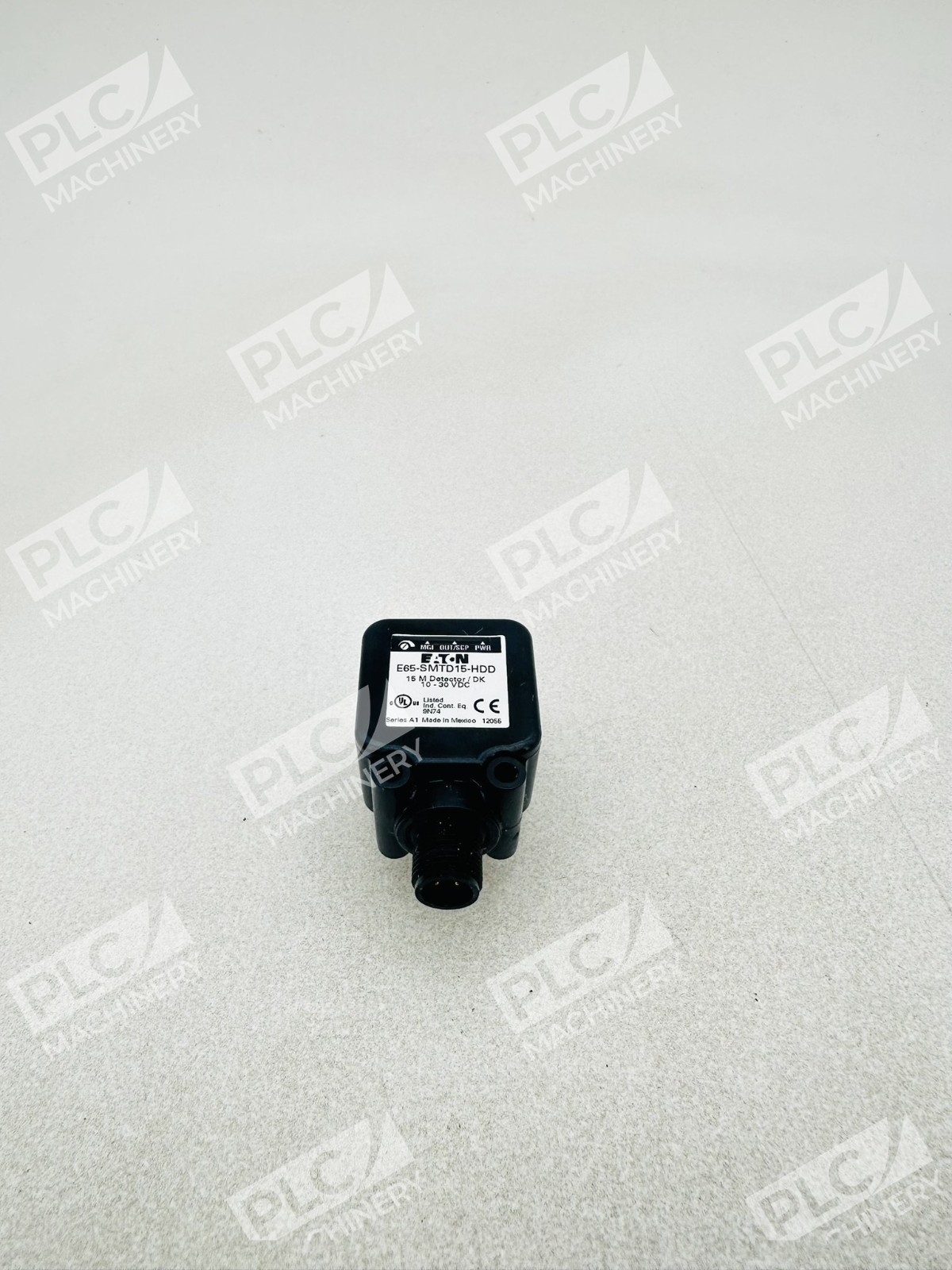

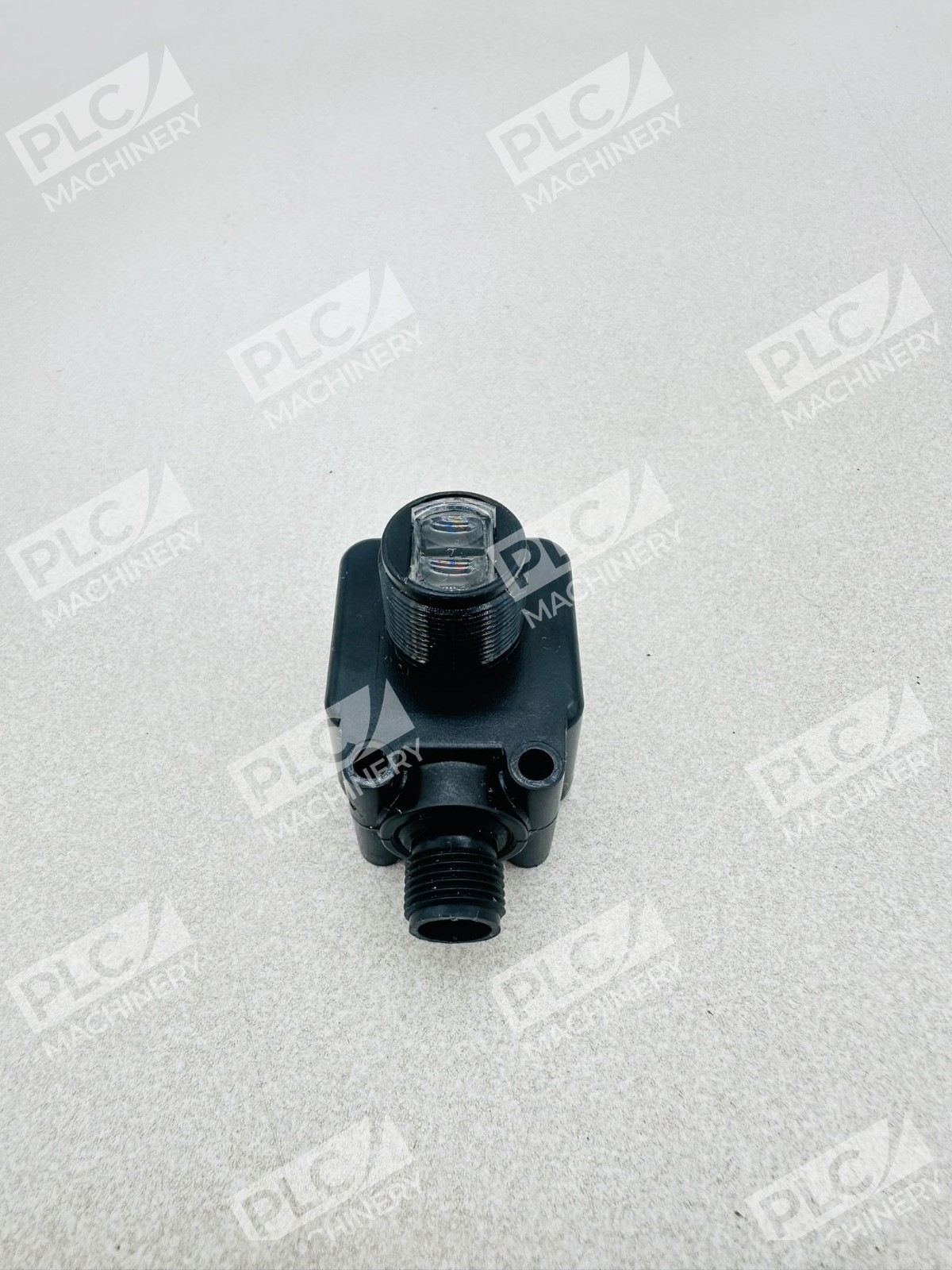

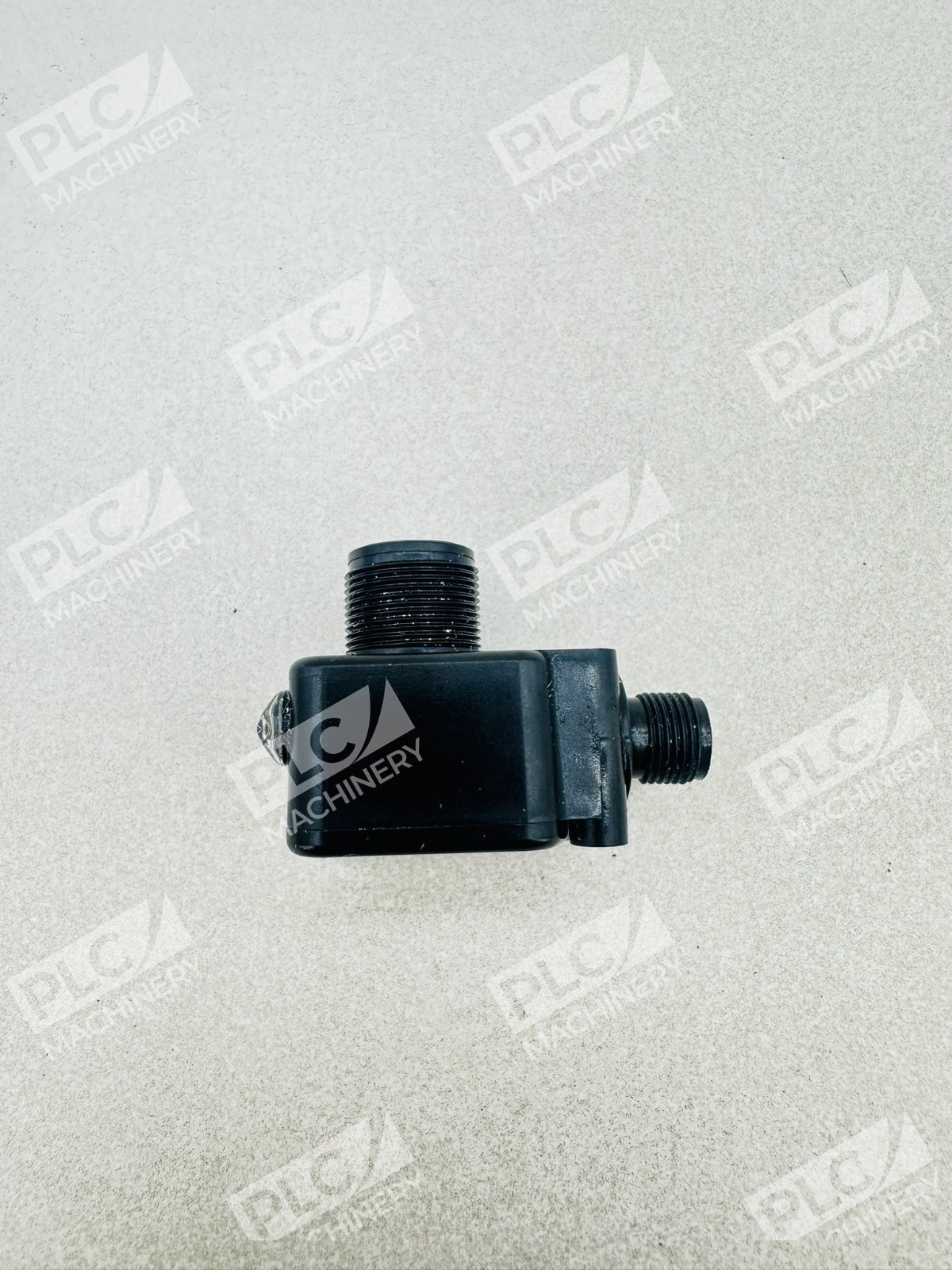

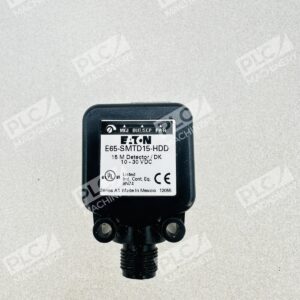

The Eaton E65-SMTD15-HDD is a thru-beam photoelectric receiver from the SM Series compact sensor family. This receiver unit is designed to work in tandem with a compatible transmitter to provide robust detection in industrial automation applications. Operating on 10-30 VDC with a 15m sensing range, the sensor features dark-operate logic and supports both NPN and PNP open collector outputs.
Key Features
- TargetLockâ„¢ technology simplifies sensor setup and visually confirms proper positioning while providing diagnostic information during use to prevent equipment downtime
- Visible sensing beam shows exactly where the sensors are pointing for quick installation verification
- M12 4-pin connector with 100 mA maximum output current and NPN/PNP open collector configuration
- Compact rectangular shape with 1 ms response time and 2 W power consumption
- NEMA 1/3/4/4X/6/6P/12/13 and IP68/IP69K rated enclosure for harsh industrial environments
Technical Specifications
- Sensing Range: 15 m
- Input Voltage: 10-30 VDC
- Output Current: 100 mA at 10-30 VDC
- Output Type: NPN and PNP open collector

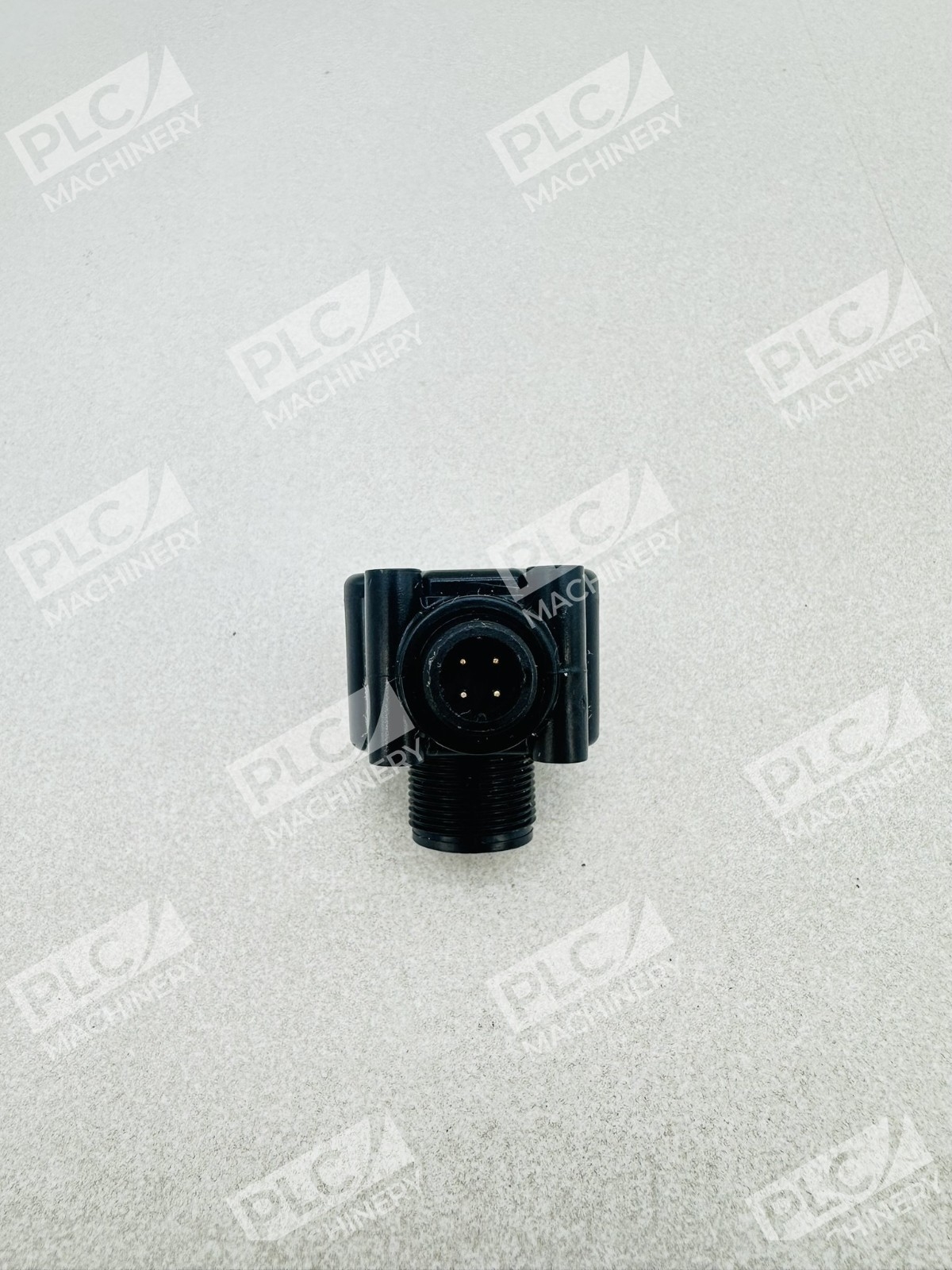

- Connector: M12 4-pin
- Cable Length: 6.6 Ft (2m)
- Response Time: 1 ms
- Power Consumption: 2 W
- Weight: 30 g
- Operating Temperature: -13 to 131°F (-25 to 55°C)
- Enclosure Rating: NEMA 1/3/4/4X/6/6P/12/13, IP68/IP69K
- Sensing Method: Thru-beam, dark operate (receiver unit)
Typical Applications
The E65-SMTD15-HDD receiver is suited for industrial automation environments requiring thru-beam detection:
- Packaging and bottling line object detection
- Material handling and conveyor systems
- Web break detection in paper, film, and textile production
- Assembly line presence/absence sensing
- Machine safeguarding and presence detection
- High-speed counting and sorting applications
Compatibility & Replacements
Compatible With
- E65-SM Series transmitter units for thru-beam pairing
- Industrial control systems supporting 10-30 VDC NPN/PNP inputs
- PLCs and programmable controllers with discrete input modules
- Safety controllers and motion control systems
- Standard M12 4-pin connector infrastructure
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The E65-SMTD15-HDD receiver pairs with E65-SM Series transmitters; consult Eaton documentation to confirm transmitter compatibility with your specific application.
Works With
- E65-SM Series thru-beam transmitter units
- Standard 10-30 VDC industrial control networks
- NPN/PNP input cards and I/O modules
- Eaton Cutler-Hammer automation components
- M12 industrial connector ecosystem
