Overview

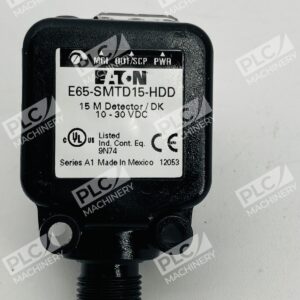

The Eaton E65-SMTD15-HDD is a through-beam photoelectric sensor receiver from the E65 SM compact series. This receiver operates with a sensing distance of 15m, 10-30 VDC power supply, dark operation mode, and dual NPN/PNP open collector outputs in a quad 40 package with insulated material construction. The sensor features M12 connector, 100 mA maximum output, and includes bright indicator LEDs for power (green), output (red), and TargetLock (orange) status.
Key Features
- TargetLock™ Technology: Simplifies sensor setup while visually confirming positioning for reliable operation, and provides diagnostic information to inform of impending problems before equipment downtime
- Dark-Switching Operation: Enhances efficiency and accuracy of processes with dark-switching output control
- Visible Sensing Beam: Visible red sensing beam shows exactly where sensors are pointing
- Dual Output Mode: NPN and PNP open collector configuration on 4-pin M12 connector
- LED Status Indicators: Intuitive LED indicators for easy monitoring of operational states at a glance
- Industrial Protection: Full protection from overvoltage, reverse polarity, and short-circuits
Technical Specifications
- Sensing Distance (Sn): 15 meters (49 feet)
- Power Supply: 10–30 VDC
- Output Type: NPN/PNP Open Collector
- Maximum Output Current: 100 mA
- Connector: M12 4-pin
- Operation Mode: Dark (ON at light break)
- Sensing Method: Through-beam (receiver only)
- Housing: Compact rectangular, insulated material quad 40
- Response Time: 1 millisecond
- LED Indicators: Power, Output, TargetLock
Typical Applications
- Conveyor belt detection and line-end sensing
- Parts counting and production line monitoring
- Object presence detection in automation
- Bottle and package detection systems
- Assembly line quality control gates
- Industrial motion control triggering
Compatibility & Replacements
Compatible With
- Industrial PLC control systems (24 VDC input modules)
- Eaton E65 series thru-beam transmitters (e.g., E65-SMTD15-HDD paired transmitter units)
- Standard M12 A-coded connector interfaces
- NPN and PNP logic controllers and safety relays
- Industrial automation systems requiring 10–30 VDC sensors
Replaces / Drop-In Replacement For
- E65-SMTD15-HD (earlier light-switching variant; verify switching mode before substitution)
- E65-SMTD15-HLD (alternative housing or connector version)
- Verify compatibility with your system integrator before ordering.
Works With
- Allen-Bradley CompactLogix, ControlLogix, and Micro800 series (24 VDC input cards)
- Siemens S7-1200, S7-1500 (via SIMATIC logic modules)
- Mitsubishi FX series PLCs with 24 VDC input cards
- Omron CP1E and CJ series controllers
- Standard discrete 24 VDC input/output modules from any major industrial PLC manufacturer
- Eaton xComfort and Moeller automation software platforms
