Overview

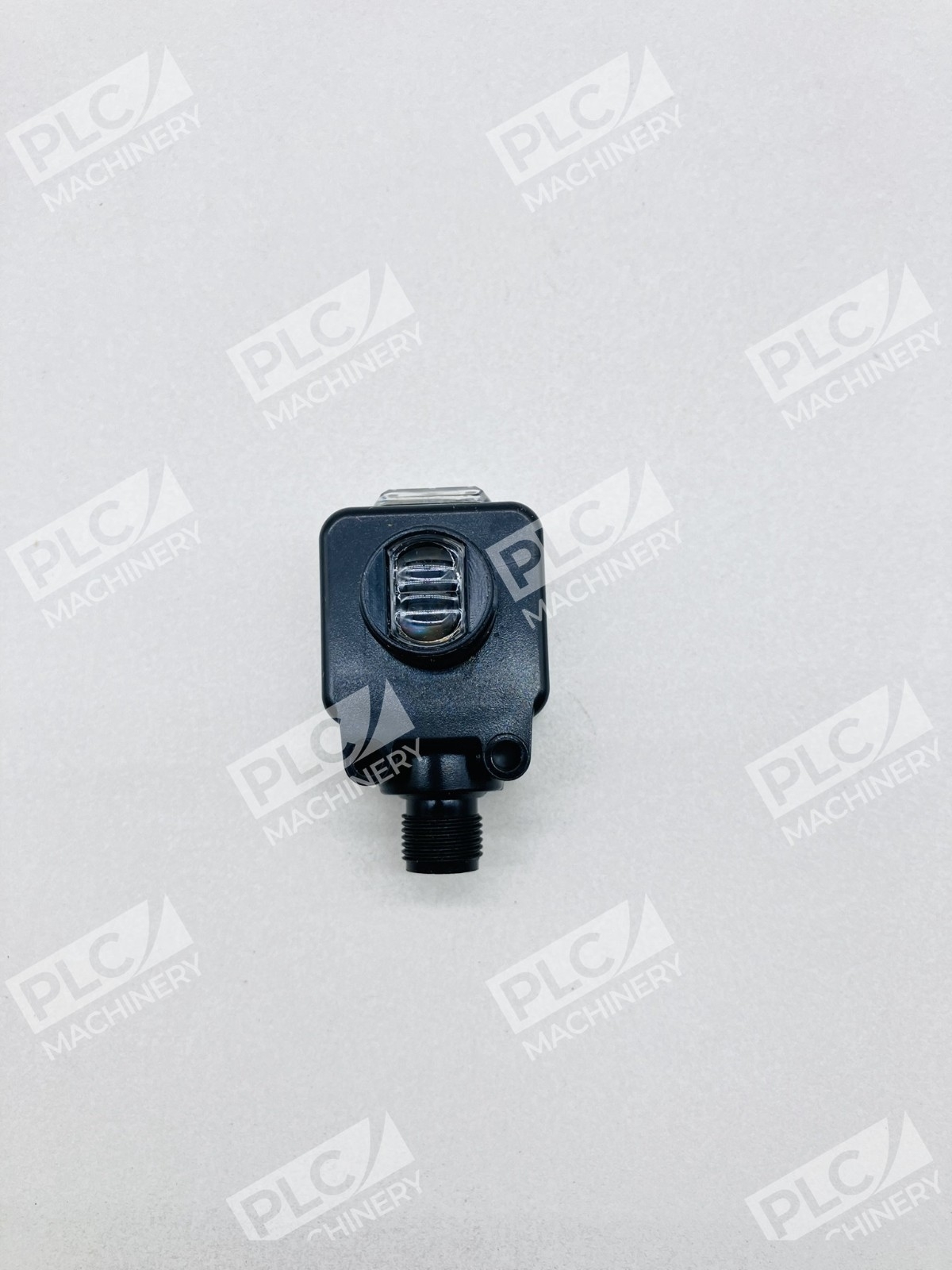

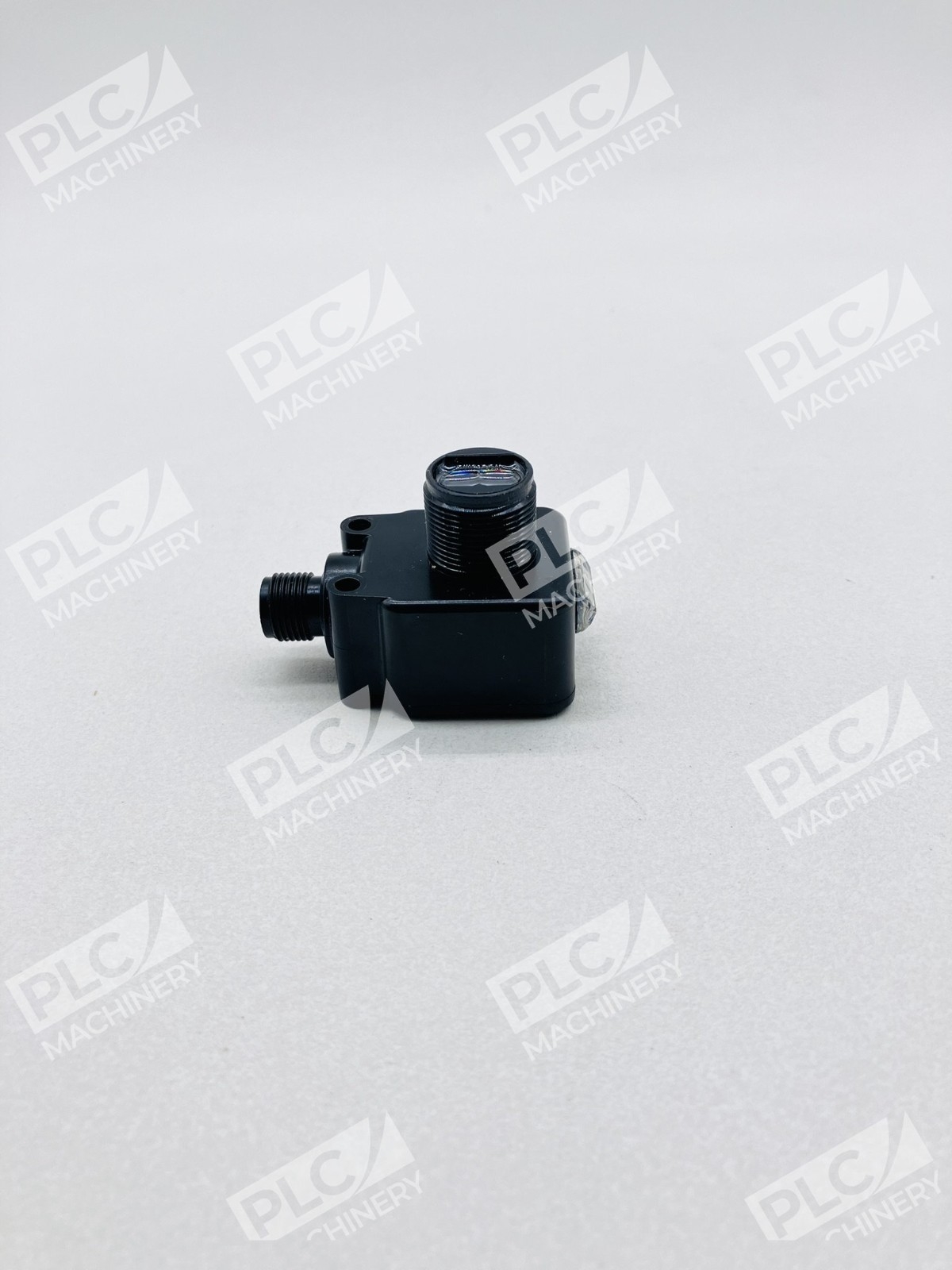

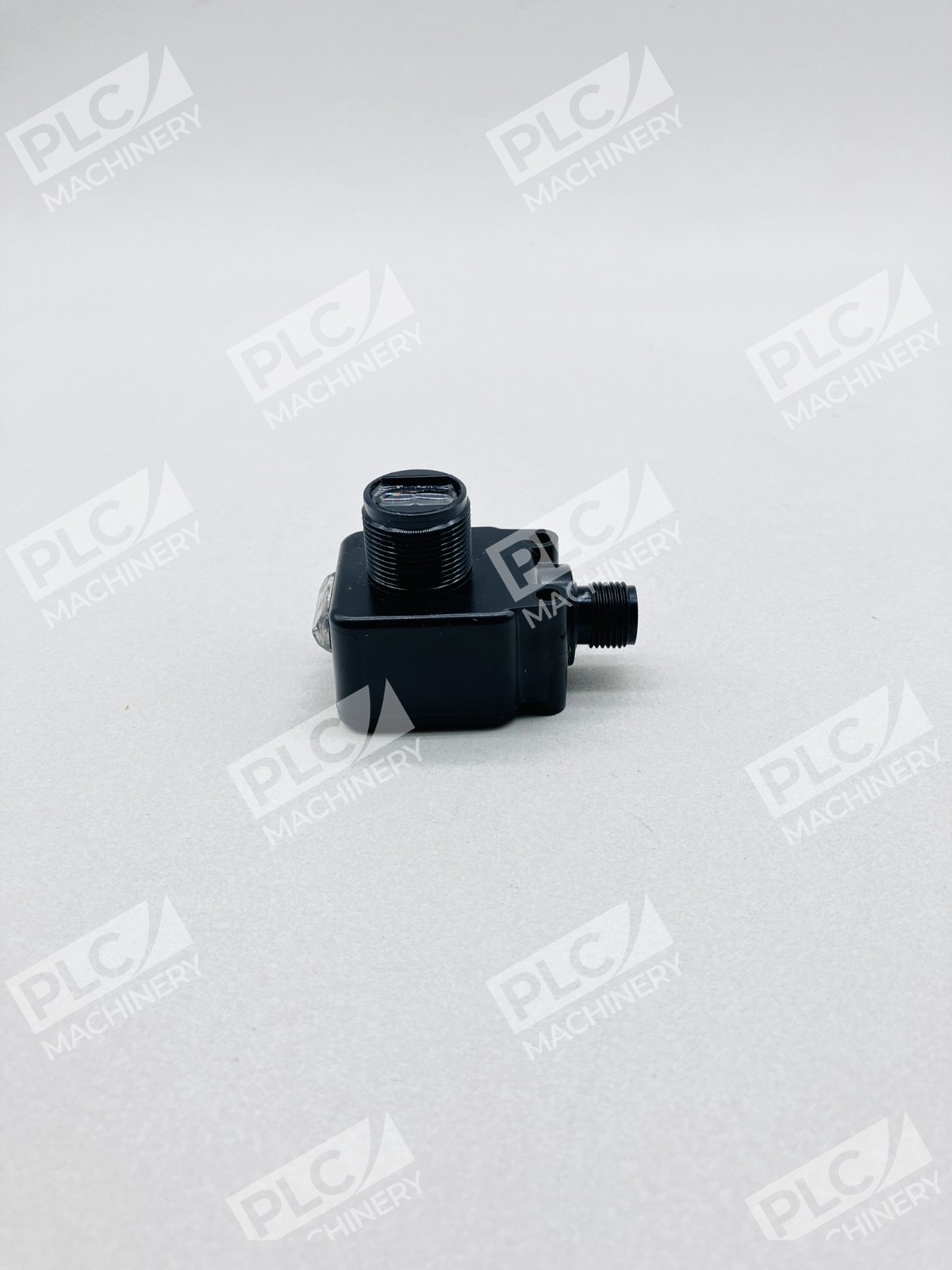

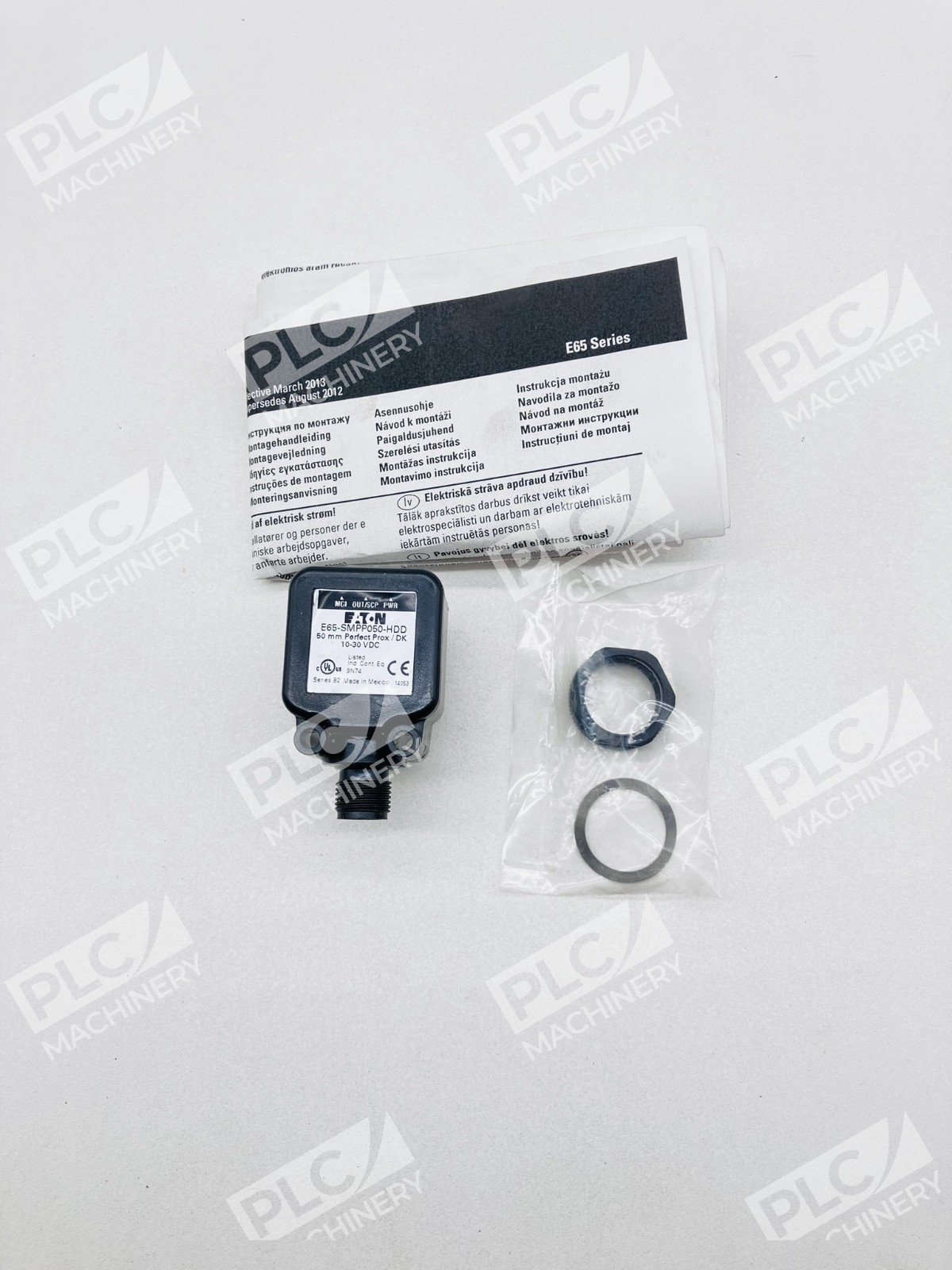

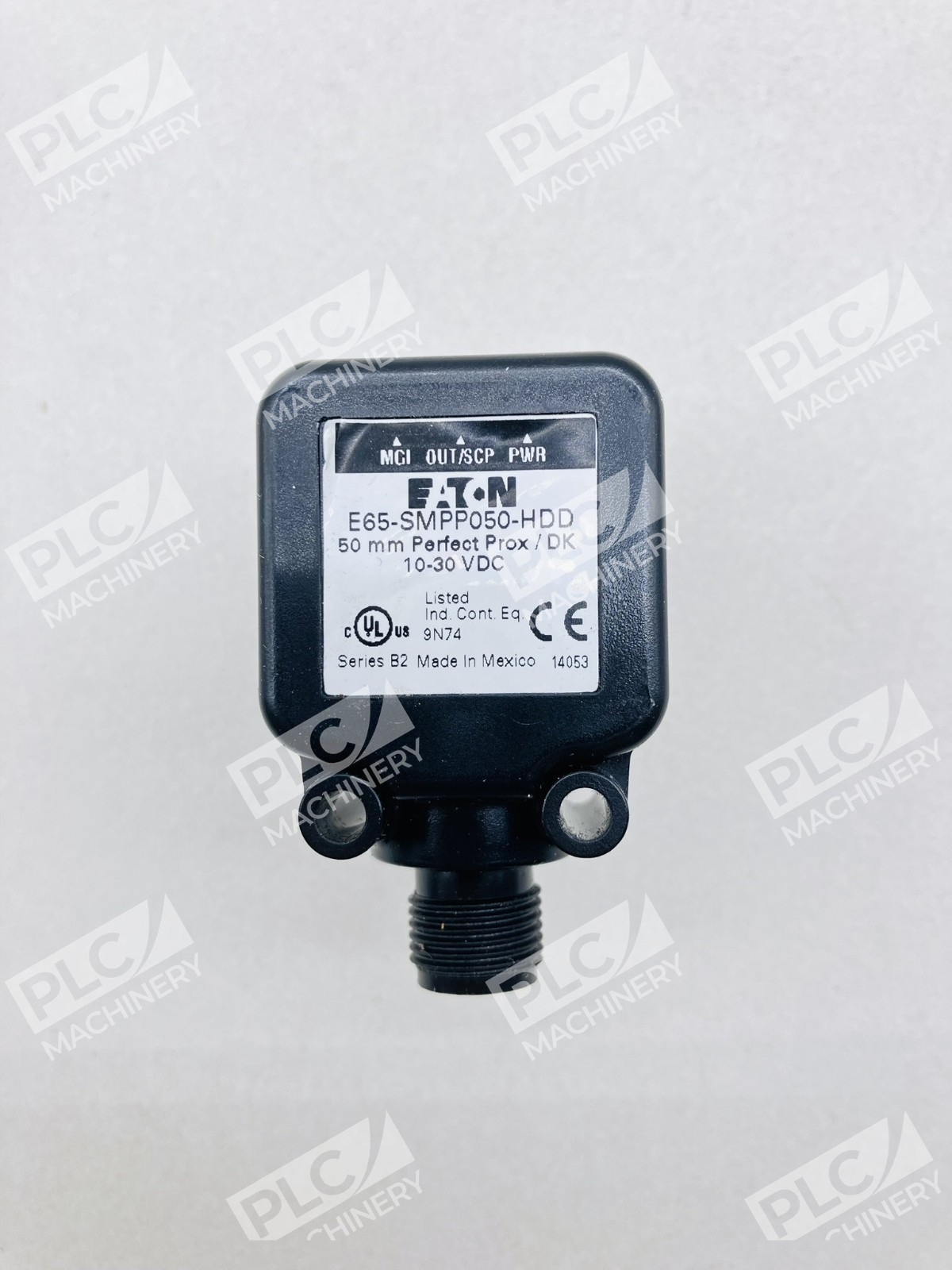

The Eaton E65-SMPP050-HDD is a compact photoelectric sensor from the Perfect Prox SM Series engineered for industrial automation, machine vision, and process control applications. This model features background suppression detection with dark operate (dark-on) output logic, making it ideal for applications where the target is darker than the surrounding environment. The sensor operates on 10–30 VDC and includes a quick-disconnect (QD) connector with 4-pin configuration for field-proven reliability.
Key Features
- 50 mm sensing range: Delivers accurate detection at short to medium distances in compact spaces
- Dark operate output: Sensor triggers when target is absent or blocks the light beam

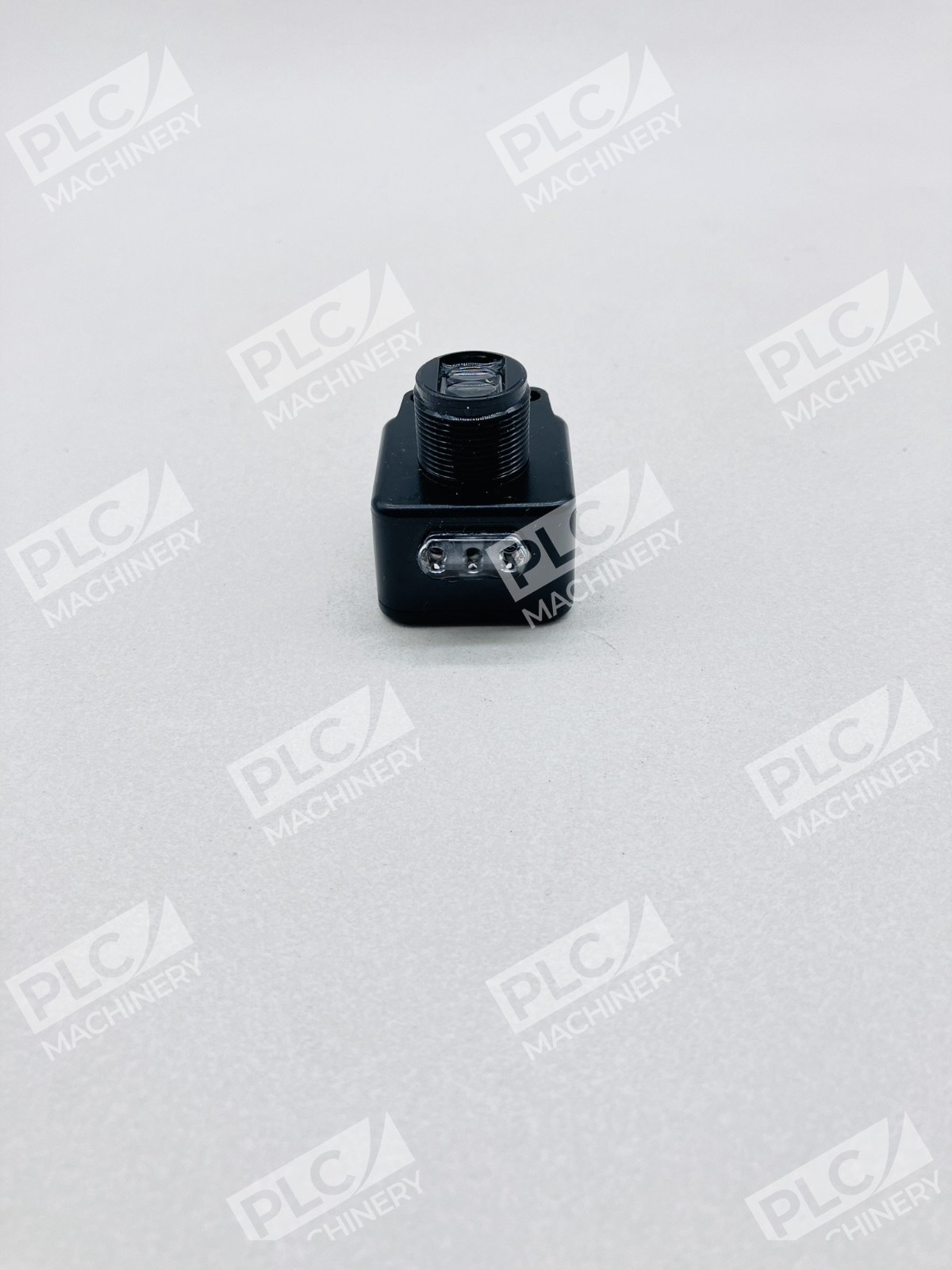

- TargetLock technology: Built-in alignment indicators provide visual feedback and diagnostic information to prevent misalignment and equipment downtime
- Visible red sensing beam: Allows operators to pinpoint exact sensor aim and verify target positioning

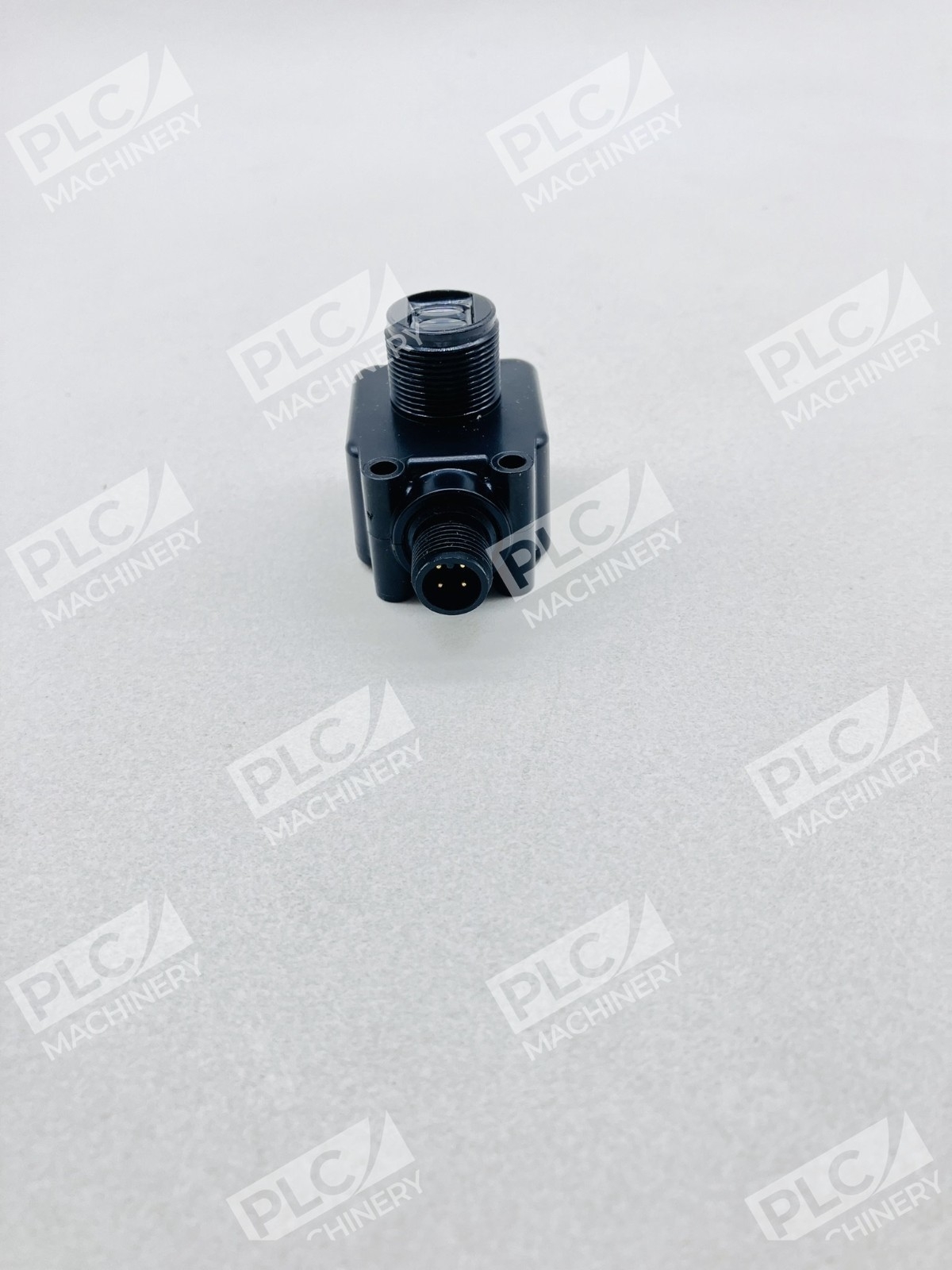

- Quick-disconnect connector: 4-pin configuration simplifies installation, replacement, and field service
- Robust environmental rating: NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 and IP68/IP69K enclosure protection for wet, dusty, and wash-down environments
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | E65-SMPP050-HDD |
| Manufacturer | Eaton Cutler-Hammer |
| Series | Perfect Prox SM |
| Input Voltage | 10–30 VDC |
| Output Type | NPN/PNP Open Collector |
| Output Logic | Dark Operate (Dark-On) |
| Load Current (Max) | 100 mA @ 30 VDC |
| Sensing Range | 50 mm (2 in.) |
| Sensing Method | Background Suppression |
| Response Time | 1 ms |
| Connection | 4-Pin Quick-Disconnect (QD) Connector |
| Beam Type | Visible Red LED |
| Operating Temperature | –25 to +55 °C (–13 to +131 °F) |
| Enclosure Rating | NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 / IP68/IP69K |
| Housing Material | Cycoloy (impact-resistant polymer) |
| RoHS Compliant | Yes |
Typical Applications
- Packaging and conveyor line control
- Parts sorting and object detection on production lines
- Presence/absence sensing for automated material handling
- Bottle, can, and label detection in beverage and food processing
- Machine tool safety interlocks and position verification
- Automated assembly line inspection and gate control
- High-moisture or wash-down environments due to IP68/IP69K rating
Compatibility & Replacements
Compatible With
- Industrial PLC input modules (24 VDC digital inputs, NPN/PNP configurable)
- Programmable controllers: Allen-Bradley CompactLogix, ControlLogix, Micro800; Siemens S7-1200, S7-1500; Mitsubishi FX, Q-series
- Motor starter circuits and relay logic control systems
- Industrial automation networks using standard 24 VDC sensor signals
Replaces / Drop-In Replacement For
- Eaton E65-SMPP050-GD (diffuse sensing variant)
- Eaton E65-SMPP050-HL (cable-connected variant with 2 m cable)
- Eaton E65-SMPP050-HL5 (cable-connected variant with 5 m cable)
- Similar 50 mm background suppression sensors from competitor brands operating at 10–30 VDC with NPN/PNP outputs
Works With
- Standard 24 VDC sensor power supply circuits
- Digital input modules configured for NPN or PNP sourcing logic
- Relay driver modules and solid-state output cards
- Industrial Ethernet gateways (via analog/digital signal conversion if required)
- Legacy relay logic and hardwired safety circuits
