Overview

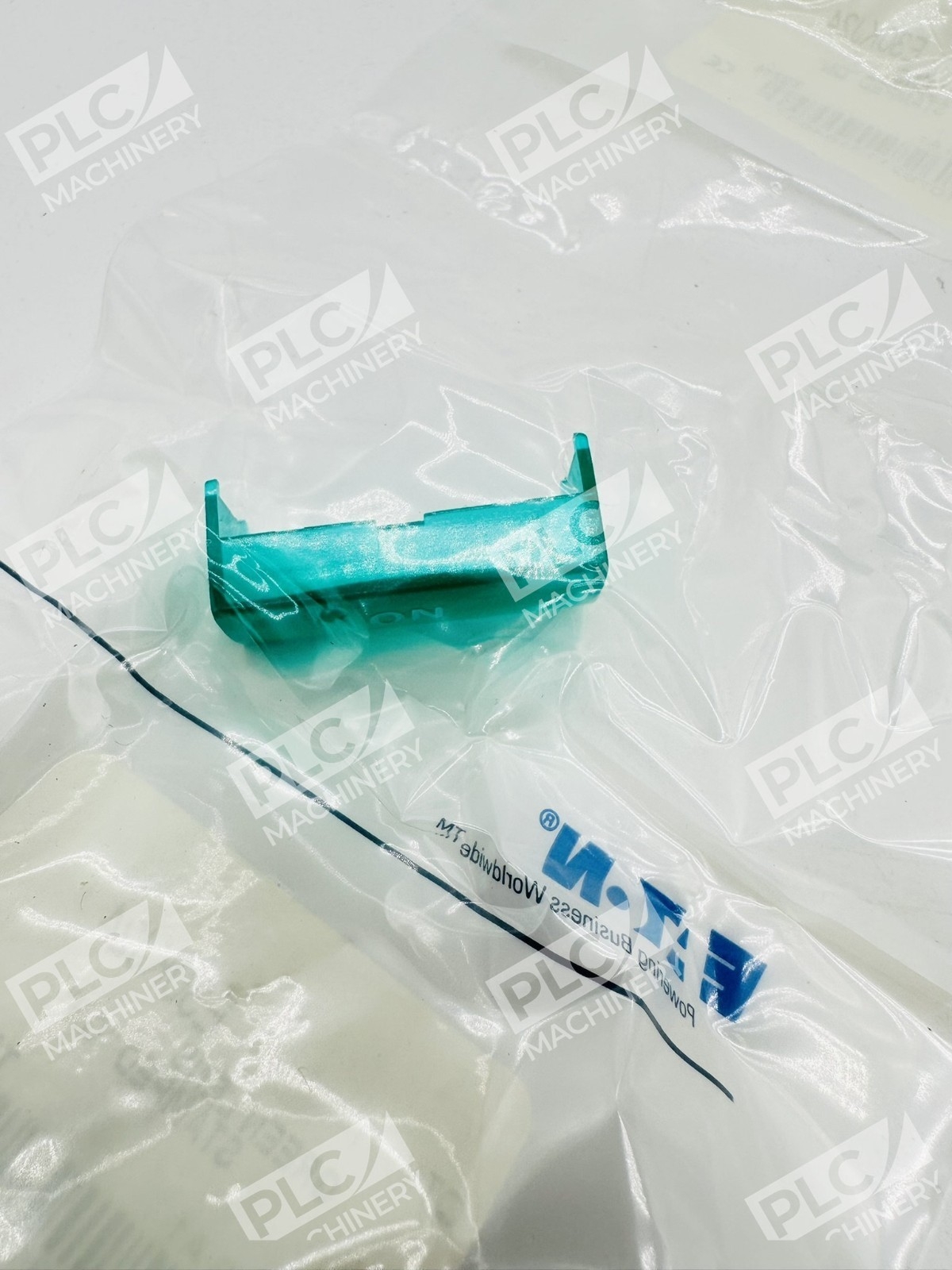

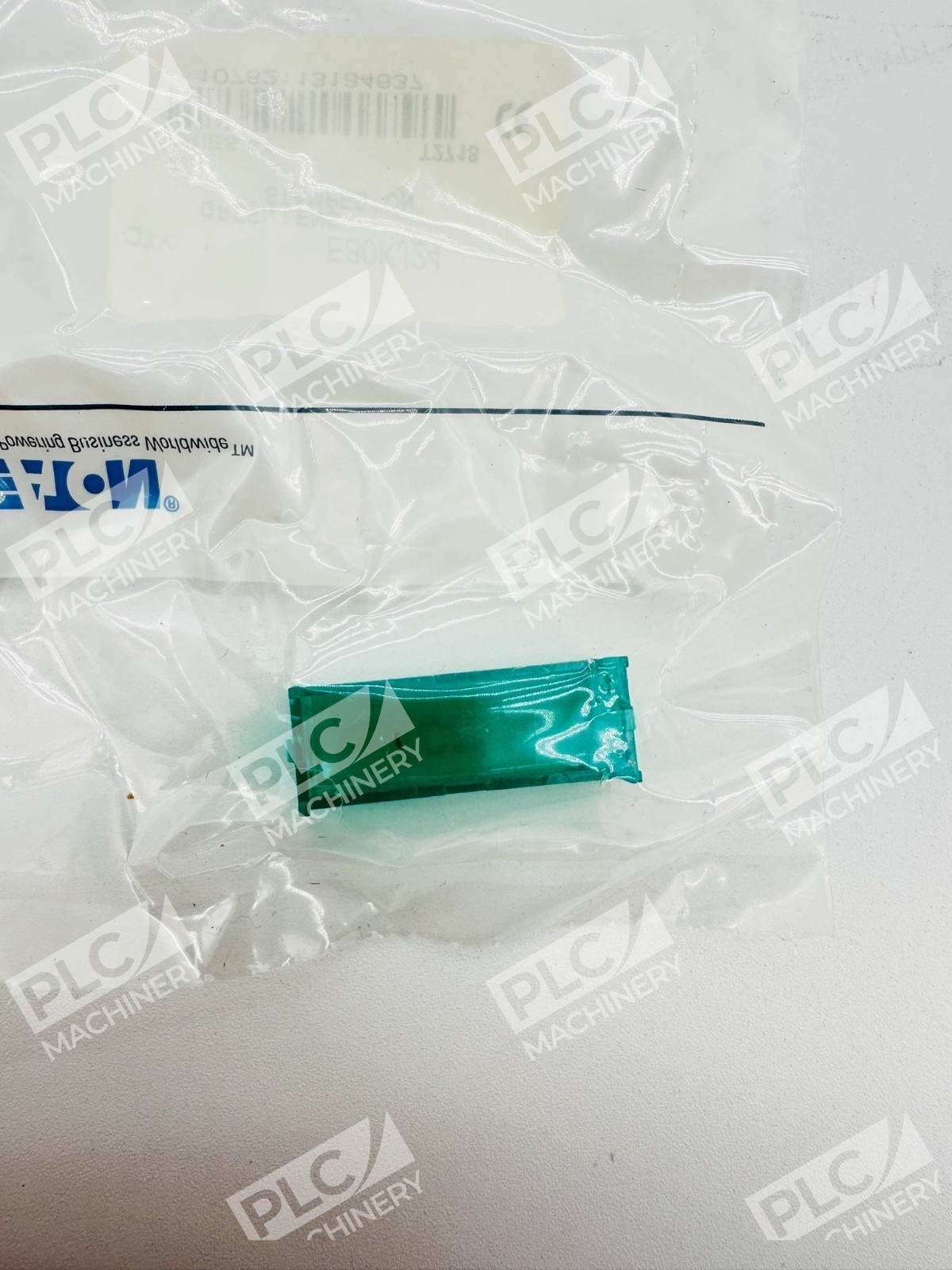

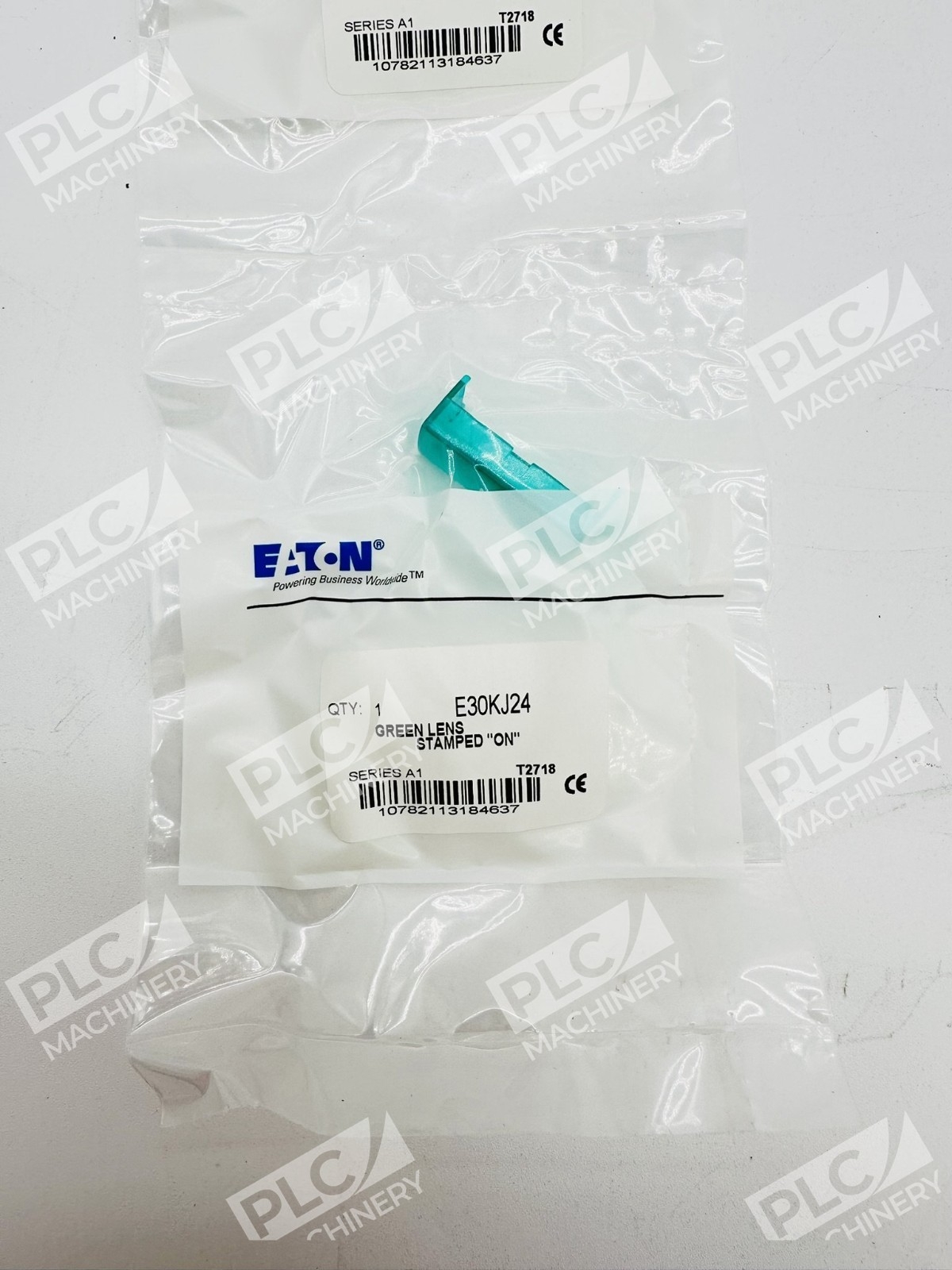

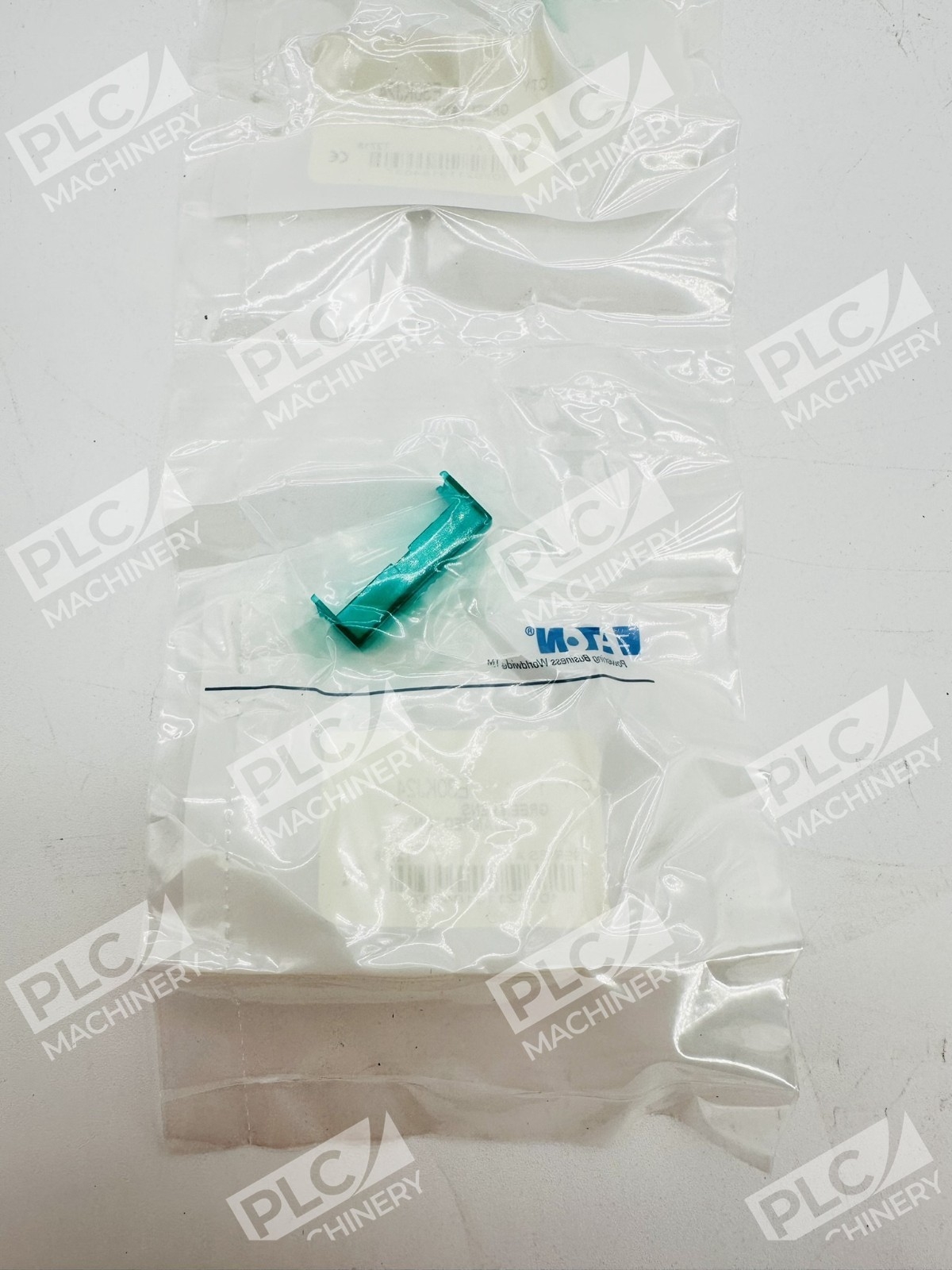

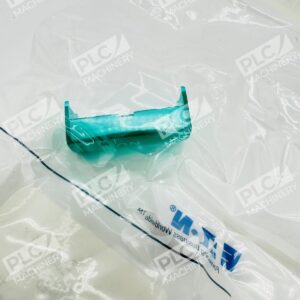

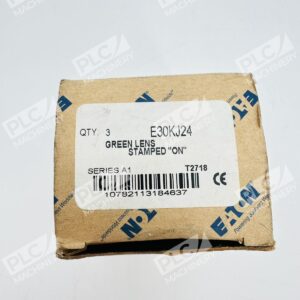

The Eaton E30KJ24 is a multifunction pushbutton operator lens assembly designed for use with 30 mm square control enclosures and industrial control stations. This E30KJ24 green lens features Type J construction with ON legend stamping, providing clear visual indication and operator guidance in electrical distribution and motor control applications. The green color coding follows standard IEC 60947 conventions for start/run functions.
Key Features
- 30 mm square lens footprint compatible with Eaton E30 series components
- Type J multifunction pushbutton operator format
- Green lens color for start/enable/run function indication
- Stamped ON legend for clear operator direction
- Durable construction designed for industrial panel applications
- Easy replacement in existing control systems
Technical Specifications
- Lens Size: 30 mm square
- Type: J (Multifunction Pushbutton Operator)
- Color: Green
- Legend: ON (stamped)
- Series: Eaton E30 (Series A1)
- Material: Durable industrial-grade polymer
- Certifications: UL/CSA listed as component
Typical Applications
- Industrial motor control stations
- Machinery start/stop panels
- Emergency stop and control enclosures
- Manufacturing equipment control consoles
- Pump and compressor control stations
- HVAC and building automation systems
Compatibility & Replacements
Compatible With
- Eaton E30 series 30 mm square pushbutton operators
- E30 multifunction control stations
- Series A1 stamped actuator assemblies
- Standard industrial control enclosures using 30 mm drilling patterns
Replaces / Drop-In Replacement For
- Original equipment Eaton E30KJ24 lenses
- Worn or damaged green ON operator lenses in E30 systems
- Verify compatibility with your system integrator before ordering.
Works With
- Eaton E30 pushbutton base units and bodies
- Type J multifunction operator mechanisms
- Standard 30 mm industrial control stations
- Both AC and DC rated control systems (lens is non-electrical component)
