Overview

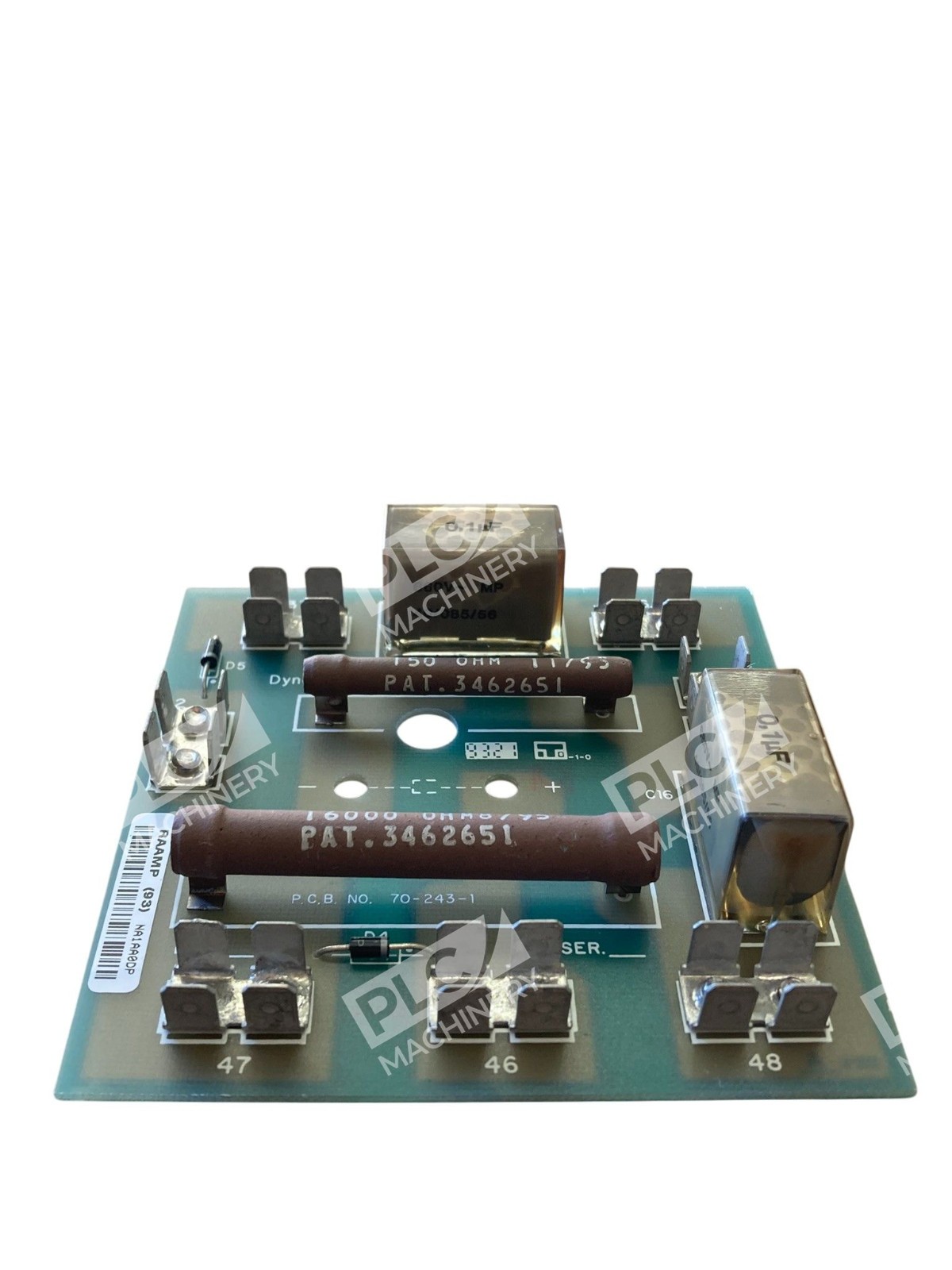

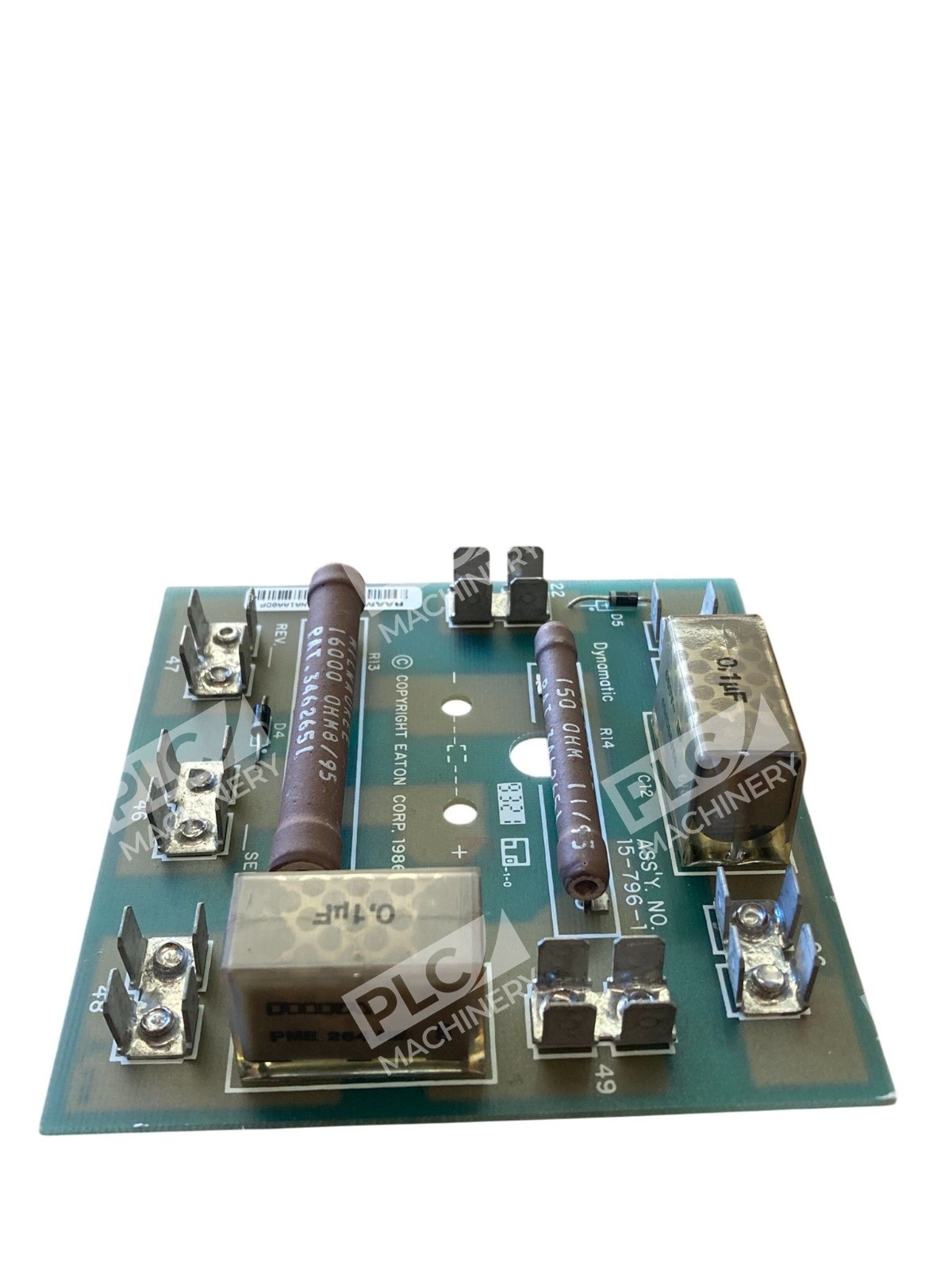

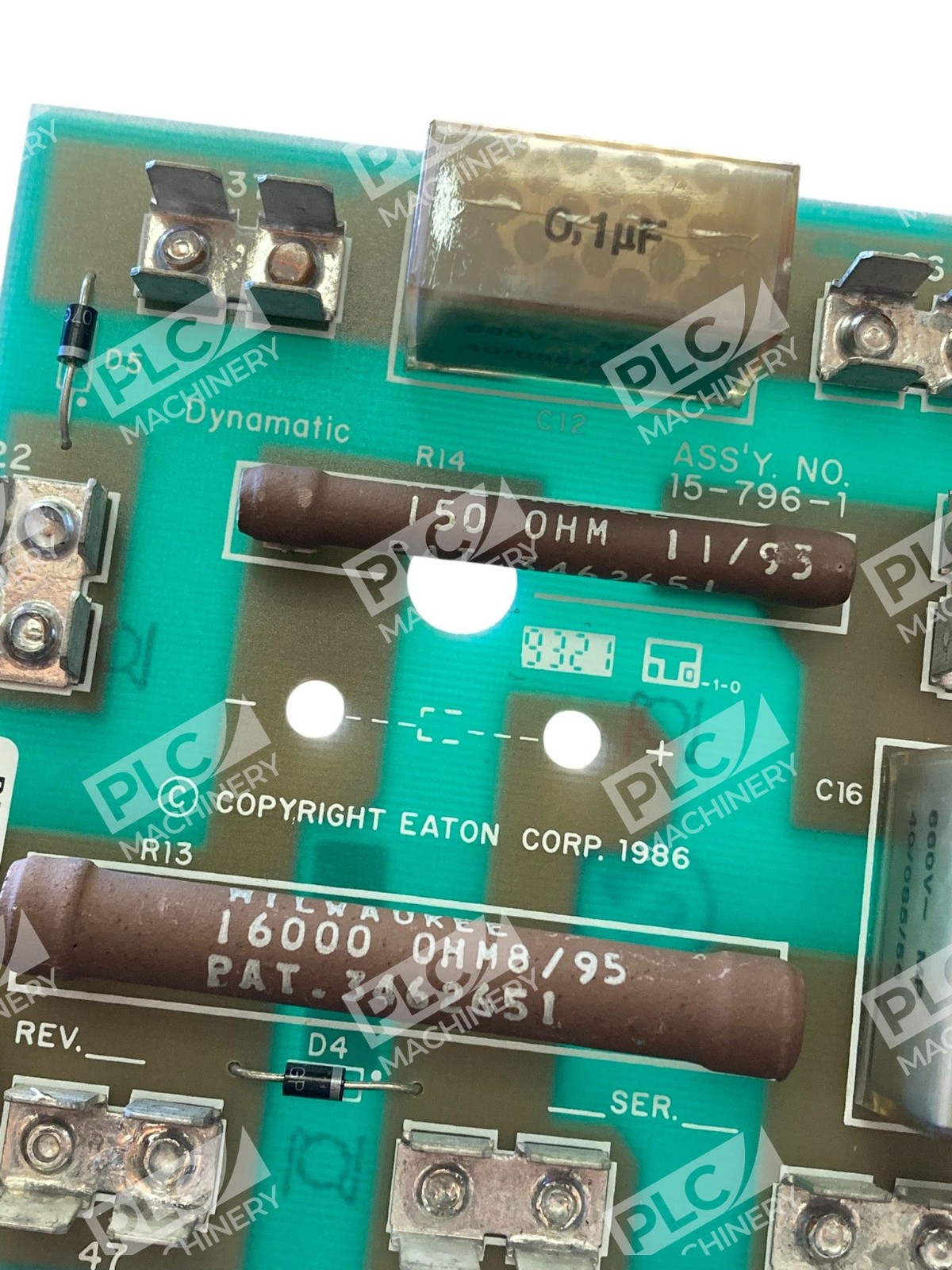

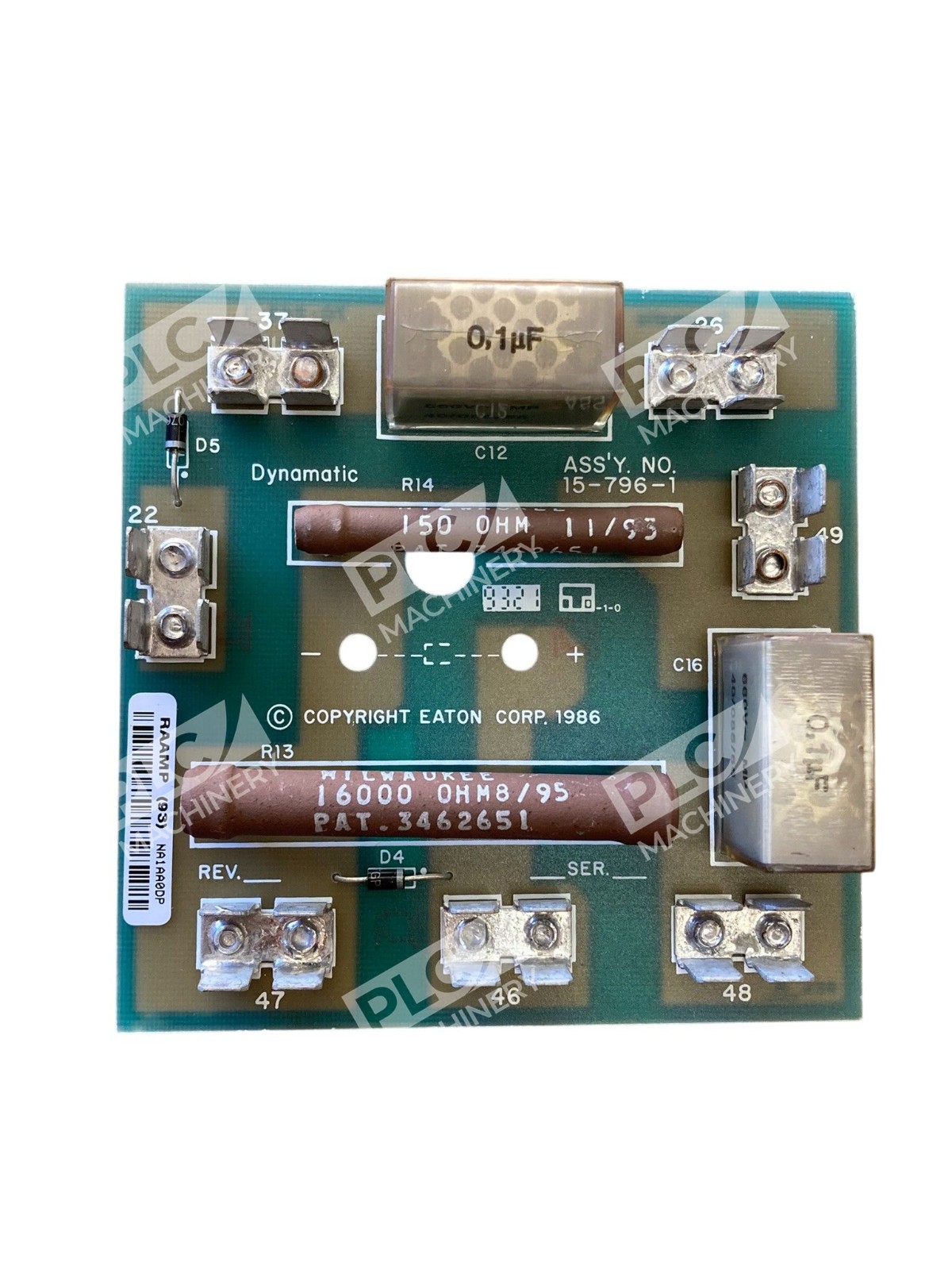

The Eaton Dynamatic 15-796-1 Inverter Snubber Circuit Board is a printed circuit board assembly engineered for industrial motion control and drive applications. Manufactured by Eaton Dynamatic (a division of Eaton Cutler-Hammer), this PCB serves a vital role in inverter-based drive systems by providing snubber functionality to suppress voltage transients and protect power semiconductor devices. The 15-796-1 is designed for OEM integration into variable frequency drives, servo drive platforms, and other industrial automation equipment requiring precise transient protection.
Key Features
- Precision snubber circuit design for voltage transient suppression
- Industrial-grade PCB assembly suitable for enclosed drive environments
- Compatible with Eaton Dynamatic inverter and servo drive platforms
- Manufactured by Eaton Cutler-Hammer for proven reliability
- New, open box condition—ready for immediate deployment
Technical Specifications
The following specifications are based on standard Eaton Dynamatic snubber board architecture. For complete circuit-level details, consult the original equipment manual or contact Eaton technical support.
Typical Applications
- Industrial variable frequency drives (VFDs)
- Servo drive inverter circuits
- Motor control rectifier and inverter stages
- Semiconductor protection in power conversion systems
- OEM automation equipment requiring transient suppression
Compatibility & Replacements
Compatible With
- Eaton Dynamatic inverter drive platforms
- Eaton Cutler-Hammer variable frequency drive systems
- Industrial servo drive control enclosures
- Power conversion systems requiring snubber functionality
Replaces / Drop-In Replacement For
The Eaton Dynamatic 15-796-1 is a legacy industrial PCB assembly. Verify compatibility with your system integrator or Eaton technical support to confirm direct replacement capability for your specific drive model. Do not assume interchangeability with other Eaton Dynamatic part numbers without explicit documentation.
Works With
- Eaton Dynamatic inverter control systems
- Industrial automation enclosures and power cabinets
- Standard industrial electrical connections and backplanes
- Field-service repair and OEM manufacturing environments
