Overview

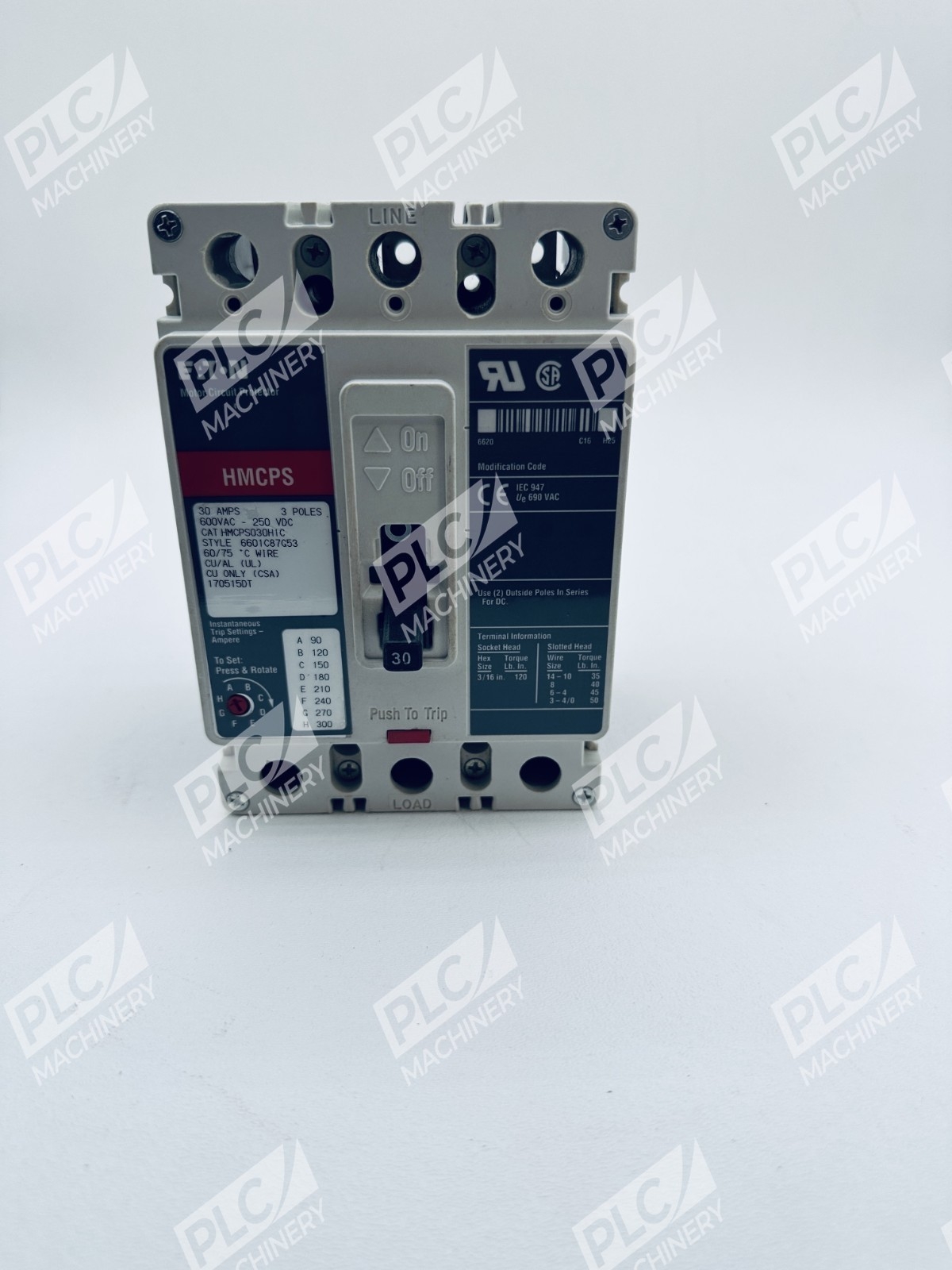

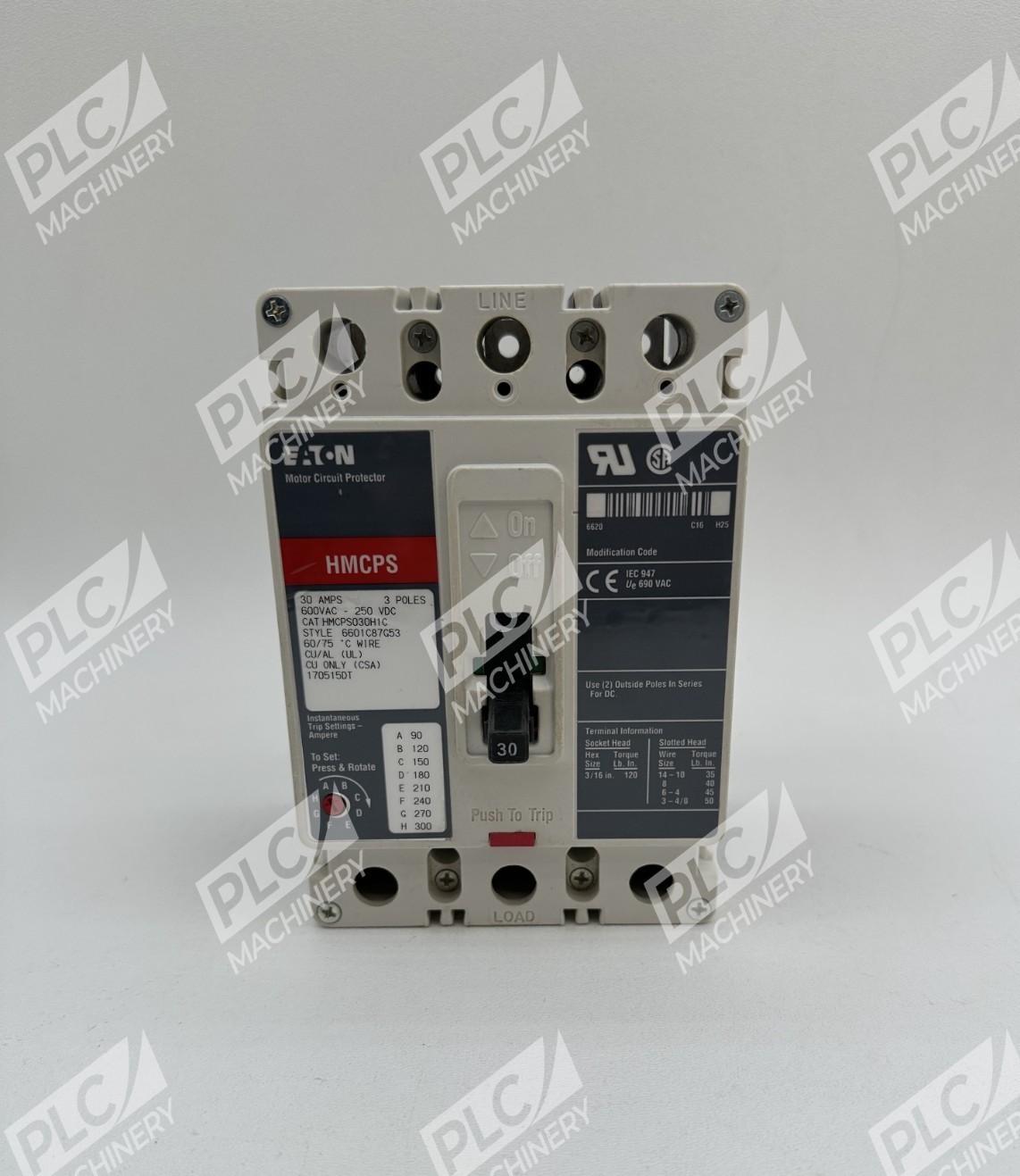

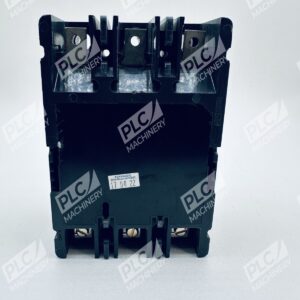

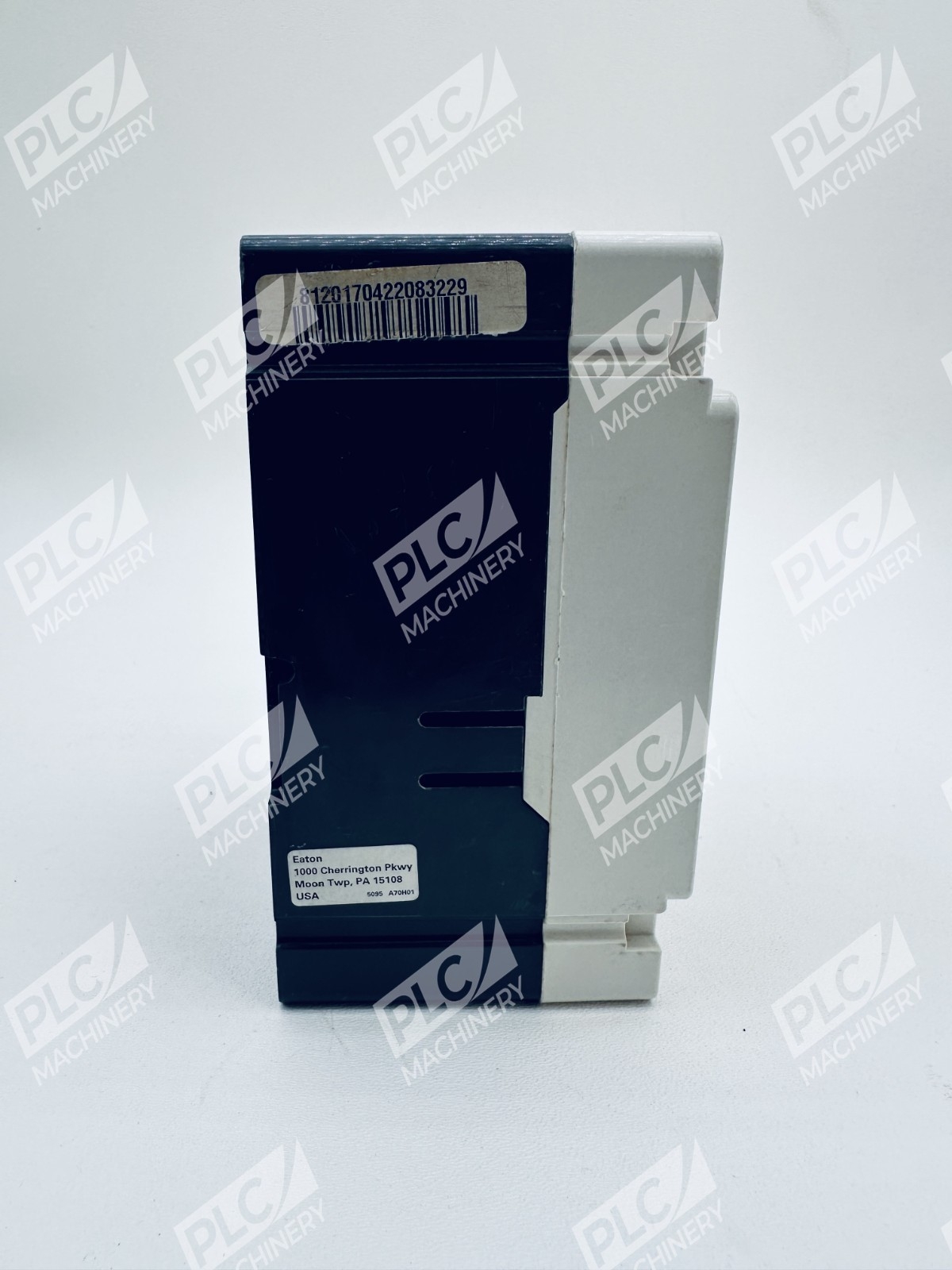

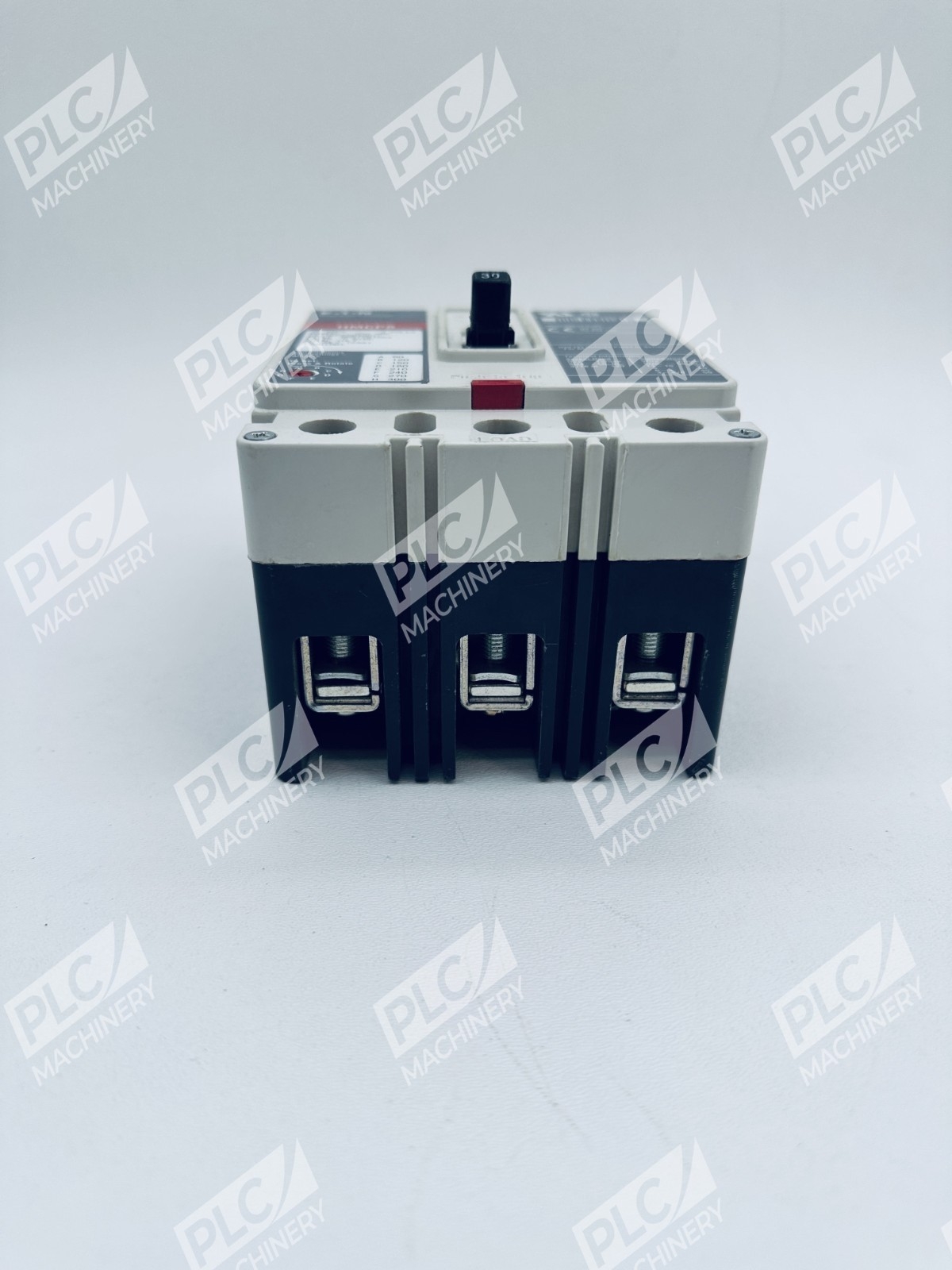

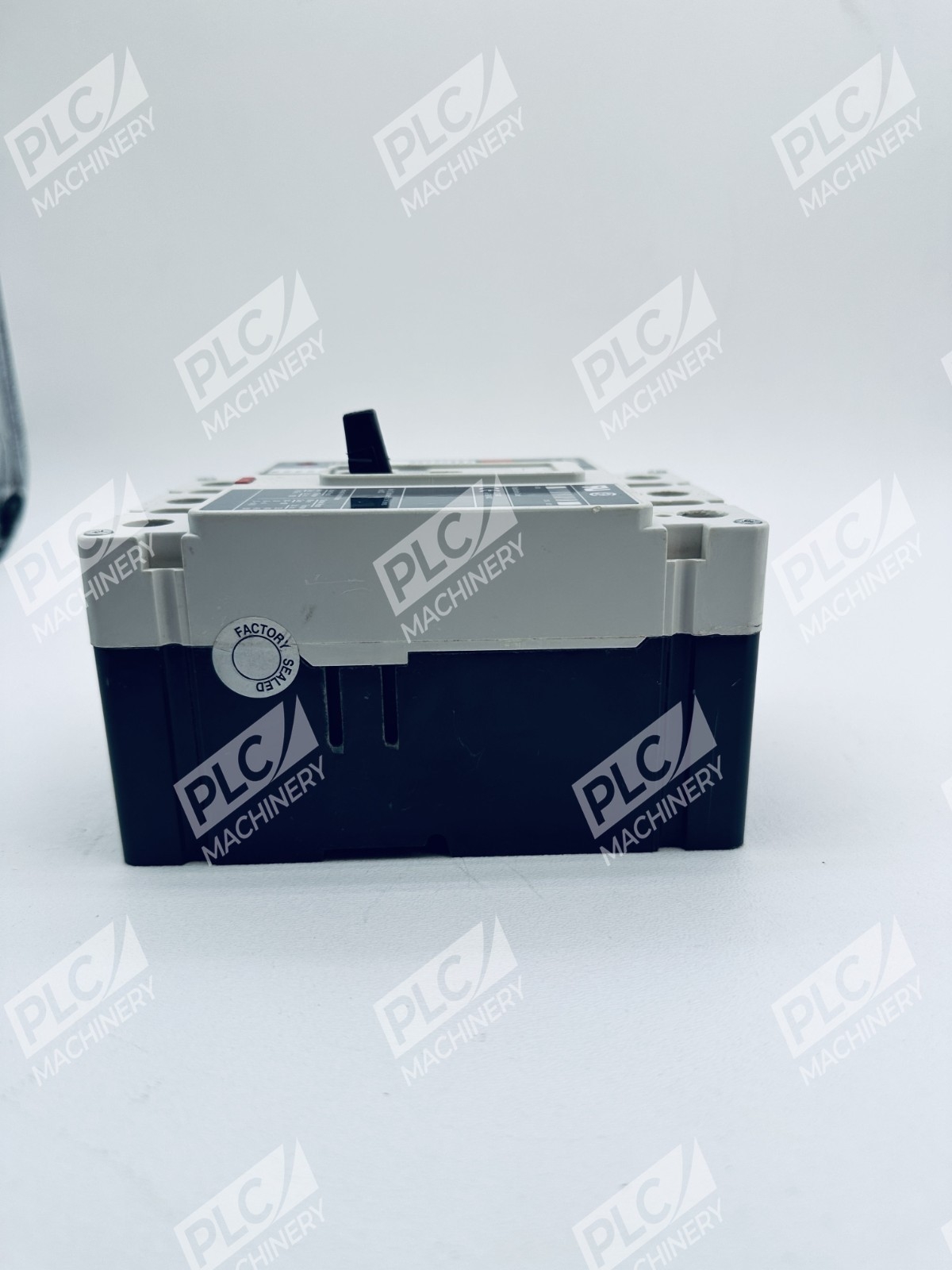

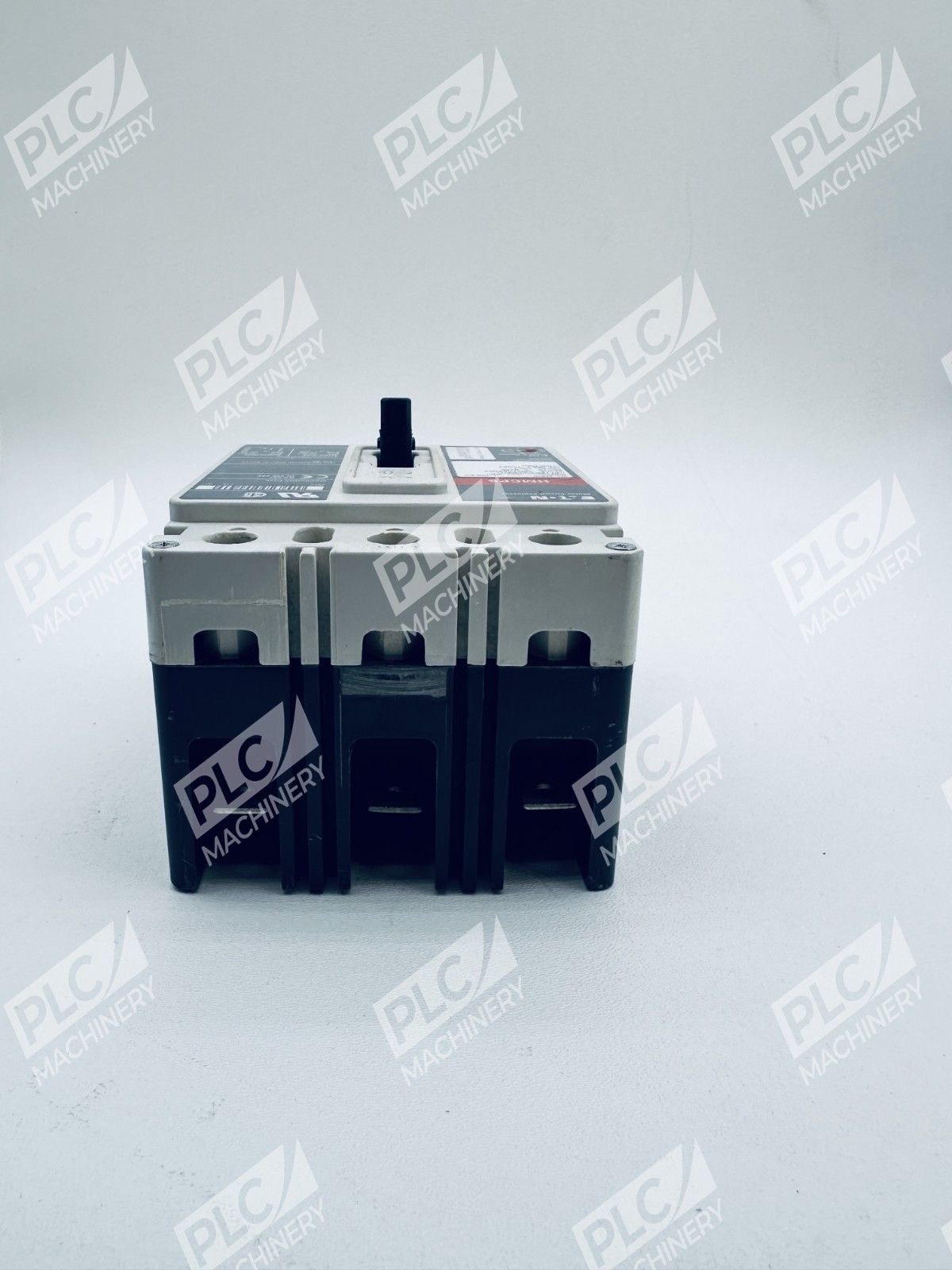

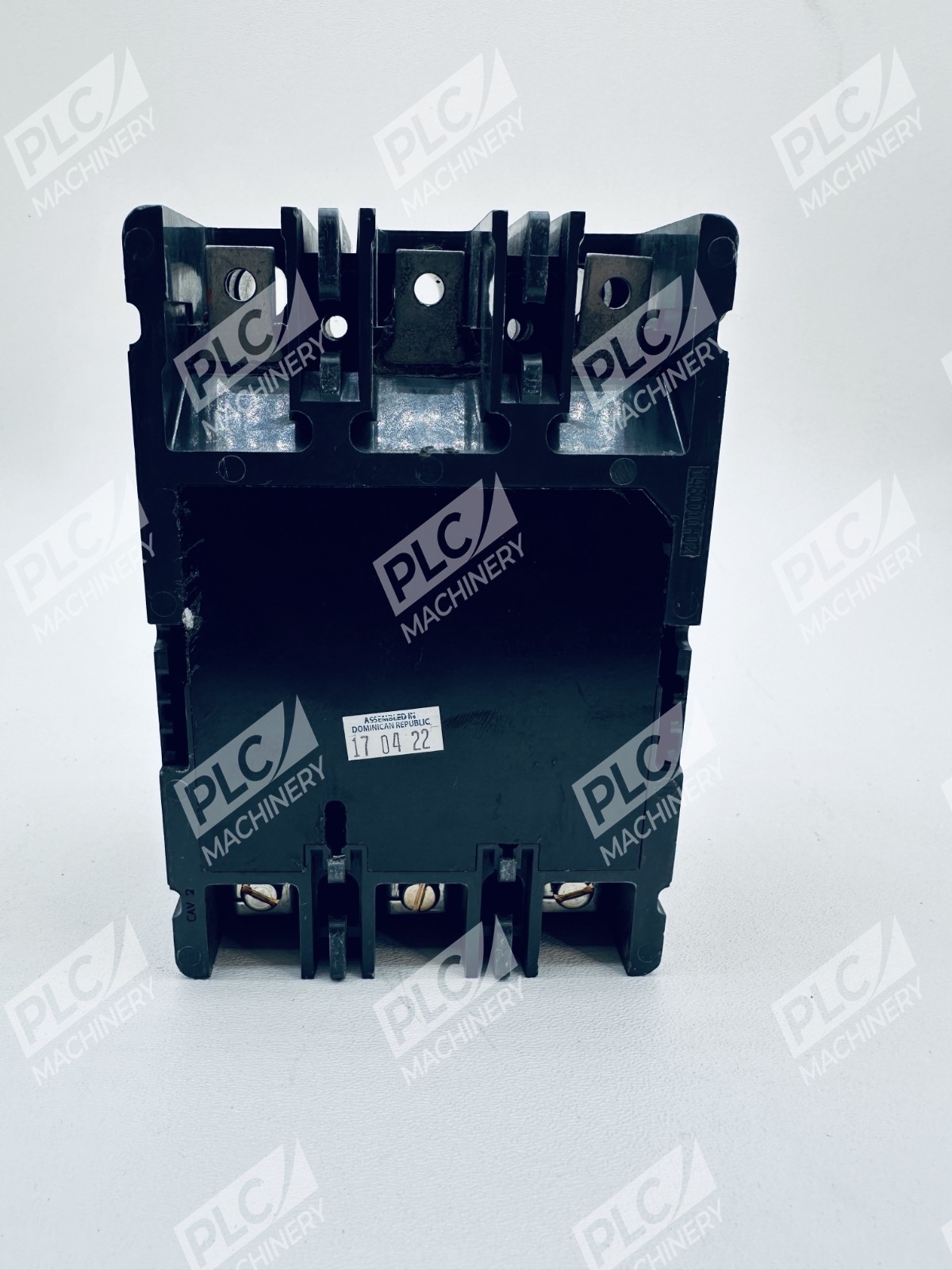

The Eaton Cutler-Hammer HMCPS030H1C is a 30-amp, 3-pole motor circuit protector engineered for safe motor control and protection. This Series C molded case circuit breaker combines magnetic instantaneous trip technology with a thermal-magnetic range of 90–300A, making it ideal for motor starter assemblies that use electronic overload relays. With 600VAC rating and 65kAIC interrupting capacity at 480V, the HMCPS030H1C is UL 489 and CSA 22.2 certified.
Key Features
- 30-amp current rating, 3-pole configuration for three-phase motor protection
- Instantaneous magnetic trip function eliminates mechanical delay for fast fault clearance
- Non-interchangeable trip design ensures correct application and prevents misapplication
- Feed-thru connection type with non-aluminum line and load side lug terminals
- Magnetic range 90–300A supports motor full load amperage (FLA) 6.9–25.2A
- Series C, F-frame molded case design for panel and DIN rail mounting flexibility
Technical Specifications
- Current Rating: 30A
- Voltage Rating: 600VAC / 250VDC
- Poles: 3 (three-phase)
- Series / Frame: Series C, F-Frame
- Trip Type: Magnetic Instantaneous (Motor Protection Only)
- Magnetic Range: 90–300A
- Motor FLA Range: 6.9–25.2A
- Interrupting Rating: 65kAIC @ 480V
- Connection Type: Feed-Thru
- Terminals: Non-aluminum line & load side lug terminals
- UL Standard: UL 489
- CSA Standard: CSA 22.2
- Certifications: UL, CSA, CE
- Mounting: Panel, DIN Rail
Typical Applications
The HMCPS030H1C is specified for motor control centers (MCCs) and motor starter applications where electronic overload relays provide thermal protection. Common uses include:
- Industrial motor starter assemblies (NEMA Size 1)
- Manufacturing facility power distribution
- Commercial HVAC and pump motor control
- OEM electrical and machinery equipment
- Systems requiring fast magnetic trip response without thermal backup
Compatibility & Replacements
Compatible With
- Eaton / Cutler-Hammer motor control centers (MCCs)
- Motor starter assemblies with electronic overload relays
- 600VAC, three-phase power distribution systems
- Panel and DIN rail mounting environments
- Series C molded case breaker frames (F-Frame)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering, as motor circuit protector specifications vary by application and control scheme.
Works With
- Electronic overload relays in motor starters
- NEMA 1 and NEMA 3R motor control enclosures
- Eaton C-series molded case circuit breaker systems
- Magnetic trip coordination curves per UL 489
- Industrial control systems rated 600VAC three-phase
