Overview

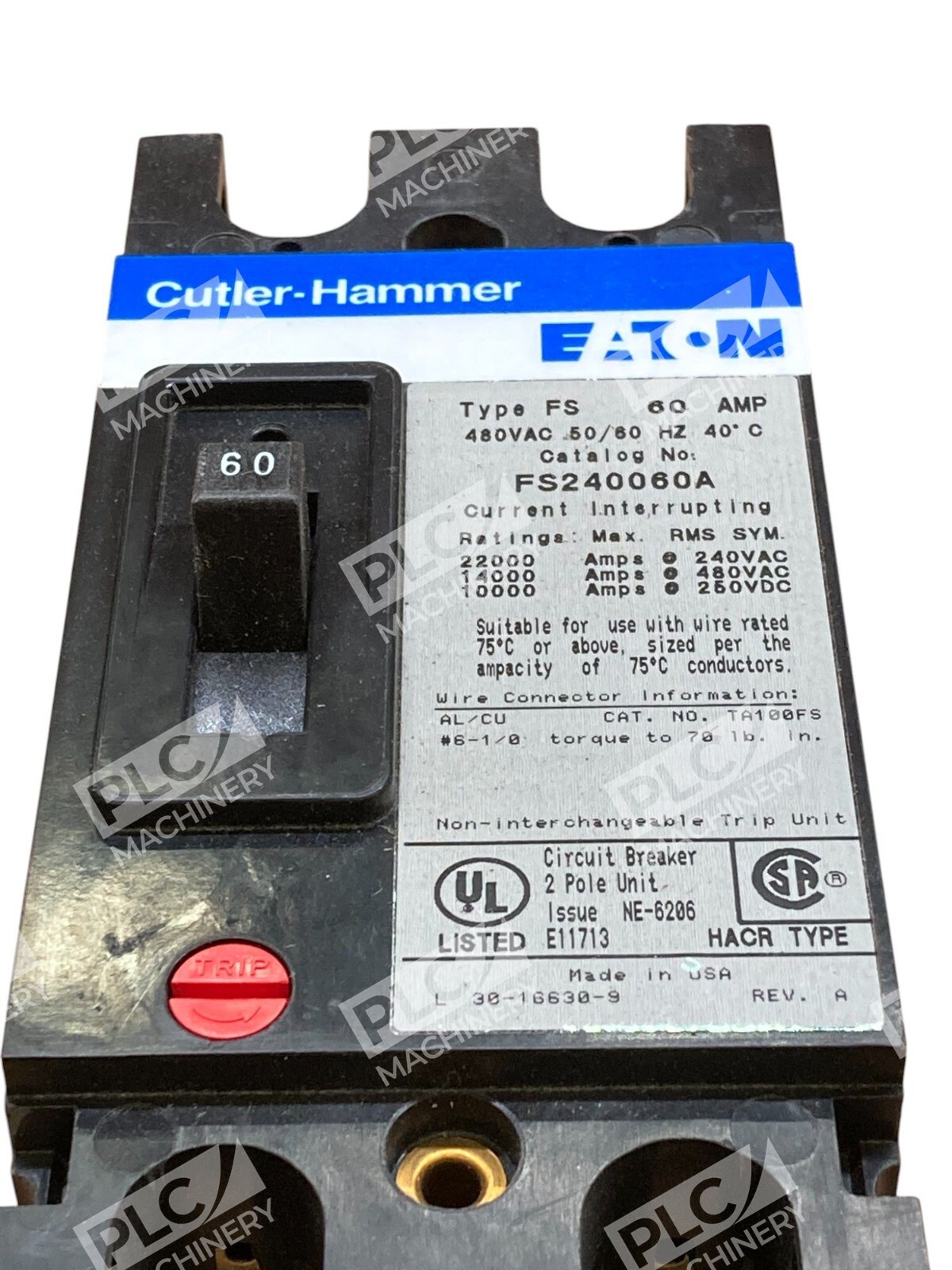

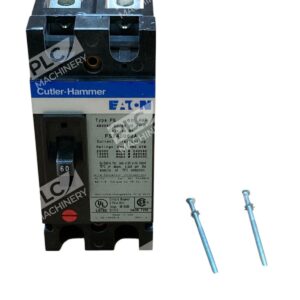

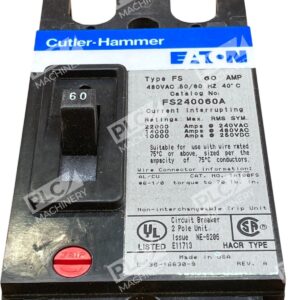

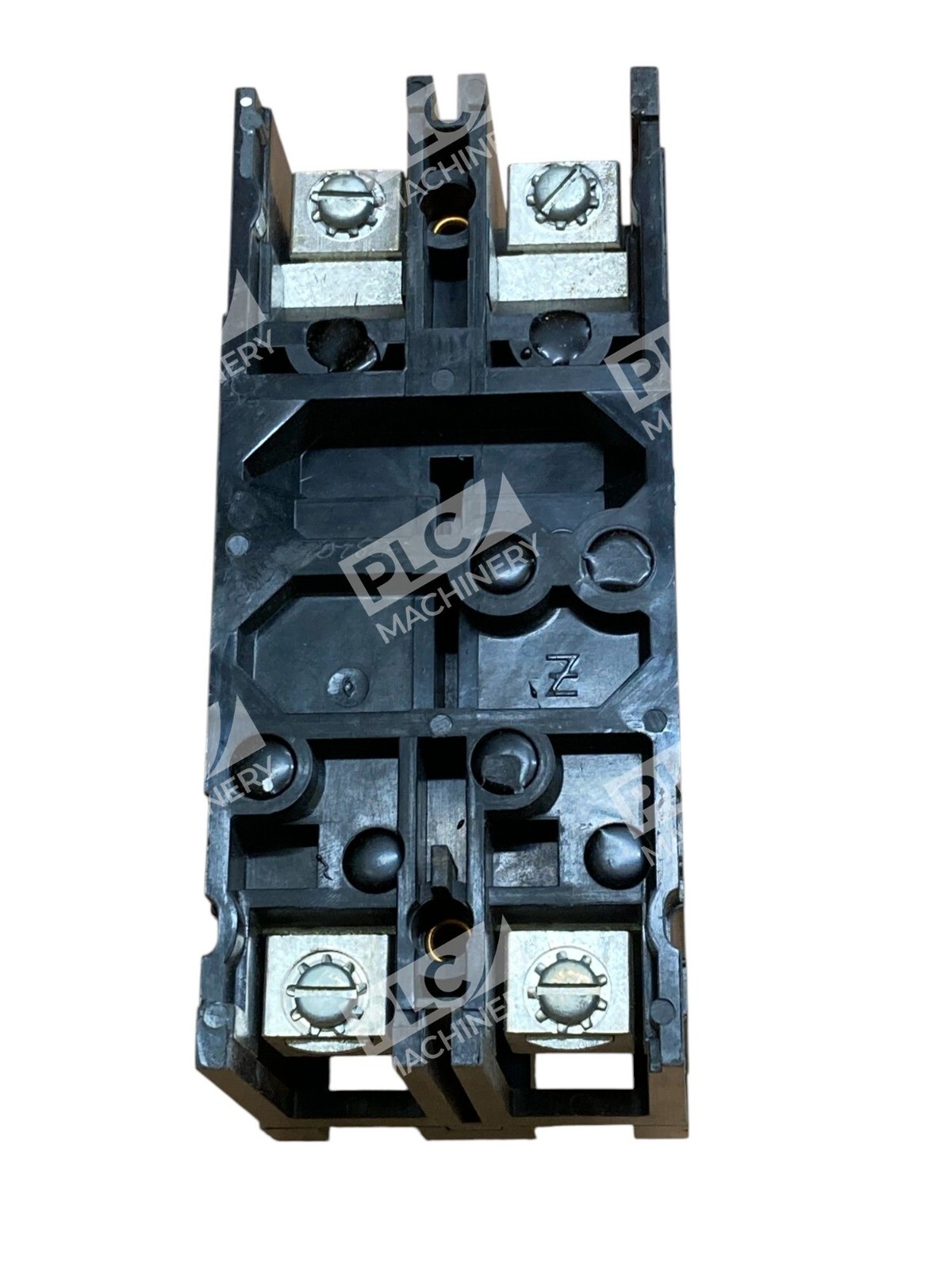

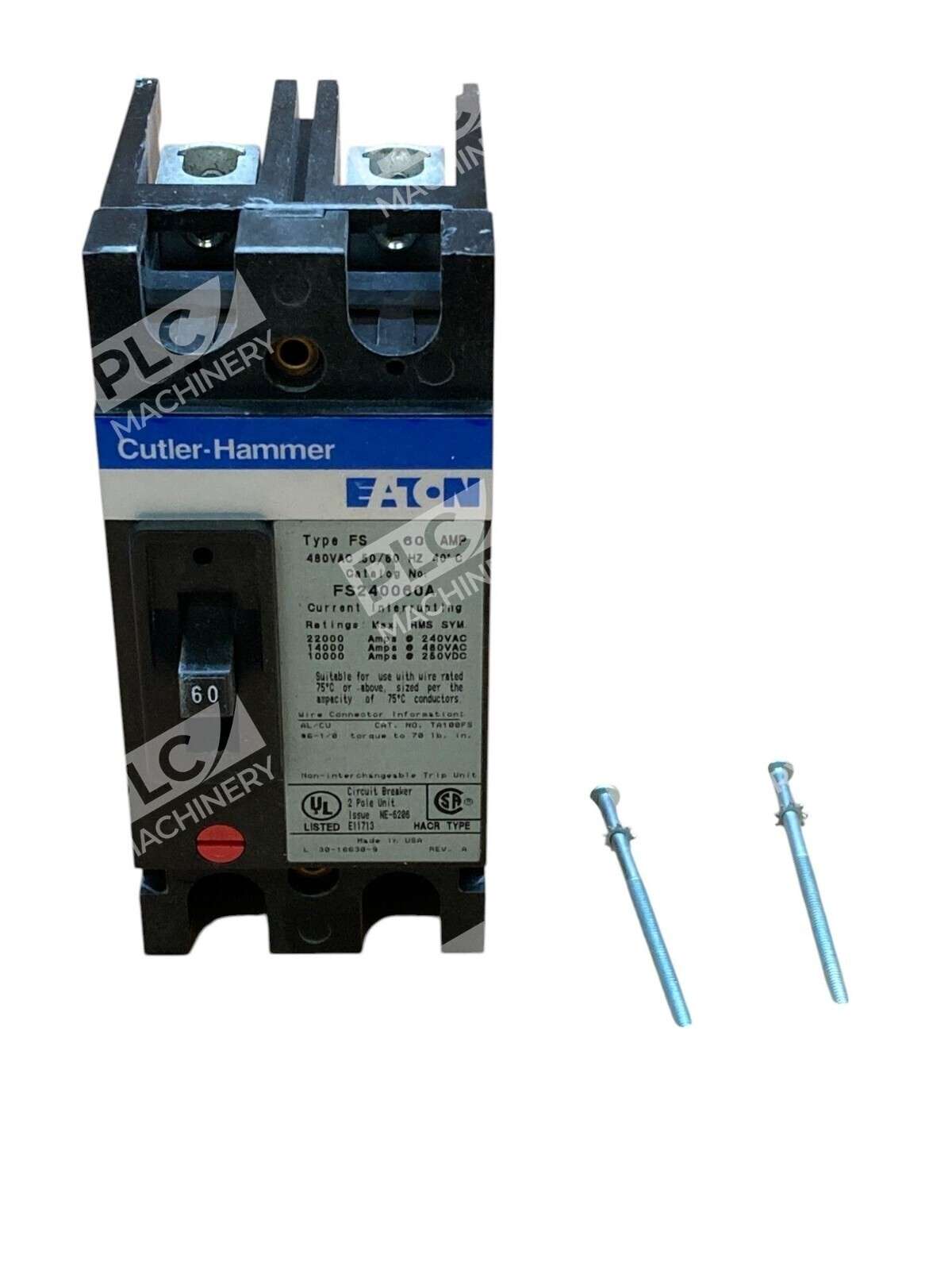

The Eaton Cutler-Hammer FS240060A is an industrial-class 60-amp 2-pole circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical systems. Built on the proven F-frame design, this unit combines thermal-magnetic trip technology with optional shunt trip capability, making it ideal for panelboards, switchgear, and motor control centers where dependable protection and remote shutdown capability are essential.
Key Features
- 60-amp rated capacity with 2-pole common-trip configuration
- Thermal-magnetic trip curve provides fast response to short circuits and gradual overload detection
- Shunt trip option available for remote/automatic tripping
- F-frame industrial design for direct replacement in legacy switchgear and industrial equipment
- Compact molded case construction for durability and space efficiency
- UL 489 listed and CSA certified for recognized safety compliance
Technical Specifications
- Manufacturer: Eaton Corporation (Cutler-Hammer)
- Part Number: FS240060A
- Ampere Rating: 60 A
- Pole Configuration: 2-pole (common trip)
- Voltage Rating: 480 V (standard for F-frame industrial models)
- Trip Type: Thermal-magnetic
- Shunt Trip: Optional
- Frame Size: F-frame (industrial)
- Wire Gauge: Copper/aluminum, suitable for industrial configurations
- Certifications: UL 489, CSA listed

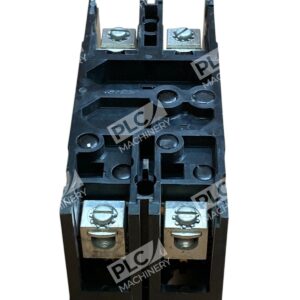

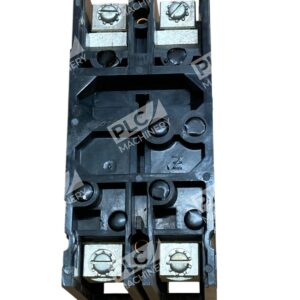

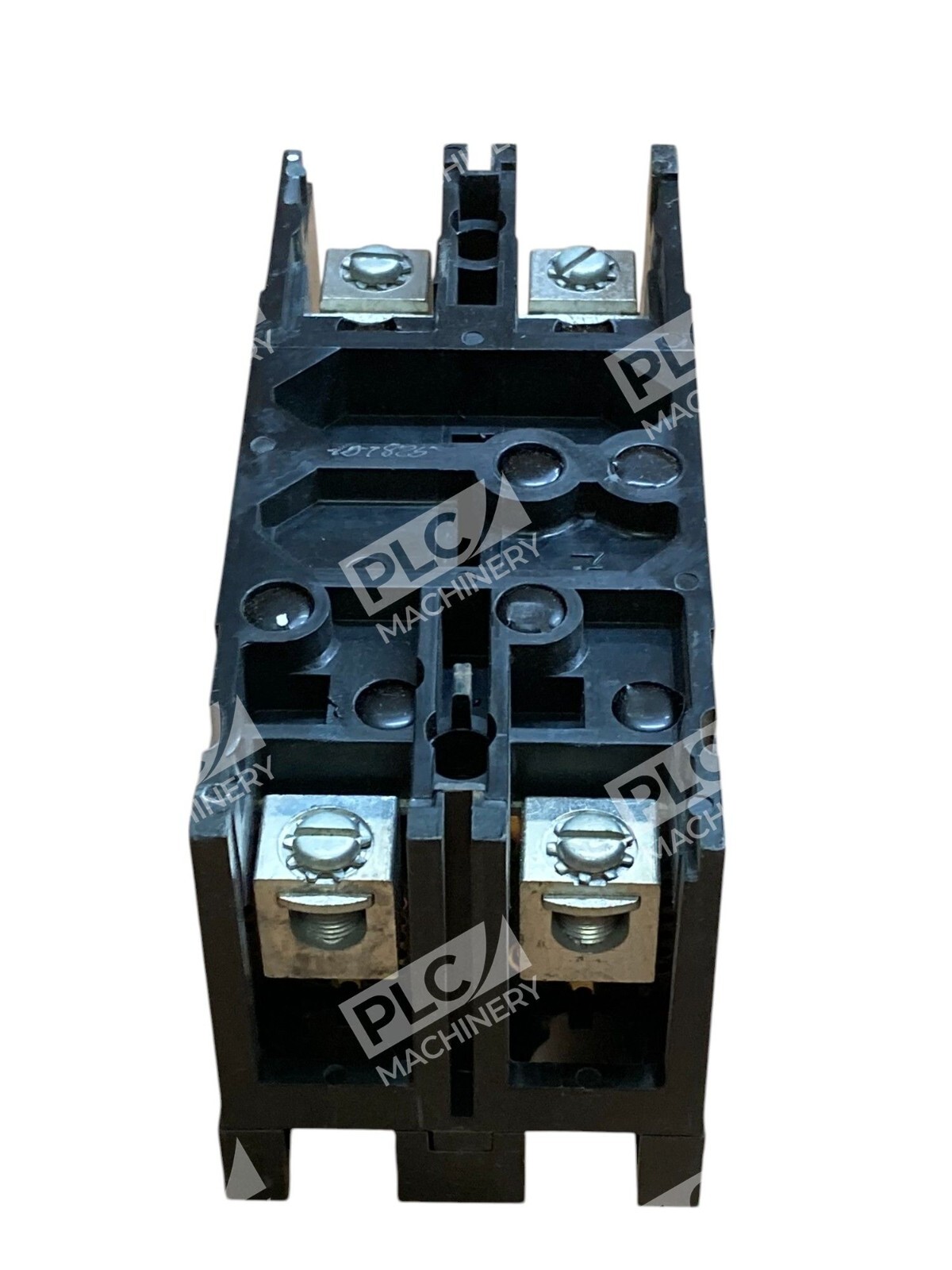

- Terminal Style: Bolt-on (industrial standard)
Typical Applications
- Industrial and commercial panelboards and switchgear
- Motor control centers and starter panels
- Power distribution in manufacturing facilities
- Legacy equipment replacement where F-frame compatibility is required
- Remote shutdown systems with optional shunt trip accessory
Compatibility & Replacements
Compatible With
- Eaton Cutler-Hammer F-frame switchgear and panelboards
- Industrial power distribution equipment rated for 480V, 60-amp 2-pole operation
- Shunt trip accessories and remote control modules (sold separately)
- Molded-case circuit breaker enclosures with F-frame mounting provisions
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) Cutler-Hammer F-frame 60A 2-pole breakers
- Legacy industrial circuit breakers requiring F-frame bolt-on configuration
- Verify exact compatibility with equipment documentation or consult your system integrator before ordering
Works With
- Eaton FS-series industrial circuit breaker family
- Industrial switchgear rated for 480V three-phase systems
- Optional shunt trip modules for remote or automatic operation
- Standard bolt-on terminal connections found in industrial power distribution
