Overview

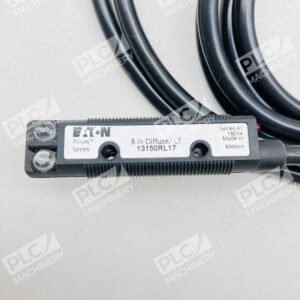

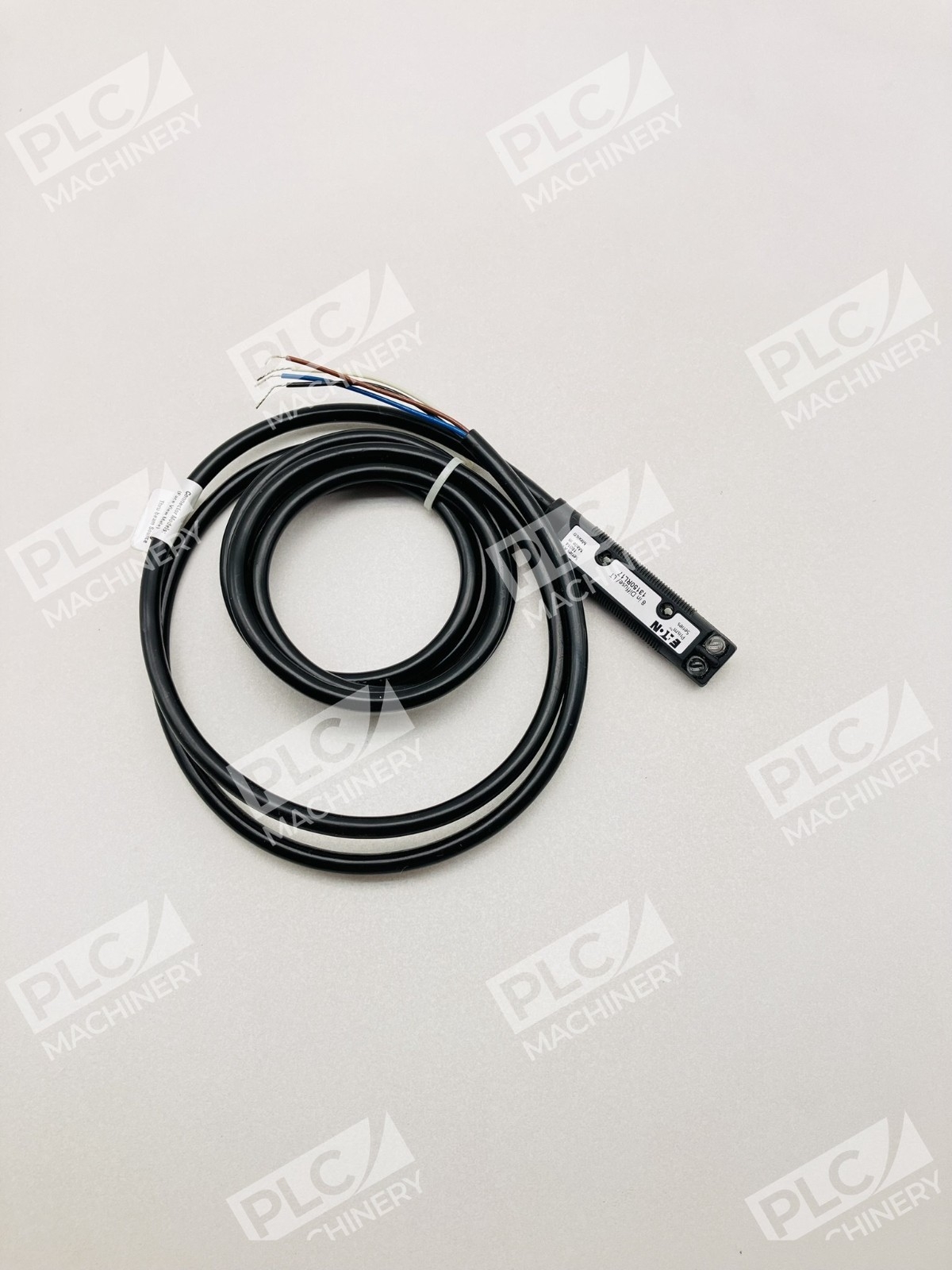

The Eaton 13150RL17 is a miniature photoelectric sensor from the Prism Series, engineered for diffuse reflective sensing in industrial automation and control applications. Prism series 18 mm tubular sensors provide a flexible isolated output and twice the optical gain of other sensors in this product class. This sensor delivers accurate object detection without requiring reflectors, making it ideal for tight spaces and flexible mounting scenarios.
Key Features
- Twice the optical gain of other sensors in this product class for extended sensing range and dirt/dust resistance
- Internal components are rigidly sealed in a solid encapsulated package for excellent performance in high-shock and high-vibration applications
- High noise immunity greatly reduces problems associated with electrical noise
- Right-angle viewing configuration for flexible orientation and installation
- Infrared diffuse reflective technology for detection of opaque and translucent materials
- Adjustable gain control for peak optical performance in variable applications
Technical Specifications
- Series: Prism 18 mm Tubular
- Sensing Method: Diffuse Reflective
- Supply Voltage: 10–30 Vdc
- Sensing Beam: Infrared
- Output Type: NPN or PNP
- Viewing Style: Right-Angle
- Connection: Connector (M12 or cable, model-dependent)
- Operating Temperature: –13 to 131 °F (–10 to 55 °C)
- Enclosure Rating: NEMA 1/2/3/4/4X/6/12/13
Typical Applications
- Packaging machinery: detecting package presence and position
- Conveyor systems: object counting and sorting control
- Material handling equipment: load verification and safe operation
- Assembly lines: part presence detection and alignment verification
- Food and beverage processing: detecting bottles, cans, and containers
- Automotive manufacturing: component positioning and part detection
- Printing and labeling: media detection and registration
Compatibility & Replacements
Compatible With
- Eaton Cutler-Hammer industrial control systems and motor starters
- Rockwell Automation CompactLogix and ControlLogix PLCs (via discrete I/O modules)
- Siemens S7 series controllers (via analog/digital input cards)
- 12/24 VDC industrial relay circuits and logic modules
- Standard DIN rail-mounted terminal blocks and connectors
Replaces / Drop-In Replacement For
The Eaton 13150RL17 may serve as a replacement for other Prism Series diffuse reflective sensors in the 131xx family with equivalent specifications. Verify compatibility with your system integrator before ordering to ensure identical sensing range, output type, and voltage ratings.
Works With
- Eaton Cutler-Hammer control relays and terminal blocks
- Industrial 24 VDC power supplies and safety circuits
- Standard photoelectric sensor mounting brackets and holders
- M12 connectors and industrial cabling systems
- NEMA-rated industrial enclosures and control panels
