Overview

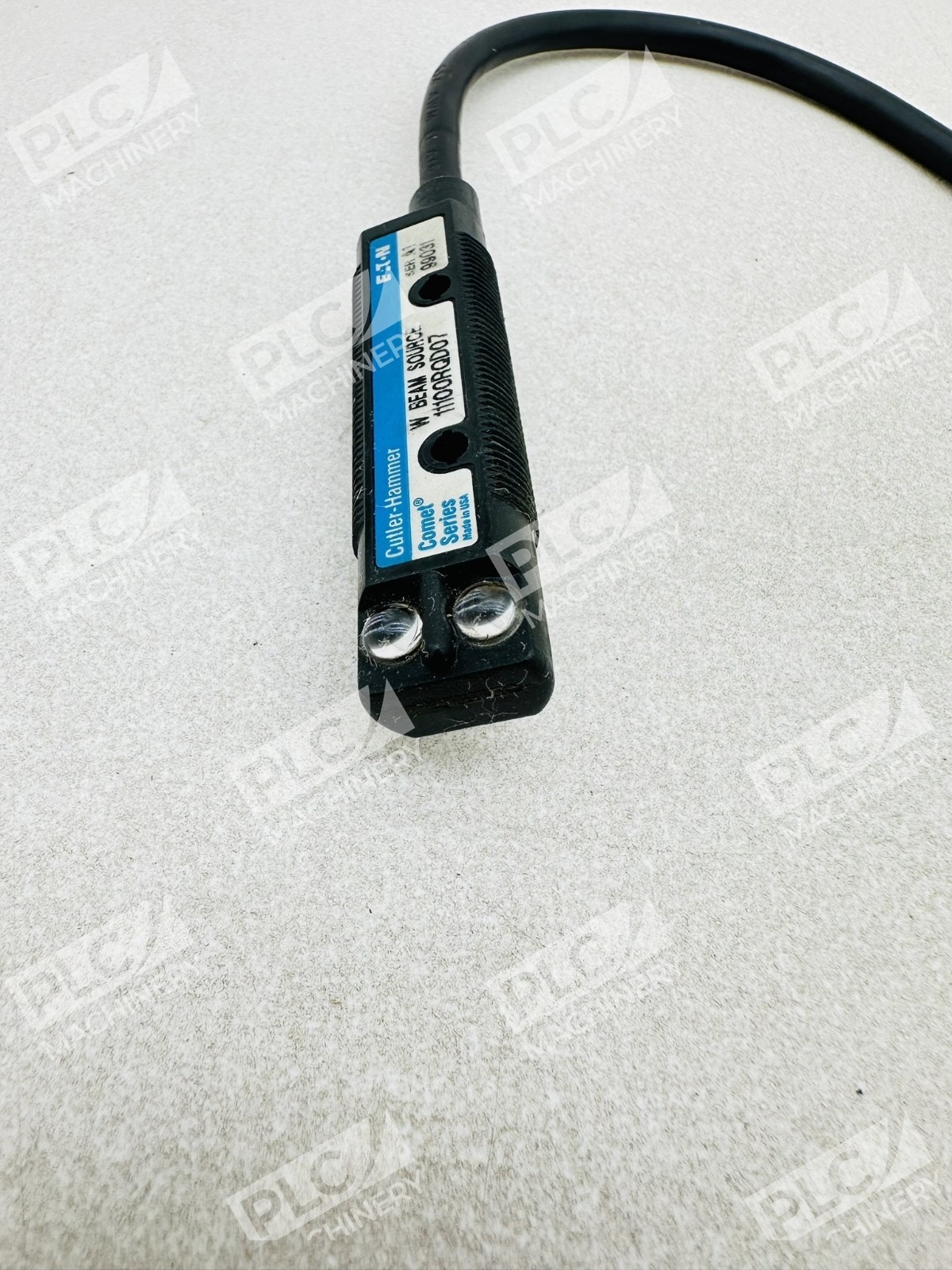

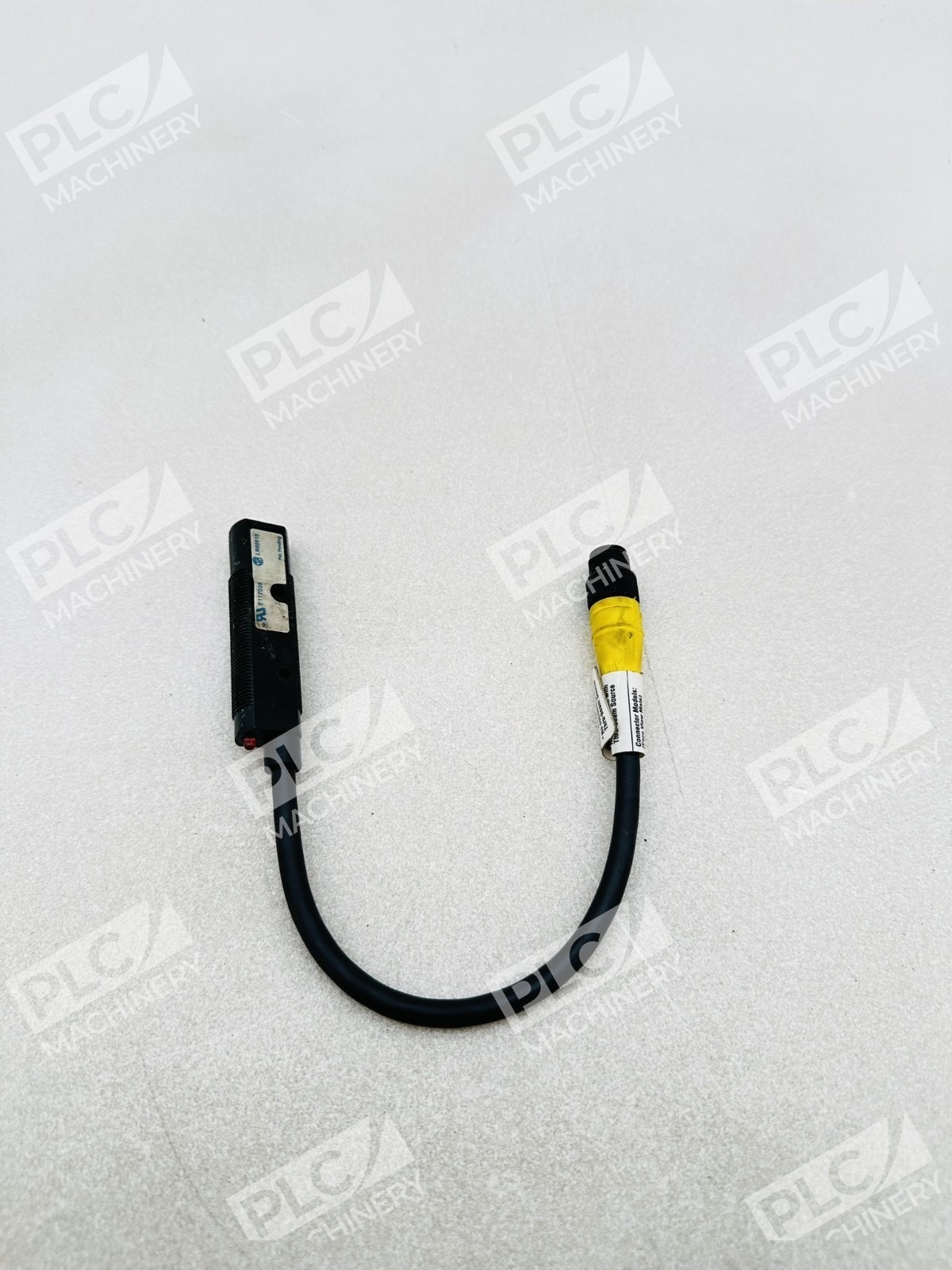

The Eaton 11100RQD07 is a robust through-beam photoelectric sensor in the Comet 18mm tubular series, designed for industrial automation and machine vision applications. This sensor combines visible sensing beams for rapid setup with solid polyurethane housing for high resistance to shock, vibration, and environmental contamination. The right-angle configuration and M12 4-pin connector enable straightforward installation in control cabinets and integrated sensor arrays.
Key Features
- Through-Beam Detection: Transmitter and receiver mounted separately for maximum sensing range and high light-to-dark contrast ratio
- Visible Red Sensing Beam: Allows quick visual alignment and troubleshooting without external tools
- Polyurethane Potting: Encapsulates internal circuits for resistance to shock, vibration, and mechanical stress
- Right-Angle Mounting: Compact geometry simplifies integration into tight spaces and beam path layouts
- M12 Micro-Connector: 4-pin M12 interface ensures secure, industry-standard electrical connection
- Adaptable Modulation Circuit: Provides immunity to crosstalk from closely mounted neighboring sensors
Technical Specifications
- Supply Voltage: 10–30 Vdc
- Detection Range: 6 m (approximately 20 ft)
- Sensing Method: Through-Beam (transmitter/receiver separate)
- Sensor Shape: Rectangular; 18 mm tubular form factor
- Output Type: NPN
- Switching Mode: Light/Dark switching

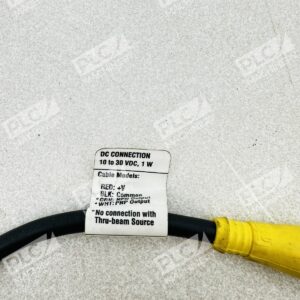

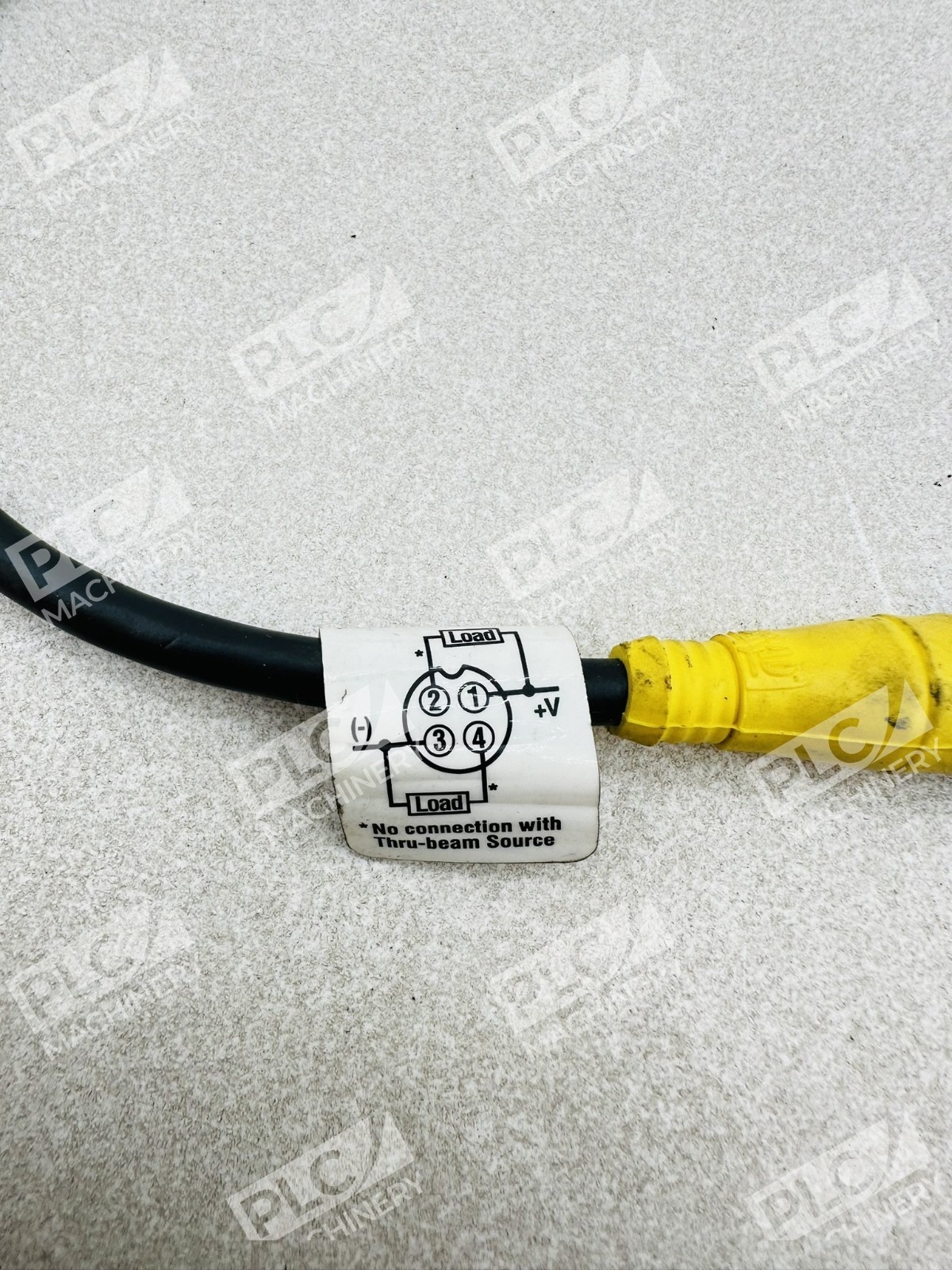

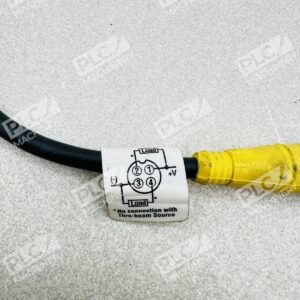

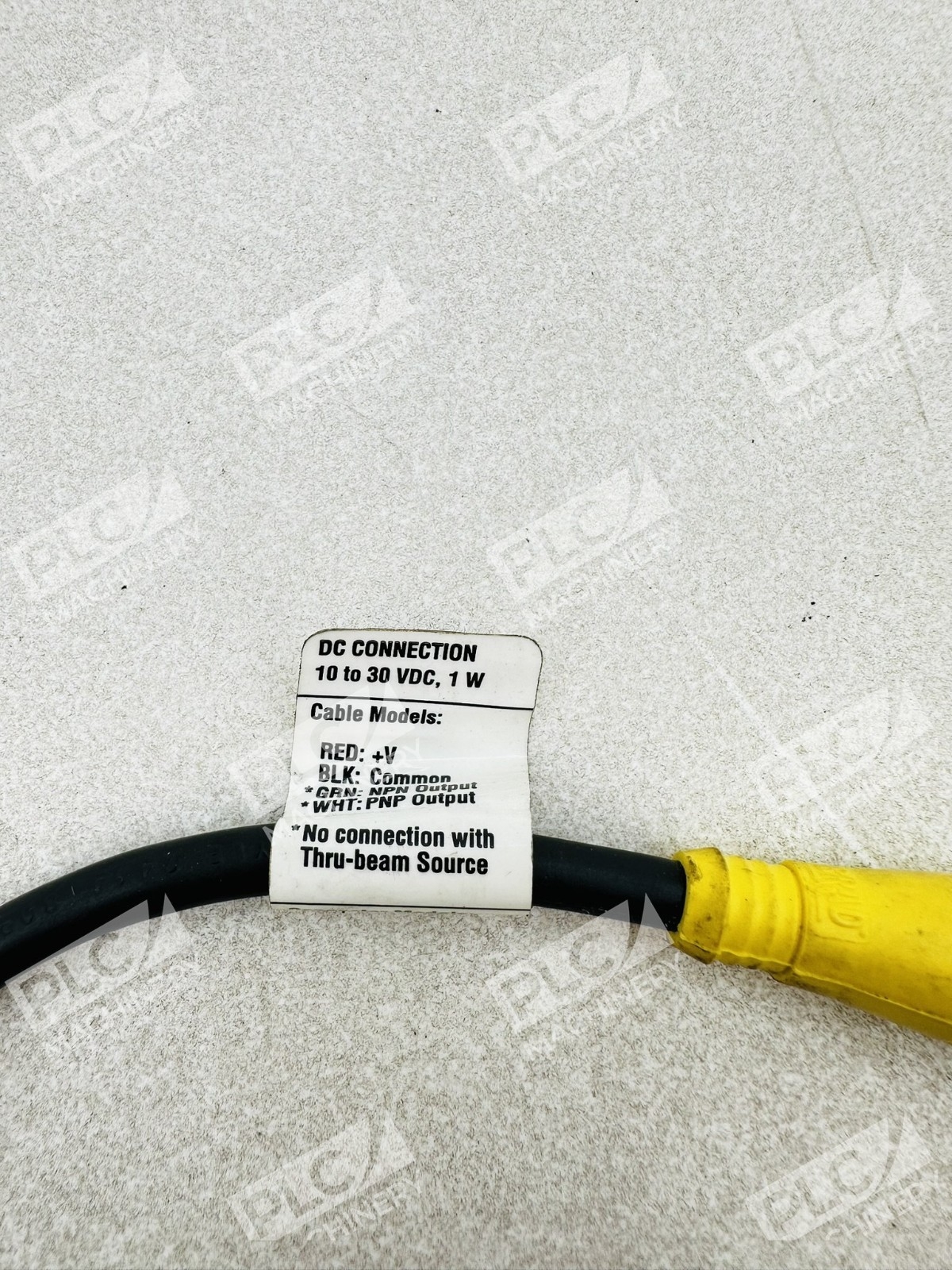

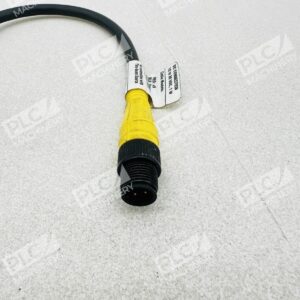

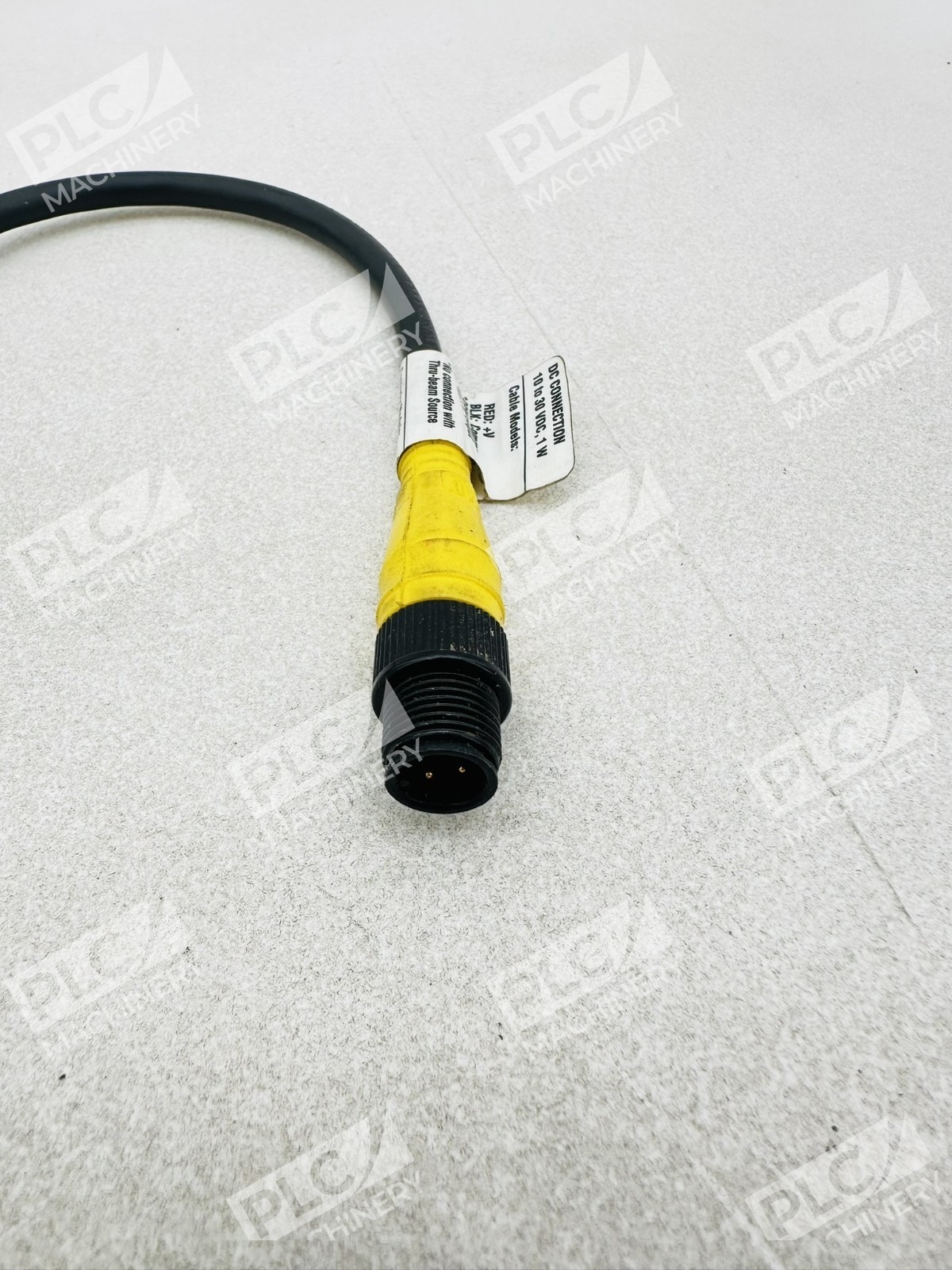

- Electrical Connection: M12 4-pin connector
- Beam Type: Visible red sensing beam
- Housing Material: Solid polyurethane
- Enclosure Rating: IP69K (sealed against washdown and high-pressure spray)
- Operating Temperature: -4 to 158 °F (-20 to 70 °C) [typical Comet range]
- RoHS Compliant: Yes
- Country of Origin: Mexico
Typical Applications
The Eaton 11100RQD07 is widely used in:
- Conveyor line detection and part counting
- Package detection on assembly lines
- Machine safety interlocks and emergency stops
- Automated sorting and material handling systems
- Production line synchronization and monitoring
- Container fill-level sensing and overflow detection
- Motion control trigger and positioning feedback
Compatibility & Replacements
Compatible With
- Eaton PLC and industrial control modules
- Standard NPN input circuits and 10–30 Vdc control systems
- M12 connector interface systems
- Industrial automation networks supporting discrete I/O (24 Vdc logic)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or controls engineer before ordering. Related Eaton Comet photoelectric models in similar configurations include 11100RQD03 (AC/DC dual voltage) and 12100RQD07 (Perfect Prox® variant with extended range). Consult Eaton documentation or your distributor to confirm interchangeability for your specific mounting and electrical requirements.
Works With
- Standard 10–30 Vdc industrial power supplies
- PLC discrete input modules and industrial controllers
- M12 connector cabling and connectors (4-pin A-coded or equivalent)
- Light and dark switching logic (configurable via sensor design)
- Safety-rated control circuits (verify MTBF and certification requirements with OEM)
