Overview

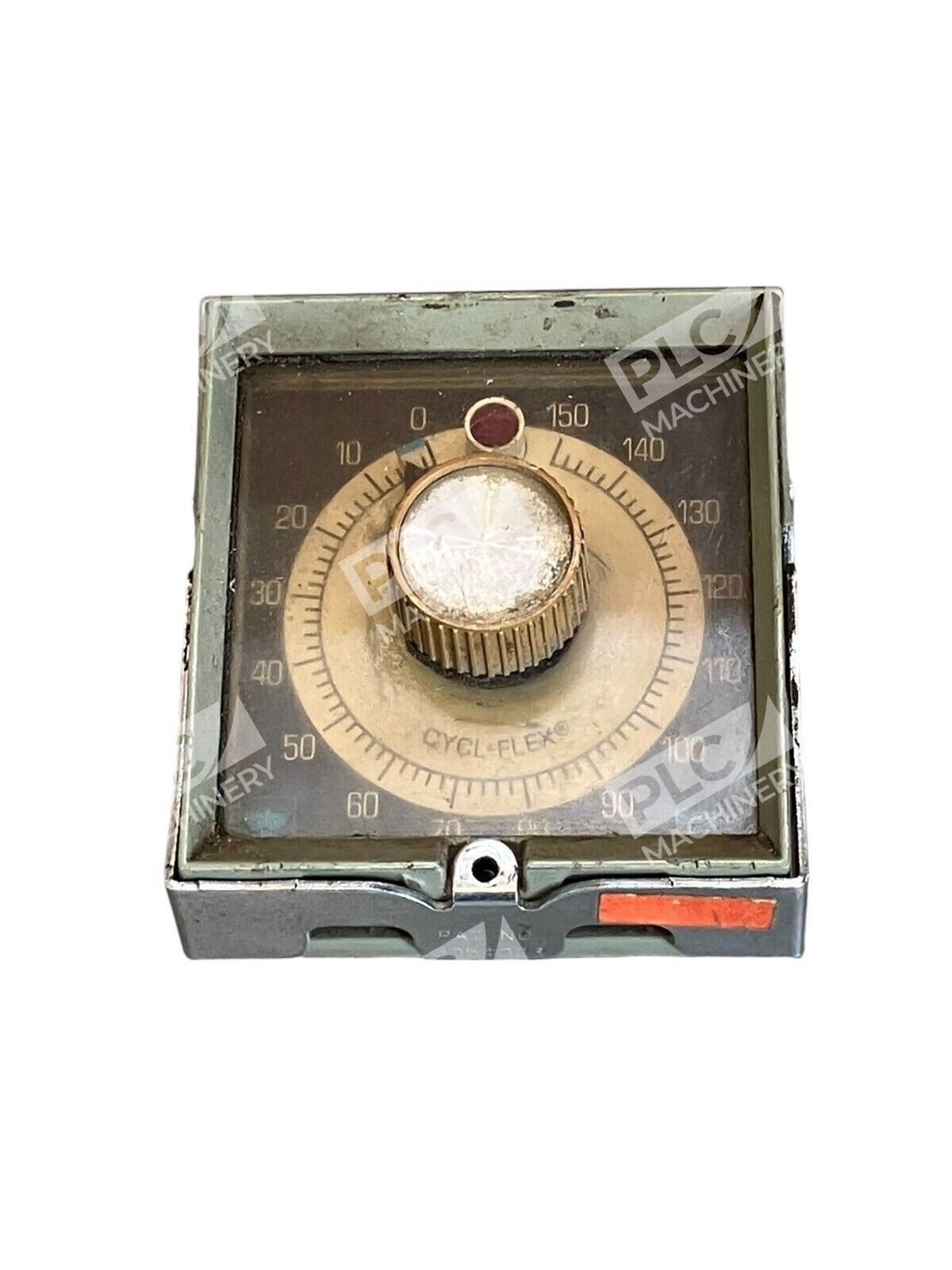

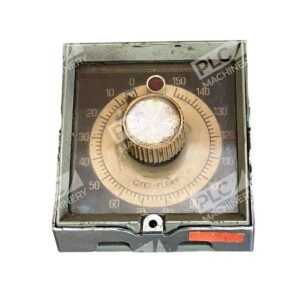

The Eagle Signal HP52A6 is a synchronous motor-driven reset timer housed in the standard CYCL-FLEX plug-in housing. Designed for reliable industrial timing applications, this analog timer provides precise 0-150 second cycle time control at 120VAC 60Hz with a 10A contact rating. The HP52A6 integrates seamlessly into Series 6 controller platforms and legacy Eagle Signal automation systems.
Key Features
- Knob-adjustable time ranges with calibrated dial (7.85 inch circumference) for easy setting and visibility
- Red progress pointer displays remaining time interval during operation
- Pilot light indicates when timer motor is energized
- Synchronous motor drive ensures accurate, repeatable timing across 0-150 second range
- UL, CSA, and FM approved for industrial and commercial use
- Compact form factor compatible with Series 6 and legacy automation platforms
Technical Specifications

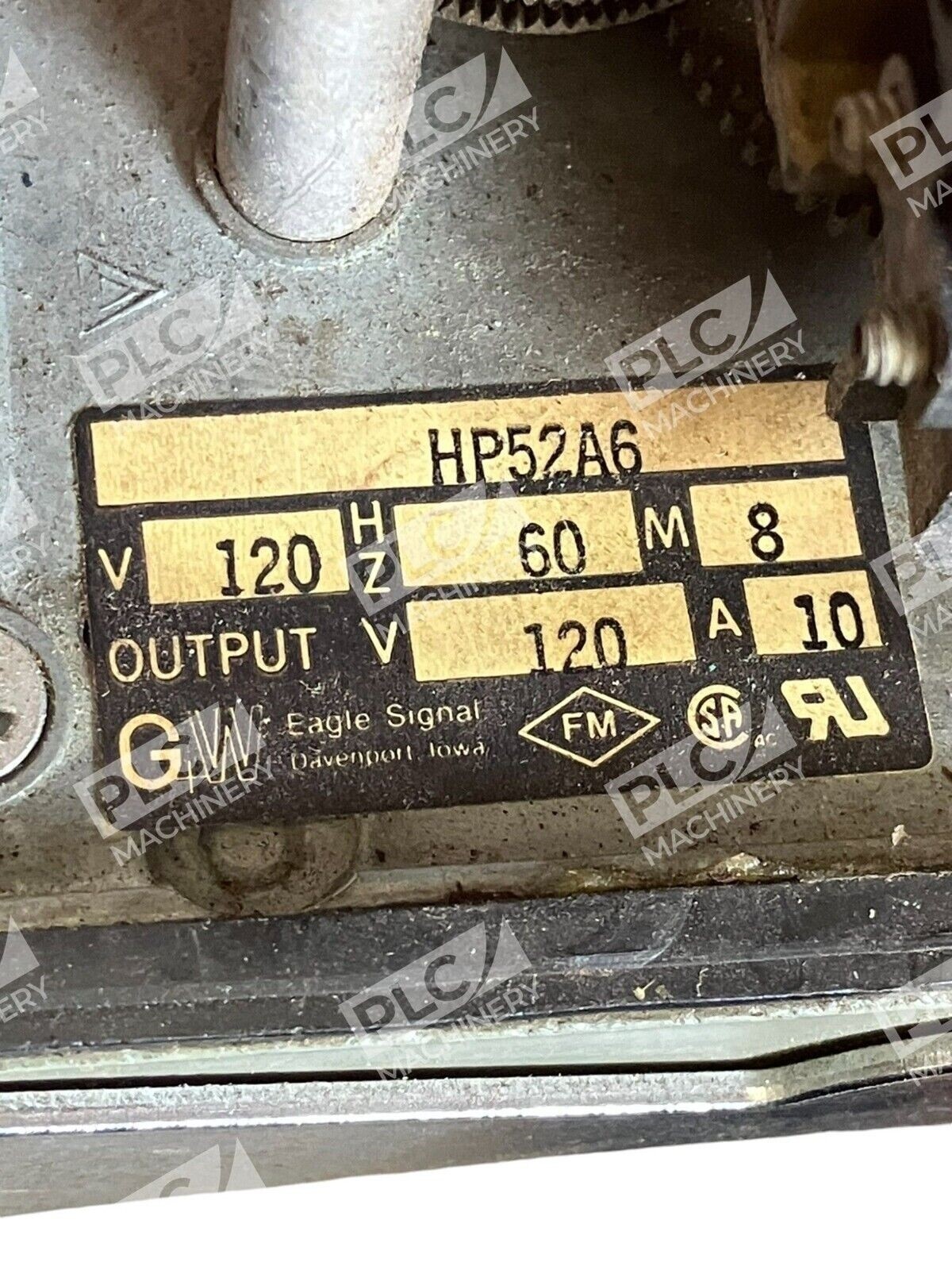

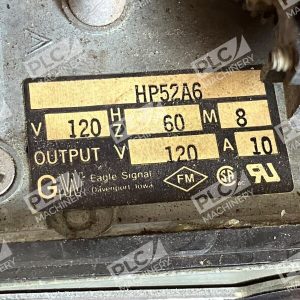

- Input Voltage: 120VAC ±10%
- Frequency: 60Hz
- Contact Current Rating: 10A
- Time Range: 0–150 seconds (knob-adjustable)
- Accuracy: ±0.75 seconds
- Display Type: Analog calibrated dial
- Motor Type: Synchronous motor drive
- Housing: CYCL-FLEX plug-in standard enclosure
- Dimensions: 96.82 × 107.95 × 146.05 mm
- Depth: 0.236 inches
- Weight: 2.30 lbs
- Certifications: UL, CSA, FM approved
- Series: HP5 Reset Timer (CYCL-FLEX)
Typical Applications
The Eagle Signal HP52A6 is widely used in:
- Automated manufacturing and assembly line timing control
- Process control and dwell time management in industrial equipment
- Cycle timing for motors, solenoids, and pneumatic actuators
- Delay-on-operate and delay-on-release control sequences
- Equipment startup/shutdown sequencing and warm-up cycles
- Legacy Series 6 system upgrades and replacement timing modules
Compatibility & Replacements
Compatible With
- Eagle Signal Series 6 controllers and PLC systems
- Eagle Signal CYCL-FLEX modular timer housing platforms
- Standard 120VAC 60Hz industrial control cabinets and power supplies
- Relay logic and electromechanical control systems
Replaces / Drop-In Replacement For
- Eagle Signal HP52A6 (original and replacement units)
- Earlier HP5 series timers requiring 0-150 second range at 120VAC
- Verify compatibility with your system integrator before ordering for legacy applications
Works With
- Eagle Signal CYCL-FLEX timer series modules
- Standard industrial 120VAC relay logic circuits
- Electromechanical control panels and operator interfaces
- Hard-wired automation and process control systems
