Overview

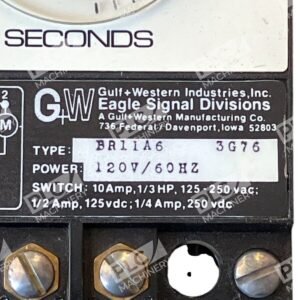

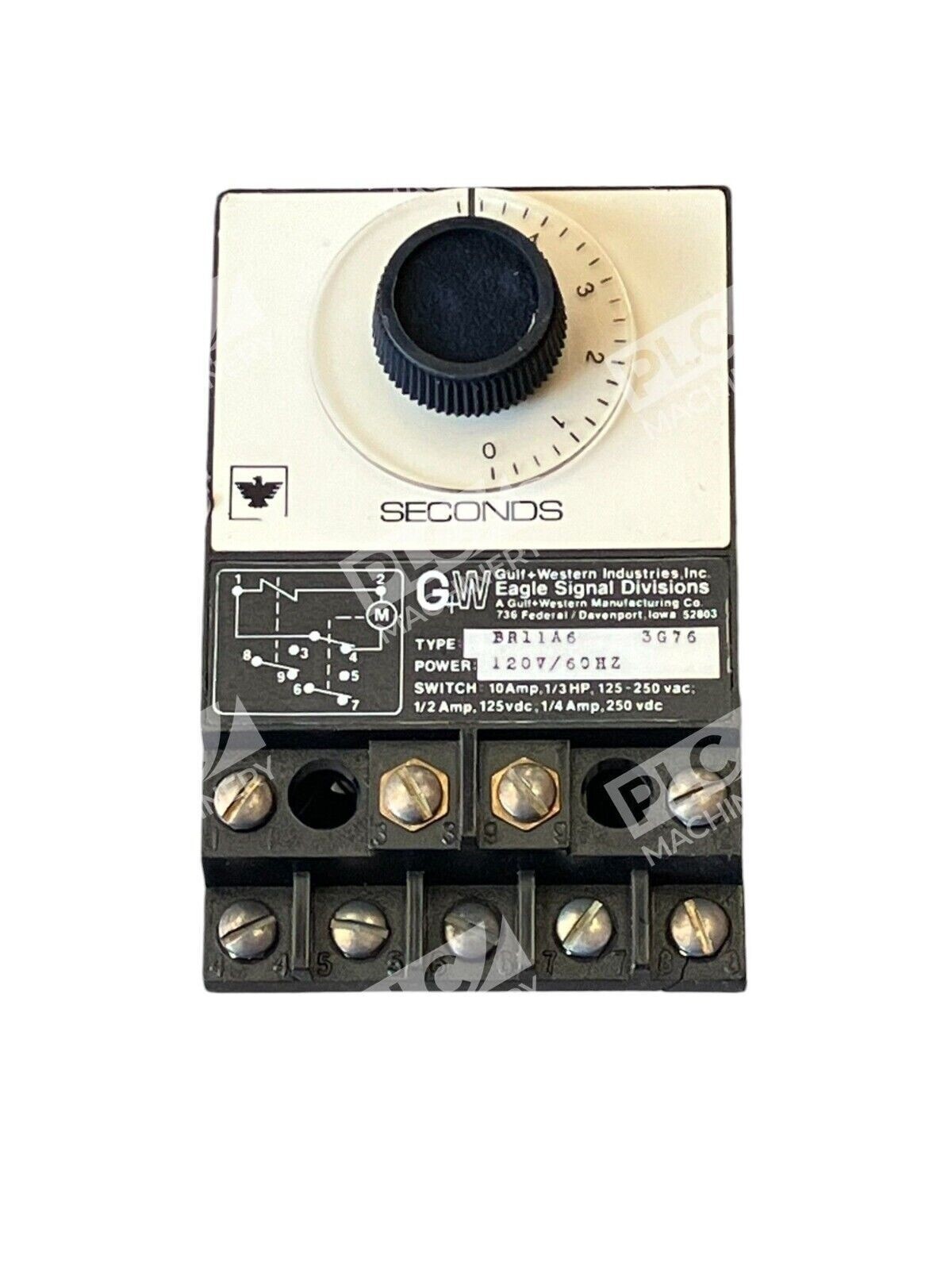

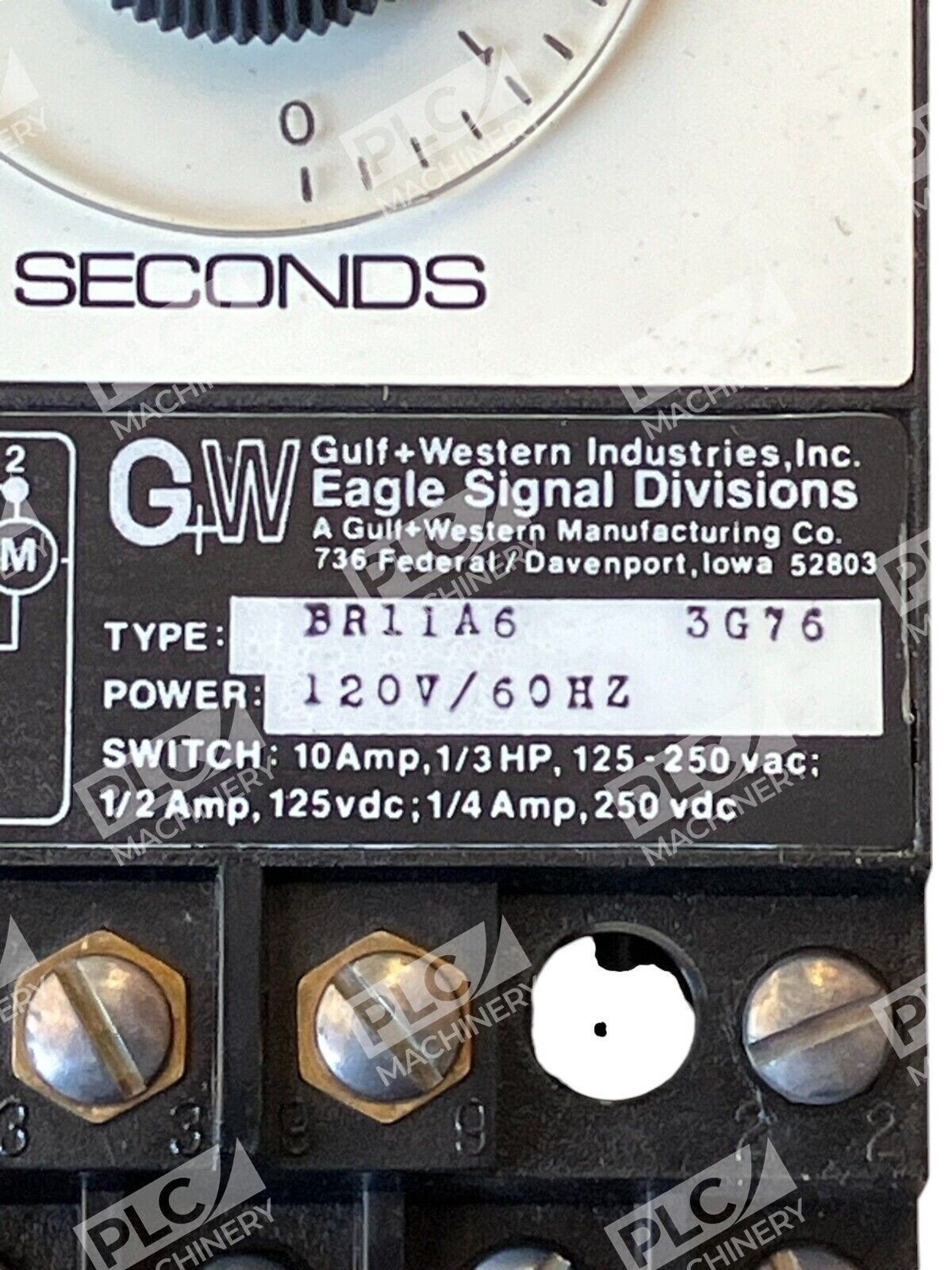

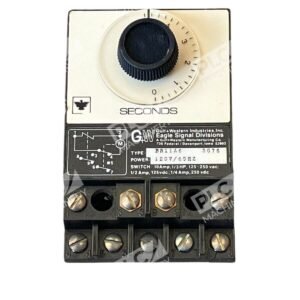

The Eagle Signal BR11A6 is a reliable, heavy-duty industrial reset timer designed to deliver accurate, adjustable time delays in control circuits. Built as part of the BR1 series by Eagle Signal (a Danaher Controls brand), this 120V/60Hz unit combines proven synchronous motor technology with a robust clutch drive mechanism for consistent performance across demanding industrial environments.
Key Features
- Synchronous Motor Drive: Precision timing with clutch mechanism for faster reset and longer motor life than gear-shift designs
- Instantaneous Contact: Contacts close instantly when clutch is energized, enabling broader control circuit configurations
- Heavy-Duty Construction: Lexan® injection-molded case recognized by UL as sole support for current-carrying components; self-extinguishing and high-impact rated
- Industrial Terminal Block: 9 screw terminals accept 16-gauge wire commonly used in industrial wiring
- 10 Amp Output Rating: Supports 1/4 HP loads at 120/240 VAC, with additional DC rating options
Technical Specifications
- Input Voltage: 120V (+10%, -15%), 50/60 Hz
- Output Rating: 10 amp, 1/4 HP (120/240 VAC); 1/2 amp (125 VDC); 1/4 amp (240 VDC)
- Timing Repeatability: Typical ±3/4% of full scale
- Reset Time: 200 ms
- Clutch Pull-in: 30 ms; Drop-out: 4 ms
- Motor Burden: 3 W
- Clutch Burden: 4 VA
- Terminal Configuration: 9 screw terminals
- Case Material: Lexan® injection-molded (UL-recognized)
- Approvals: UL Recognition, FM Approval
- Operating Temperature: -10° to 140° F (-23° to 60° C)
Typical Applications
The BR11A6 is widely used in manufacturing, HVAC systems, pump control, compressor sequencing, and process automation where reliable on-delay timing is critical. The instantaneous contact design makes it suitable for:
- On-delay timing circuits
- Reverse start applications
- Motor soft-start sequences
- Load switching and sequencing
- Safety interlock delays
Compatibility & Replacements
Compatible With
- Industrial 120V/60Hz control circuits
- NEMA-rated motor starters and contactors
- Relay logic and control panels
- Standard 9-terminal plug-in enclosures
- Motor loads up to 1/4 HP (120/240 VAC)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BR11A6 is designed for standard BR-series installations; consult the original equipment documentation or contact Eagle Signal technical support for specific model cross-reference information.
Works With
- 24V/120V relay logic circuits
- Industrial control panels and enclosures
- Synchronous timing networks
- Standard terminal strip wiring configurations
- Motor control circuits and soft-starters
