Overview

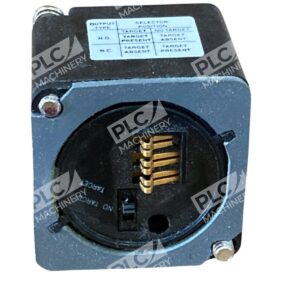

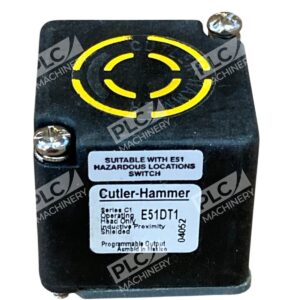

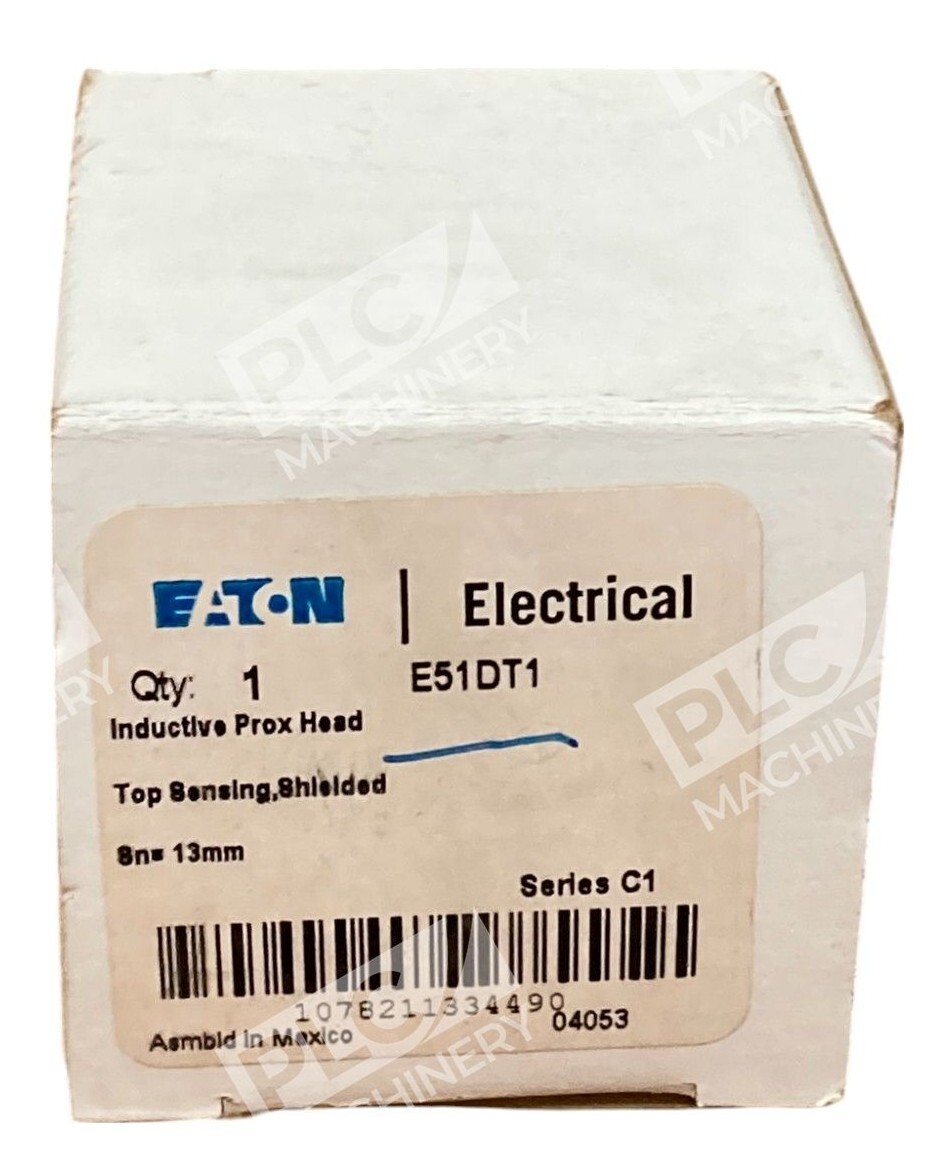

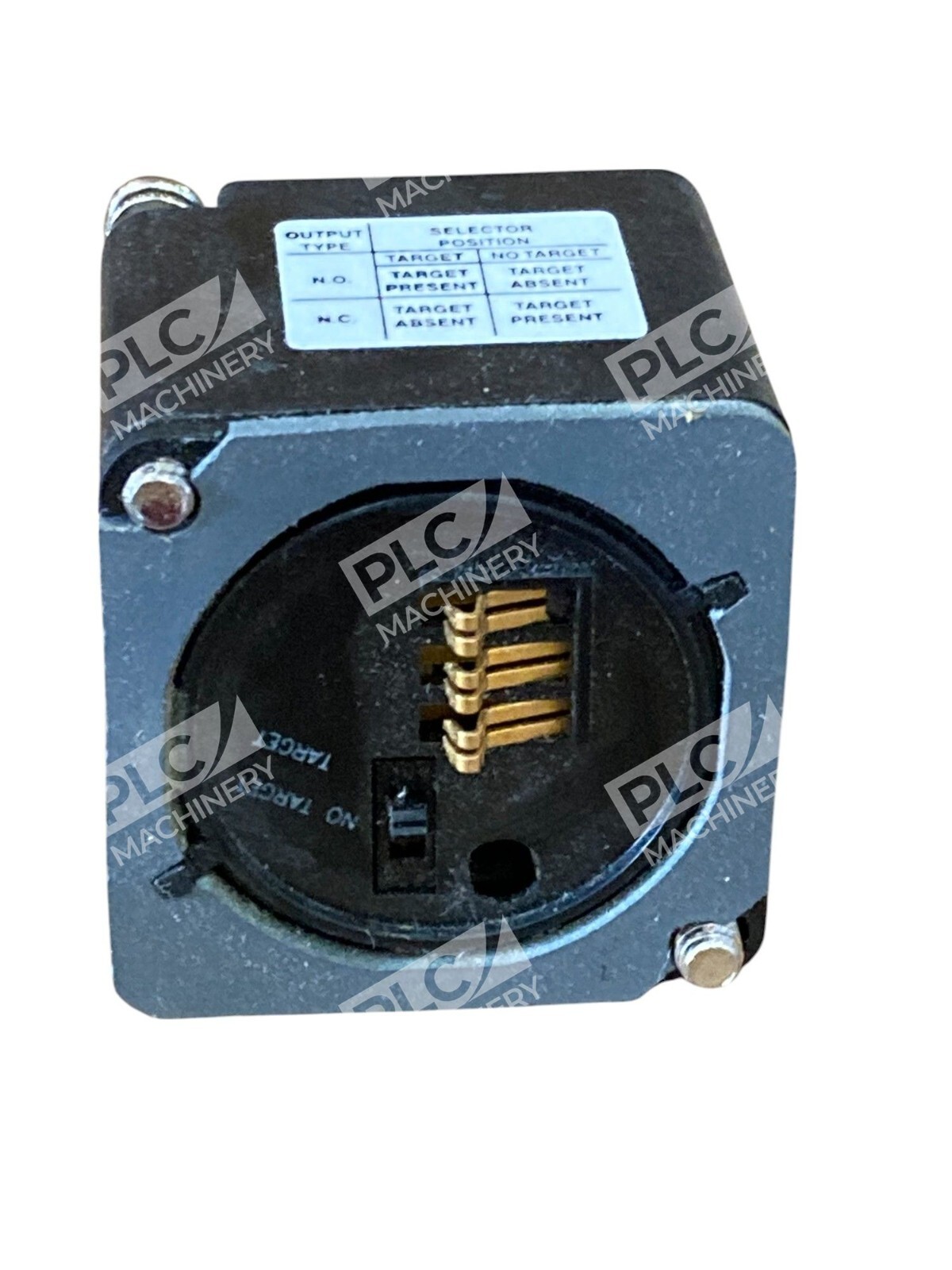

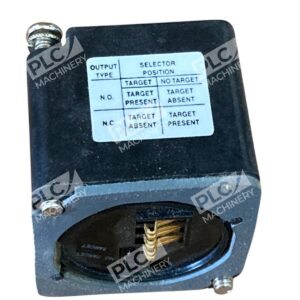

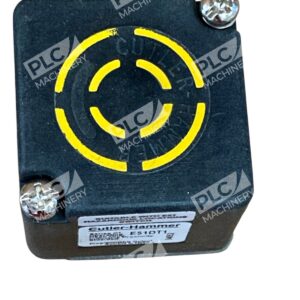

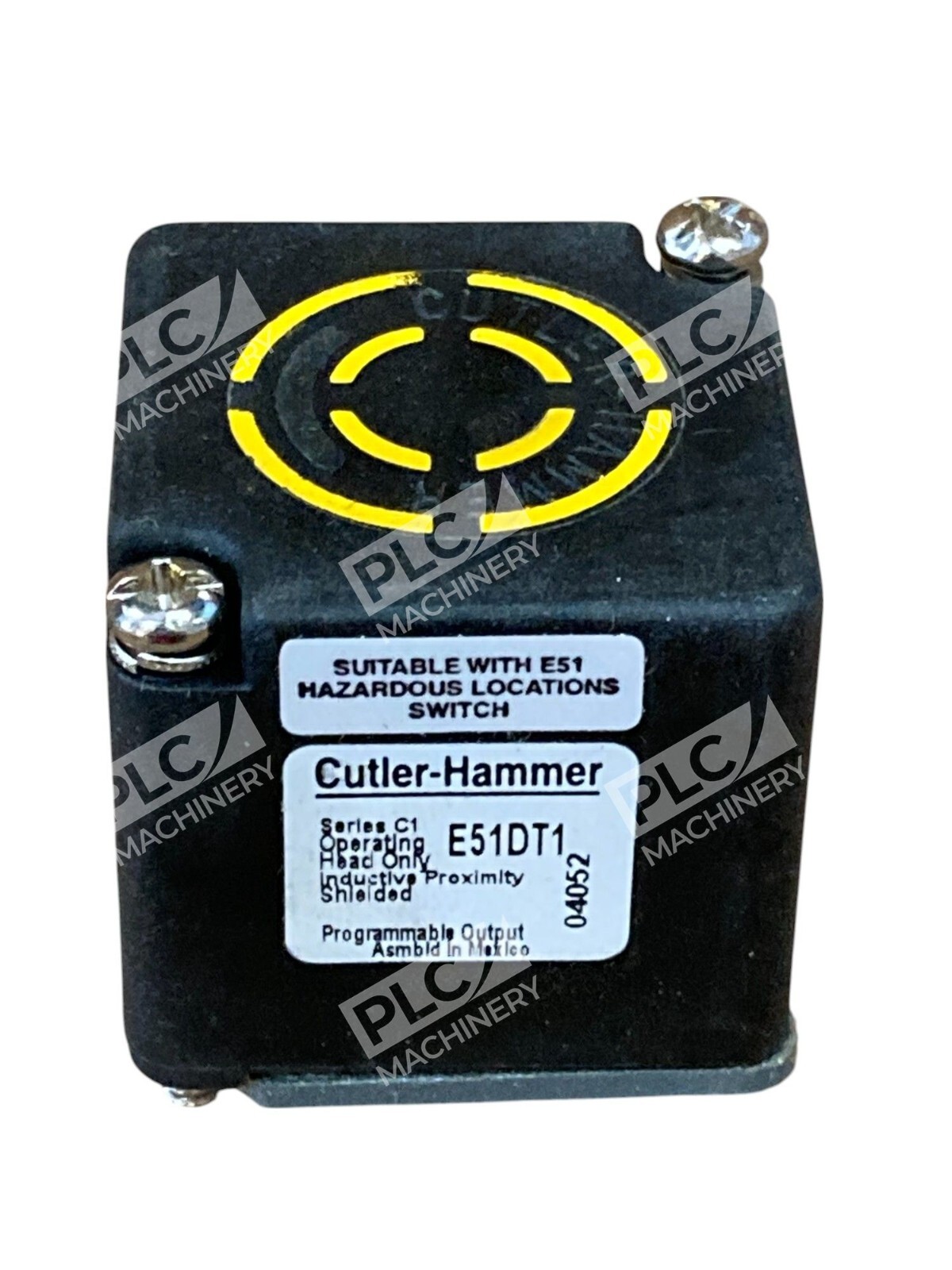

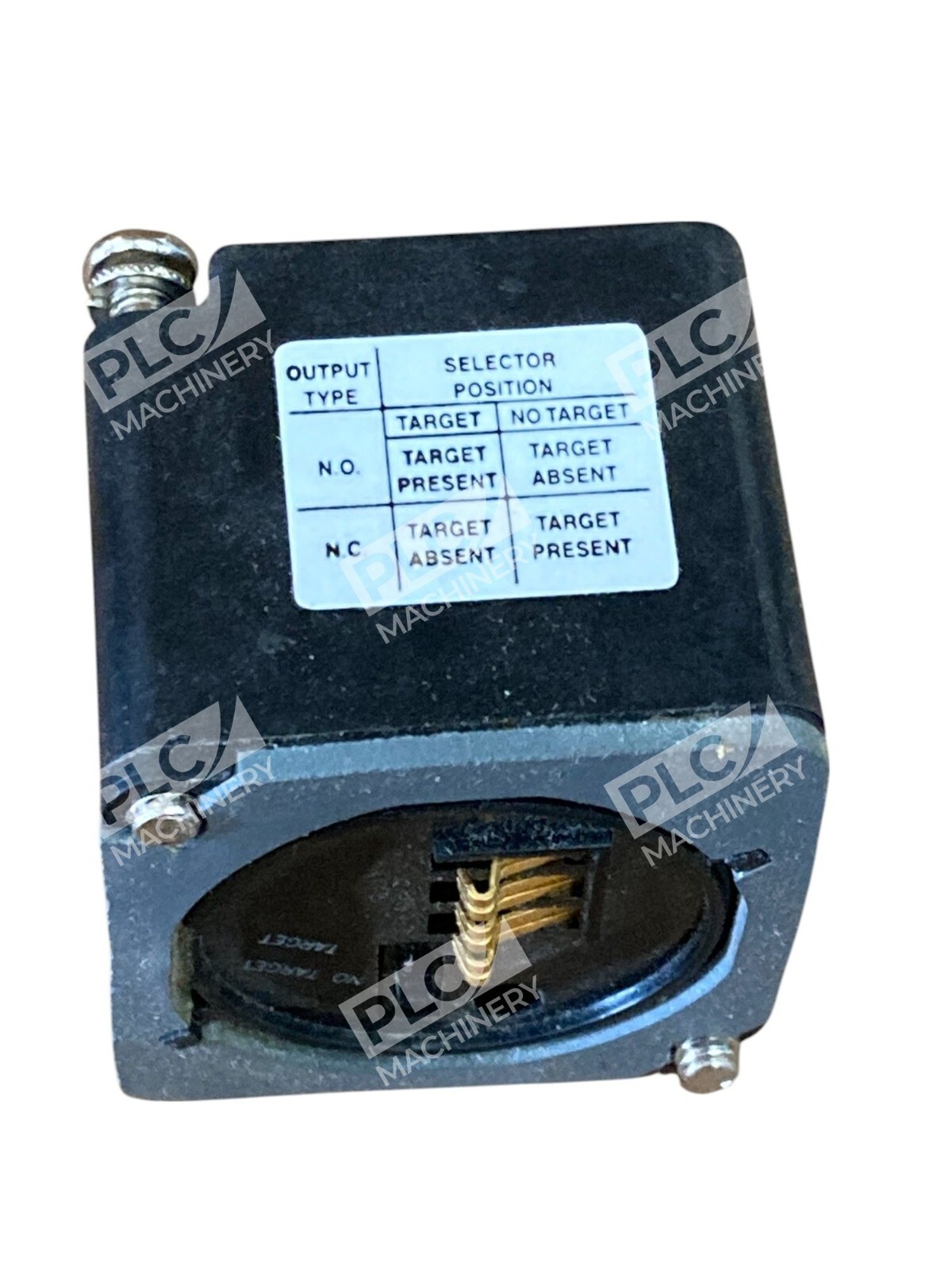

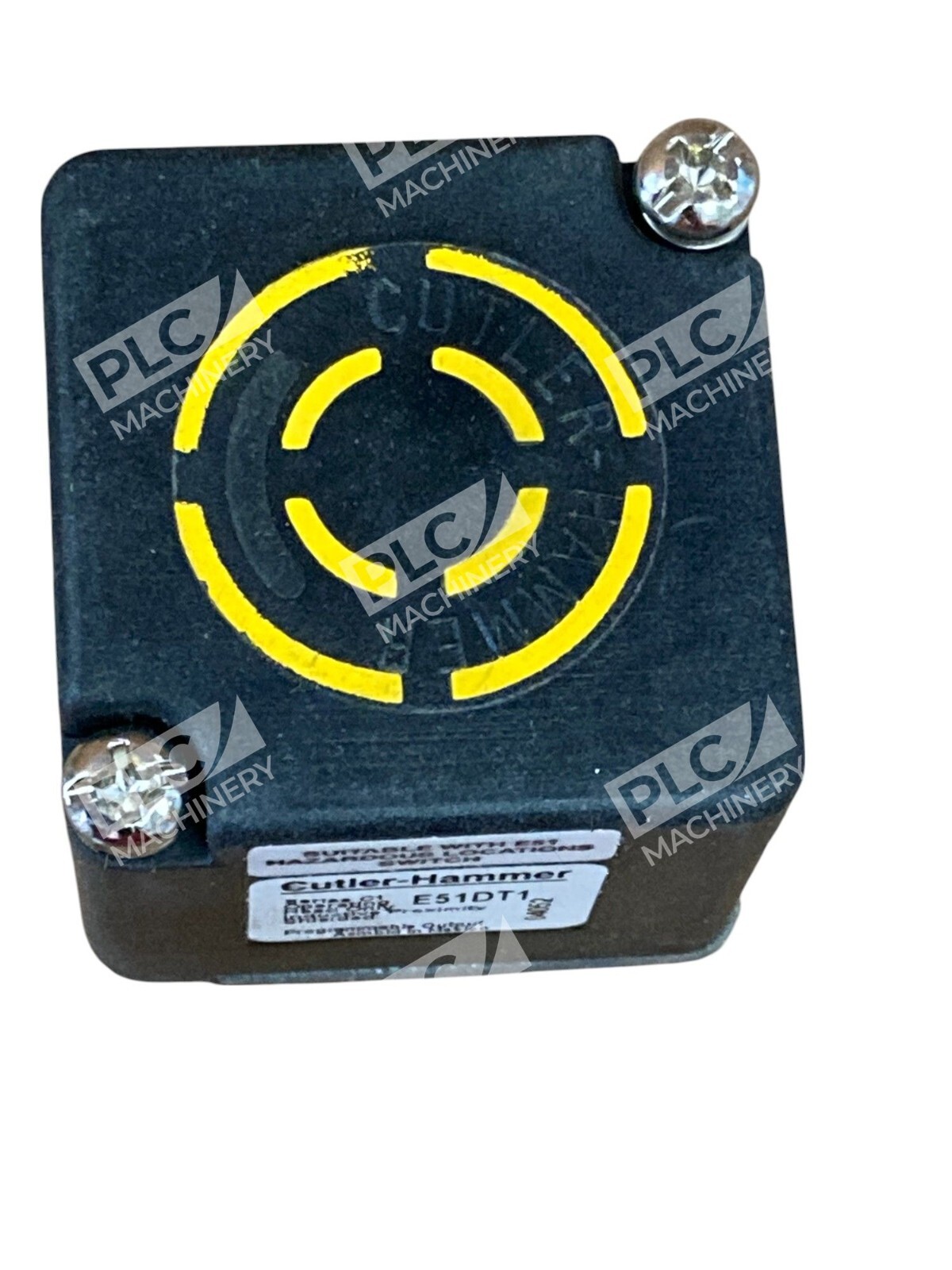

The Eaton E51DT1 is a modular inductive proximity sensor head in the E51 series, delivering dependable contactless detection of ferrous and non-ferrous metallic objects. Built in the familiar NEMA limit switch housing form factor, the E51DT1 combines ease of installation with proven industrial reliability. The sensor offers a 0.51 inch sensing range, top sensing position, shielded design, and standard frequency operation, making it a drop-in replacement for worn electromechanical limit switches in harsh factory environments.
Key Features
- Shielded design for reliable sensing in metallic-rich environments
- High-performance E51 family design with modular, plug-in components for easy maintenance and reduced downtime
- Viton gaskets for chemical resistance, direct replacement for worn-out limit switches
- Engagement key prevents improper assembly; accommodates U.S. and DIN mounting dimensions; captive pressure plate saddles for #18 to #12 AWG wire with identified ground terminal
- Available with 2-wire AC/DC or 4-wire AC/DC operation styles
- NEMA 3/3S/4/4X/6/6P/12/13 rated with IP67 enclosure protection
Technical Specifications
The following specifications define the E51DT1’s performance and compatibility:
| Sensing Range | 0.51 inch |
| Sensing Mode | Shielded top sensing |
| Sensor Type | Inductive proximity |
| Housing Style | NEMA limit switch form factor |
| Frequency | Standard frequency |
| Enclosure Material | Plastic |
| Dimensions (L×W×H) | 1.38 × 1.51 × 1.51 inches |
| Weight | 0.1 lb |
| Operating Temperature | −13 to 158 °F |
| NEMA Rating | 3, 3S, 4, 4X, 6, 6P, 12, 13 |
| IP Rating | IP67 |
| UPC | 782113344904 |
| Certifications | UL Listed, CSA Certified |
Typical Applications
The E51DT1 is suitable for automation and logic control equipment, featuring a NEMA limit switch design compatible with Eaton E51 series for reliable performance in stationary machinery and factory applications. Common uses include:
- Conveyor system object detection and position sensing
- Press brake and punch machine safety interlocks
- Assembly line part presence verification
- Industrial machinery position monitoring
- Replacement for mechanical limit switches in chemical-resistant applications
Compatibility & Replacements
Compatible With
- Eaton E51 modular sensor series
- NEMA limit switch mounting receptacles (U.S. and DIN dimensions)
- Industrial automation controllers using discrete 24 VDC/AC inputs
- Legacy machinery with standard limit switch interfaces
Replaces / Drop-In Replacement For
The E51DT1 is engineered as a direct replacement for worn-out mechanical limit switches in equipment designed for the E51 series form factor. For specific legacy model compatibility, verify with your original equipment documentation or contact Eaton technical support at 877-386-2273 (then select OPTION 2, OPTION 6, OPTION 3).
Works With
- PLC discrete input modules (24 VDC/AC logic)
- Hardwired relay logic control systems
- Variable frequency drives with status monitoring inputs
- Safety relay modules and emergency stop circuits
- Two-wire AC/DC or four-wire AC/DC sensor networks
