Overview

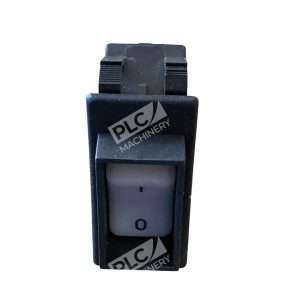

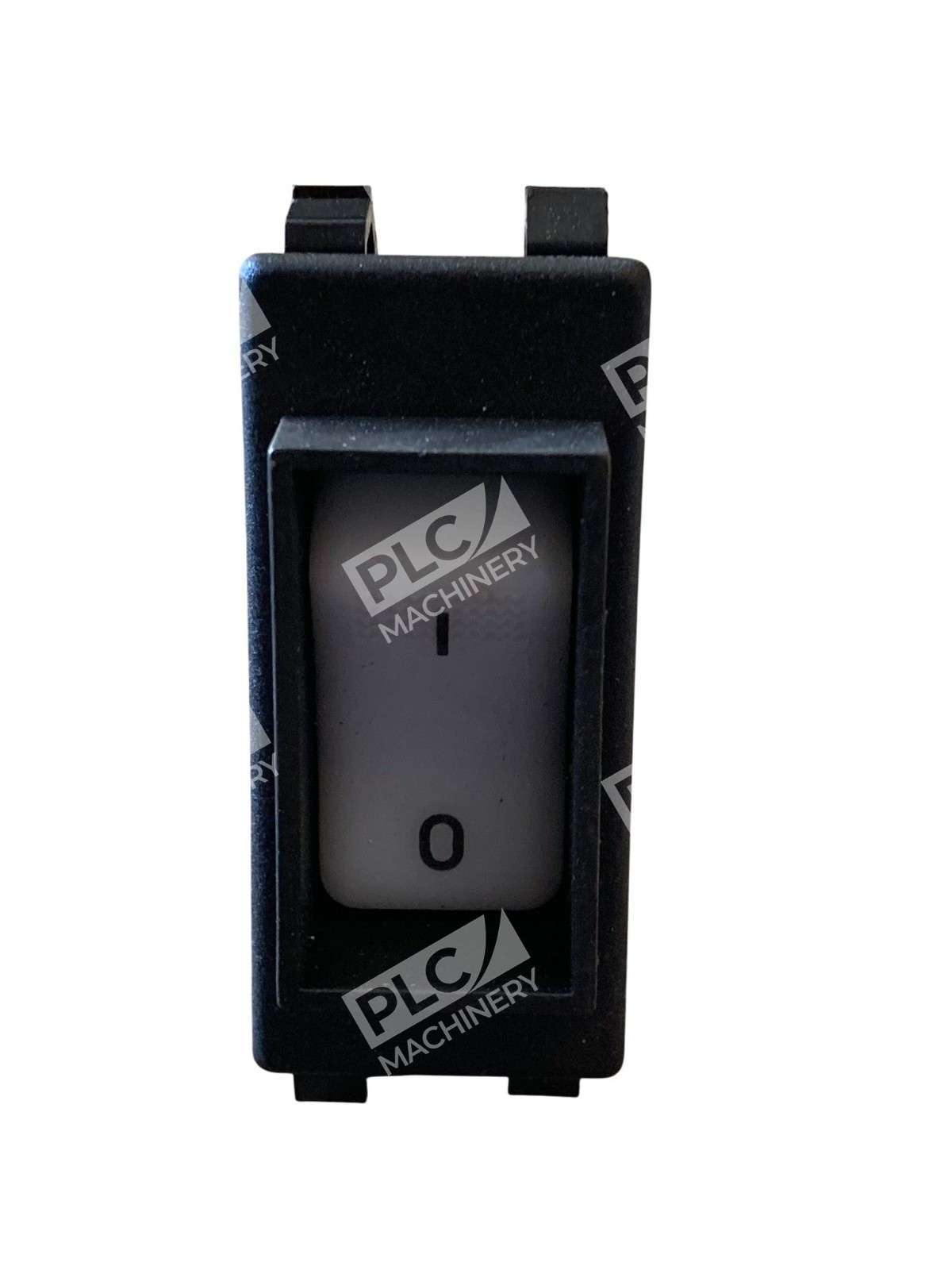

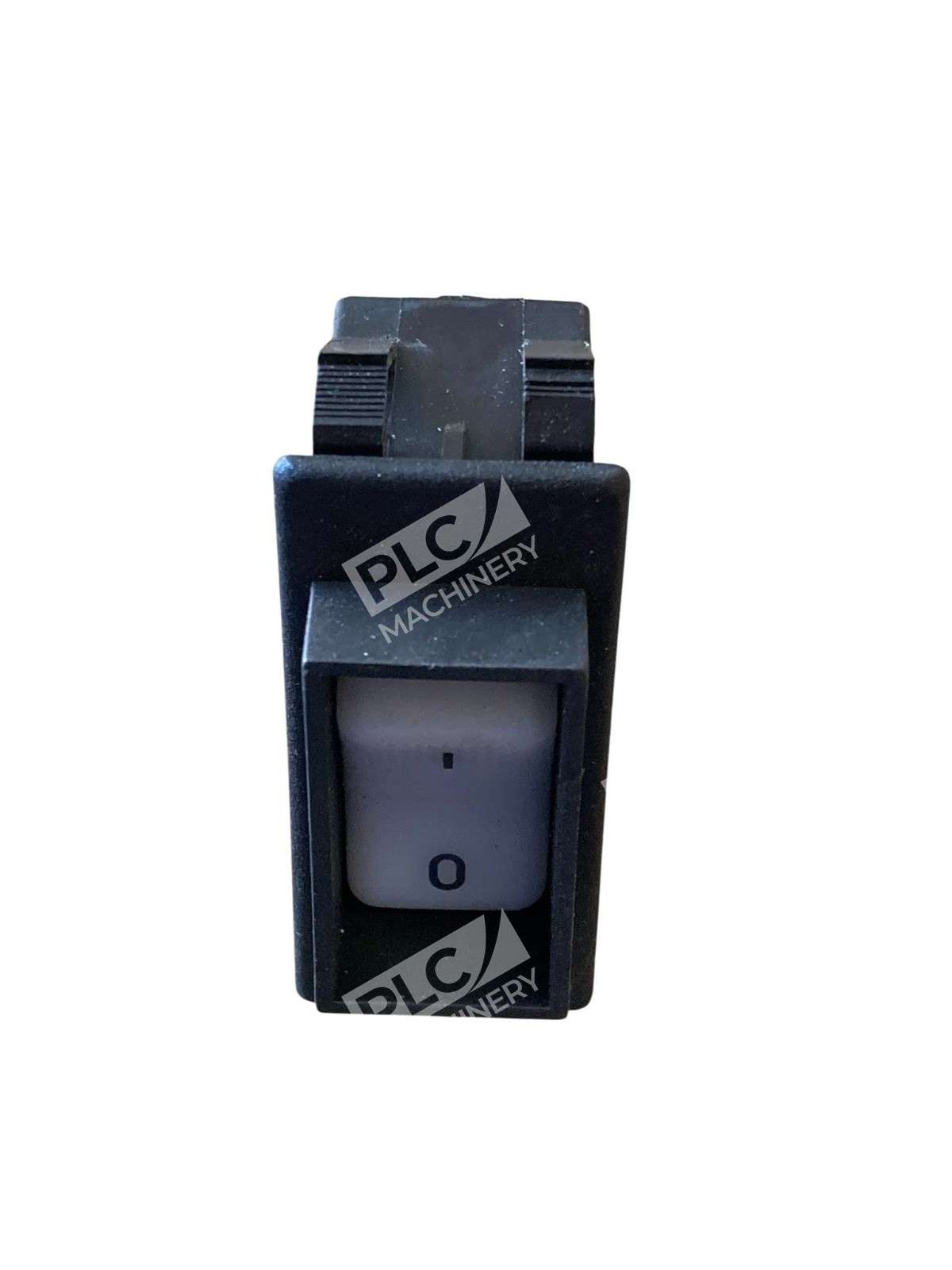

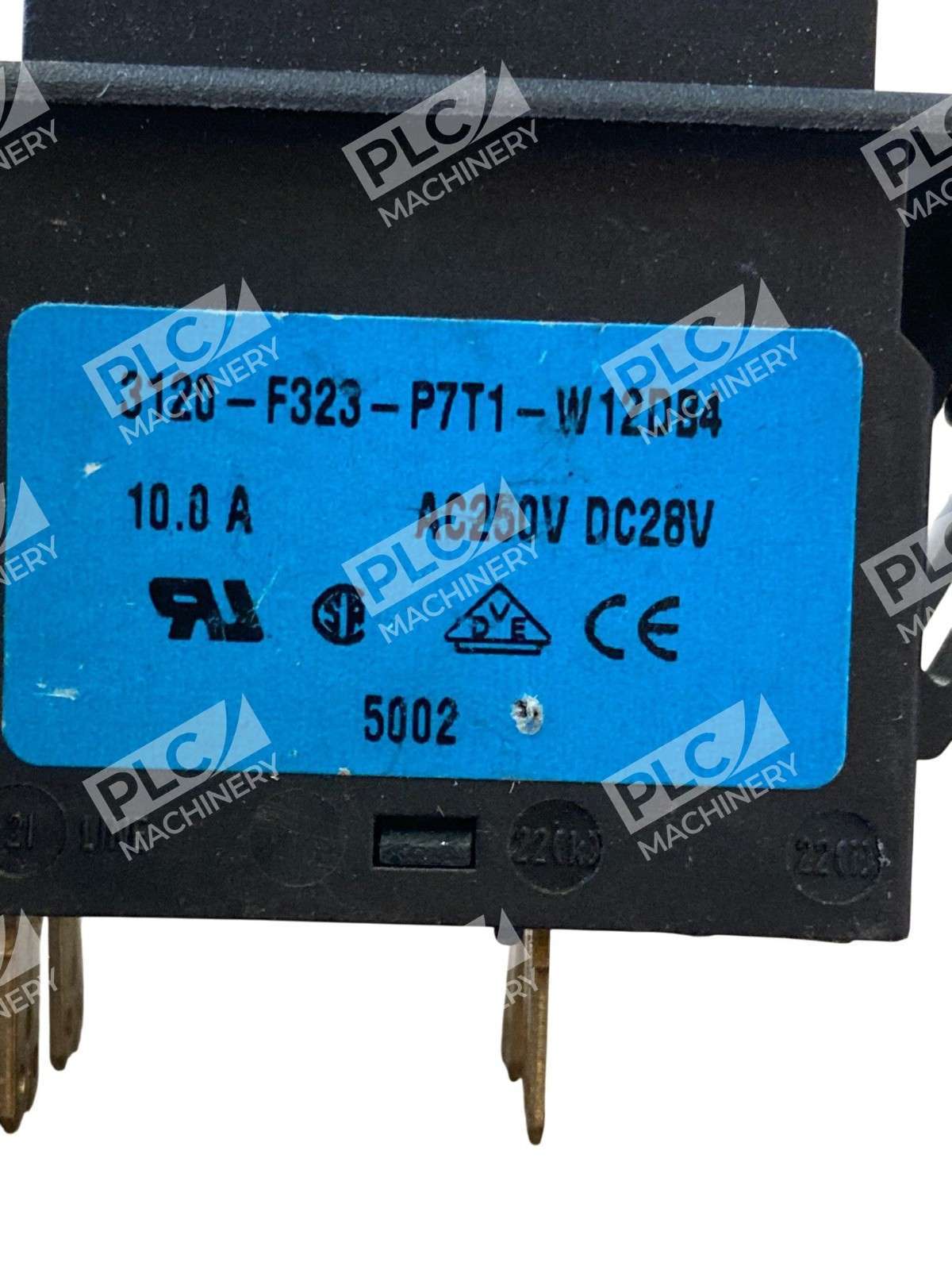

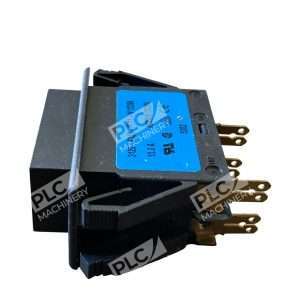

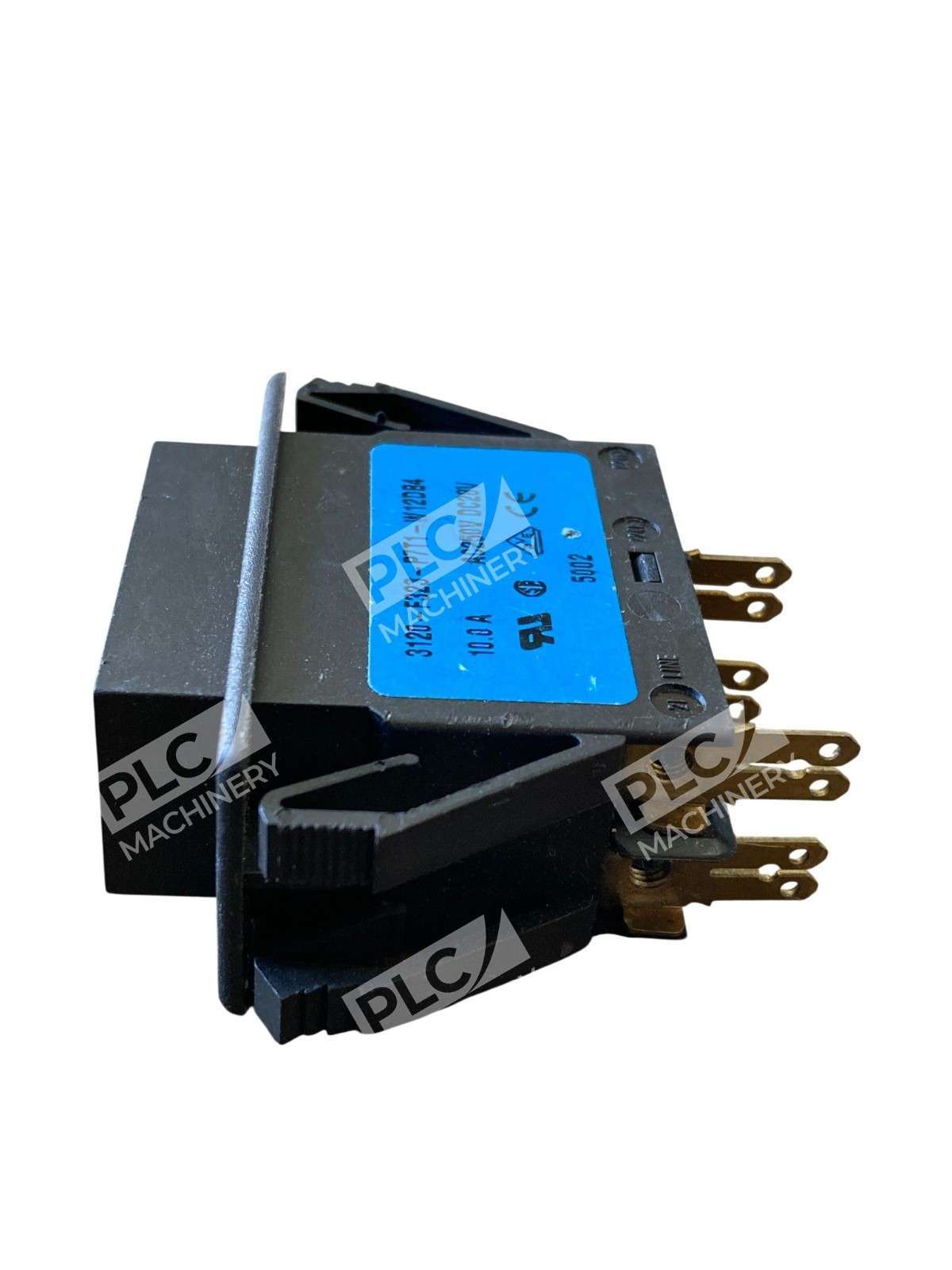

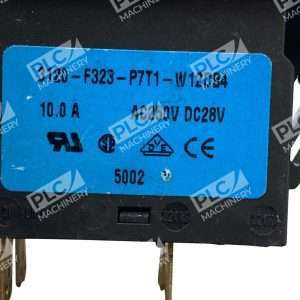

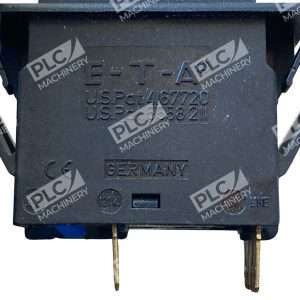

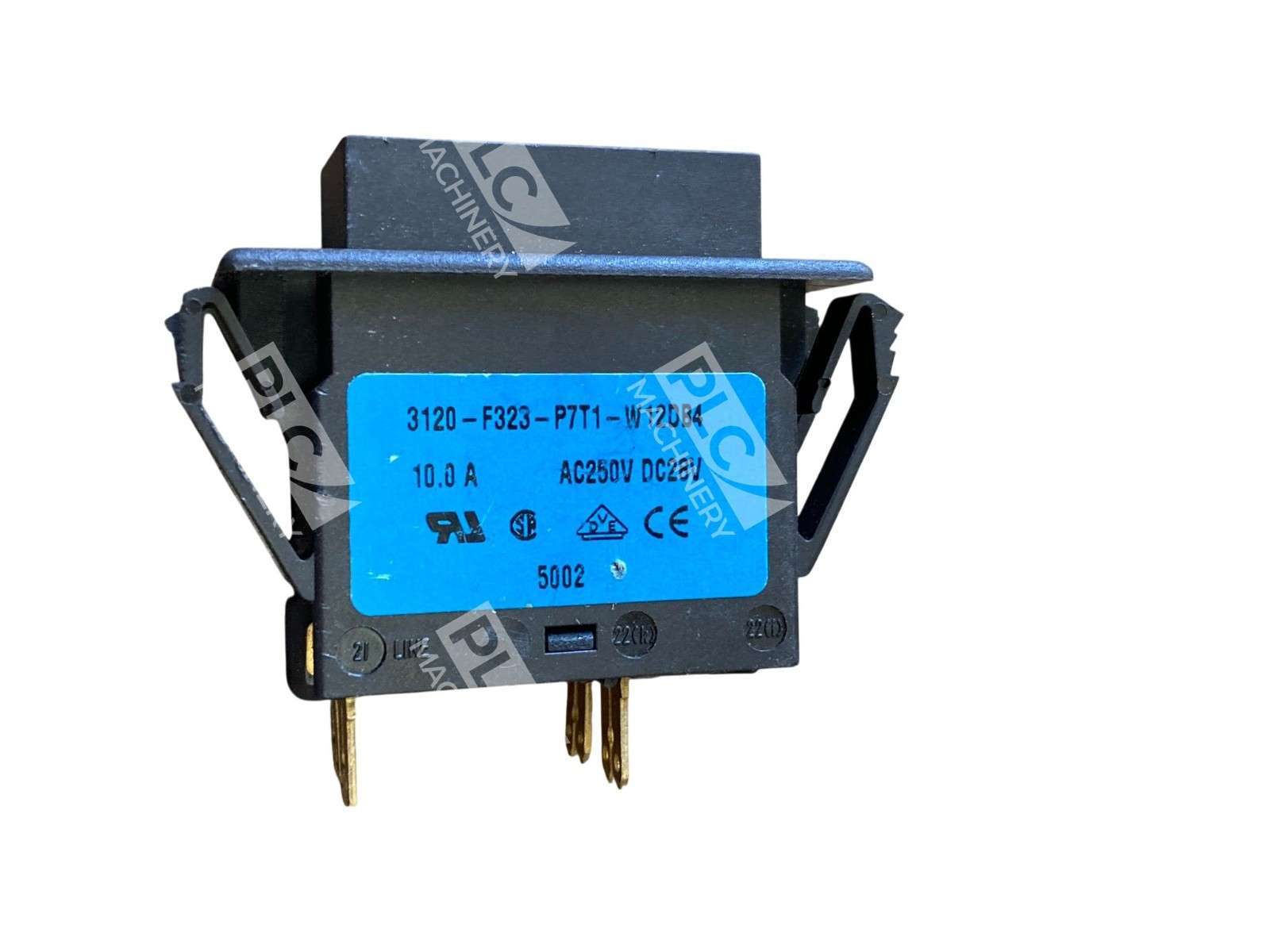

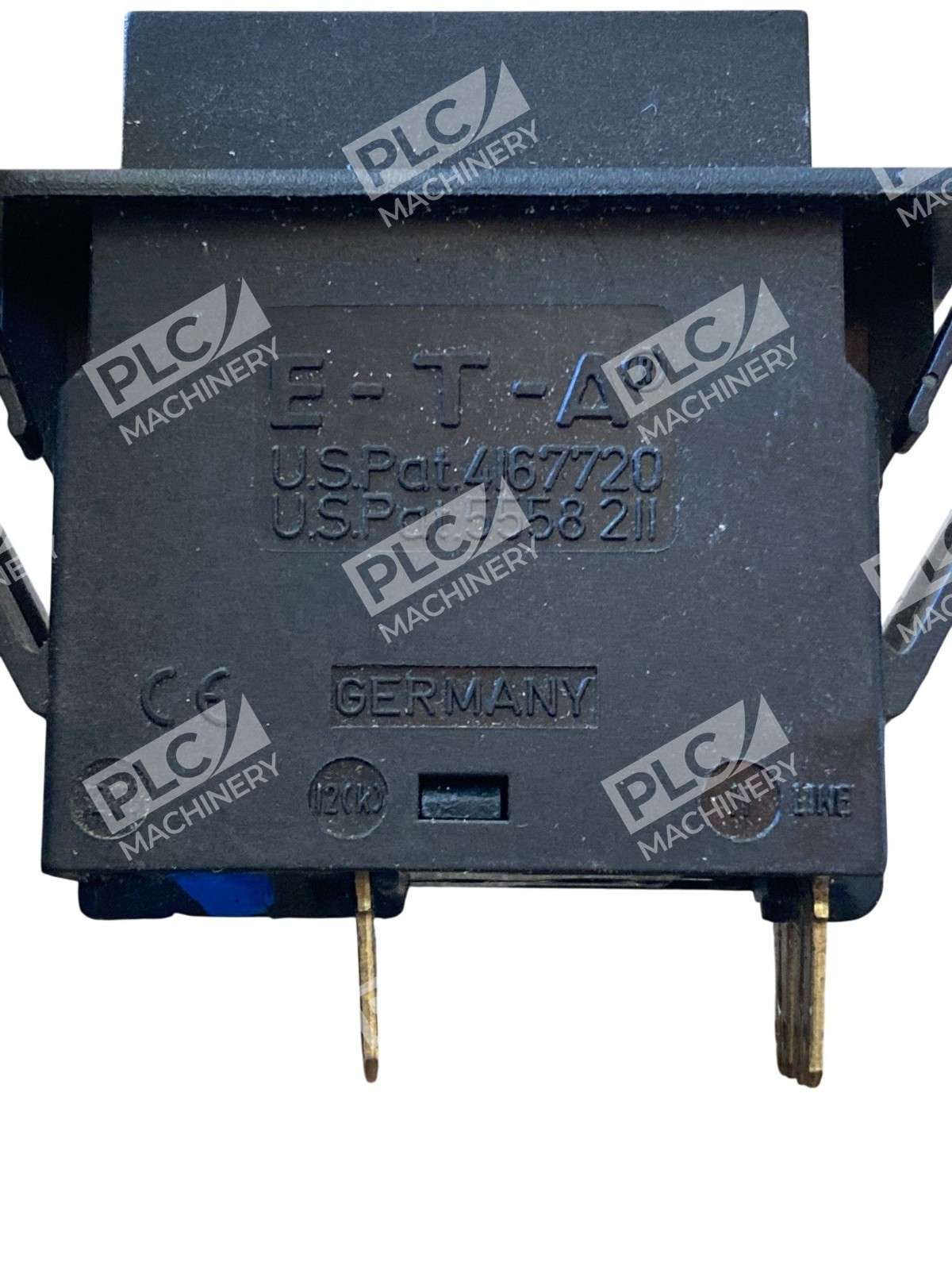

The E-T-A 3120-F323-P7T1-W12DB4 is a compact thermal circuit breaker/switch combination that integrates an ON/OFF control switch with integral overcurrent protection. Designed as an ON/OFF switch with integral overcurrent protection (S-type TO CBE to EN/IEC 60934), this unit provides reliable resettable protection in a single package.
Key Features
- Bimetal trip element for automatic overcurrent protection

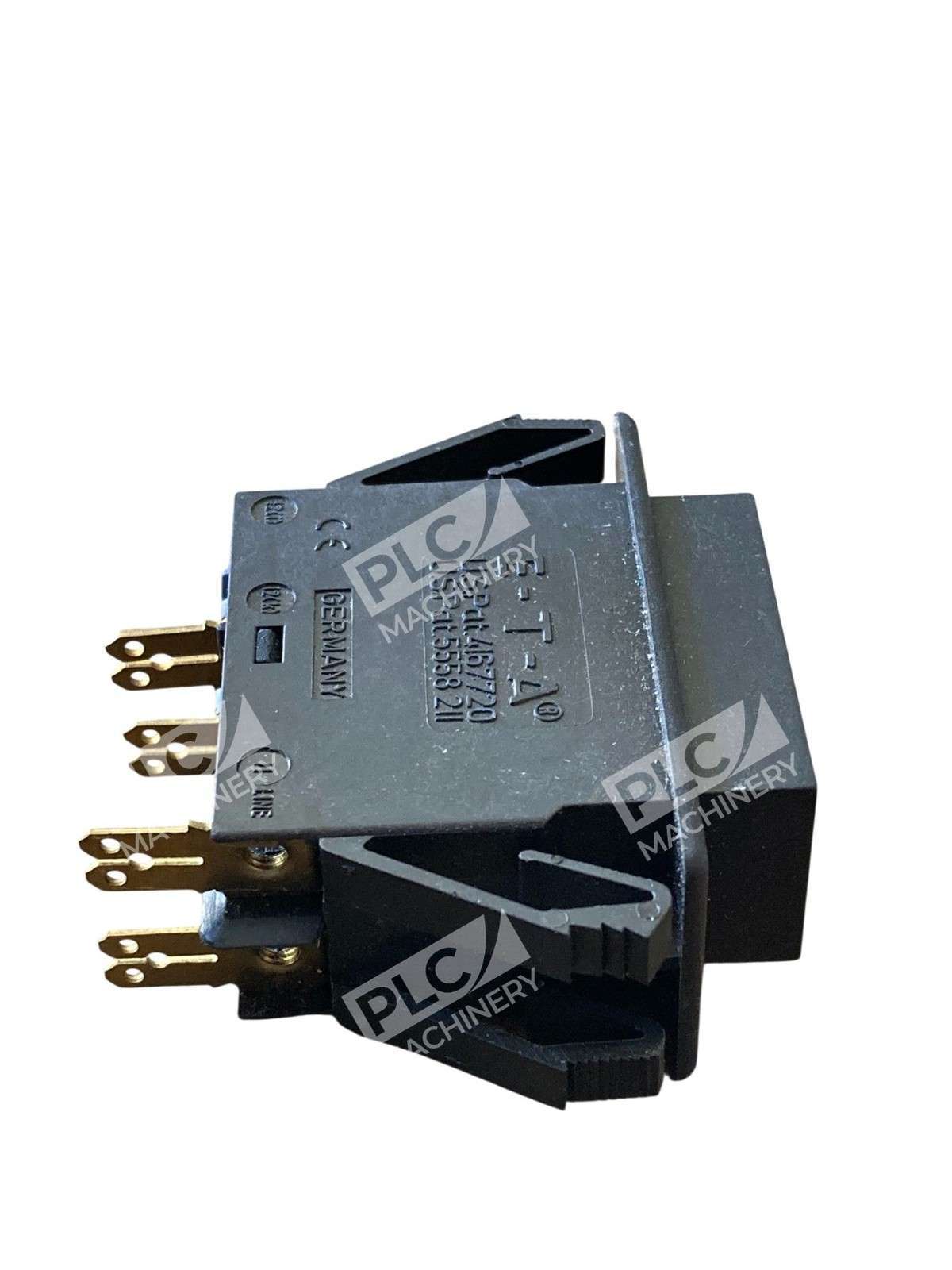

- Flange-mounted snap-in design with 9mm collar height for standard 50.5 x 21.5 mm cut-out mounting

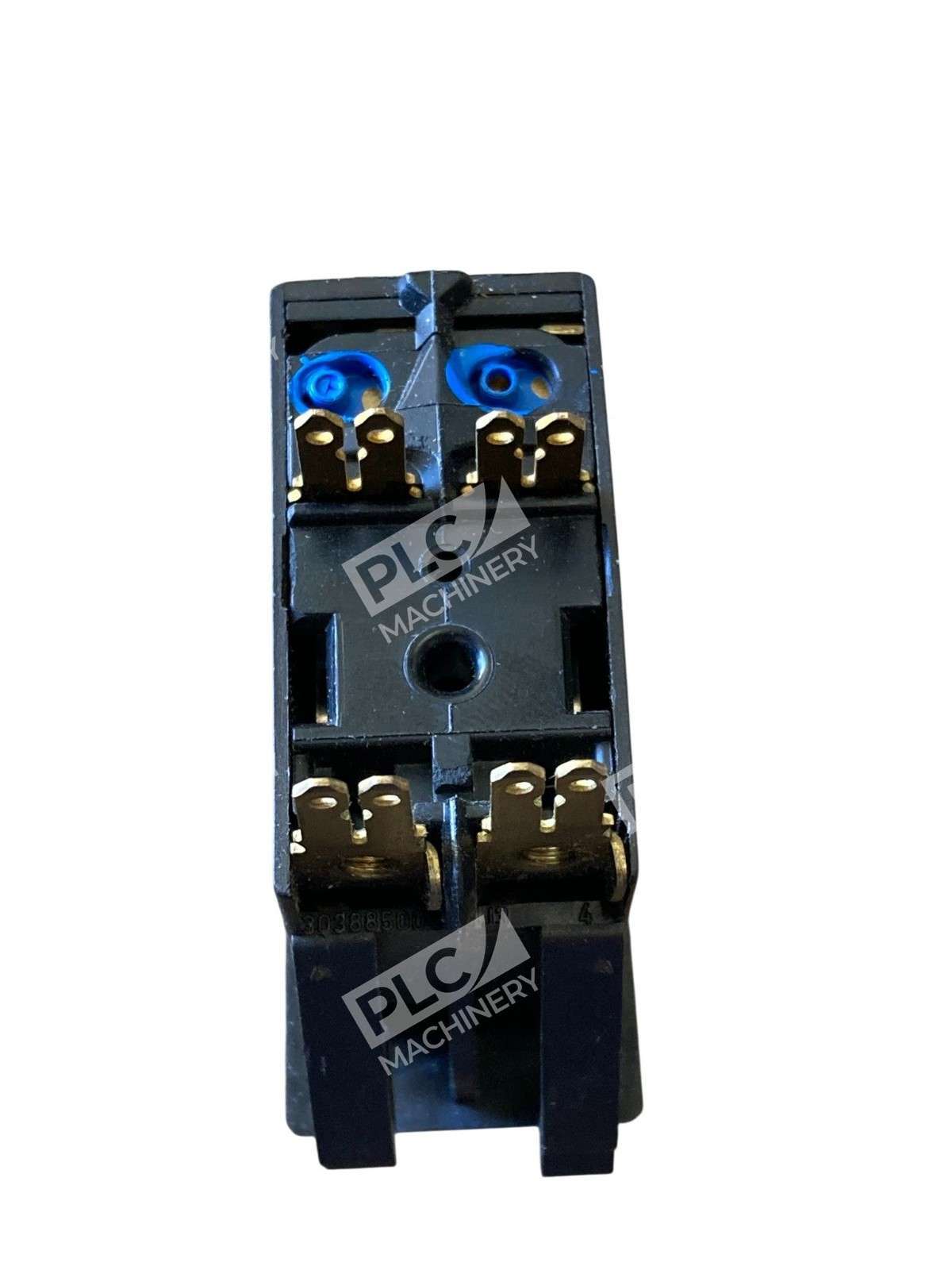

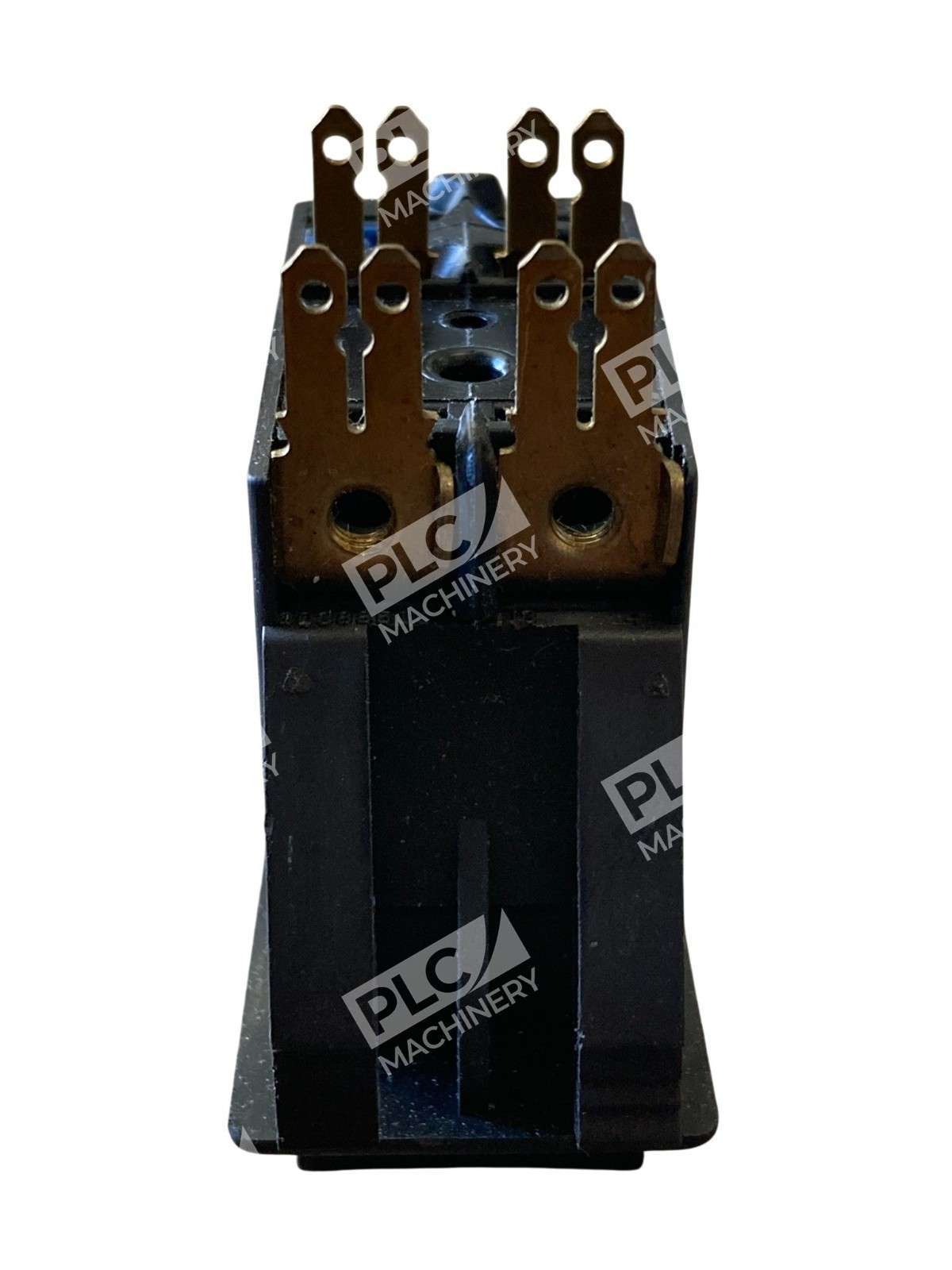

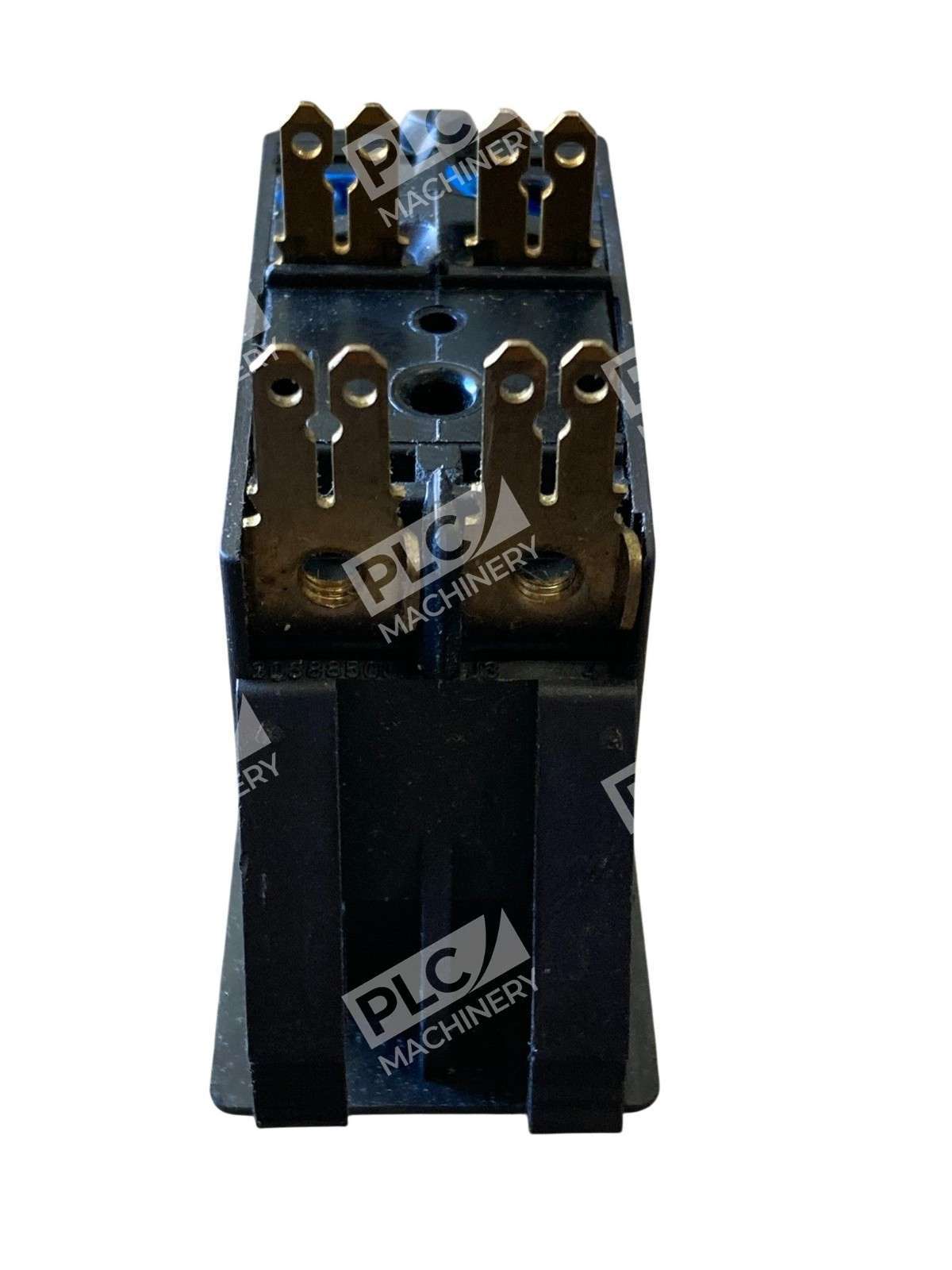

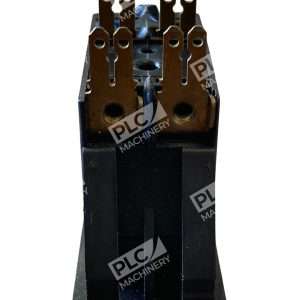

- 2 thermally protected poles with blade terminals and rocker actuator style
- Suitable for AC and DC current applications
- Manual reset capability for operator control
- Also available as switch-only version in accordance with IEC/EN 61058
Technical Specifications
Ideally suited for overload protection of motors, pumps, transformers and cables. The thermal response characteristics provide temperature-dependent trip behavior to minimize nuisance tripping in variable ambient conditions. Terminal receptacles feature 6.3 mm width dimensions in accordance with DIN 46340 part 3, shape A.
Typical Applications
- Motor and pump protection in industrial equipment
- Transformer overcurrent protection
- Cable and wiring circuit protection
- Low-voltage electrical system protection
- Machinery and industrial automation control circuits
Compatibility & Replacements
Compatible With
- Standard 50.5 x 21.5 mm flange-mount cut-out frames
- Equipment requiring EN/IEC 60934 circuit protection
- AC and DC powered electrical systems
- Industrial control panels and distribution boards
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Similar models in the E-T-A 3120 series may substitute subject to current rating and terminal configuration verification.
Works With
- DIN 46340 blade terminal receptacles (6.3 mm width)
- Compatible with Stocko, Klaucke, Vogt, TE Faston, and Delphi Packard terminal connectors
- EN/IEC 60934 thermal overcurrent protection standards
- UL 1283 and CSA 22.2 No. 8 compliant installations
