Overview

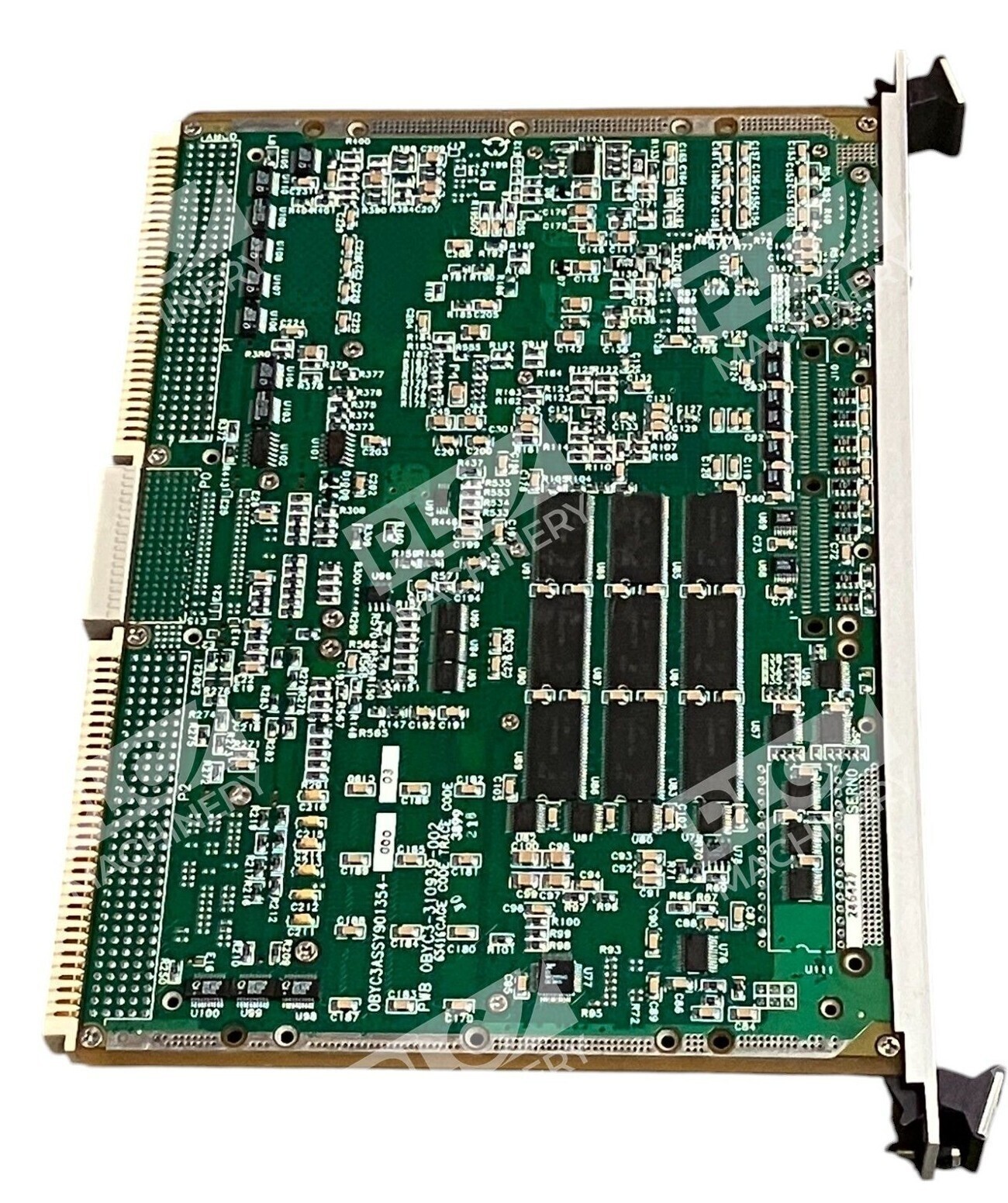

The Curtiss-Wright DY 4 SVME-179 is a MIL-spec PowerPC single board computer designed for demanding industrial automation, defense, and aerospace environments. Originally manufactured by DY 4 Systems (now part of Curtiss-Wright), the SVME-179 delivers high-performance computing in a compact form factor with proven reliability in avionics, tactical ground vehicle, and naval applications.
Key Features
- 64-bit PowerPC Architecture – High-performance processing for complex control and real-time applications
- Configurable Memory – Up to 48 MB of direct memory-mapped 64-bit Flash; 64–256 MB synchronous DRAM with ECC
- Low Power Consumption – Only 17 Watts typical (with 750 CPU), ideal for thermally constrained environments
- High-Speed L2 Cache – 1–2 MB cache with parity protection; 1.06 GBytes/sec peak transfer rate at 133 MHz
- Error Checking & Correction (ECC) – Detects and corrects single-bit errors; detects multi-bit errors for mission-critical reliability
- VME Bus Compatibility – Standard VMEbus interface for integration into chassis-based systems
Technical Specifications
- Processor: PowerPC 750 or 7400 CPU (configuration dependent)
- Clock Speed: L2 cache bus at 133 MHz
- Flash Memory: Up to 48 MB (64-bit wide, organized in three 16 MB banks)
- DRAM: 64, 128, or 256 MB SDRAM with ECC
- L2 Cache: 1 MB (with 750 CPU) or 2 MB (with 7400 CPU), synchronous burst DRAM
- DRAM Peak Transfer Rate: 528 MB/sec with ECC enabled
- Power Dissipation: 17 Watts typical (with 750 CPU)
- Interface: VMEbus (24-bit and 32-bit addressing supported)
- Manufacturer: Curtiss-Wright / DY 4 Systems

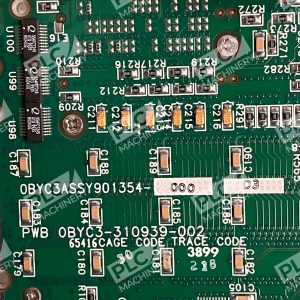

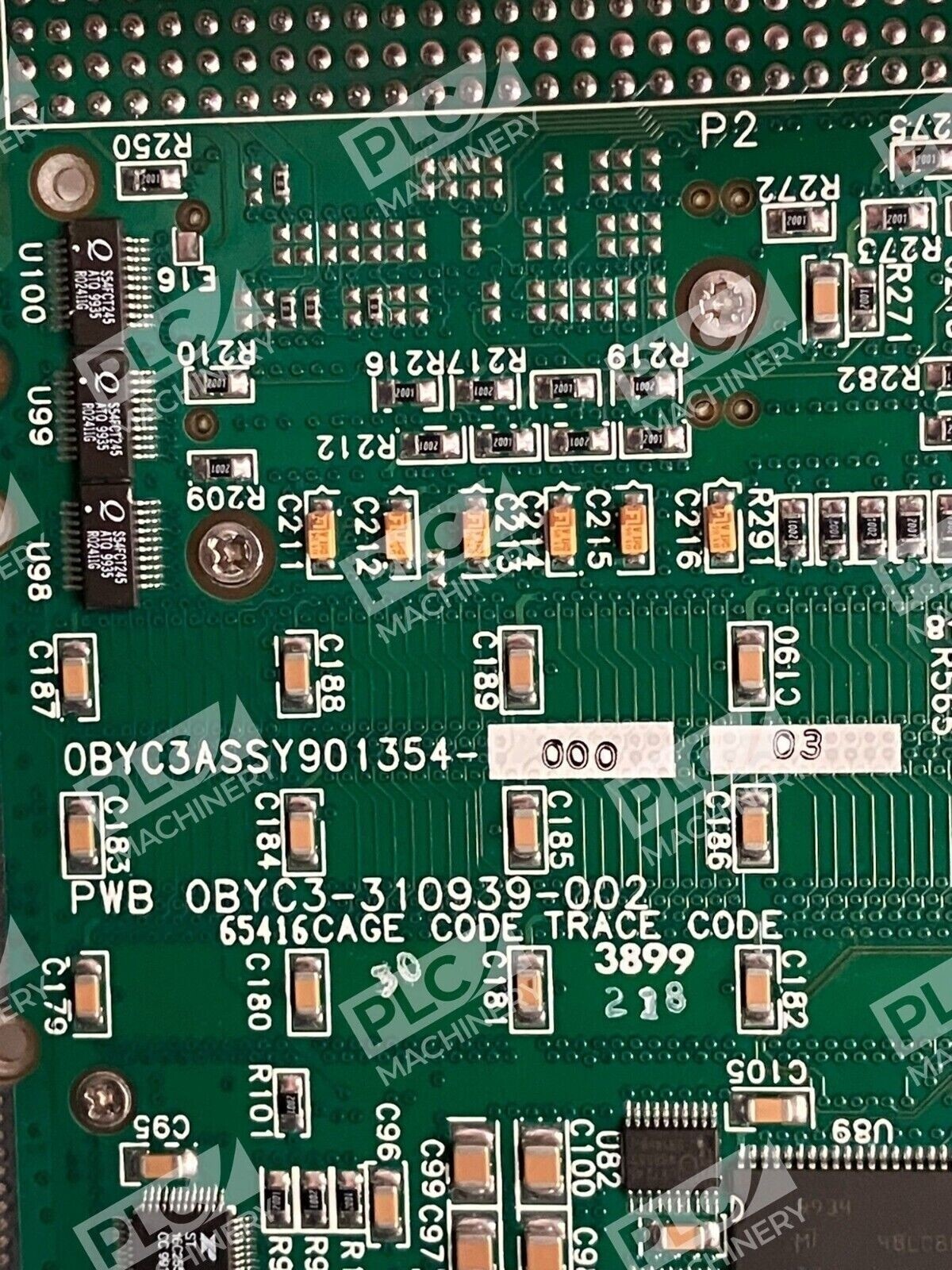

- CAGE Code: 0BYC3
- Condition: Used, tested, fully functional
Typical Applications
- Military avionics mission computers and flight control systems
- Tactical ground vehicle compute platforms and embedded systems
- Naval defense and ship-based automation systems
- Rugged industrial control and real-time data acquisition
- VME chassis-based embedded computing solutions
Compatibility & Replacements
Compatible With
- VMEbus (VXI, VME, Compact PCI over VME) chassis systems
- Standard VME 24-bit and 32-bit address space configurations
- Real-time operating systems (RTOS) supporting PowerPC architecture
- Defense and aerospace platforms qualified for MIL-SPEC components
- Curtiss-Wright embedded computing ecosystems and modular systems
Replaces / Drop-In Replacement For
- SVME-179-000, SVME-179-063A1, SVME-179-100, SVME-179-113 (various configurations)
- DMV-179 (equivalent defense variant designation)
- Previous-generation Dy 4 Systems PowerPC single board computers in VME form factor
Works With
- VMEbus communication protocol and addressing schemes
- PCI bus interface for expansion and peripheral connectivity
- Standard PowerPC bootloaders and firmware (PROM/EEPROM-based)
- Real-time embedded operating systems (VxWorks, INTEGRITY, QNX, etc.)
- On-board serial EEPROM for Auto-ID and geographical addressing configuration
