Overview

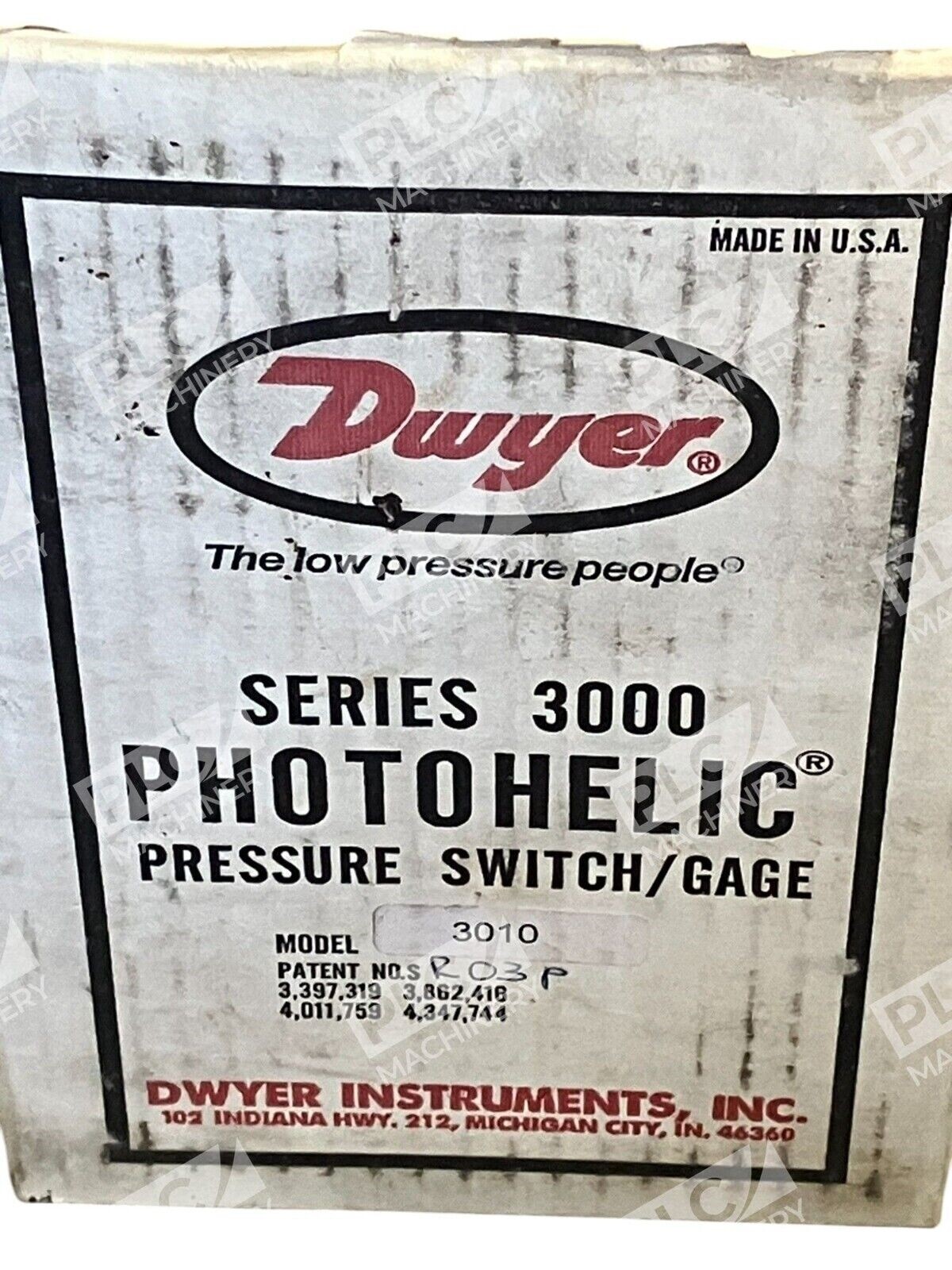

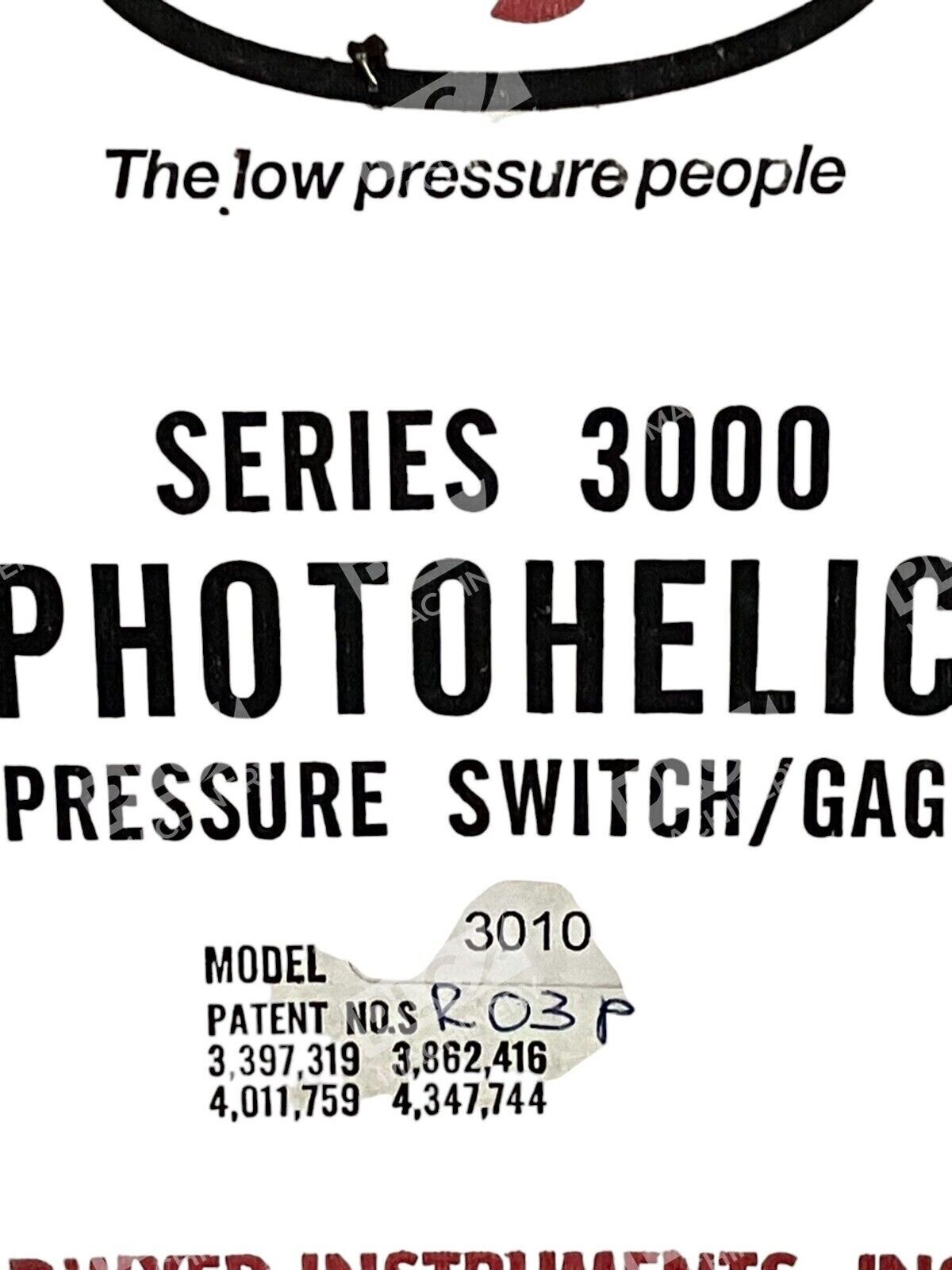

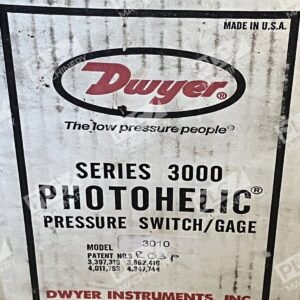

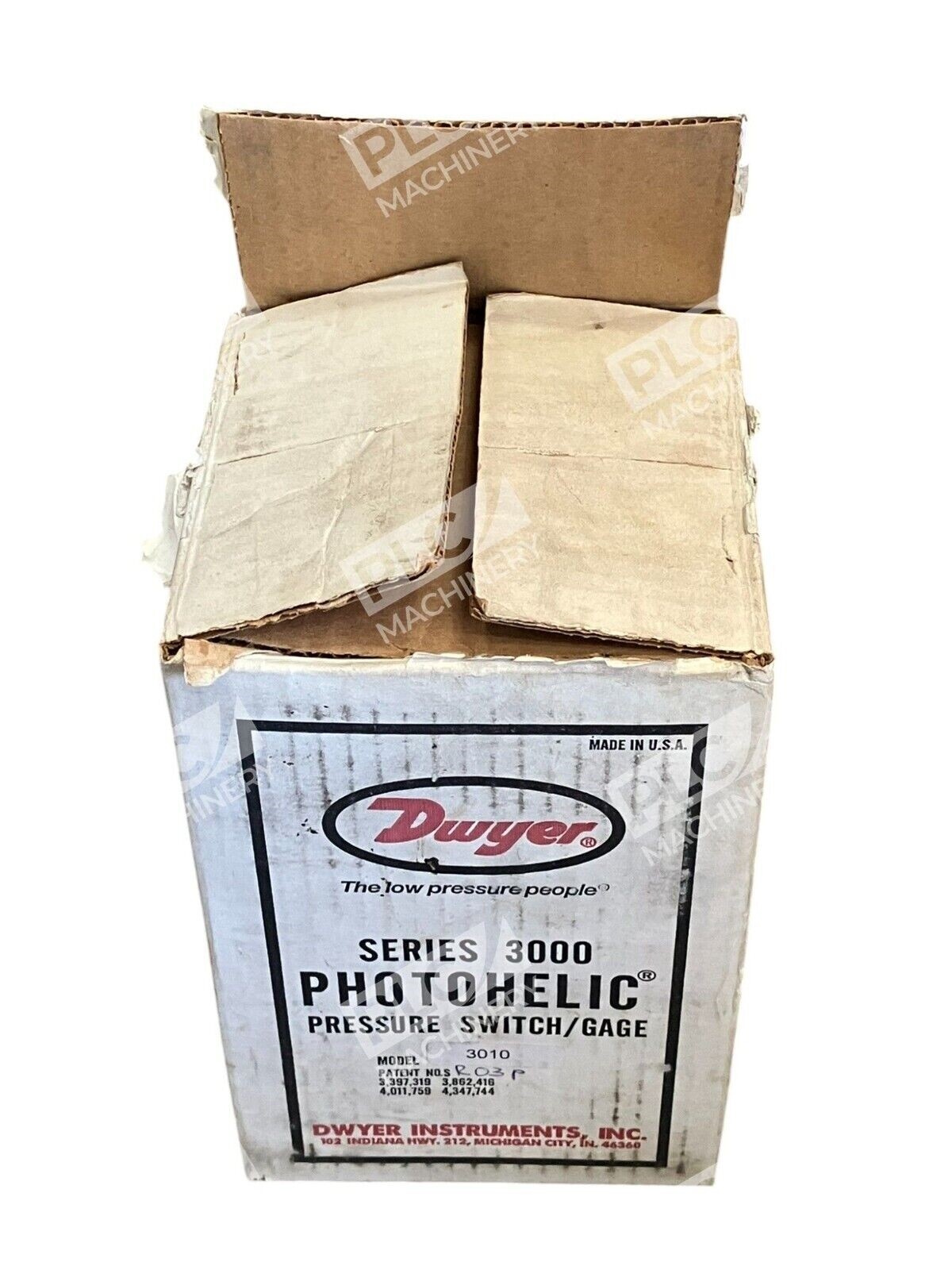

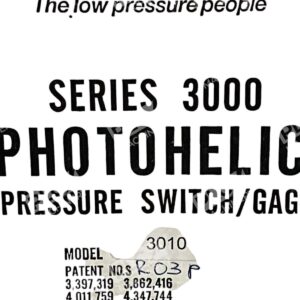

The Dwyer 3010 Photohelic Pressure Switch is a dual-function instrument combining a highly accurate pressure gauge with a reliable switching control system. Using solid state technology, the Series 3000 Photohelic switch/gauge combines the functions of a precise, highly repeatable differential pressure switch with a large easy-to-read analog pressure gauge employing the durable, time-proven Magnehelic gauge design. This model covers the 0–10″ w.c. range and is ideal for HVAC systems, clean rooms, and industrial process monitoring.
Key Features
- Solid state design with large external knobs for easy switch setting adjustment on the gauge face
- Gauge reading is unaffected by switch operation and will indicate accurately even if power is interrupted
- Each setpoint has 2 Form C relays (DPDT) for low/high limit control
- When pressure changes reaching either set point, the infrared light to the limiting phototransistor is cut off by the helix-driven light shutter, electronically amplified to actuate its DPDT slave relay
- Dead band between make and break is 1% of full scale or less—just enough to assure positive, chatter-free operation
- Units can be flush mounted in 4-13/16″ (122 mm) hole or surface mounted with hardware supplied
Technical Specifications
Accuracy: ±2% of full scale at 70°F (21.1°C), with repeatability of ±1% of full scale. Each setpoint has 2 Form C relays (DPDT) with electrical rating of 10 A @ 28 VDC, 10 A @ 120, 240 VAC. Power requirements are 120 VAC, 50/60 Hz; 240 VAC & 24 VAC power optional. Temperature limits are 20 to 120°F with low temperature option available. Process connections are 1/8″ female NPT with weight of 4 lb (1.81 kg).
Typical Applications
- Air conditioning systems, clean rooms, and fume exhaust systems
- Pressure monitoring for baghouse filtration
- HVAC ductwork differential pressure control
- Industrial compressed air system monitoring
- Fan and damper control in ventilation systems
Compatibility & Replacements
Compatible With
- 120 VAC / 240 VAC power supplies (standard)
- 24 VAC power supplies (optional)
- 28 VDC control circuits
- Standard electrical screw terminal connections
- 1/8″ NPT pneumatic line interfaces
- Air and compatible non-combustible gases
Replaces / Drop-In Replacement For
- Dwyer A3010 (0–10″ w.c. variant)
- Older Dwyer Series 3000 mechanical switch/gauge units in similar range
Works With
- Standard building automation and HVAC control systems
- PLC and discrete relay circuits rated 10 A @ 120/240 VAC
- Pneumatic control loops for damper and valve actuation
- Facility energy management and monitoring systems
