Overview

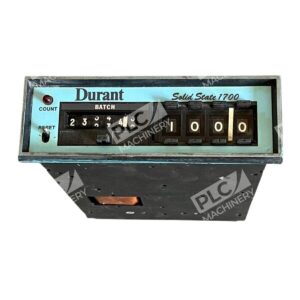

The Durant 1700-401 is a solid-state counter module engineered for reliable batch counting and count control in PLC-based automation systems. As a dedicated counter peripheral, this module provides accurate count accumulation with preset registers and programmable relay outputs for process control and machine monitoring. The module is built with solid-state construction for durability in demanding industrial environments.
Key Features
- Counts up to 999,999 and down to -99,999 with internal overflow handling
- Two programmable preset registers (P1 and P2) for batch and totalizer applications
- Dual relay outputs with independent pulsed or latched mode operation
- Flexible reset modes: Reset to Zero or Reset to P1
- External reset input and front-panel reset button
- Low-speed dual inputs for count and direction control
- Maximum signal cable length support up to 30 metres
- Solid-state design for reliable operation in industrial settings
Technical Specifications
- Counting Range: 0 to 999,999 (up); -99,999 to 0 (down)
- Preset Registers: Two independent (P1, P2)
- Relay Outputs: 2 (P1 relay and P2 relay)
- Relay Configuration: Programmable normally-open or normally-closed
- Input Type: Low-speed dual inputs
- Maximum Signal Cable Length: 30 metres
- Display: 6-digit solid-state display
- Reset Functions: Manual (front panel) and external input
- Operating Principle: Solid-state electronic counting
Typical Applications
- Production batch counting and material tracking
- Machine cycle counting and monitoring
- Preset run lengths and automatic stop control
- Process control triggering via relay outputs
- Industrial automation peripheral modules
- Packaging and filling line controls
- Assembly and stamping machine controls
Compatibility & Replacements
Compatible With
- Durant programmable logic controllers (PLCs)
- Industrial automation systems with PLC peripheral slots
- Standard industrial 24 VDC control systems
- Sink/Source wired discrete input devices
Replaces / Drop-In Replacement For

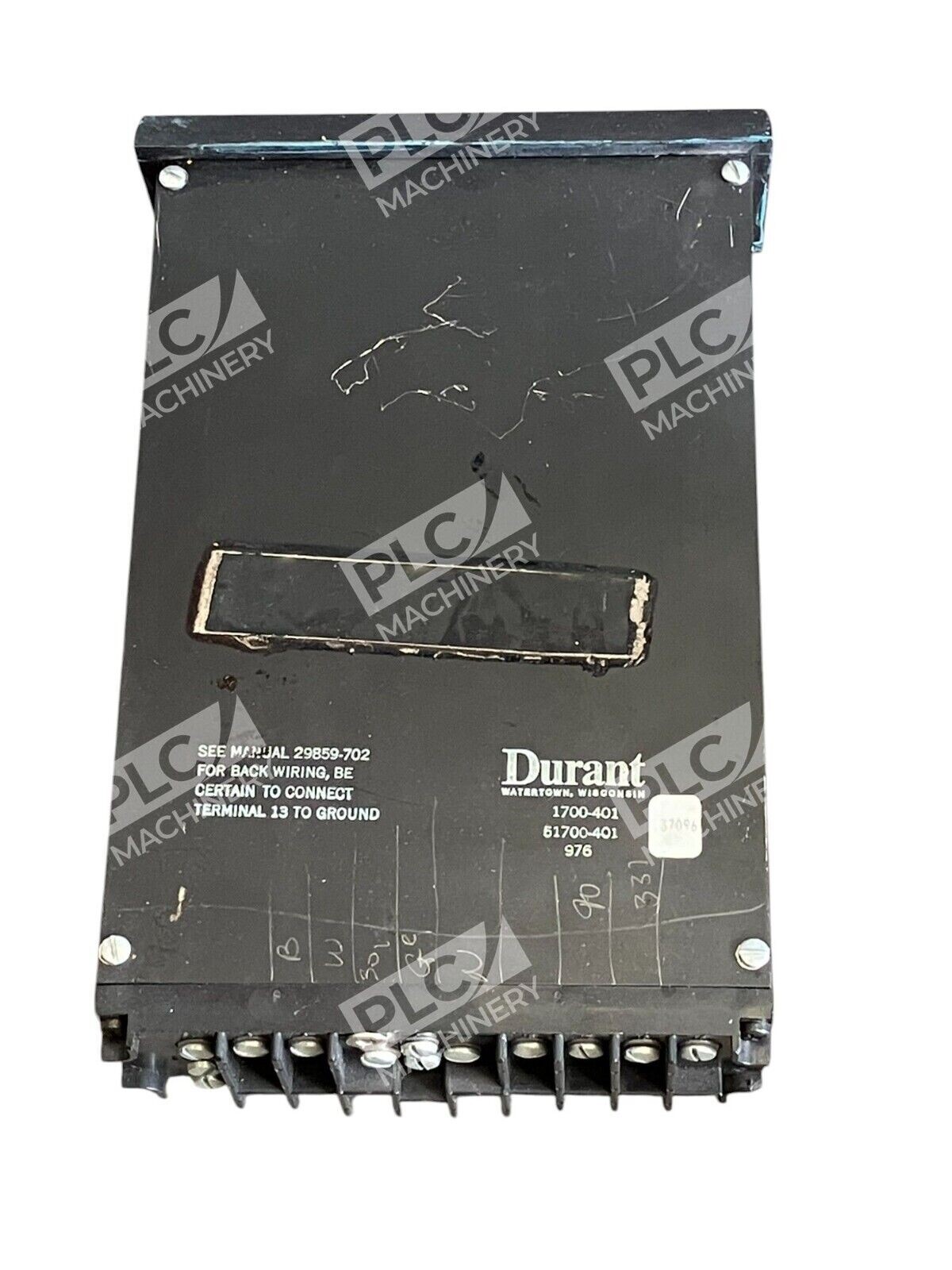

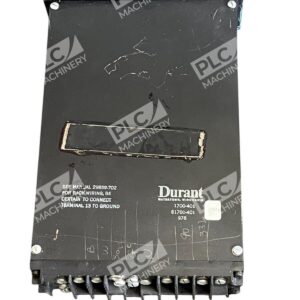

- Durant 51700-401 (alternate part designation)
- Verify exact model compatibility with your system integrator before ordering
Works With
- Durant PLC processor modules
- Standard industrial control wiring practices
- 24 VDC discrete I/O systems
- Programmable relay logic controllers
