Overview

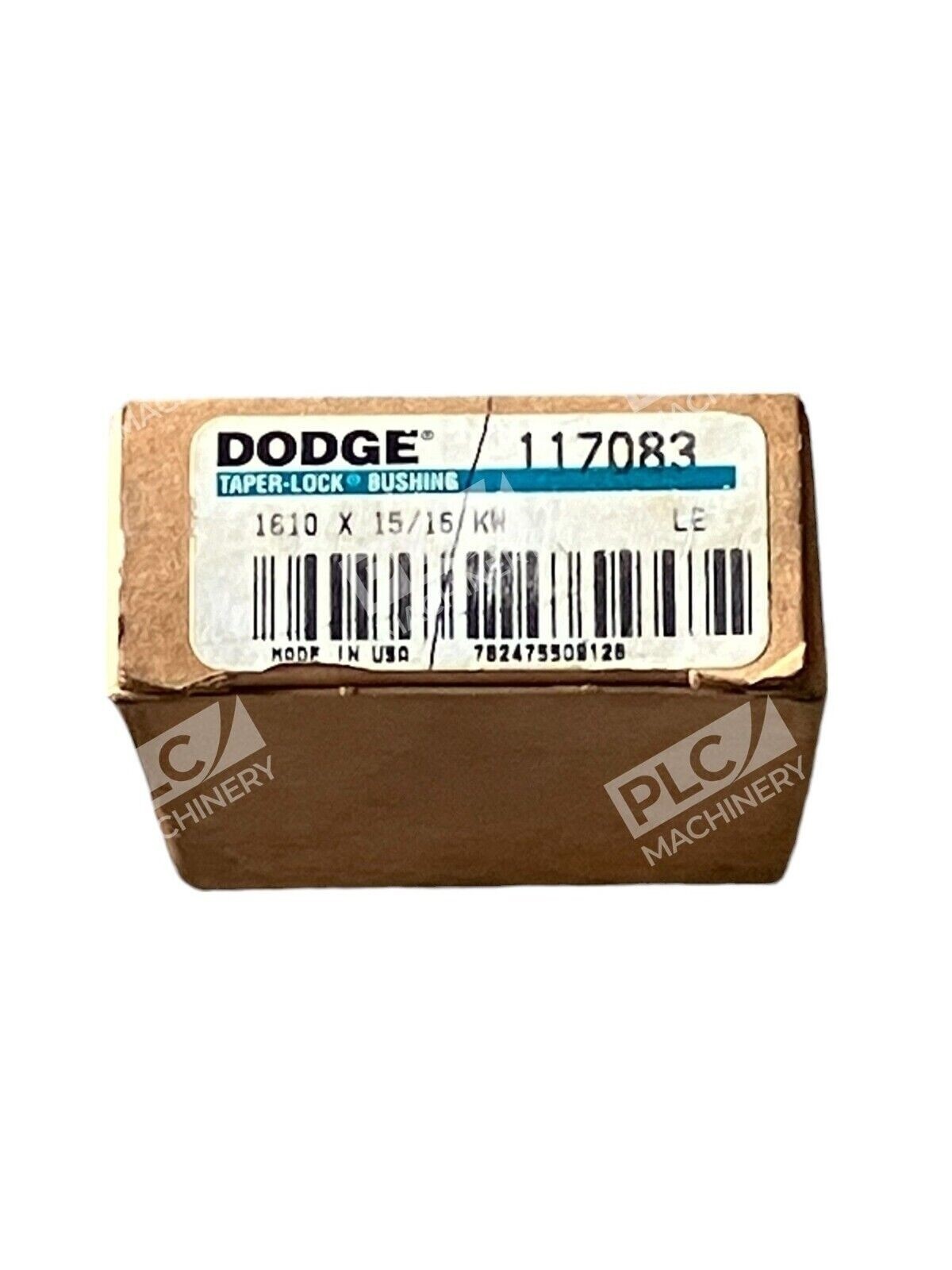

Dodge 117083 is a stock bore Type 1610 taper-lock bushing designed for flangeless, compact shaft-coupling applications. Taper-lock bushings are flangeless for clean, compact application and engineered with an 8 deg taper and flush-mounted design with no protruding parts providing secure locking and elimination of wobble. Manufactured from sintered steel, this bushing delivers reliable torque transmission in machinery with demanding shaft-locking requirements.
Key Features
- Flangeless design for clean, compact application with 8 deg taper for secure locking and elimination of wobble
- Flush mounting and no protruding parts
- Sintered steel construction with 4300 in-lb torque rating
- Stock bore design with 2 bolt holes and 3/8 x 5/8 in screw
- Easy on/off operation with standard installation torque for rapid maintenance and replacement
Technical Specifications
The Dodge 117083 features a 15/16 in bore diameter, 2-1/4 in barrel diameter, 3-1/4 in hub diameter, 1 in overall length, 1/4 x 1/8 in keyway, and 2.13 in bolt circle.
Typical Applications
The Dodge 117083 is ideal for conveyor systems, pump drives, motor-coupled equipment, and industrial machinery where compact shaft locking is required. Type 1610 bushings fit applications demanding precision alignment without flange interference, commonly found in paper mills, textile equipment, food processing, and general manufacturing environments.
Compatibility & Replacements
Compatible With
- Standard shaft coupling systems (motor to pump, motor to fan, motor to compressor)
- Hollow-bore shaft applications up to 15/16 inch
- Industrial machinery requiring torque ratings up to 4300 in-lb
- Stock-bore arbor assemblies and coupling hubs
Replaces / Drop-In Replacement For
- Alternate part number 1610 X 15/16-KW
- Original equipment manufacturer (OEM) Type 1610 taper-lock bushings in equivalent bore sizes
Works With
- Dodge bearing assemblies and coupled shafts
- SKF, Timken, Martin, Browning, and Moyno sheave/pulley systems
- Eaton and Parker power transmission components
- Standard ANSI/AGMA shaft couplings and drive systems
