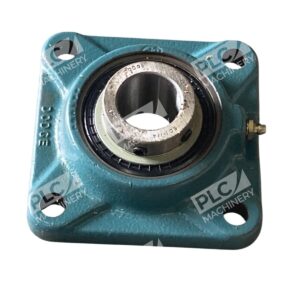

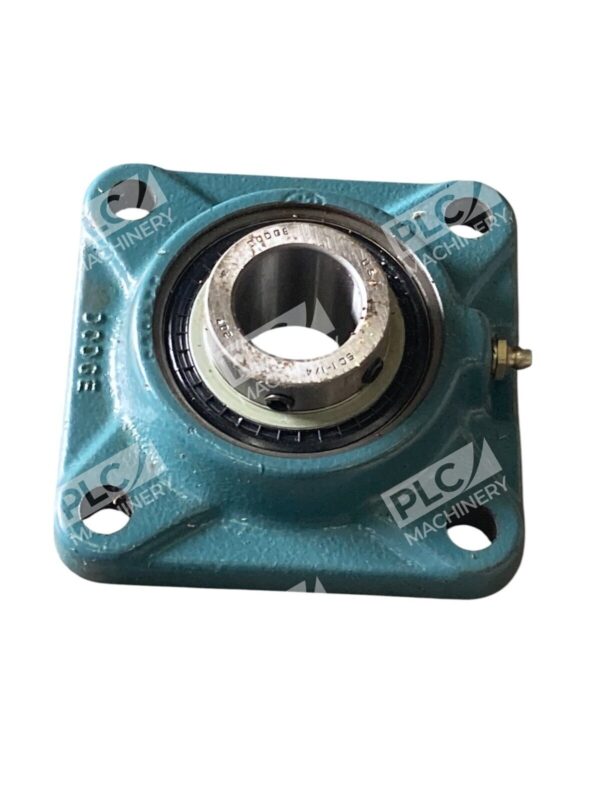

Dodge SC 1-1/4 F4B-SC-104 Multipak 4 Flange Ball Bearing 124206

Dodge SC 1-1/4 F4B-SC-104 Multipak 4 Flange Ball Bearing 124206

The Dodge SC 1-1/4 F4B-SC-104 Multipak 4 Flange Ball Bearing (Part Number: 124206) is engineered for reliable performance in various industrial applications. This bearing features a 1-1/4 inch bore diameter and a robust 4-bolt flange housing, ensuring secure mounting and stability during operation.

Key Features

• Bore Diameter: 1-1/4 inches, accommodating standard shaft sizes.
• Housing Design: 4-bolt flange configuration for secure and stable mounting.
• Locking Mechanism: Set screw locking system to prevent shaft rotation and ensure a firm hold.
• Material Construction: Durable cast iron housing with a powder-coated finish for enhanced corrosion resistance.
• Sealing: Equipped with DualGuard seals and flingers to protect against contaminants and retain lubrication.
• Lubrication: Grease lubrication with relubrication capability to maintain optimal performance.
• Load Capacity: Static load capacity of 3,461 lbf (15,395.295 N) and dynamic load capacity of 5,759 lbf.
• Maximum Speed: Rated for up to 5,500 RPM, suitable for high-speed applications.

Applications

This bearing is ideal for general-purpose applications, including:

• Conveyor systems
• Agricultural equipment
• Industrial machinery
• Automotive components

Benefits

• Enhanced Performance: Precision-hardened and honed inner and outer rings reduce friction, leading to improved efficiency and reduced energy consumption.
• Reliability: Built to handle demanding conditions, ensuring consistent performance and longevity.
• Ease of Installation: The 4-bolt flange and set screw locking mechanism simplify the installation process, saving time and labor costs.

For technical support, contact the supplier at +1-864-284-5700.
