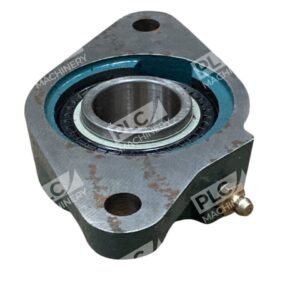

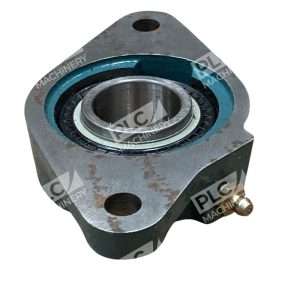

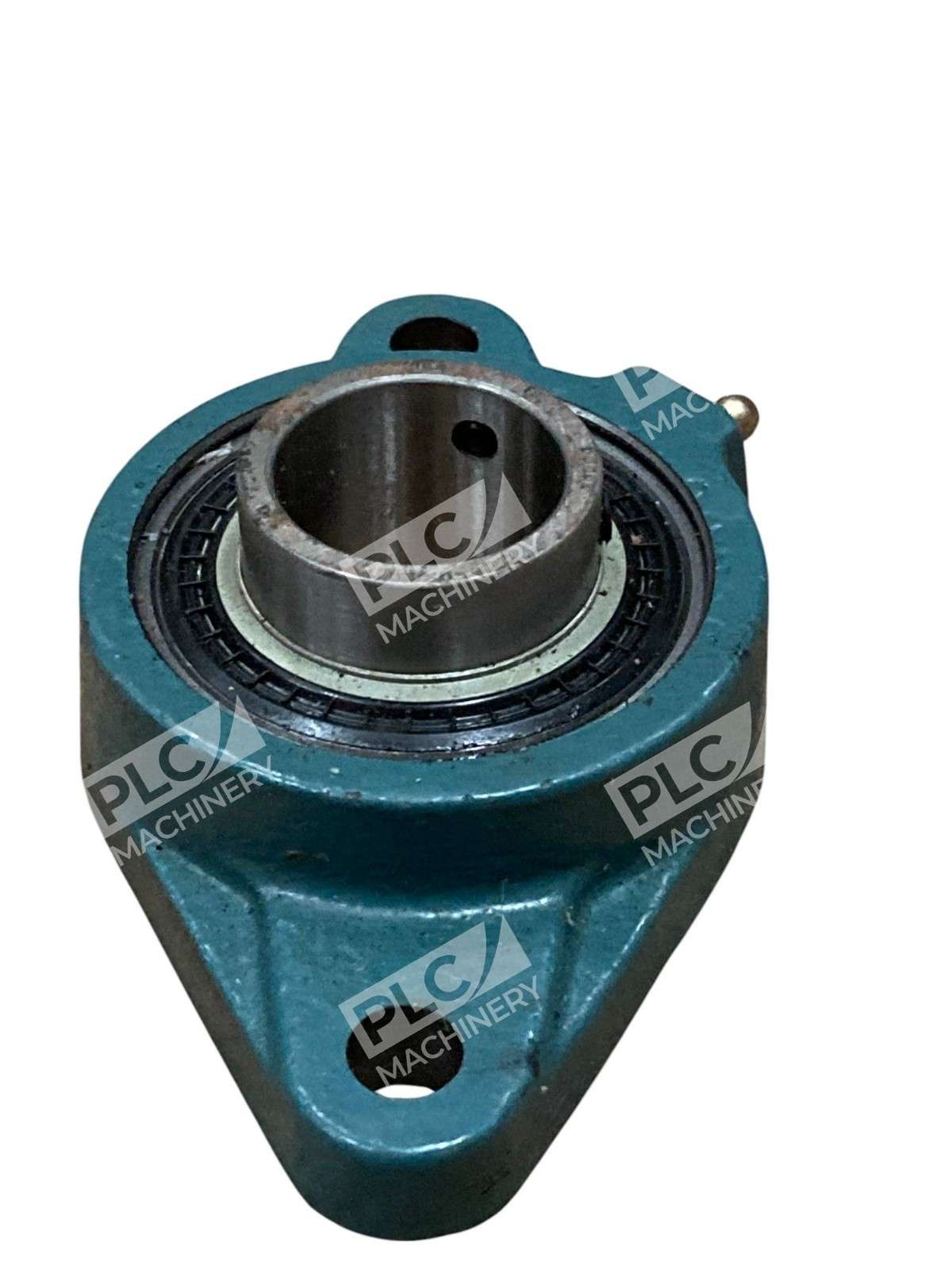

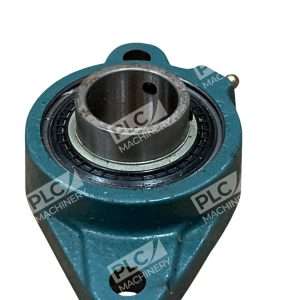

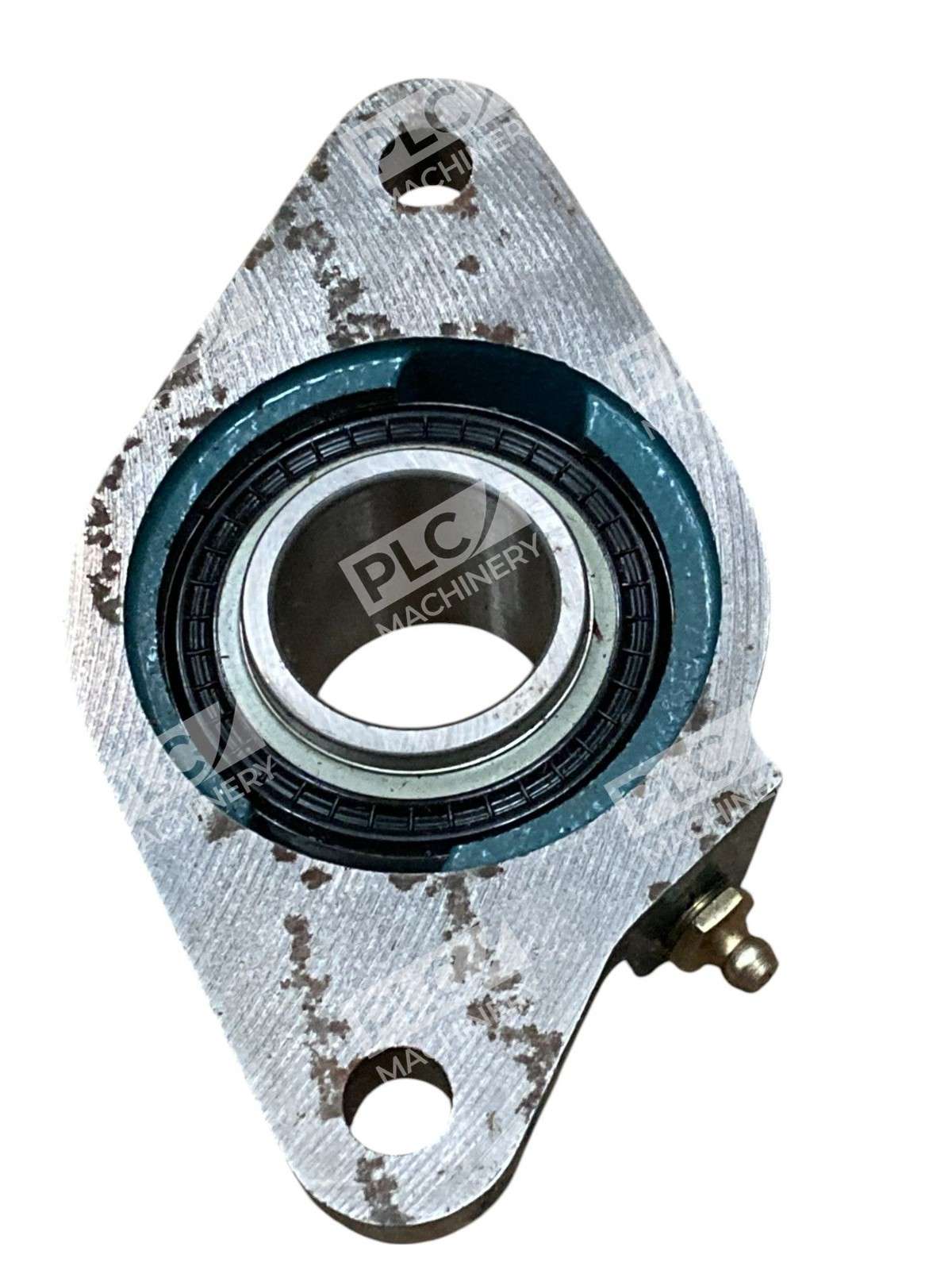

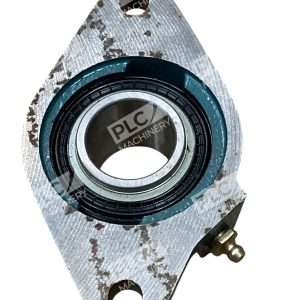

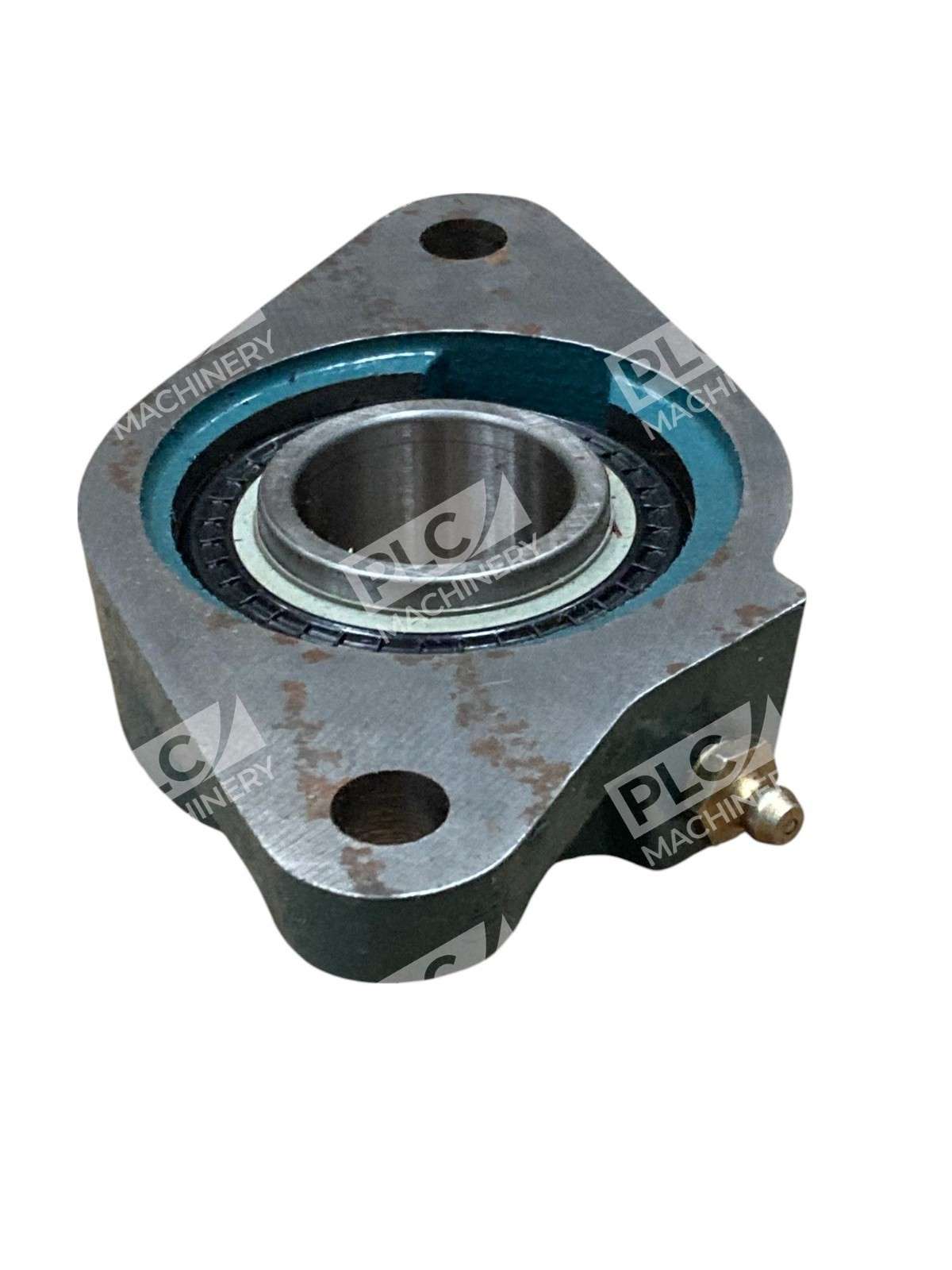

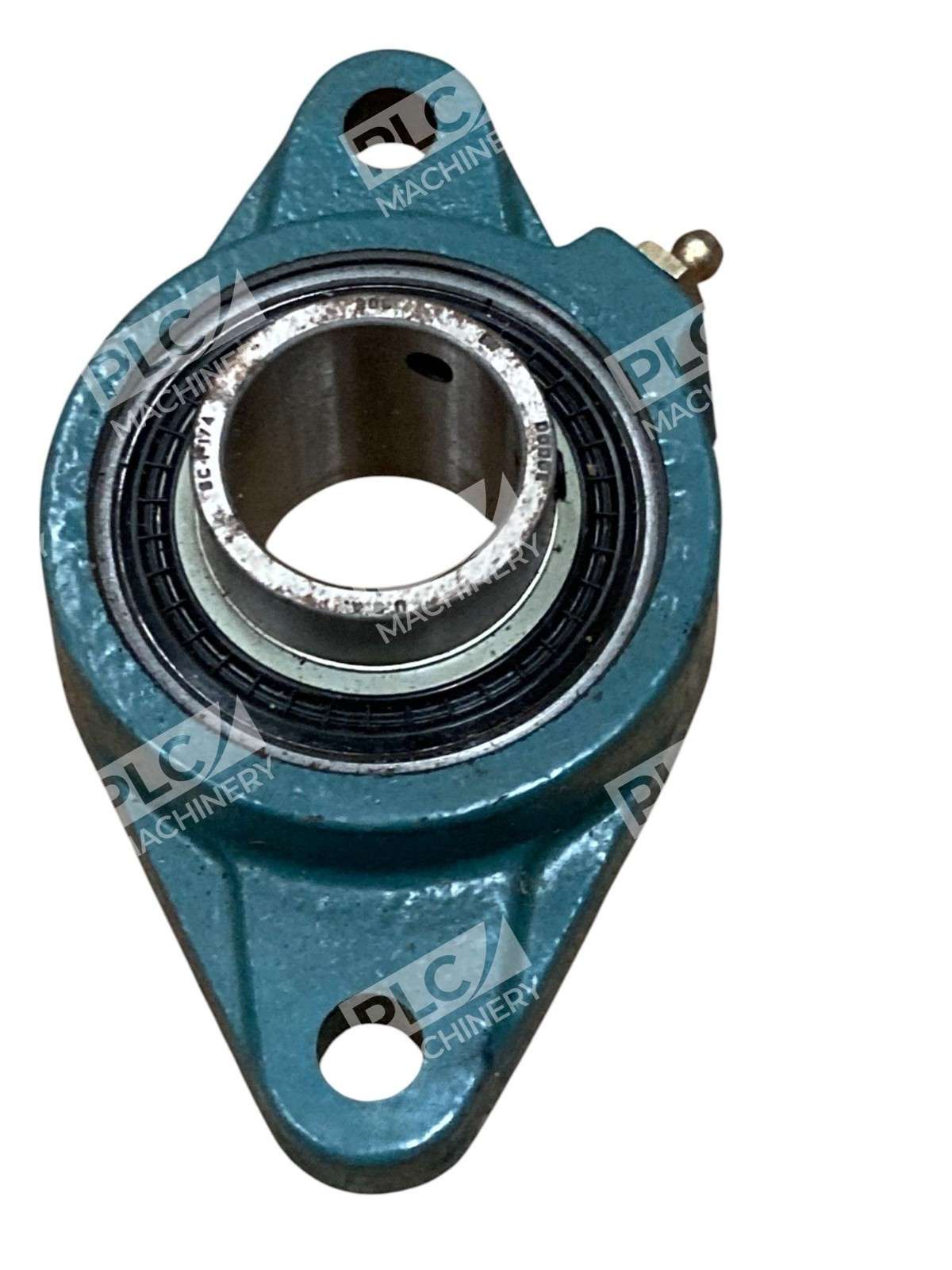

DODGE SC 1-1/4″ Bore Insert Bearing
The DODGE SC 1-1/4″ Bore Insert Bearing is engineered for reliable performance across various industrial applications. This bearing insert features a 1-1/4 inch inner diameter, ensuring compatibility with standard shaft sizes.
Key Features
- Precision-Hardened Rings: Both inner and outer rings are precision-hardened and honed, providing enhanced wear resistance and quieter operation.

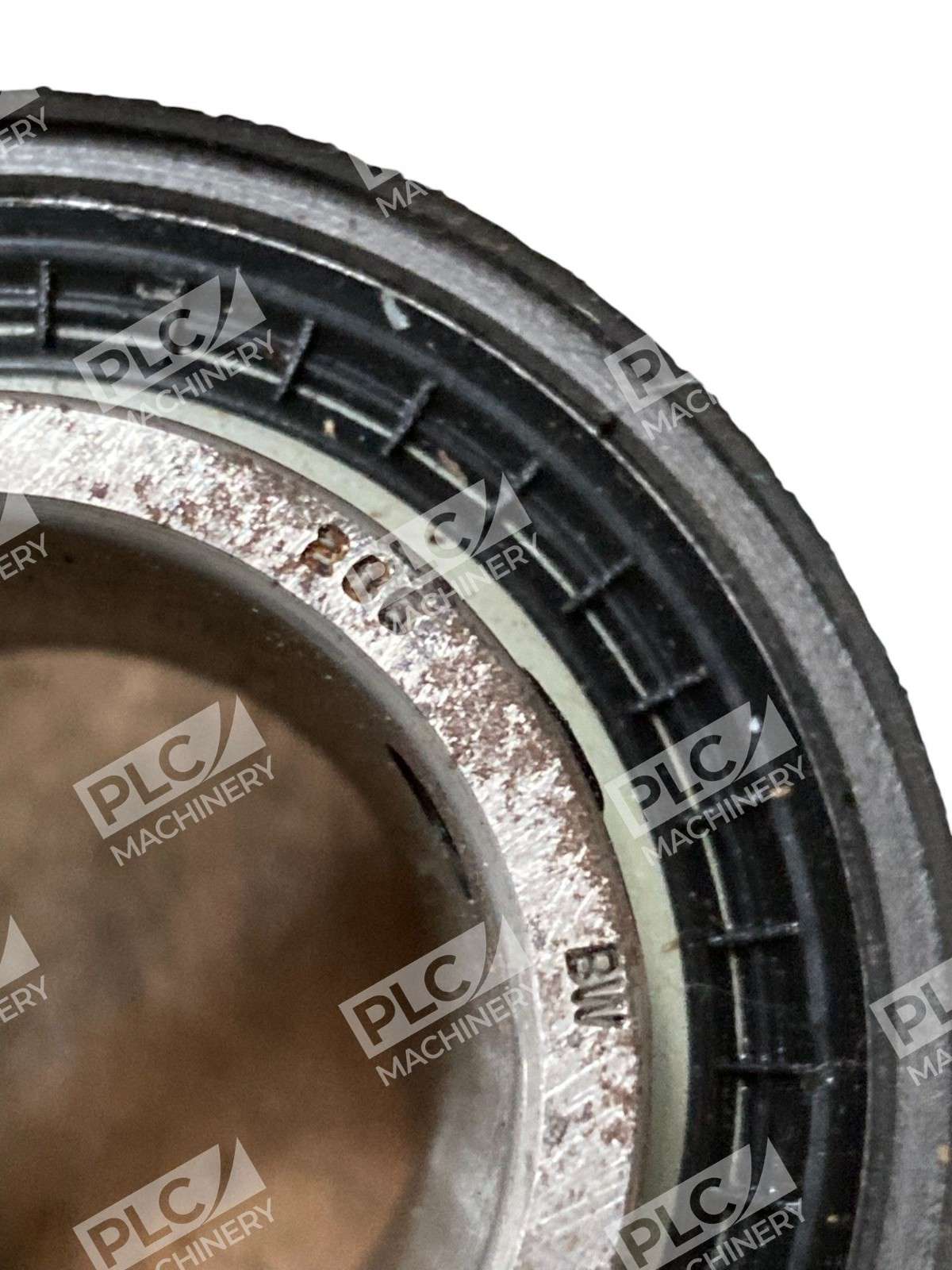

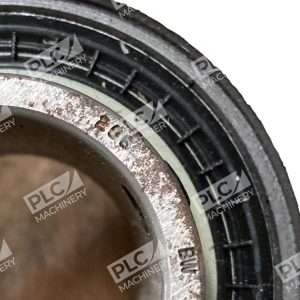

- DualGuard Sealing System: Incorporates a mechanically retained, land-riding, single-lip contact seal coupled with a patented rubberized flinger, offering superior protection against contaminants.
- Maxlife Cage Design: The patented Maxlife cage, constructed from high-temperature polymer, features a compartmentalized design that maintains grease pockets around the balls, reducing grease washout and promoting cooler operating temperatures.
- Set Screw Locking Mechanism: Utilizes a 65-degree set screw spacing, balancing locking force and minimizing inner ring stress for secure shaft attachment.
- Relubricatable Design: Equipped with a regreasable feature, allowing for extended bearing life through regular maintenance.
Specifications
- Bore Diameter: 1-1/4 inches
- Outer Diameter: 62 mm
- Outer Ring Width: 18 mm
- Enclosure: Double sealed (contact)
- Locking Device: Set screw locking collar
- Material: Steel
- Lubrication: Relubricatable
- Seal Type: Contact seals
- Duty: Standard-duty
Applications
This bearing insert is suitable for a wide range of industries, including:
- Air handling
- Unit handling
- Food and beverage
- Forest products
- Paper
- Automotive
- Chemical
- Packaging and processing
Its robust design and advanced sealing system make it an ideal choice for environments where durability and contamination protection are critical.
