Overview

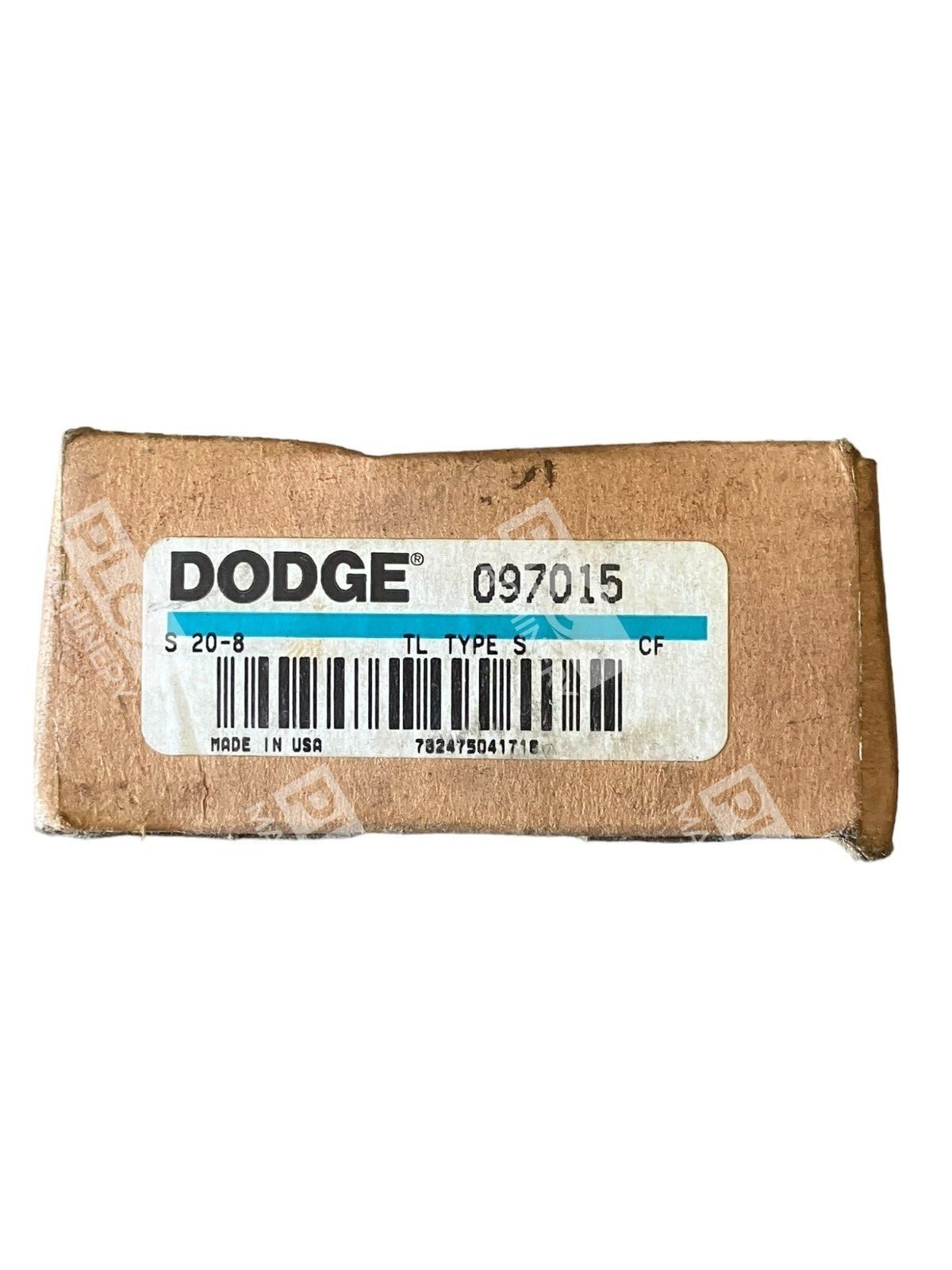

The Dodge 097015 is a Type S taper-lock weld-on hub engineered for direct mounting onto shafting in power transmission applications. This Dodge 097015 model provides a rigid, welded connection ideal for fan rotors, pulleys, plate sprockets, and similar mechanical assemblies requiring secure shaft coupling without keyways or set screws.
Key Features
- Type S taper-lock bushing design optimized for lighter-duty applications
- Drilled, tapped, and taper-bored for fast assembly with standard 2012-size taper-lock bushings
- Two (2) bolt holes for bushing installation
- Solid welded construction for permanent, vibration-resistant mounting
- 1015-1025 low-carbon steel material for durability and weldability
- New in box condition, ready for installation
Technical Specifications
- Bore Diameter: 2-3/4 in
- Outside Diameter (OD): 3.56 in
- Pilot Diameter: 3.438 in
- Bolt Circle Diameter: 2.63 in
- Overall Length (OAL): 1-1/4 in
- Number of Bolt Holes: 2
- Material: 1015-1025 steel
- Bushing Type: Type S taper-lock (2012 size)
- Hub Type: Weld-on
Typical Applications
- Fan rotors and cooling fan assemblies
- Pulley mounts for belt-drive systems
- Plate sprocket mounting
- Light-duty mechanical power transmission
- Industrial conveyor and drive systems
Compatibility & Replacements
Compatible With
- 2012-size taper-lock bushings (standard)
- Flexible coupling systems
- Standard sprocket and pulley assemblies
- MIG and TIG welding processes
Replaces / Drop-In Replacement For
- Other Type S weld-on hubs with identical bore and mounting specifications
- Verify bore, OD, and bolt circle dimensions before ordering to ensure fit
Works With
- Standard 2012 taper-lock bushings
- Industry-standard shaft coupling and drive configurations
- Welded-frame mechanical assemblies
