Overview

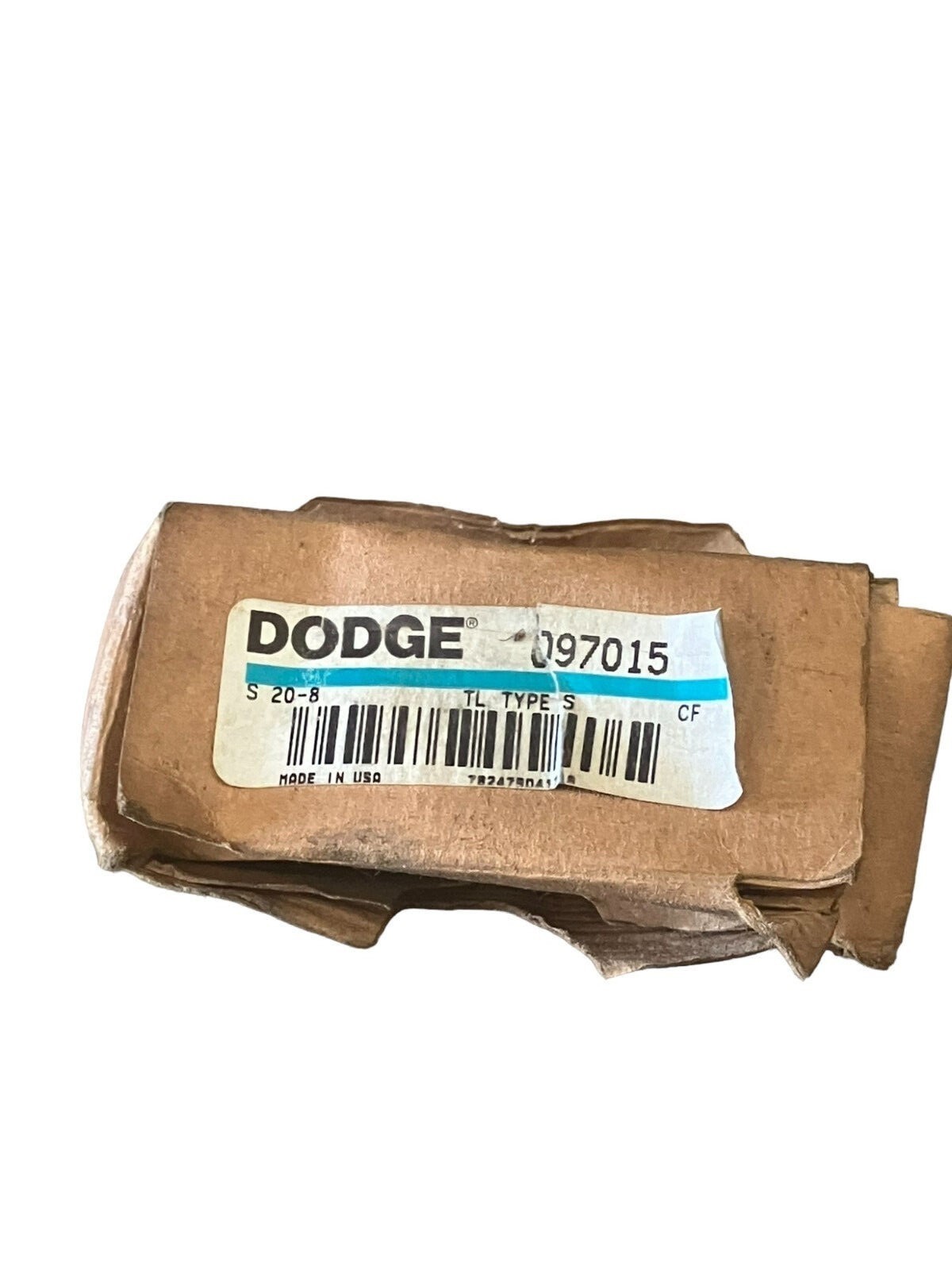

The Dodge 097015 is a Taper-Lock Type S weld-on hub used in industrial power transmission systems. This steel hub is engineered for mounting onto shafting in fan rotors, pulleys, plate sprockets, and similar rotating components that require firm mechanical coupling. The hub accommodates the Dodge 2012 taper-lock bushing system for quick, reliable assembly and disassembly without specialized tools.
Key Features
- Type S Taper-Lock bushing compatibility for standard light-duty applications
- Constructed from 1015-1025 steel for strength and durability
- Pre-drilled and tapped mounting holes (2 bolt positions)
- Taper-bored to precisely receive taper-lock bushings
- Weld-on design for direct integration into rotors and sprockets
Technical Specifications
| Bore Diameter | 2-3/4 inch |
| Outside Diameter | 3.56 inch |
| Bolt Circle Diameter | 2.63 inch |
| Overall Length (OAL) | 1-1/4 inch |
| Material | Steel (1015-1025) |
| Hub Type | Weld-On, Type S Taper-Lock |
| Compatible Bushing | 2012 Taper-Lock Bushing |
| Bolt Holes | 2 |
| Pilot Diameter | 3.438 inch |
| Part Number | 097015 |
| Model Designation | S20-8 TL |
Typical Applications
- Fan rotor assemblies in HVAC and industrial ventilation systems
- Pulley mounting in belt-drive power transmission
- Plate sprocket integration for chain drive systems
- Smaller-duty conveyor and material handling equipment
- General machinery requiring shaft-mounted rotating components
Compatibility & Replacements
Compatible With
- Dodge 2012 Taper-Lock bushings and related bushing kits
- Standard industrial shafting (2-3/4 inch bore applications)
- Type S Taper-Lock mounting systems from major power transmission suppliers
- Welding-compatible base materials (fan rotors, sprockets, pulleys)
Replaces / Drop-In Replacement For
- S20-8 Type S taper-lock hubs from competing manufacturers (equivalent designs)
- Comparable Type S weld-on hubs with 2-3/4 inch bore and 2012 bushing compatibility
Works With
- Dodge and Baldor power transmission product ecosystems
- Standard taper-lock bushing assembly tooling and techniques
- Welding equipment for rotor and sprocket integration
- Shaft-mounted bearing and seal systems compatible with Type S hub installation
