Overview

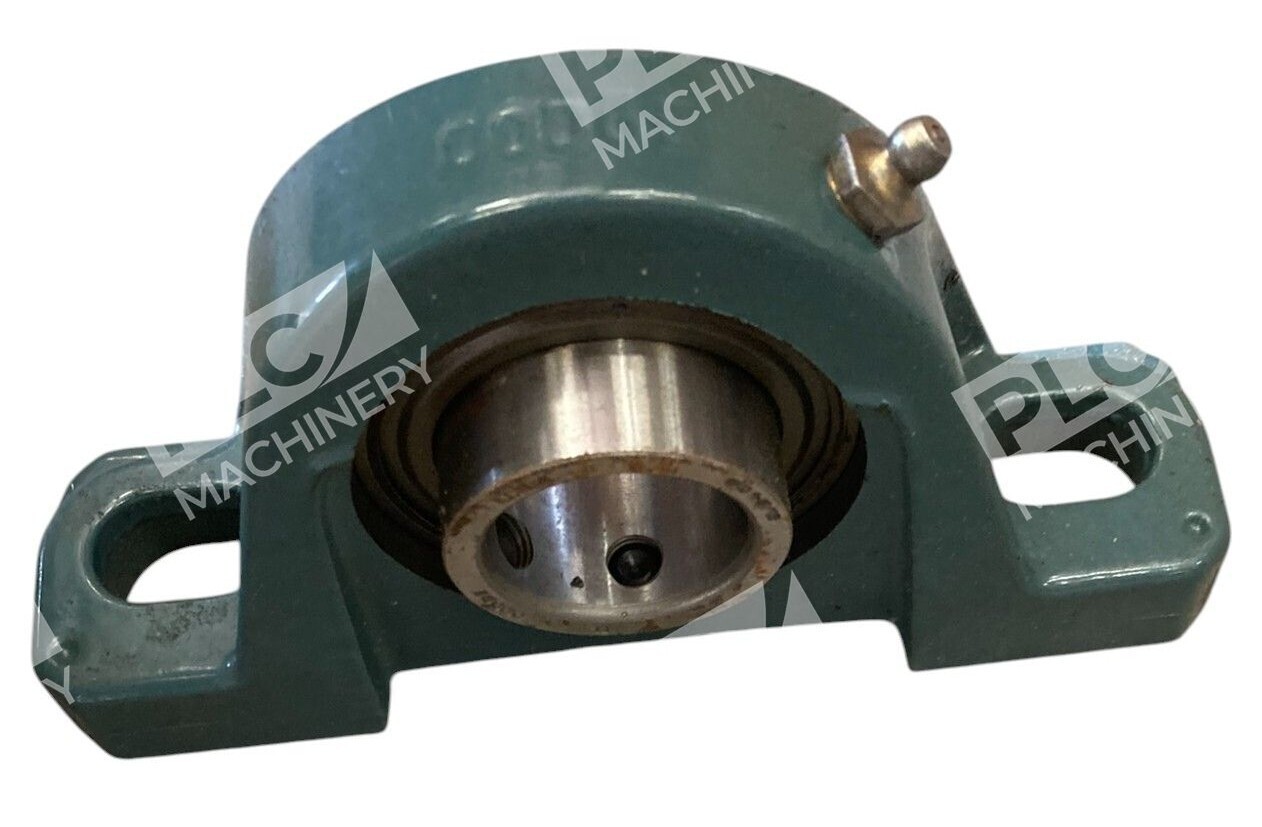

The Dodge 123809 P2B-SC-103 is a two-bolt pillow block ball bearing designed for standard-duty industrial applications. This 206 series non-expansion bearing features a 1-3/16 inch bore diameter, 4-1/4 to 5 inch bolt center-to-center length, and accommodates loads up to 4,368 lb dynamic and 2,538 lb static. The pillow block design provides excellent support and alignment for rotating shafts while minimizing vibration and wear, with set screw locking ensuring a firm grip on the shaft and preventing slippage.
Key Features
- Set Screw Shaft Attachment: Engineered with a 65 degree set screw angle, which ensures maximum grip onto the shaft. The most common means of securing a mounted ball bearing to a shaft, and also the easiest to install.
- Single Lip Contact Seal: Single lip seal design suitable for normal duty applications and non-expansion bearing construction for fixed applications.
- Cast Iron Housing: Durable material construction built for industrial environments and continuous operation.
- Powder Coated Finish: Steel powder coated construction for enhanced durability and corrosion resistance.
- Standard 206 Series Ball Bearing: The Dodge SC line is engineered with unique features that make it the most reliable set screw mounted ball bearing on the market, providing the user unmatched quality and true total value.
Technical Specifications
- Bore Diameter: 1-3/16 inches (1.1875 inches)
- Bearing Series: 206
- Housing Type: Two-bolt pillow block
- Locking Device: Set screw
- Bolt Center-to-Center Length: 4-1/4 to 5 inches
- Base to Bore Centerline: 1-5/8 inches (1.63 inches)
- Overall Length (OAL): 6-1/4 inches
- Overall Height (OAH): 3-1/4 inches
- Bore Length: 1.52 inches
- Dynamic Load Capacity: 4,368 lb
- Static Load Capacity: 2,538 lb
- Maximum RPM: 4,500 rpm
- Seal Type: Single-lip contact
- Expansion Type: Non-expansion (fixed bearing)
- Housing Material: Cast iron
- Insert Material: Steel
- Lubrication: Grease (Unirex N2)
- Duty Type: Normal/Standard duty
Typical Applications
The Dodge SC bearings are used in industries such as air handling; food and beverage; chemical, oil, and gas; pharmaceutical; paper and forest; and unit and baggage handling, with common applications including conveyors, mechanical drives, and extreme duty environments. Industrial equipment such as manufacturing and processing machinery requiring reliable shaft support, and automotive systems including drive shafts and conveyor systems.
Compatibility & Replacements
Compatible With
- Standard shaft sizes 1-3/16″ bore diameter
- Two-bolt mounting bases with 4-1/4″ to 5″ bolt center-to-center spacing
- Industrial automation and motion control equipment
- Manufacturing and processing machinery
- Conveyor and mechanical drive systems
Replaces / Drop-In Replacement For
- This is the standard reference model for Dodge 206 series two-bolt pillow blocks with 1-3/16″ bore set screw attachment.
- Other variants in this series (P2B-SC-103-NL, P2B-SC-103-FF) with different seal types or flange configurations.
Works With
- Dodge bearing lubricants (Unirex N2 grease recommended)
- Standard two-bolt mounting brackets for industrial machinery
- Shaft locking set screws (0.5″ diameter standard)
- Compatible with mechanical and automated equipment requiring fixed bearing support
