Overview

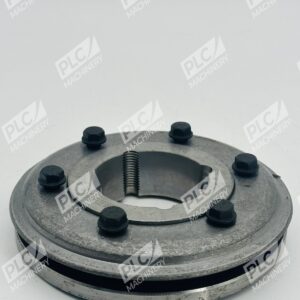

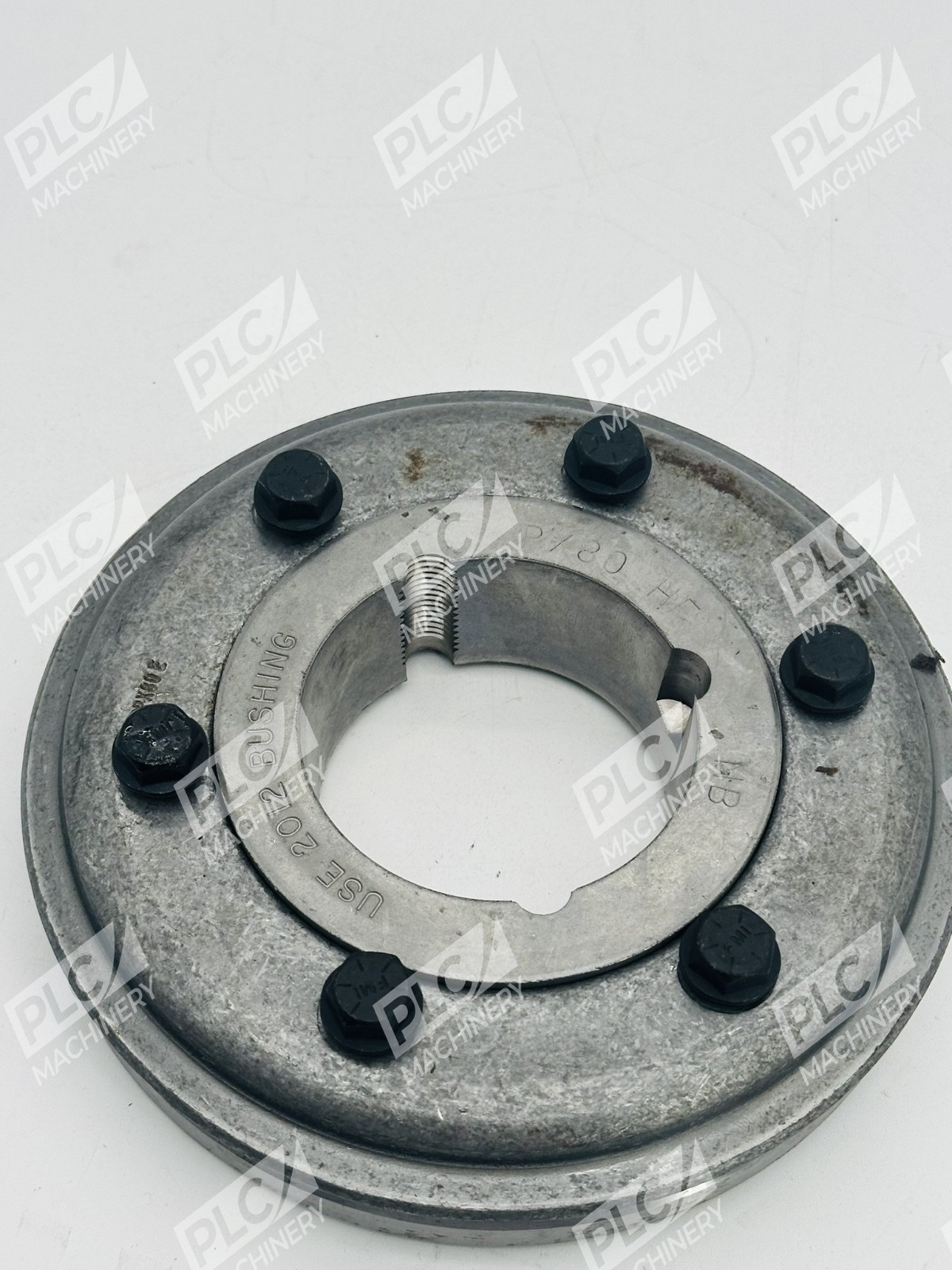

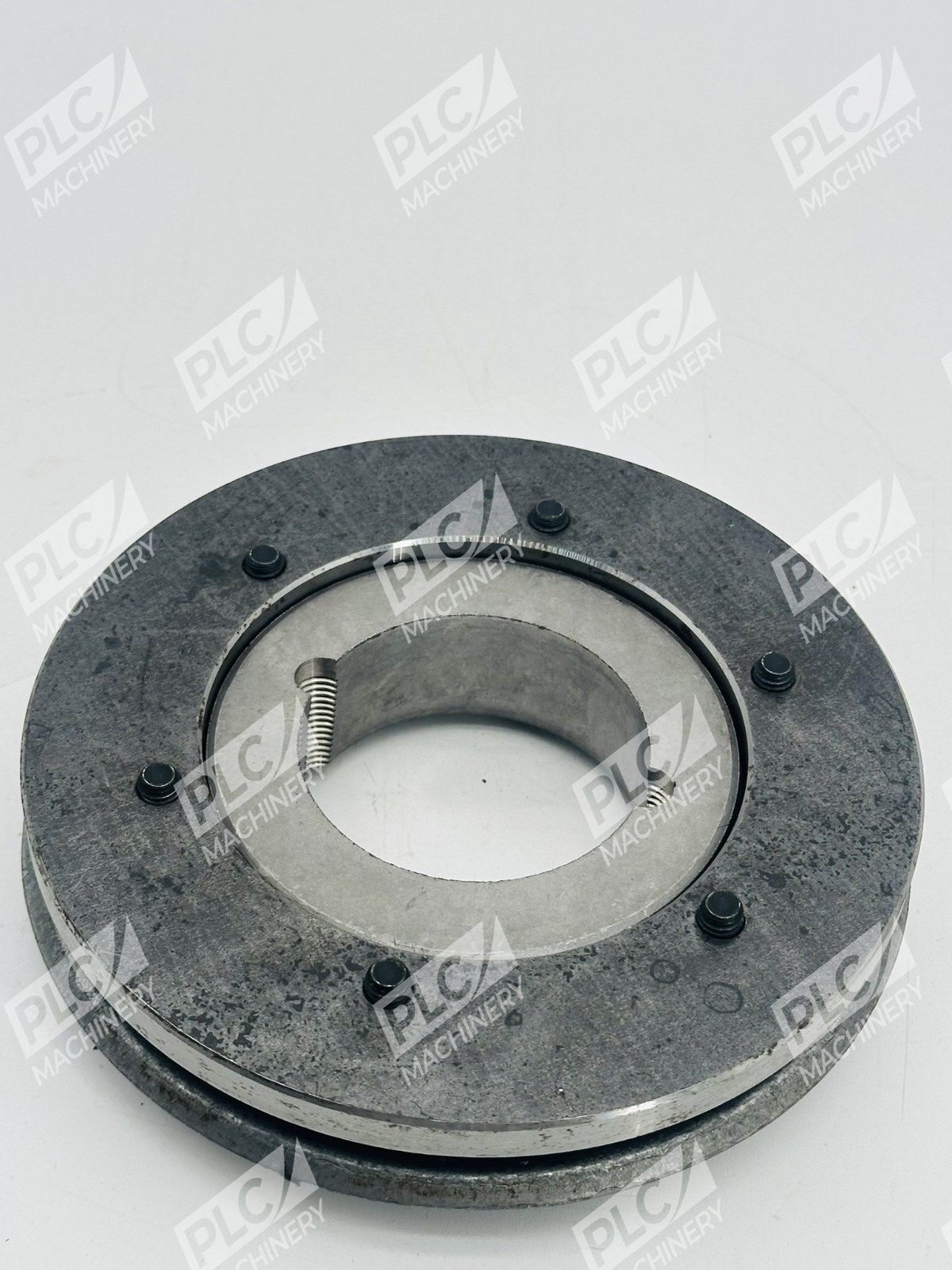

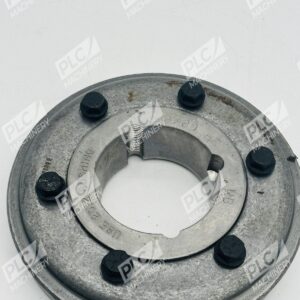

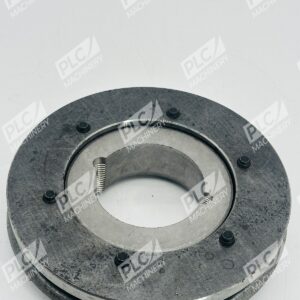

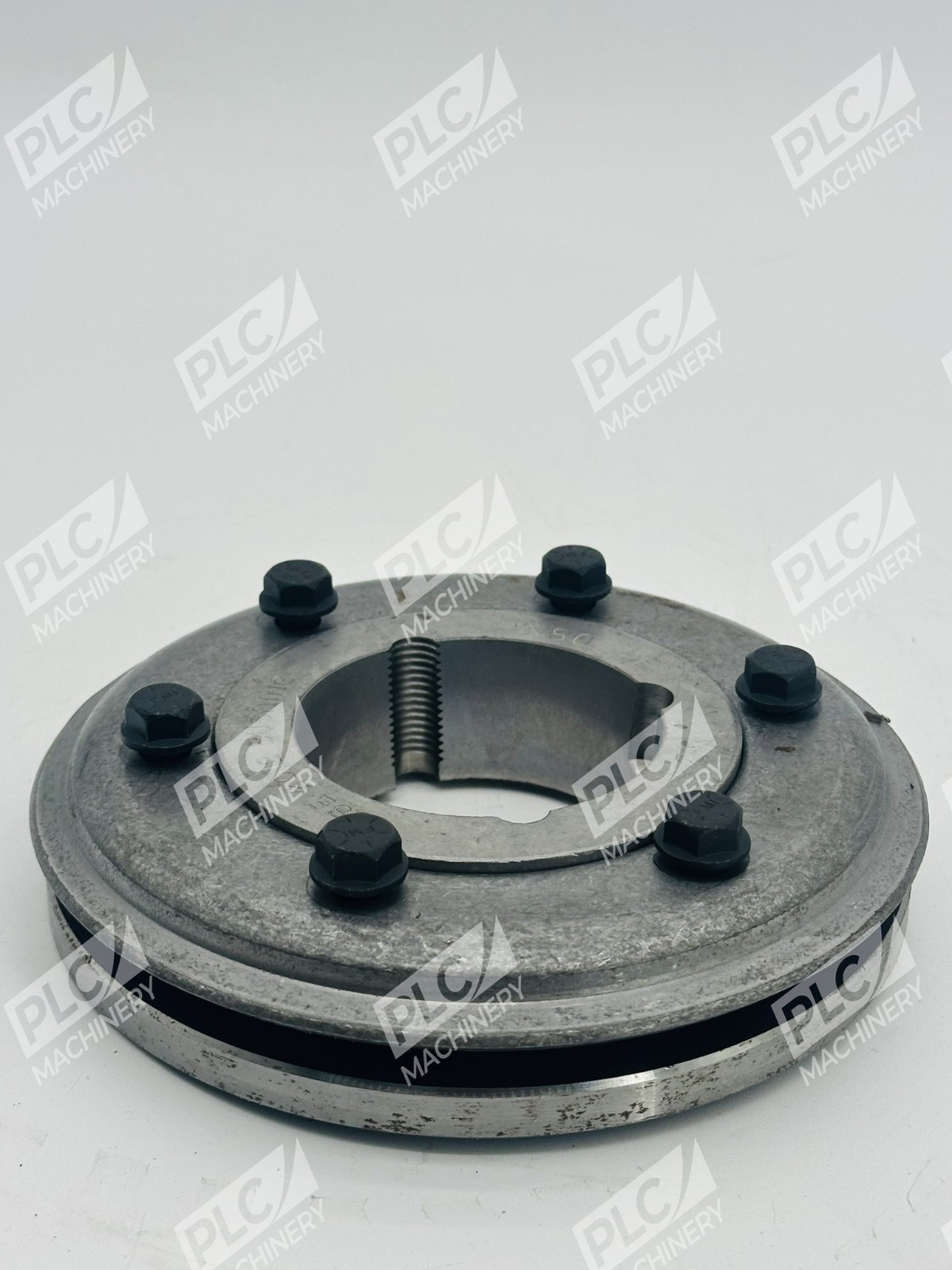

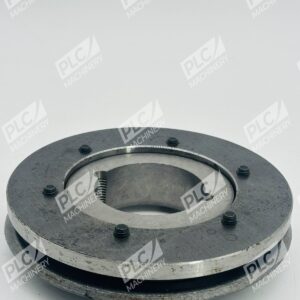

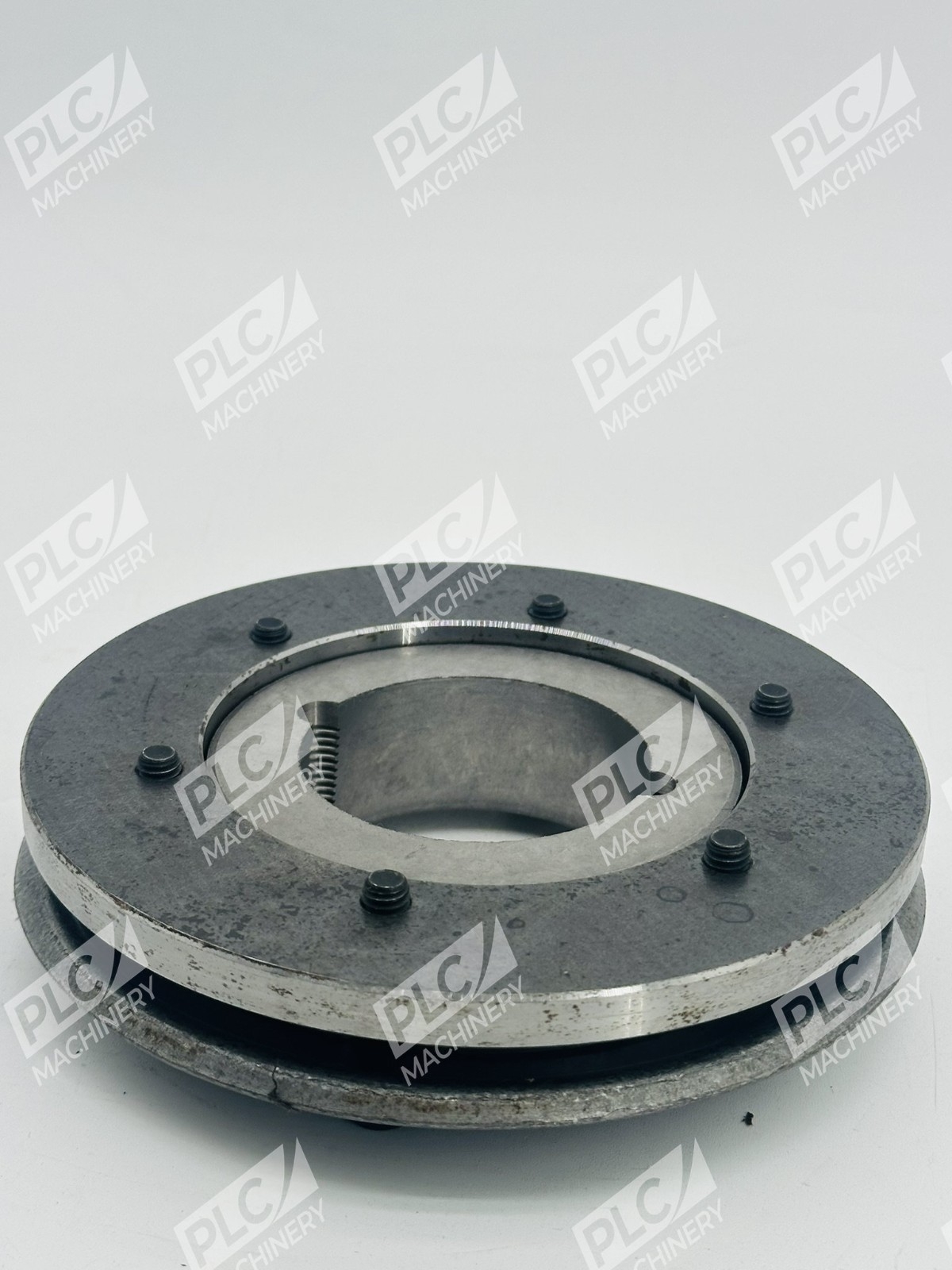

The Dodge PX80 Taper-Lock Flange Assembly 010604 is a heavy-duty elastomeric flexible coupling engineered for industrial power transmission applications. Part of the Dodge Para-Flex coupling family, this Type H flange assembly provides reliable torque transmission while accommodating minor shaft misalignment. The taper-lock design ensures secure installation on standard motor shafts without requiring a separate bushing during initial setup, making it a practical choice for machinery upgrades and replacement installations.
Key Features
- Elastomeric tire coupling style with cast iron construction for durability
- Taper-lock flange assembly compatible with 2012 bushing size
- Accommodates angular misalignment (4°) and axial misalignment (5/16″)
- Maximum rated speed of 3,100 RPM
- Type H reversible flange mount for flexible installation configurations
- Power rating: 5.72 HP @ 100 RPM
Technical Specifications
- Bore diameter without bushing: 2-1/2″
- Bore range: 1/2″ – 2-1/8″ (with appropriate taper-lock bushing)
- Outside diameter: 6-5/8″ (alternative source: 8.38″)
- Length through bore: 1-1/4″
- Material: Sintered steel / cast iron construction

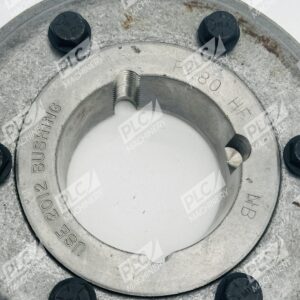

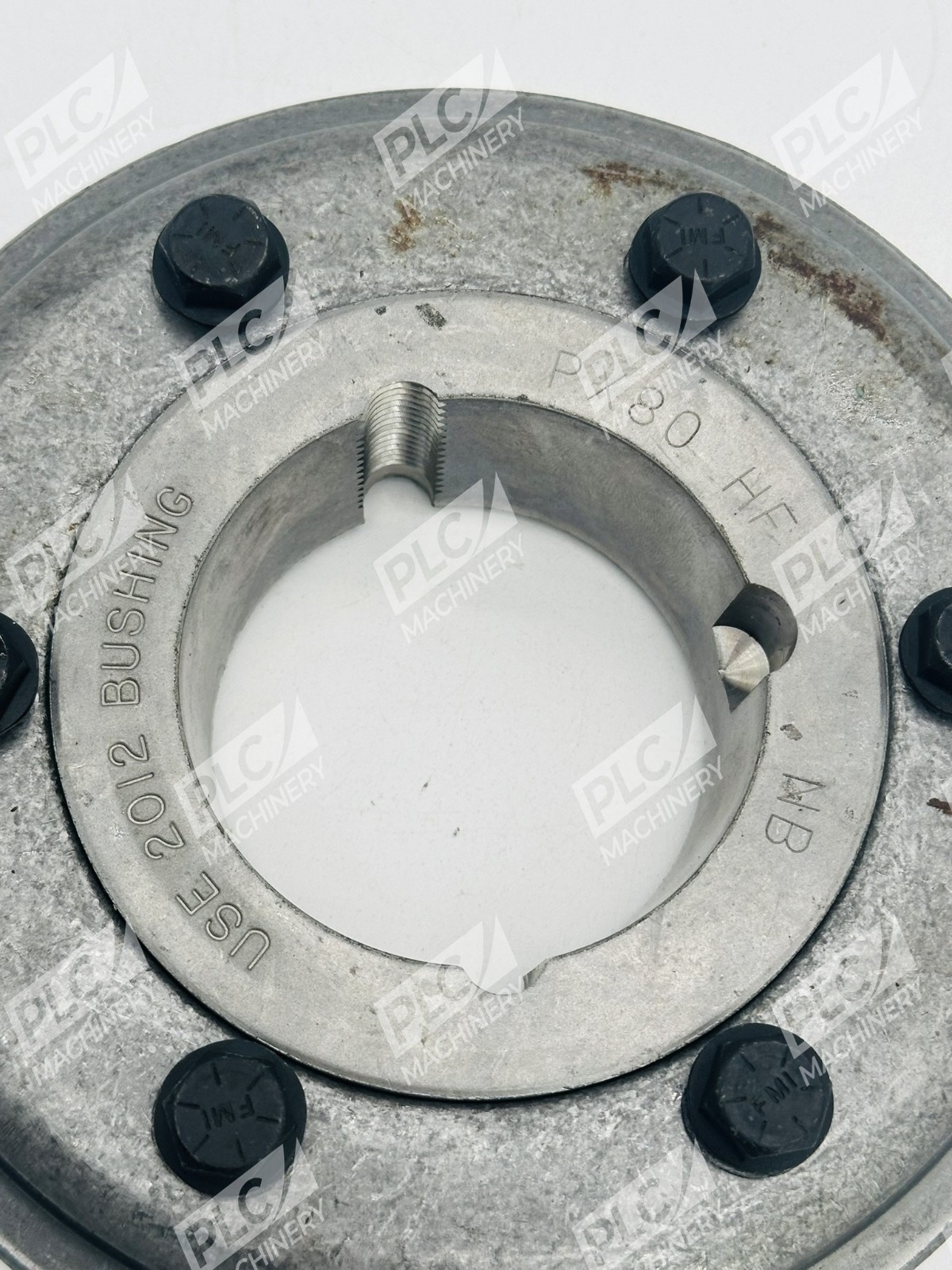

- Bushing size: 2012 (requires separate order)
- Flange type: Type H (reversible)
- Maximum speed: 3,100 RPM
- Angular misalignment capacity: 4°
- Axial misalignment capacity: 5/16″
Typical Applications
The Dodge PX80 para-flex coupling is widely used in:
- Industrial motor-driven pumps and compressors
- Conveyor drive systems
- Mining and aggregate processing equipment
- Agricultural machinery power transmission
- HVAC and fluid handling systems
- General machinery requiring vibration dampening and misalignment compensation
Compatibility & Replacements
Compatible With
- Dodge Para-Flex coupling systems (PX Series)
- Taper-lock bushings (2012 size and equivalent)
- Standard IEC and NEMA motor shafts
- Type H and Type F motor mounting configurations
- High-speed elastomeric coupling elements
Replaces / Drop-In Replacement For
- Dodge Para-Flex PX80 assemblies with part number 010604
- Equivalent flexible couplings in the 5–6 HP range at 100 RPM
- Verify compatibility with your system integrator before ordering
Works With
- Dodge taper-lock bushing size 2012 (purchased separately)
- Industry-standard shaft keys and mounting hardware
- Cast iron and steel disc assemblies from the Para-Flex line
- AC induction motors up to 3,100 RPM rated speed
