Overview

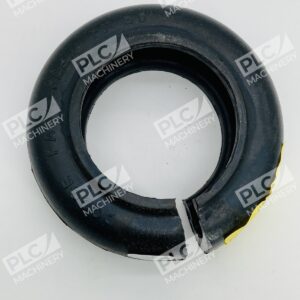

The Dodge 011106 PX60 Para-Flex Element is a standard flexible tire coupling insert designed for industrial automation and machinery applications. As part of Dodge’s Para-Flex coupling family, this elastomeric element absorbs shock loads and dampens vibration while accommodating angular, parallel, and axial misalignment. The natural rubber construction ensures reliable torque transmission without lubrication requirements, making it an ideal drop-in replacement for worn or damaged PX60 coupling elements.
Key Features
- Elastomeric tire-style design — natural rubber element offers exceptional vibration absorption and shock protection
- Industry-leading misalignment accommodation — handles angular (4°), parallel (0.125 in), and axial (0.3125 in) misalignment
- High torque capacity — rated for 1800 in-lb at operating speed
- ATEX certified — suitable for hazardous classified environments
- No lubrication required — sealed elastomeric design reduces maintenance
- Reinforced tension cords — end split reinforcement for extended service life
Technical Specifications
- Coupling Size: PX60
- Element Material: Natural rubber
- Coupling Style: Tire
- Coupling Type: Elastomeric
- Maximum Torque Rating: 1800 in-lb (203 N·m)
- Maximum Speed: 4000 rpm
- Horsepower @ 100 RPM: 2.86 hp
- Outside Diameter: 6.5 inches (165.1 mm)
- Angular Misalignment Capacity: 4 degrees
- Parallel Misalignment Capacity: 0.125 inches (3.175 mm)
- Axial Misalignment Capacity: 0.3125 inches (7.938 mm)
- Temperature Range: −45°F to 180°F (−42.8°C to 82.2°C)
- Torsional Stiffness: 414 in-lb/degree
- Weight: 1.31 lbs (0.59 kg)
- ATEX Certification: Yes
Typical Applications
The Dodge PX60 Para-Flex Element is widely used in medium-duty industrial systems including:
- Electric motor and pump coupling applications
- Fan and blower drive systems
- Conveyor and material handling equipment
- Gear reducer and gearbox input/output shafts
- Industrial automation machinery and production equipment
- HVAC and ventilation systems
- Hazardous (classified) area installations (ATEX-certified)
Compatibility & Replacements
Compatible With
- Dodge Para-Flex PX60 couplings
- Standard industrial motor and drivetrain assemblies rated for PX60 hub size
- Applications requiring 1800 in-lb torque capacity at up to 4000 rpm
Replaces / Drop-In Replacement For
- Dodge 011106 Para-Flex Element (OEM replacement)
- Other PX60 elastomeric coupling elements with equivalent torque and speed ratings
Works With
- Dodge Para-Flex coupling hubs (PX60 size)
- Close-coupled shaft arrangements
- Standard industrial power transmission systems using elastomeric tire-style couplings
