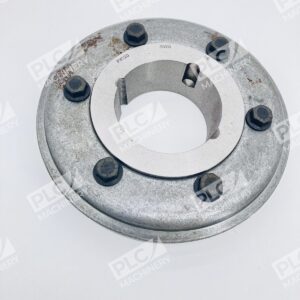

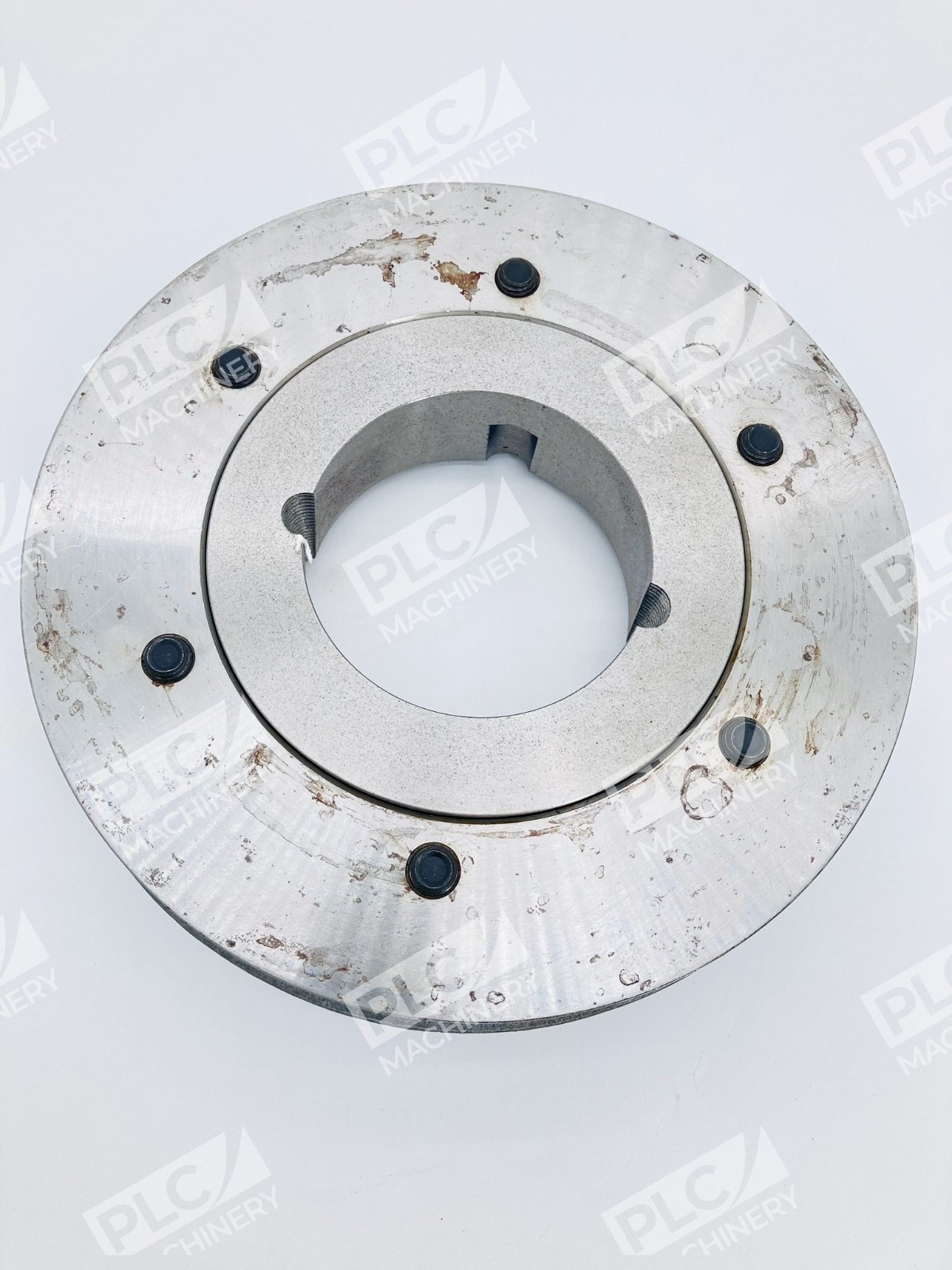

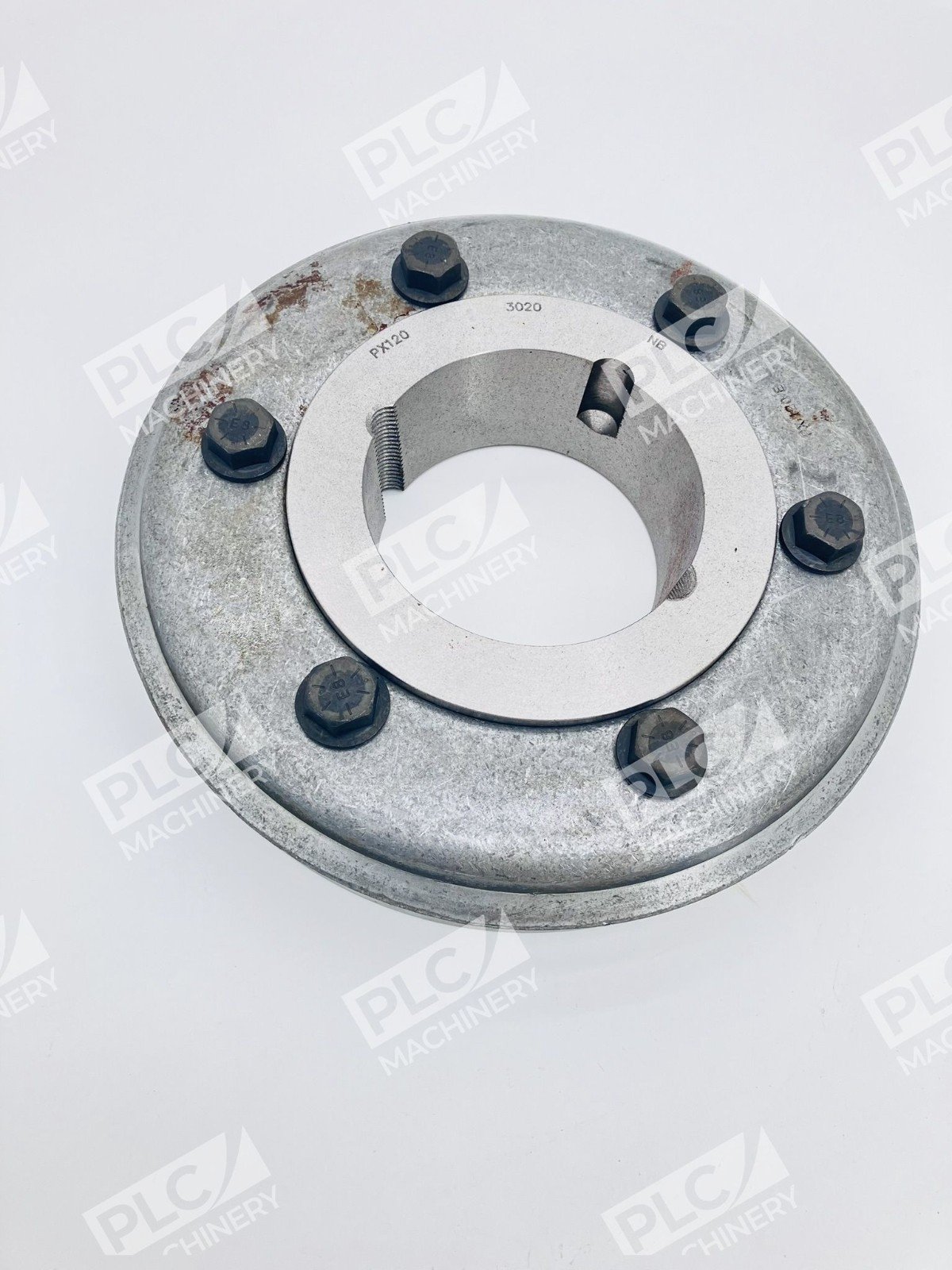

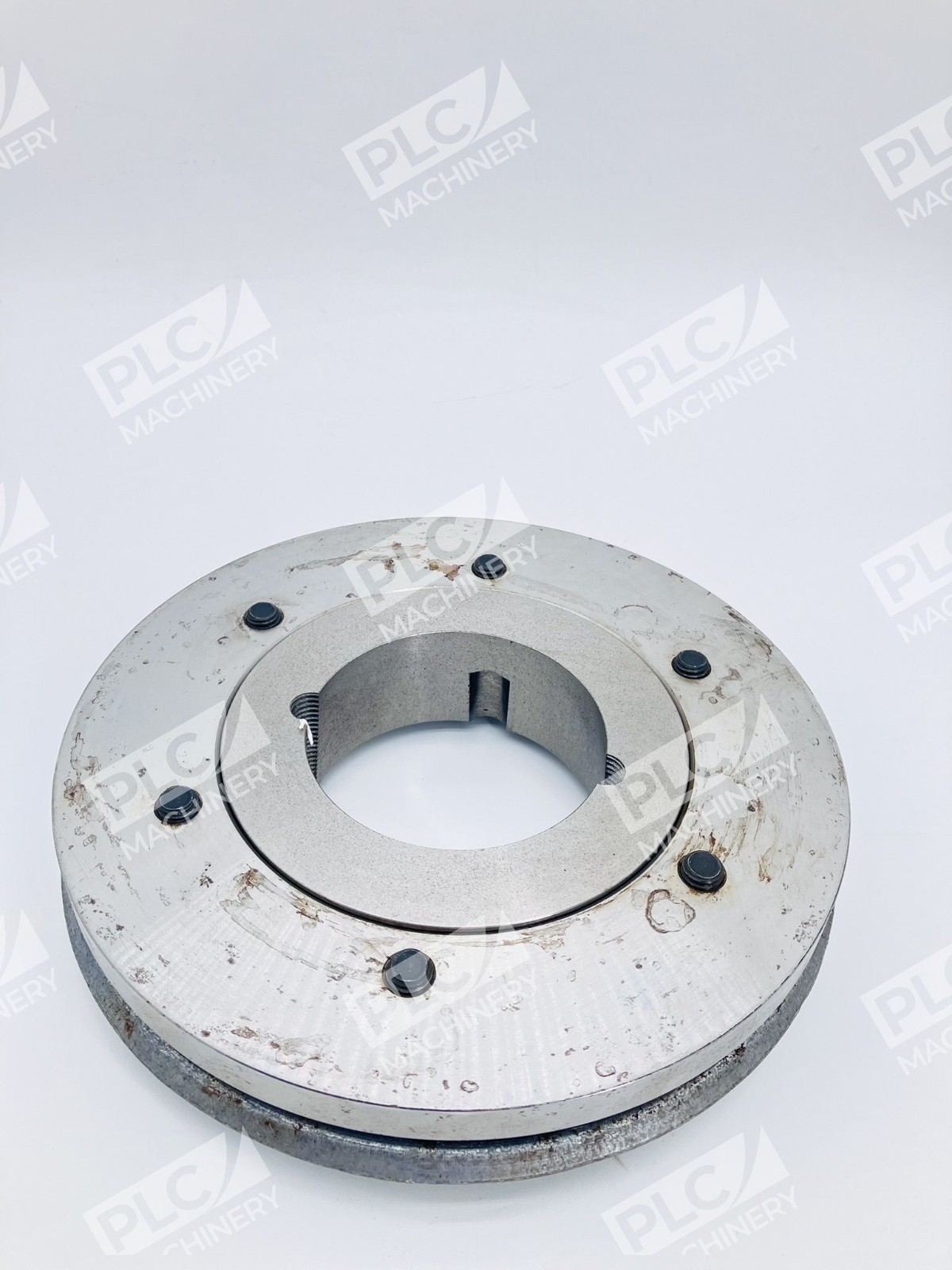

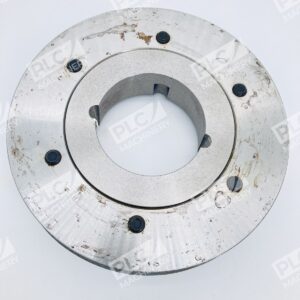

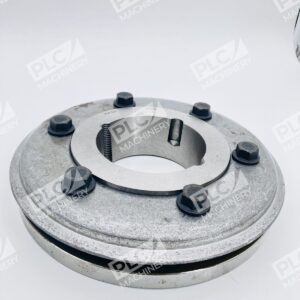

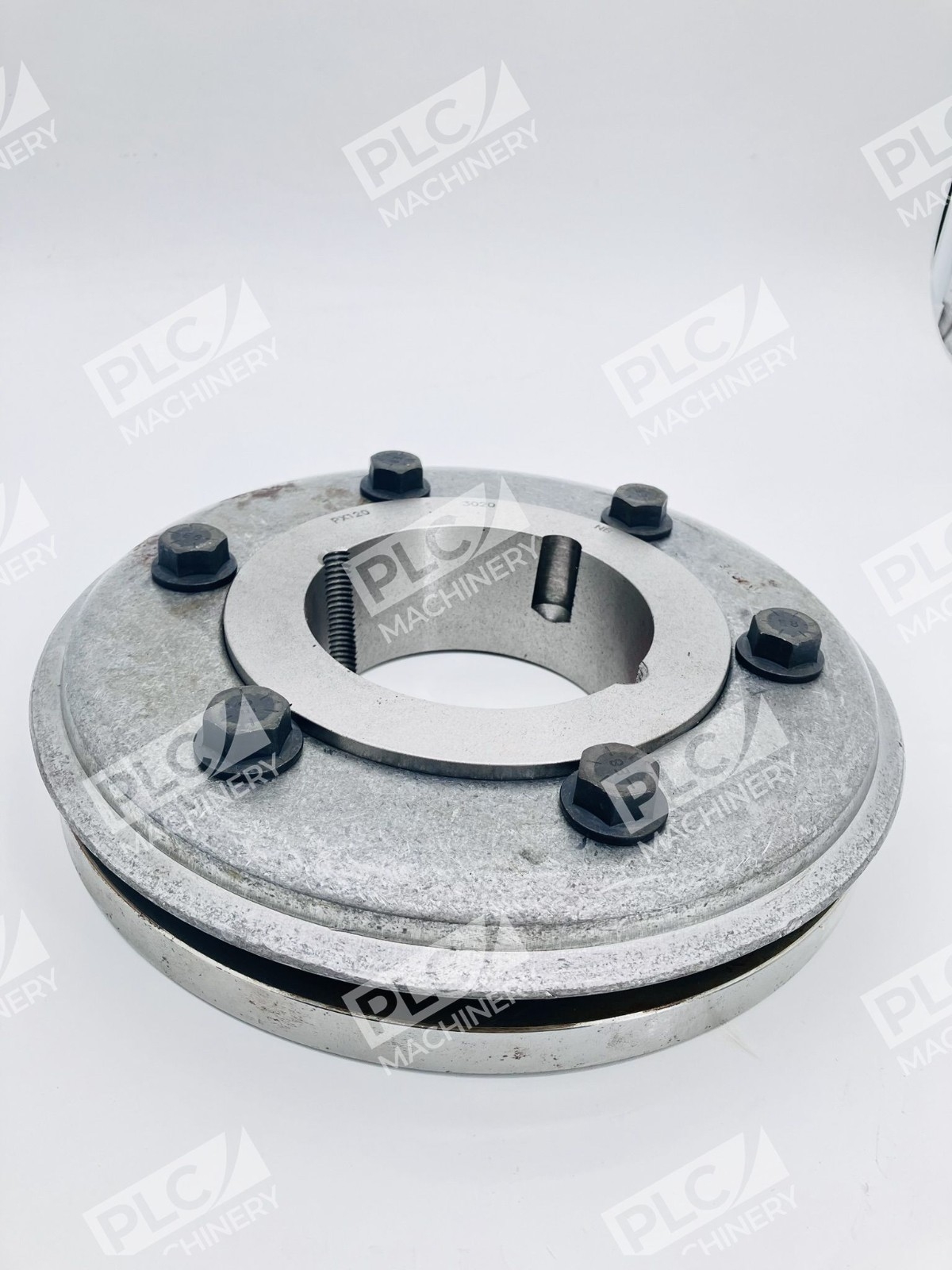

Overview

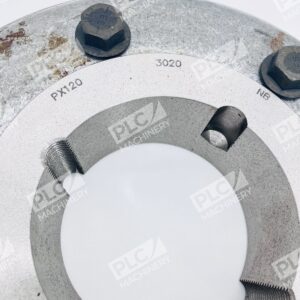

The Dodge PX120 3020 Taper-Lock Flange Assembly Coupling (MPN 010608) is an elastomeric para-flex coupling flange designed for critical industrial power transmission and motion control applications. This flange assembly features a cast iron construction with a 12.375-inch outside diameter, 2-inch bore length, and accommodates standard 3020 taper-lock bushings. The coupling is engineered with a patented cording that transmits torque, offers a wear indicator, and absorbs shock loads to prevent damage to connected equipment.
Key Features
- Angular misalignment tolerance of 4 degrees and parallel misalignment of 0.125 inches
- Axial misalignment capability of 0.3125 inches with close-coupled shaft spacing
- Reversible flanges for both H and F style mounting on sizes PX50-PX120
- Utilizes standard taper-lock bushings for easy installation and removal
- No lubrication required; temperature rating from -45°F to +180°F
- Maximum speed rating of 2,100 rpm with ATEX certification
Technical Specifications
- Torque Rating: 12,605 in-lb
- Horsepower (@ 100 RPM): 20 hp
- Maximum Speed: 2,100 rpm
- Outside Diameter: 12.375 inches
- Bore Length: 2 inches
- Coupling Type: Elastomeric tire coupling

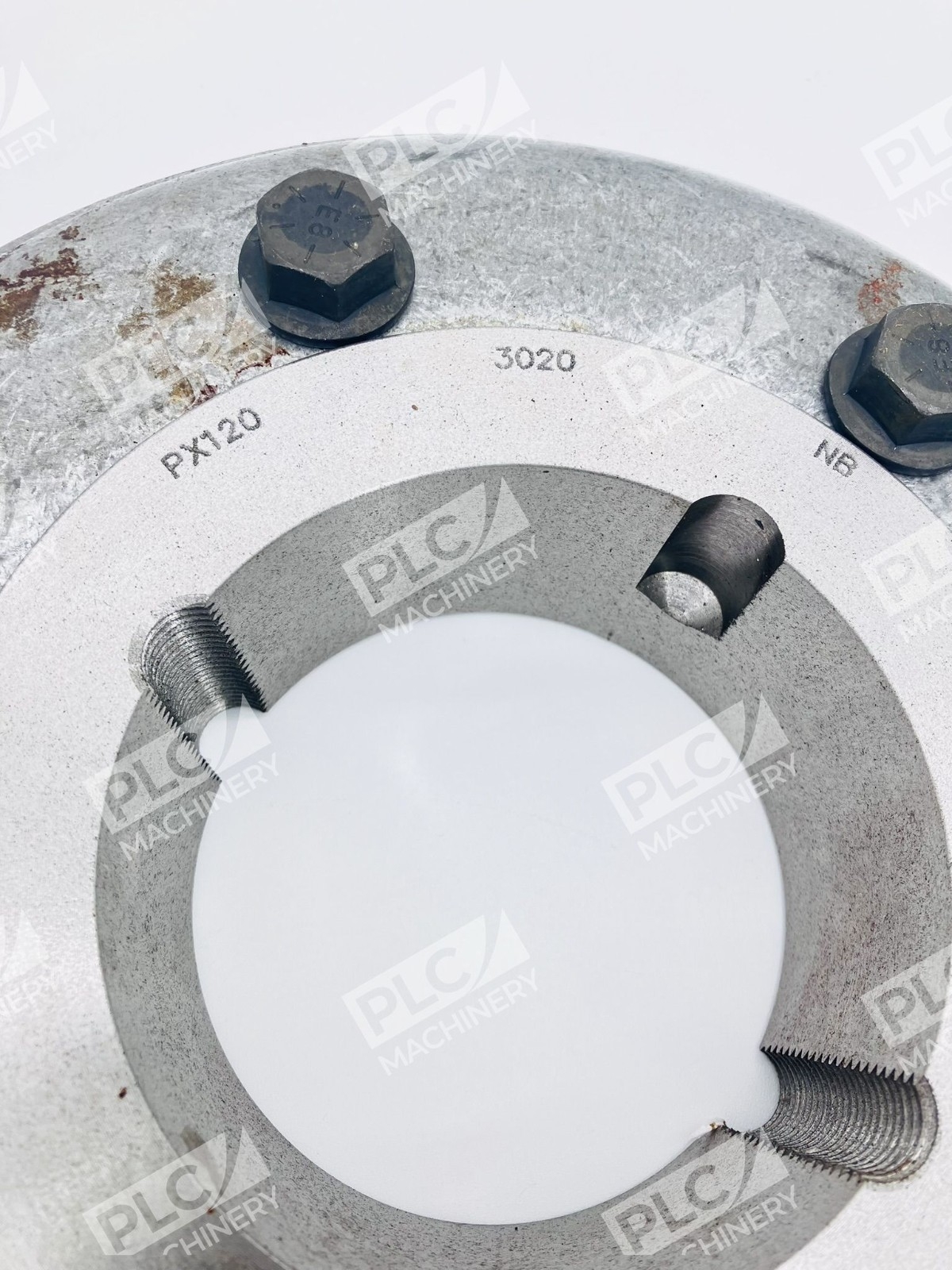

- Bushing Size: 3020 taper-lock
- Material: Cast iron flange
- Angular Misalignment: ±4 degrees
- Parallel Misalignment: 0.125 inches
- Axial Misalignment: 0.3125 inches
- Temperature Range: -45°F to +180°F
- Weight: 31.3 lbs
- Certification: ATEX certified
- Manufacturer Catalog Number: 010608
Typical Applications
The Dodge PX120 is widely used in industrial automation, motor-driven machinery, and power transmission systems requiring elastomeric coupling performance. Common applications include pump drives, compressor transmission, fan drives, and general industrial machinery where shock absorption and vibration damping are critical. The taper-lock bushing system enables quick field service and replacement without removing shafts.
Compatibility & Replacements
Compatible With
- Standard 3020 taper-lock bushings
- Para-Flex elastomeric coupling elements
- Industrial electric motors and gear drives
- Type H and Type F mounting flanges (reversible design)
Replaces / Drop-In Replacement For
This flange assembly (010608) is the standard Type H taper-lock flange for PX120 coupling applications. Verify compatibility with your original coupling specification sheet before ordering. Refer to Dodge documentation for equivalent or interchangeable flange assemblies.
Works With
- Dodge Para-Flex coupling elements (all sizes)
- Standard taper-lock disc assemblies
- AGMA 9002 shaft fit standards
- Industrial automation control systems and variable frequency drives
