Overview

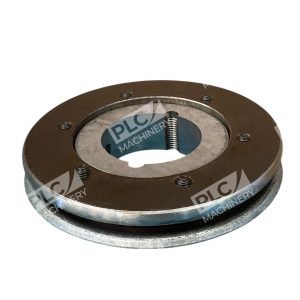

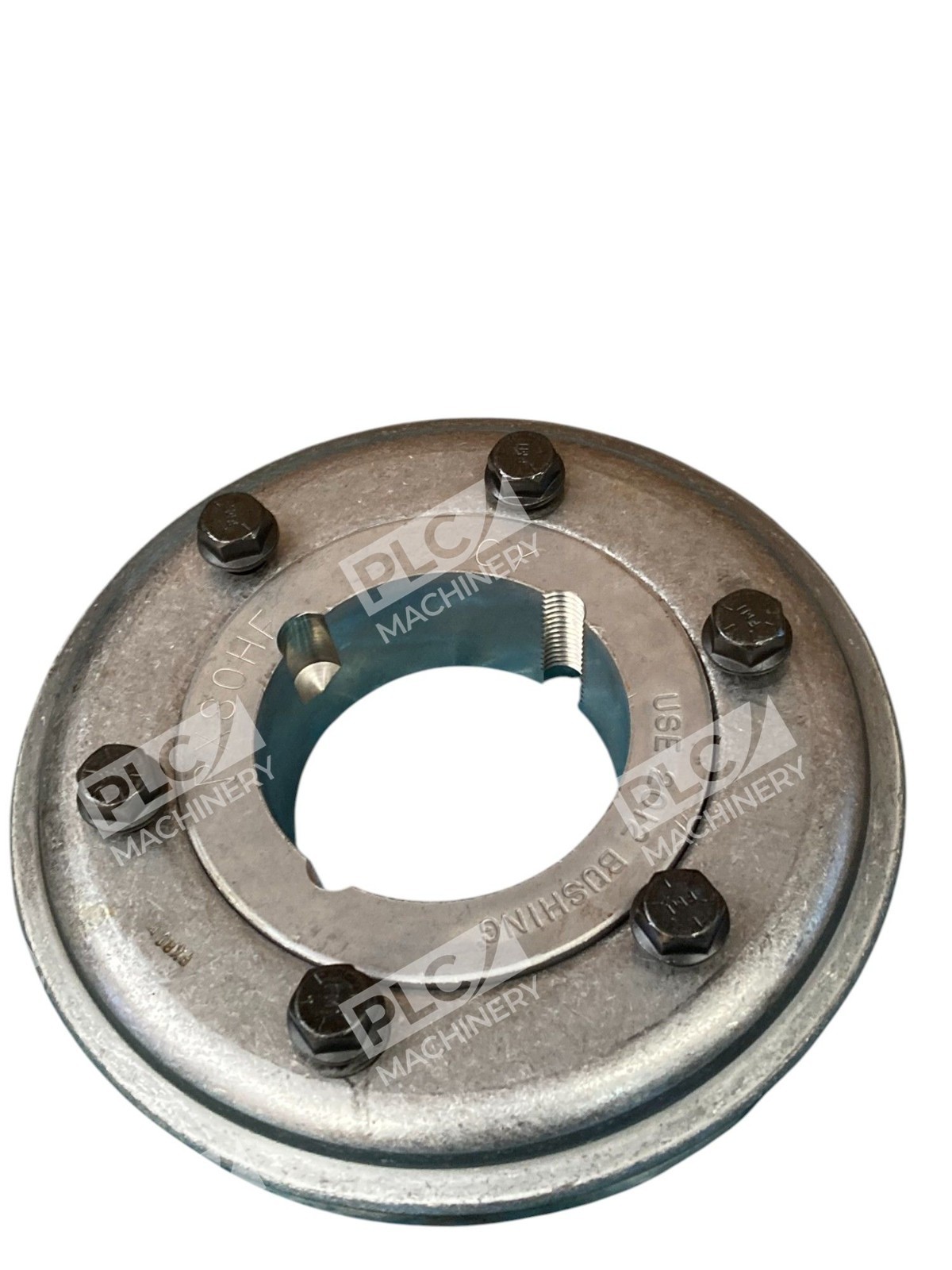

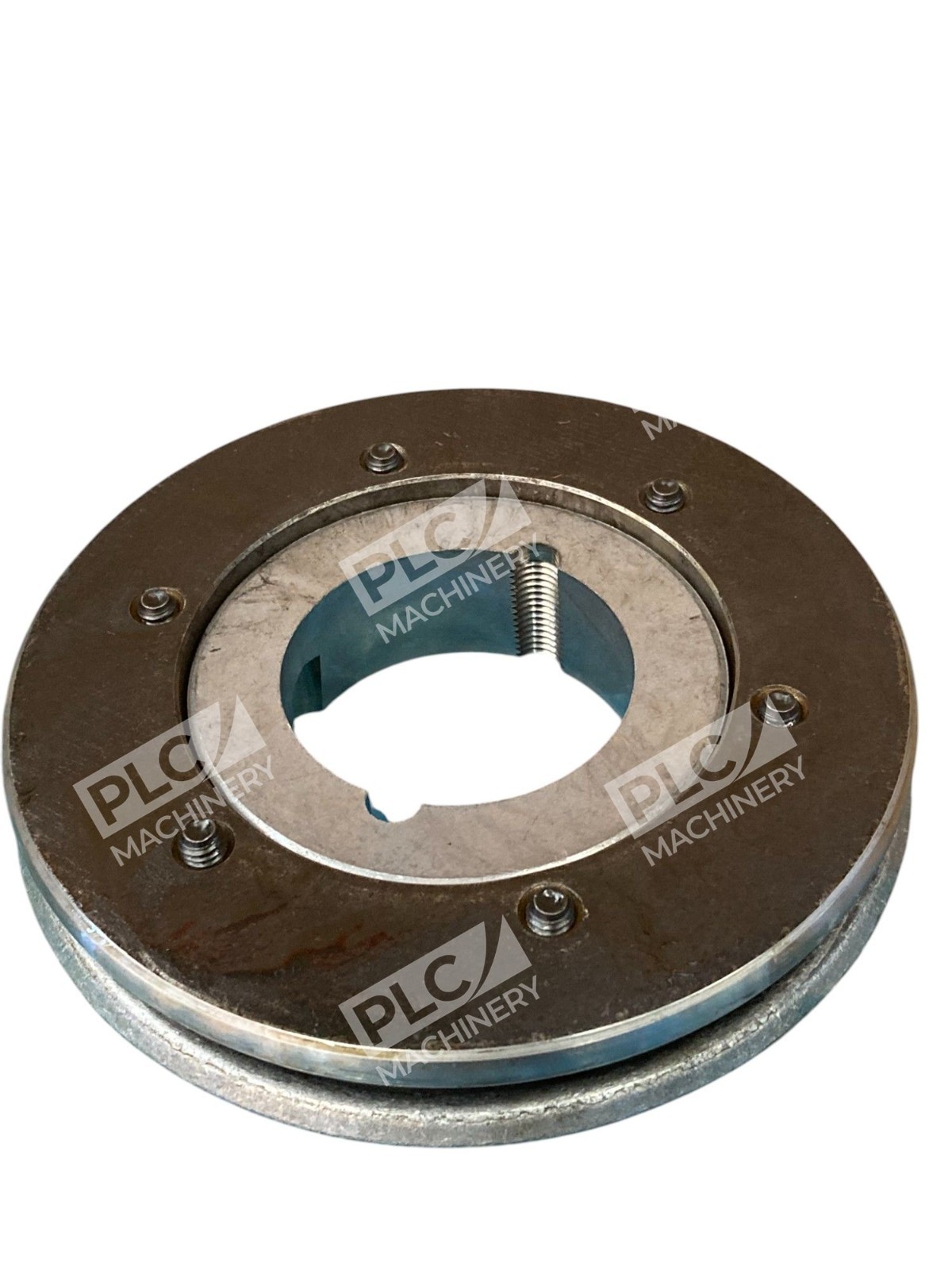

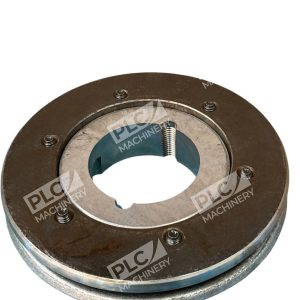

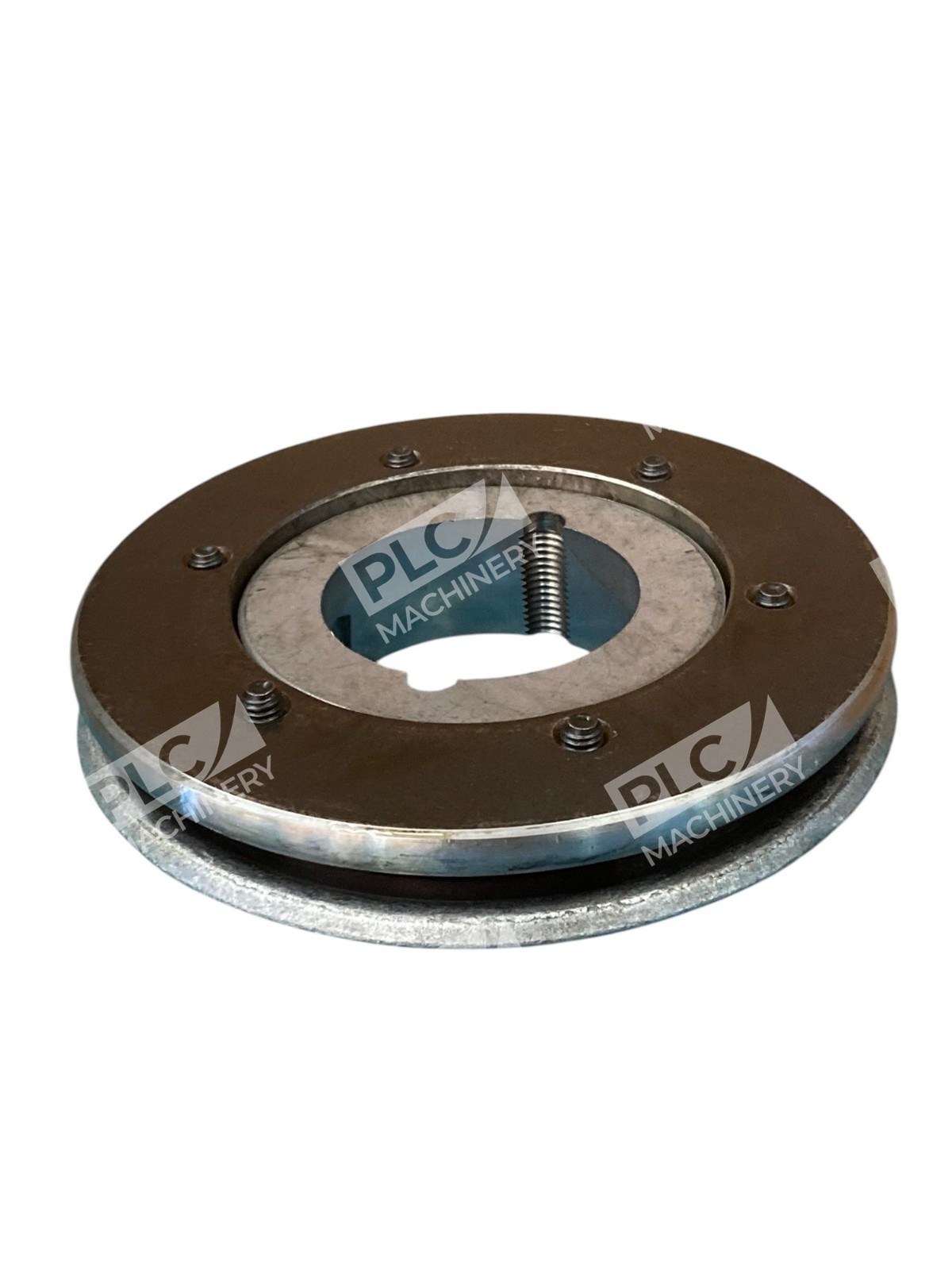

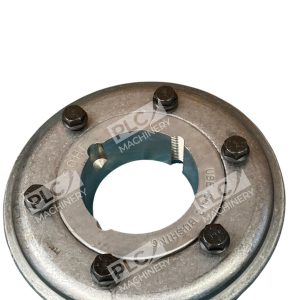

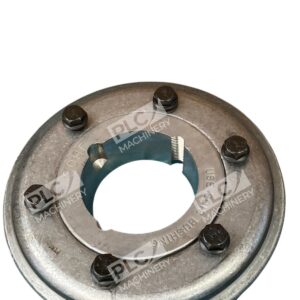

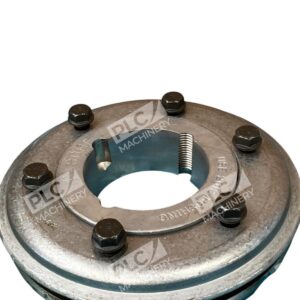

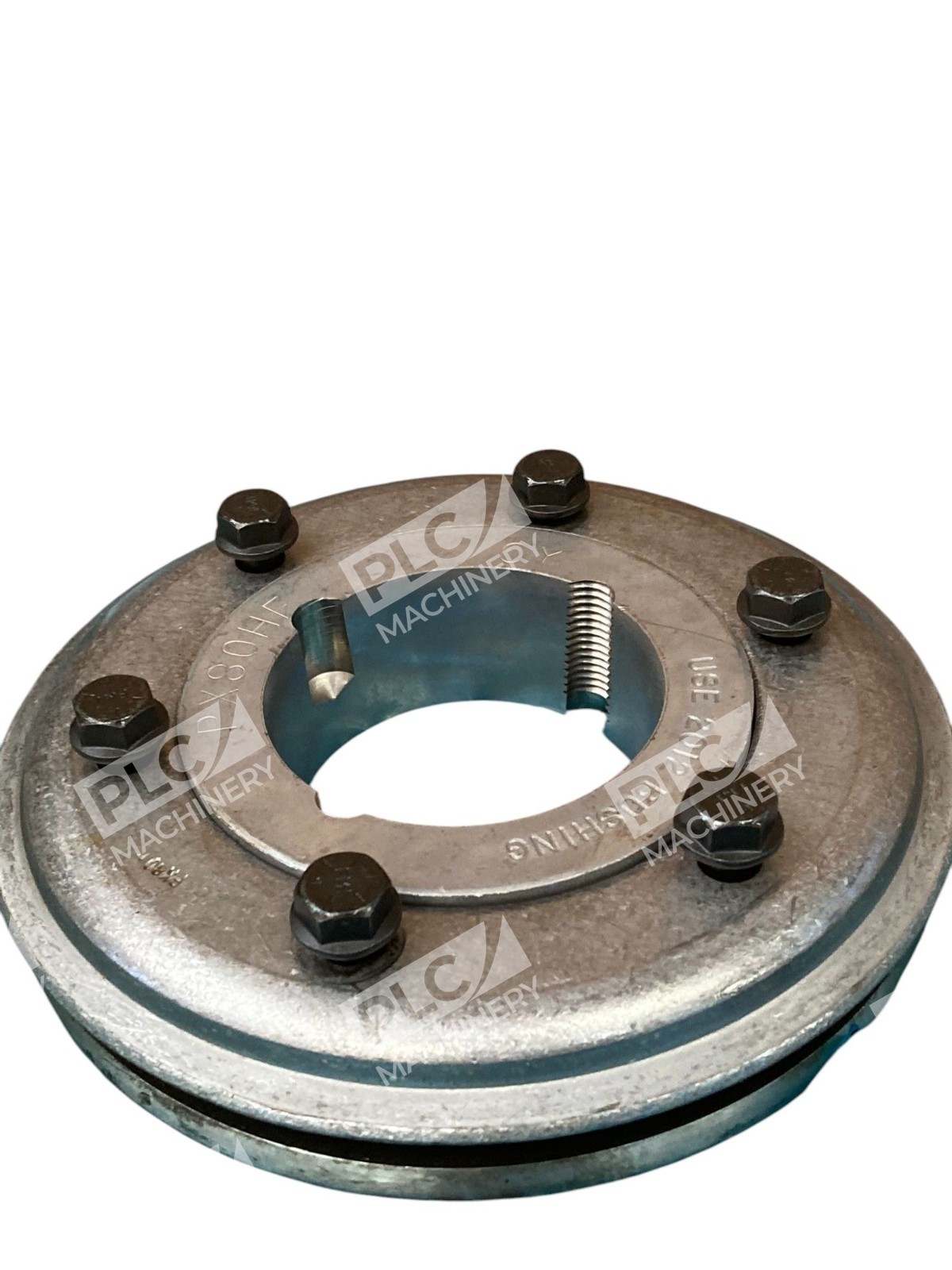

The Dodge 010604 PX80 Taper-Lock Flange Assembly is a Type H elastomeric coupling designed for industrial machinery requiring flexible, shock-absorbing power transmission. Manufactured in the United States, this Para-Flex flange assembly combines cast iron durability with sintered steel bushing construction, making it suitable for applications demanding reliable torque transfer while accommodating minor misalignment and vibration dampening.
Key Features
- Type H flange configuration with reversible mounting for H and F style applications
- Standard Taper-Lock® bushing design enables quick installation and removal without special tools
- Para-Flex elastomeric design absorbs shock and reduces vibration transmission
- Sintered steel bushing material provides wear resistance and long service life
- Compact PX80 size suitable for space-constrained machinery layouts
Technical Specifications
- Coupling Size: PX80
- Flange Type: Type H
- Maximum Bore Diameter: 2-1/8 inches
- Bore Range: 1/2″ to 2-1/8″
- Length Through Bore: 1.25 inches
- Outside Diameter: 8.38 inches
- Material: Cast Iron (flange), Sintered Steel Bushing
- Coupling Style: Elastomeric (Tire)
- Bushing Type: Taper-Lock
- Mounting: Reversible for H and F style (sizes PX50–PX120)

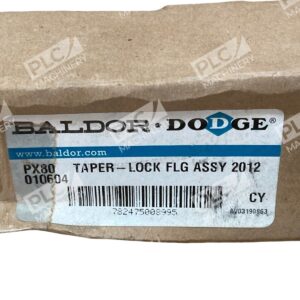

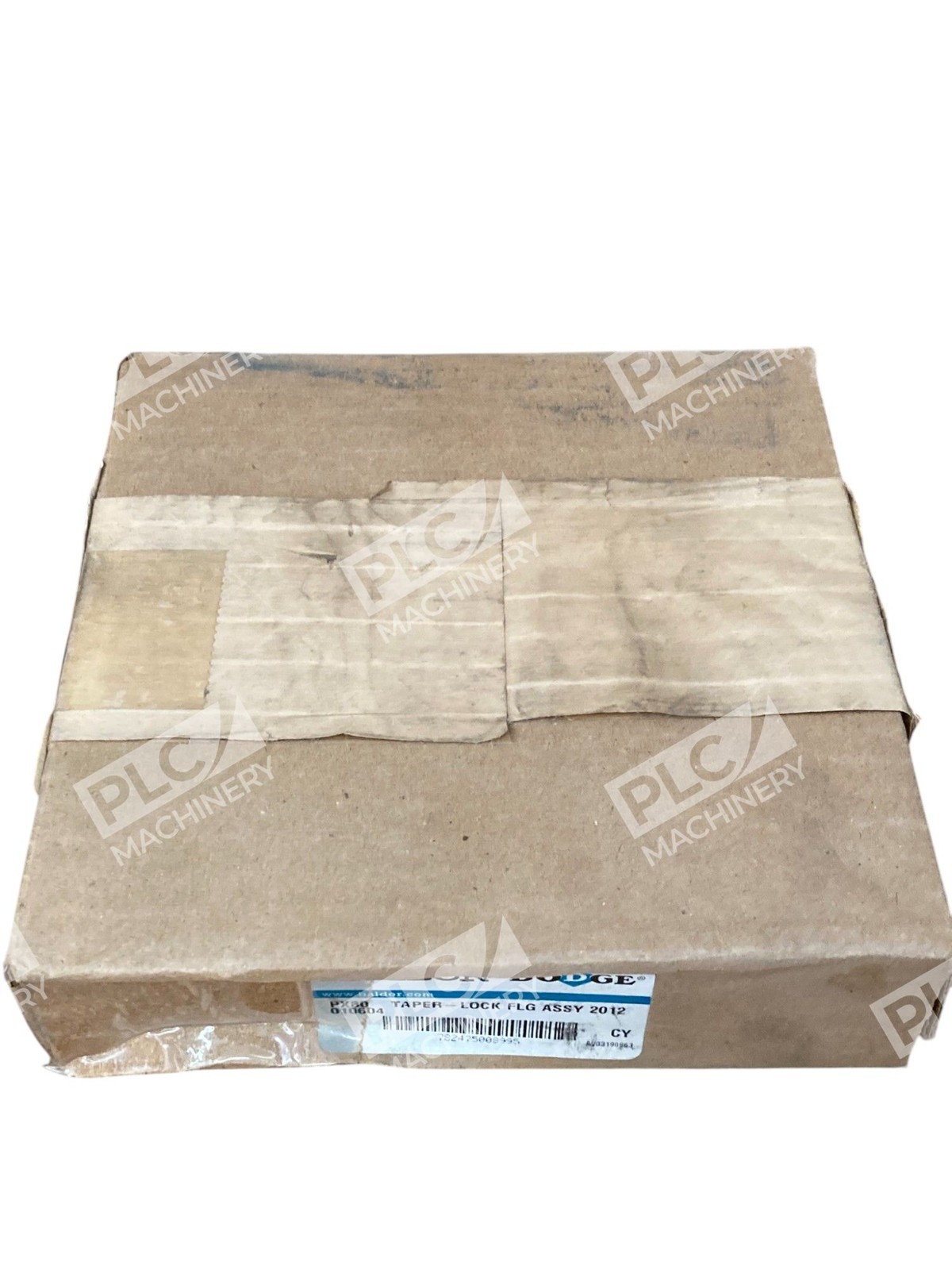

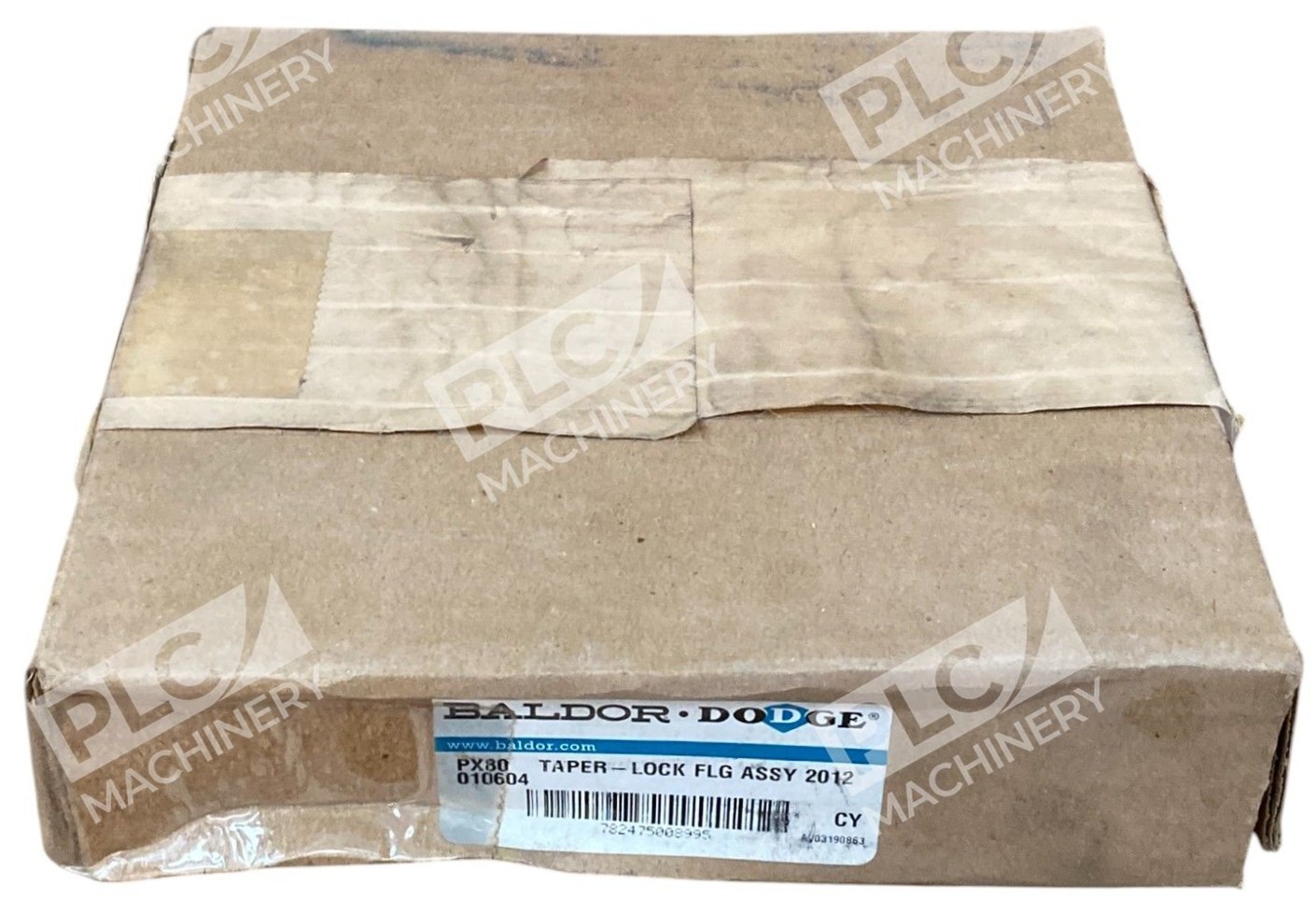

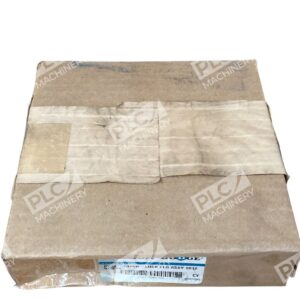

- Condition: New in Box
- Country of Origin: United States
Typical Applications
The Dodge 010604 is widely used in industrial pump drives, fan motors, conveyor systems, and machinery requiring elastomeric dampening. Its compact PX80 footprint and standard Taper-Lock bushing interface make it ideal for retrofit and new-installation scenarios in manufacturing, food processing, and general industrial equipment.
Compatibility & Replacements
Compatible With
- Standard Taper-Lock® bushings (1/2″ to 2-1/8″ bore range)
- Motor and equipment flanges with H or F mounting style (PX50–PX120 size range)
- Industrial motors and driven equipment in the PX80 coupling class
Replaces / Drop-In Replacement For
- Other Dodge PX80 Type H flange assemblies with 2-1/8″ maximum bore diameter
- Legacy elastomeric coupling flanges of equivalent size and Taper-Lock interface
- Verify compatibility with your OEM documentation or system integrator before ordering
Works With
- Standard Dodge Taper-Lock bushing product line
- Reversible flange mounting (H and F configurations)
- Motor shaft and driven-equipment coupling interfaces rated for PX80 class assemblies
