Overview

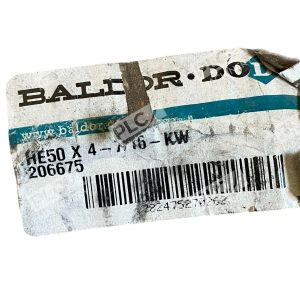

The Dodge 206675 is an HE50 X 4-7/16-KW split taper bushing engineered for conveyor pulley mounting and industrial power transmission. This bushing offers a dependable solution for secure shaft-to-hub connections in demanding conveyor applications, reducing vibration and disc deflection while maintaining precise alignment.
Key Features
- Taper-Lock Design: The 14-degree taper angle minimizes axial movement and secures the bushing firmly to the shaft with a single mounting operation
- Reduced Deflection: The split taper design reduces disc deflection and restressing, improving drive reliability and component life
- Flanged Construction: 9-5/8 inch flange diameter with six bolt holes provides stable mounting on conveyor drums and wing pulleys
- Industrial Standard: Purpose-built for conveyor systems, offering proven performance in high-duty applications
Technical Specifications
| Model/Size | HE50 |
| Bore Diameter | 4-7/16 inches |
| Hub Diameter | 3 inches |
| Flange Diameter | 9-5/8 inches |
| Flange Thickness | 1-1/2 inches |
| Bolt Circle Diameter | 8 inches |
| Bolt Holes | 6 |
| Overall Length | 4-1/2 inches |
| Keyway Dimensions | 1 x 1/2 inch |
| Fasteners | 3/4-10 x 3 inch cap screw |

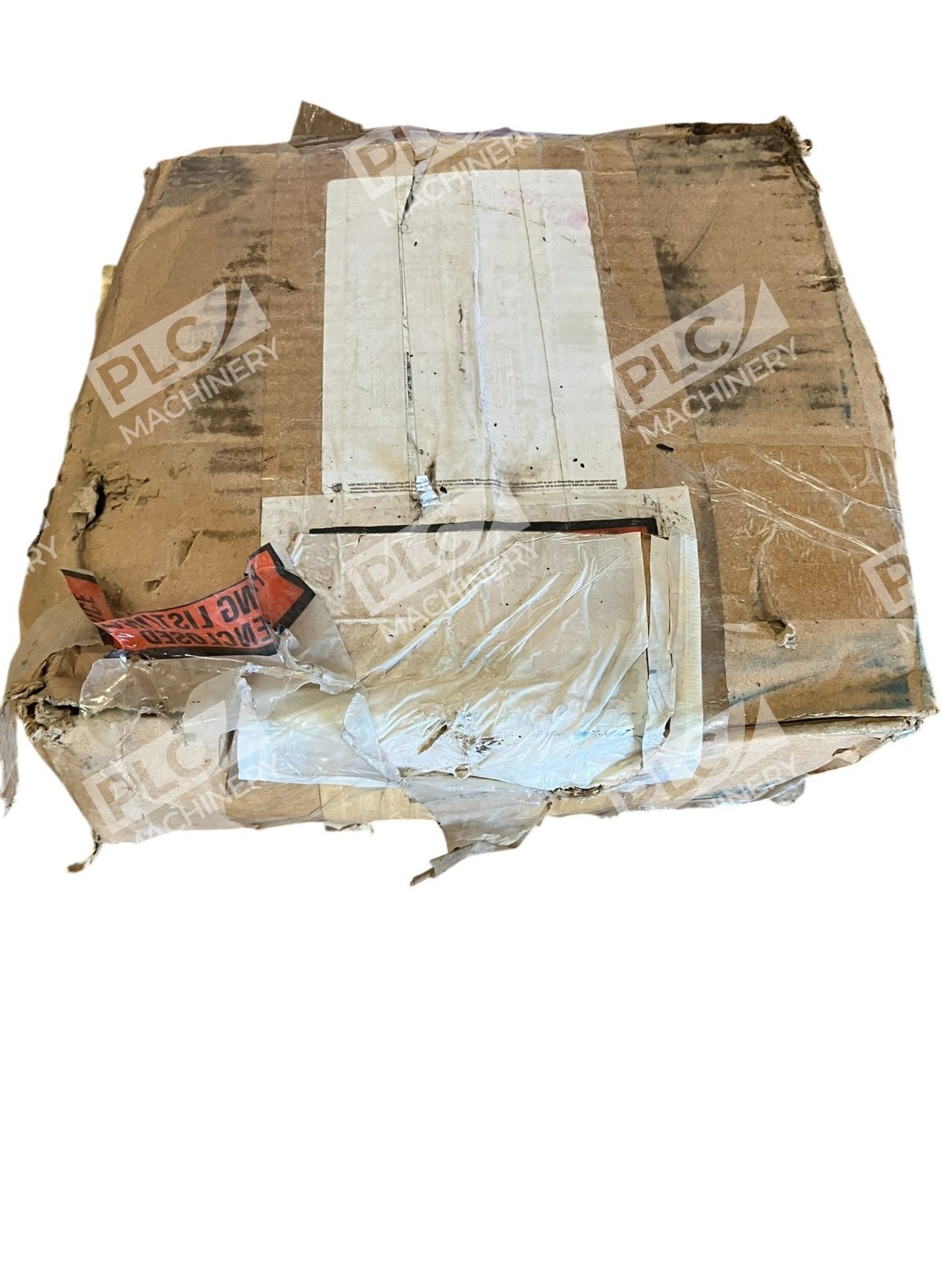

| Condition | New in Box |
Typical Applications
- Conveyor drum and wing pulley mounting systems
- Material handling equipment and belt conveyors
- Industrial power transmission assemblies
- Heavy-duty mechanical drive systems requiring reliable shaft-to-hub coupling
Compatibility & Replacements
Compatible With
- Conveyor drum pulleys (4-7/16 inch shaft bore)
- Wing pulley assemblies
- Industrial conveyor systems with HE bushing mounting
- Standard mechanical power transmission applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm the Dodge 206675 matches your existing conveyor or pulley assembly specifications.
Works With
- Dodge mechanical power transmission components
- Standard conveyor pulley hubs and drums
- Shafts with 4-7/16 inch bore diameter and 1 x 1/2 inch keyway
- Baldor and Dodge industrial equipment ecosystems
