Overview

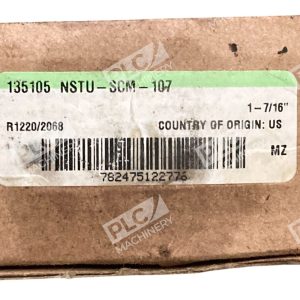

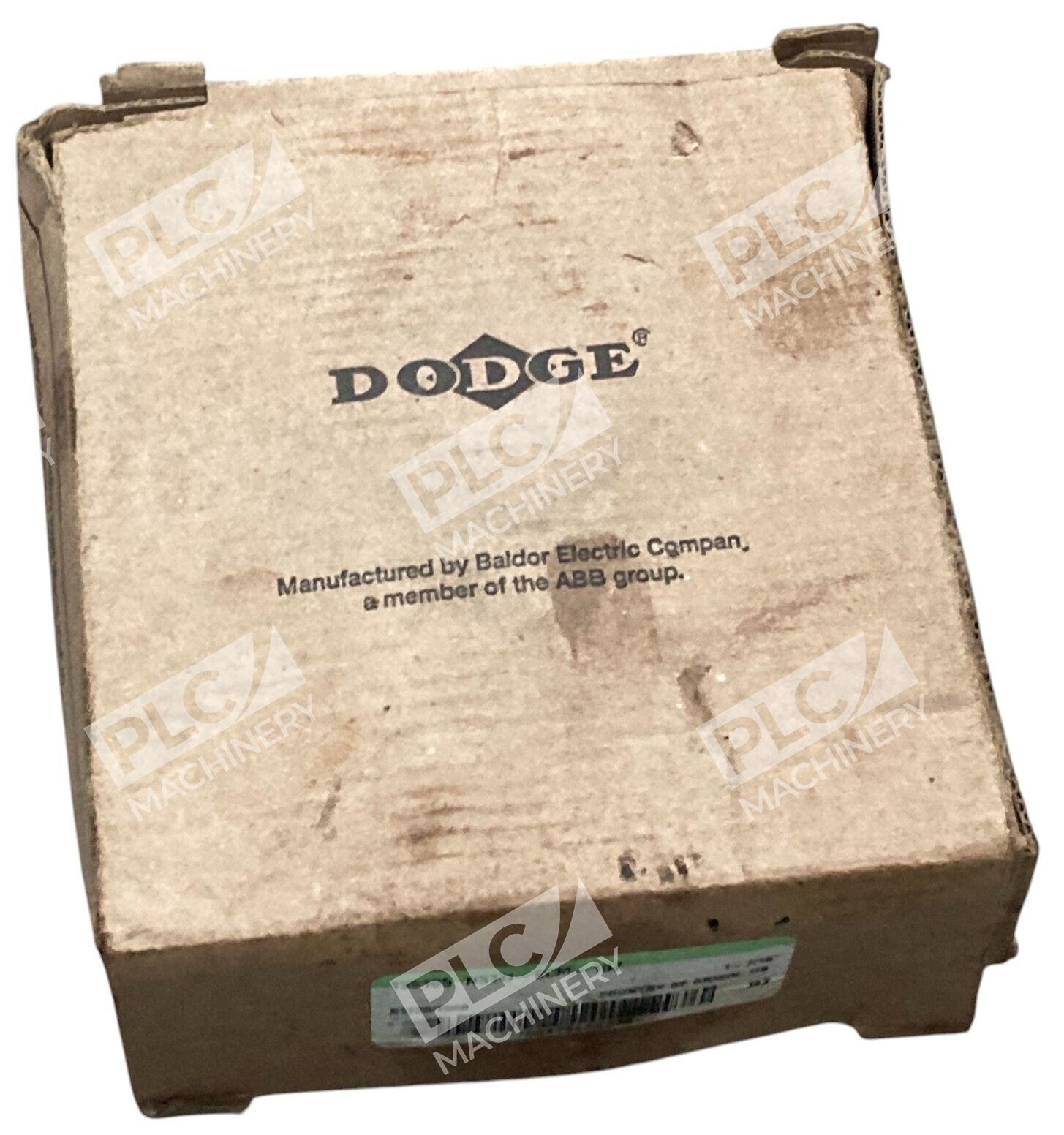

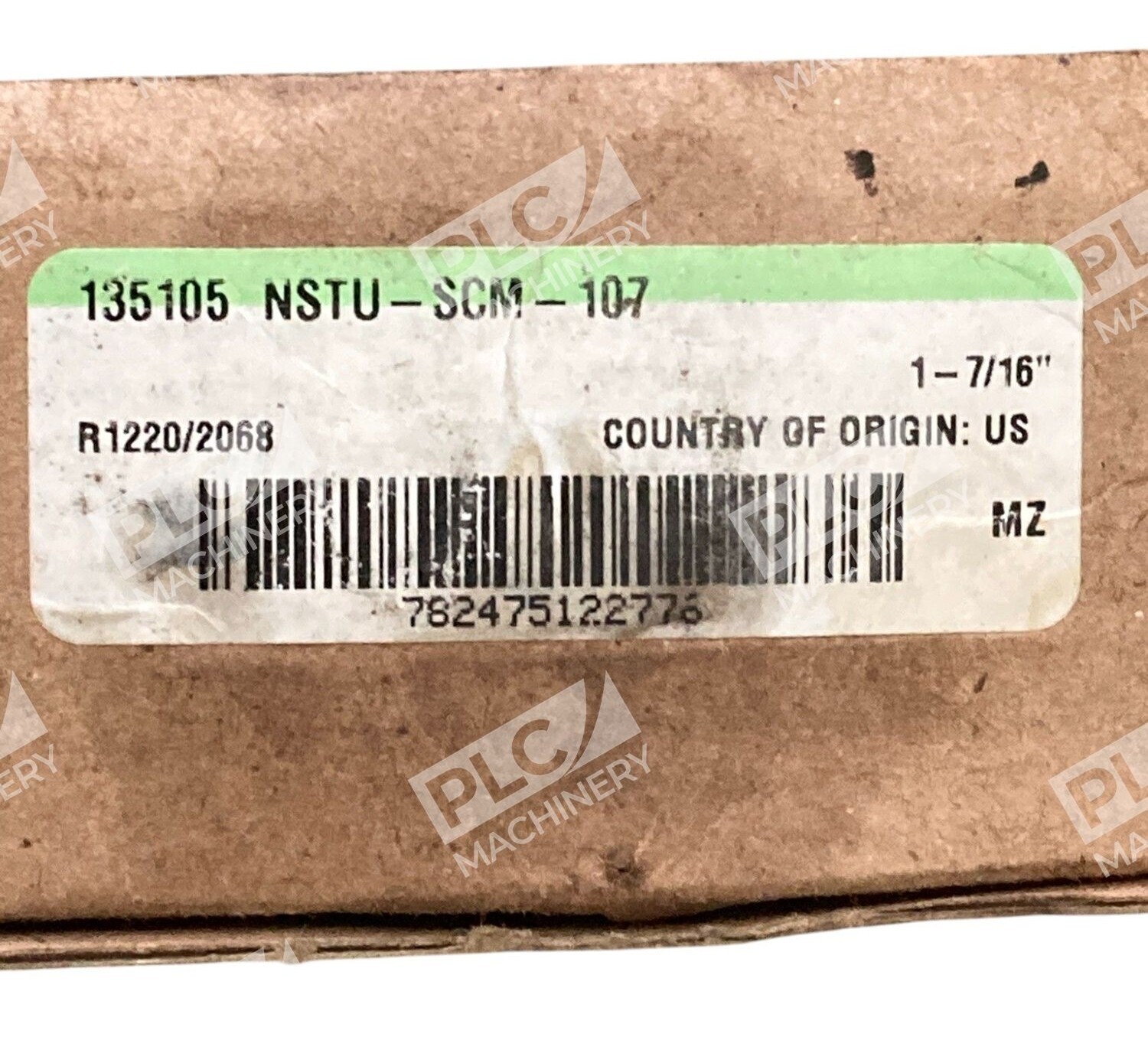

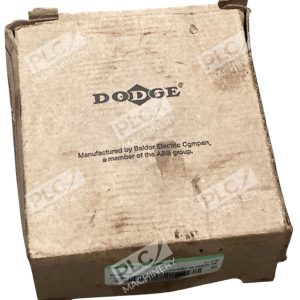

The Dodge NSTU-SCM-107 (part number 135105) is a precision setscrew take-up ball bearing designed for shaft alignment and power transmission systems. This 208 series medium-duty narrow-slot bearing accommodates a 1-7/16 inch bore with a dynamic load capacity of 7332 lbf and static load capacity of 4475 lbf. The bearing features a single-lip contact seal and operates at speeds up to 3500 rpm, making it suitable for industrial machinery requiring stable, low-maintenance operation.
Key Features
- Premium setscrew mounted design with 65-degree set screw angle for optimized shaft holding power without excessive inner ring distortion
- Cast iron housing construction with solid design and non-expansion (fixed) configuration
- Narrow-slot take-up housing type compatible with NS-400 take-up frames
- Greasable design using Unirex N2 lubricant for extended service intervals
- Single-lip contact seal provides effective protection in general industrial environments
- American-manufactured steel insert with powder-coated finish for corrosion resistance
Technical Specifications
| Bore Diameter | 1-7/16 inch (1.4375 inch / 36.5125 mm) |
| Bearing Series | 208 |
| Housing Type | Narrow-Slot Take-Up (NSTU) |
| Bore Length | 1.94 inches (49.276 mm) |
| Overall Length | 5.38 inches |
| Overall Width | 4.75 inches |
| Overall Height | 4-3/4 inches |
| Dynamic Load Capacity | 7332 lbf |
| Static Load Capacity | 4475 lbf |
| Maximum Speed | 3500 rpm |
| Locking Device | Set Screw (SCM Medium Duty) |
| Housing Material | Cast Iron, Powder Coated |
| Seal Type | Single-Lip Contact |
| Lubrication | Grease (Unirex N2) |
| Weight | 4.7 lbs (2.13 kg) |
| Manufacturer Part Number | 135105 |
Typical Applications
The Dodge NSTU-SCM-107 is designed for:
- Power transmission systems requiring shaft alignment and vibration damping
- Industrial machinery with continuous or intermittent duty cycles
- Conveyor and drive systems requiring reliable, low-maintenance bearing performance
- Equipment operating under medium-duty loads in general industrial environments
- OEM and retrofit applications where precision mounting is essential
Compatibility & Replacements
Compatible With
- NS-400 take-up frames (narrow-slot configuration)
- Dodge Power Transmission bearing systems and product family
- Standard shaft diameters of 1-7/16 inch (1.4375 inch)
- Machinery designed for 208 series mounted ball bearings
- Unirex N2 grease-lubricated bearing assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or bearing supplier before ordering to ensure correct replacement specifications for your specific application.
Works With
- Dodge bearing insert kits and take-up frame assemblies
- Standard mechanical power transmission equipment and drivelines
- Predictive maintenance and condition-monitoring systems
- Industrial lubrication schedules using Unirex N2 or equivalent grease specifications
