Overview
The Dodge 3535 Taper-Lock Bushing 2-7/16 bore is a precision power transmission component manufactured by Dodge (Regal Rexnord) for use on sprockets, sheaves, pulleys, and gearboxes. This split-bushing design eliminates runout and wobble by wedging tighter as load increases, delivering consistent performance in demanding industrial applications. The 2-7/16″ bore with keyway finish provides a secure connection and simplified installation compared to bored-to-size components.
Key Features
- 8° tapered design grips tight and holds true under load
- Finished keyway (5/8 x 5/16 in) for enhanced precision fit
- Split construction enables easy installation and removal without disassembly
- Sintered steel material with black oxide coating for corrosion resistance
- Flush mounting with no protruding parts for clean integration

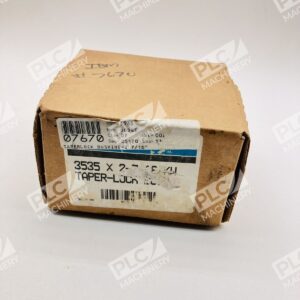

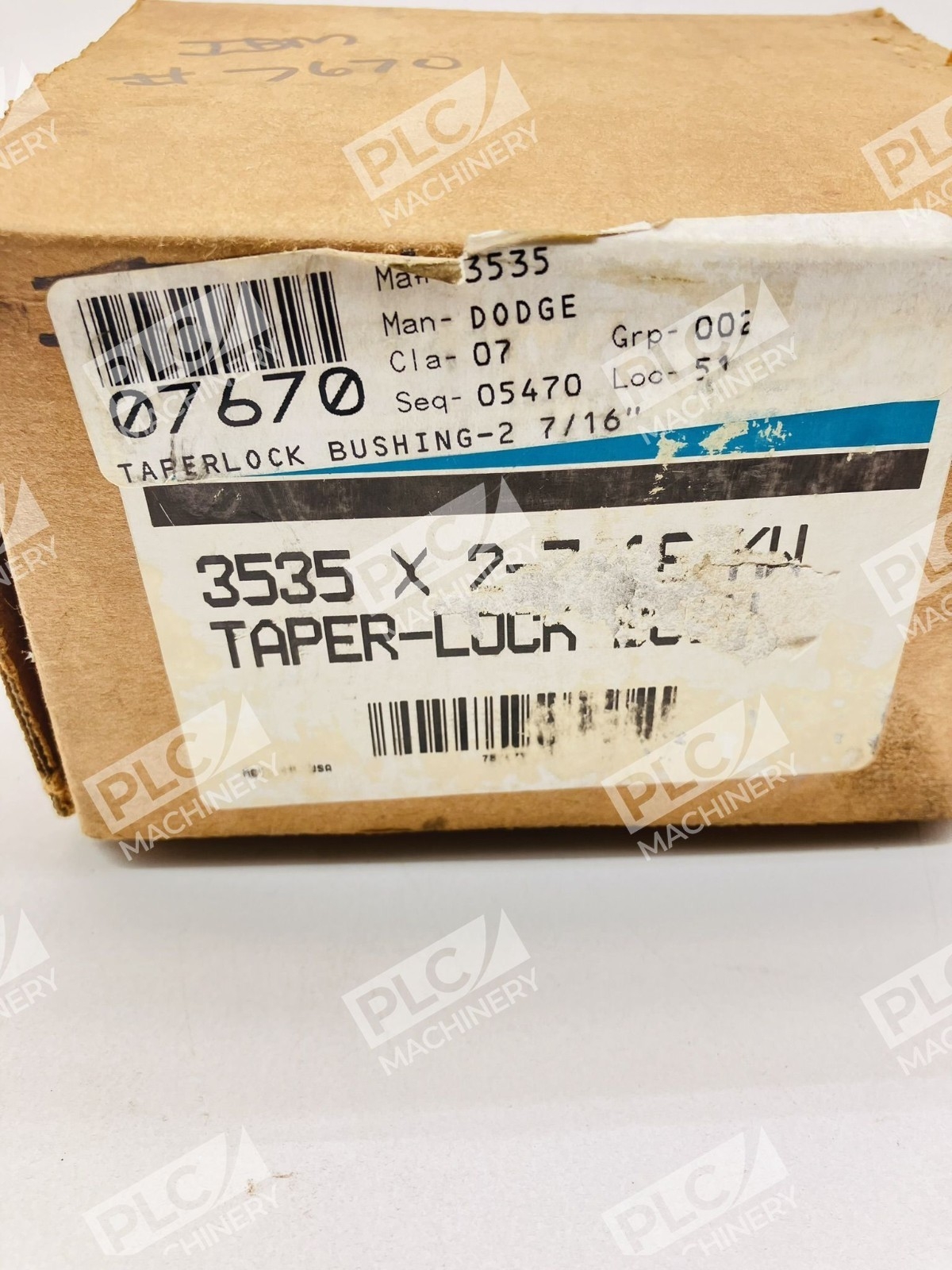

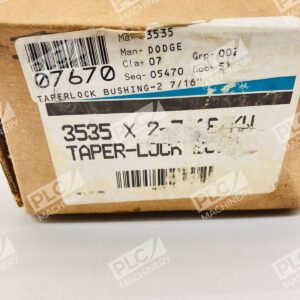

- New in Box condition—untested, ready for deployment
Technical Specifications
- Bushing Size: 3535
- Bore Diameter: 2-7/16″ (2.4375 in)
- Keyway Size: 5/8 x 5/16 in
- Outside Diameter: 5 in
- Length Through Bore: 3-1/2 in
- Material: Sintered Steel
- Torque Capacity: 44,800 in-lbs
- Screw Torque: 1000 in-lbs
- Bolt Circle Diameter: 4.83 in
- Number of Bolt Holes: 3
- Screw Thread Size: 1/2 in
- Screw Length: 1-1/2 in
- Weight: 11.7 lbs
Typical Applications
- Sprocket and chain drive systems in conveyors and material handling equipment
- V-belt pulley and sheave clamping in motor-driven machinery
- Gearbox hub mounting in industrial power transmission
- Agricultural machinery and heavy equipment drive components
- Manufacturing and food processing line assemblies
Compatibility & Replacements
Compatible With
- Sprockets and roller chain systems
- V-belt pulleys and sheaves
- Gear reducers and gearboxes
- Flex couplings and hub assemblies
- Industrial electric motors with shaft-mounted loads
Replaces / Drop-In Replacement For
- OEM Dodge 3535 2-7/16 KW bushings (cross-reference part number 117222)
- Browning 3535X 2 7/16 (interchangeable design)
- Martin and Gates taper-lock bushings with matching 3535 series size
Works With
- Standard ISO/ANSI taper-lock hub designs (8° tapered bore)
- Metric and imperial keyway configurations
- Stock bore equipment requiring 2-7/16″ shaft diameter connection
- Both cast iron and steel hub materials (up to 6.5″ steel or 7″ gray iron OD)
