Overview

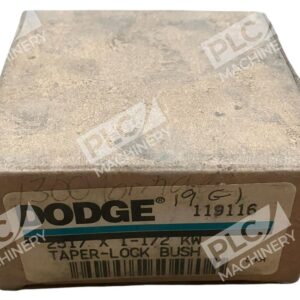

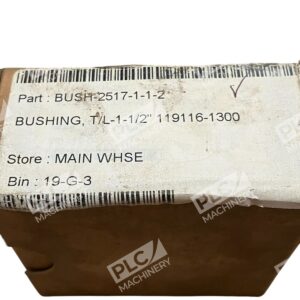

The Dodge 119116 is a Type 2517 Taper-Lock Bushing engineered for industrial power transmission applications. This bushing features a 1-1/2 inch bore diameter and utilizes Dodge’s proven taper-lock design for flangeless, compact mounting. The sintered steel construction combined with the 8-degree taper angle delivers secure shaft locking with minimal installation time, eliminating radial play and wobble in coupling assemblies, belt drive systems, and sprocket applications.
Key Features
- 8-Degree Taper Design: Engineered taper provides secure locking and eliminates wobble in shaft-to-hub connections.
- Flangeless Construction: Clean, compact design with no protruding parts for space-constrained installations.
- Sintered Steel Material: Durable construction suitable for high-torque and repetitive loading environments.
- Stock Bore Configuration: Comes ready for immediate installation without reboring; 3/8″ x 3/16″ finished keyway.
- Low Installation Torque: Requires 430 in-lb torque for secure assembly, reducing installation time and effort.
- Two-Bolt Design: 3-1/4 inch bolt circle with 1/2″ x 1″ socket-head screws for tool-free removal and reinstallation.
Technical Specifications
Detailed dimensional and functional specs for the Dodge 119116:
Typical Applications
The Dodge 119116 is widely used in:
- Belt and chain drive systems coupling sheaves and sprockets to motor and driven shafts.
- Industrial fan and blower assemblies requiring secure torque transmission.
- Pump and compressor drive couplings in manufacturing and processing plants.
- Conveyor system components where radial runout must be minimized.
- OEM equipment requiring compact, maintenance-friendly hub attachment solutions.
Compatibility & Replacements
Compatible With
- Dodge sheaves and sprockets (Type 2517 size class).
- Standard industrial shafts with 1-1/2″ bore diameter and 3/8″ x 3/16″ keyway.
- Baldor-Dodge mechanical power transmission systems and components.
- General-purpose industrial motors and mechanical drive assemblies.
Replaces / Drop-In Replacement For
The Dodge 119116 is a standard Type 2517 taper-lock bushing. Verify compatibility with your specific sheave or sprocket model before ordering to ensure proper fit and torque ratings. Consult the manufacturer’s installation manual for hub-to-bushing dimensional compatibility.
Works With
- Dodge Taper-Lock sheaves (V-belt and synchronous belt drives).
- Dodge sprockets (roller chain and synchronous chain drives).
- Standard 1-1/2″ shaft diameters with finished keyway slots.
- Installation requires 1/2″ socket-head cap screws (included) and standard hex wrench tooling.
