Overview

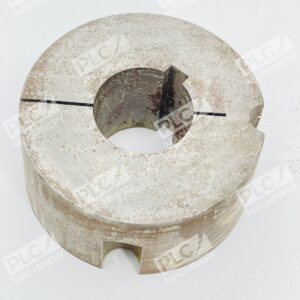

The Dodge 117112 taper lock bushing is a Type 3020 mechanical coupling component engineered for industrial power transmission and motion control applications. This stock bore unit features a 1-5/8″ diameter finished bore with 3/8″ × 3/16″ keyway, designed to provide positive, wobble-free shaft engagement. Built from sintered steel, the Dodge 117112 delivers compact, flangeless design suitable for machinery, conveyor drives, gearbox input/output shafts, and industrial automation systems.
Key Features
- 8-degree taper – Grips tight, holds tight, runs true with no wobble; flush-mounted design eliminates protruding parts
- Stock bore with keyway – 1-5/8″ bore diameter, finished for immediate installation on standard shafts
- Sintered steel construction – Durable, reliable performance in high-torque applications
- Easy on/off operation – Snap-on, snap-off design simplifies installation and maintenance
- Industry-standard design – Proven 40+ year track record in industrial power transmission
Technical Specifications
- Bore Diameter (actual): 1.6250″ (41.275 mm)
- Bore Type: Stock bore, finished with keyway
- Keyway Size: 3/8″ × 3/16″
- Bushing Size (Type): 3020
- Taper Angle: 8 degrees
- Barrel Diameter: 4-1/4″
- Hub Diameter (max): 5.63″ (steel)
- Overall Length: 2″
- Bolt Circle Diameter: 4″
- Number of Bolt Holes: 2
- Fastener (set screw): 5/8″ × 1-1/4″
- Installation Torque: 800 in-lb
- Holding Torque Capacity: 24,000 in-lb
- Material: Sintered steel
- Weight: 5.47 lbs
- UPC: 782475092420
Typical Applications
- Conveyor drive systems and power transmission lines
- Gearbox input and output shaft couplings
- Industrial motor-to-load shaft connections
- Pump and compressor drive applications
- Agricultural and construction equipment drives
- Machine tool spindle and work-holding couplings
Compatibility & Replacements
Compatible With
- Electric motors with standard shaft sizes matching the 1-5/8″ bore specification
- Gearboxes and speed reducers with SAE or metric shaft configurations
- Pump and compressor shafts requiring positive, no-slip engagement
- Belt drives, chain drives, and flexible coupling systems
- Industrial automation and material handling equipment
Replaces / Drop-In Replacement For
- Other Type 3020 taper lock bushings with 1-5/8″ stock bore
- Direct replacement for OEM assemblies specifying Dodge 117112 or equivalent 3020 taper lock couplings
Works With
- Standard metric and SAE shaft keyways (3/8″ × 3/16″ keyway specification)
- Dodge Power Transmission product ecosystem and catalogs
- Motors, gearboxes, and mechanical power transmission components using 4″ bolt circle flange mounts
- Industrial equipment requiring 24,000 in-lb torque capacity and 8-degree taper locking mechanism
