Overview

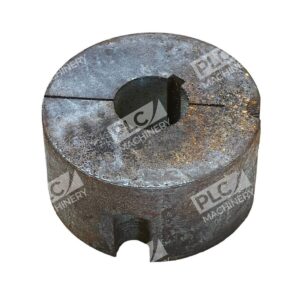

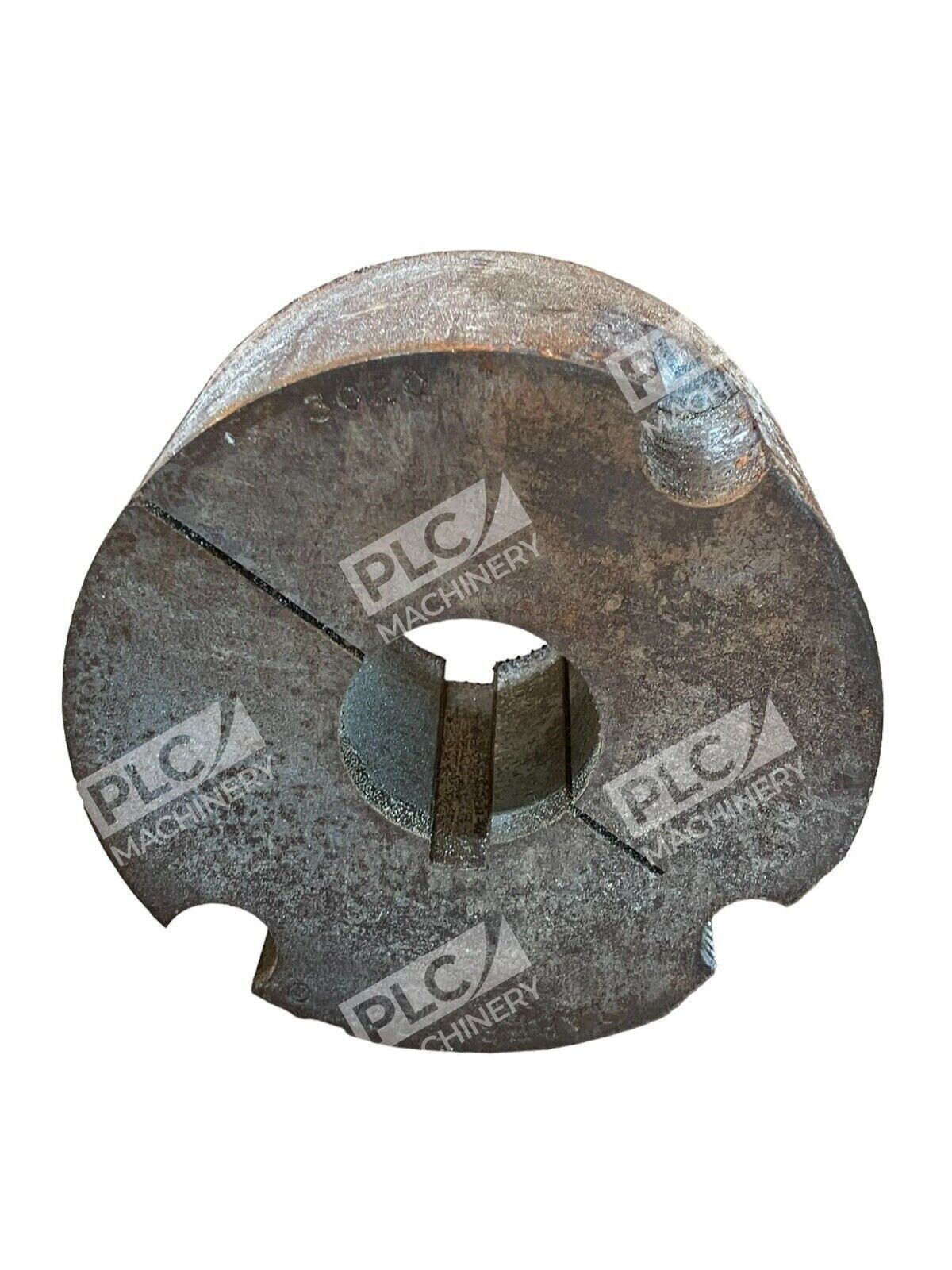

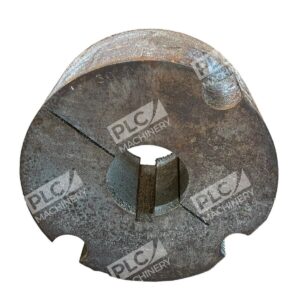

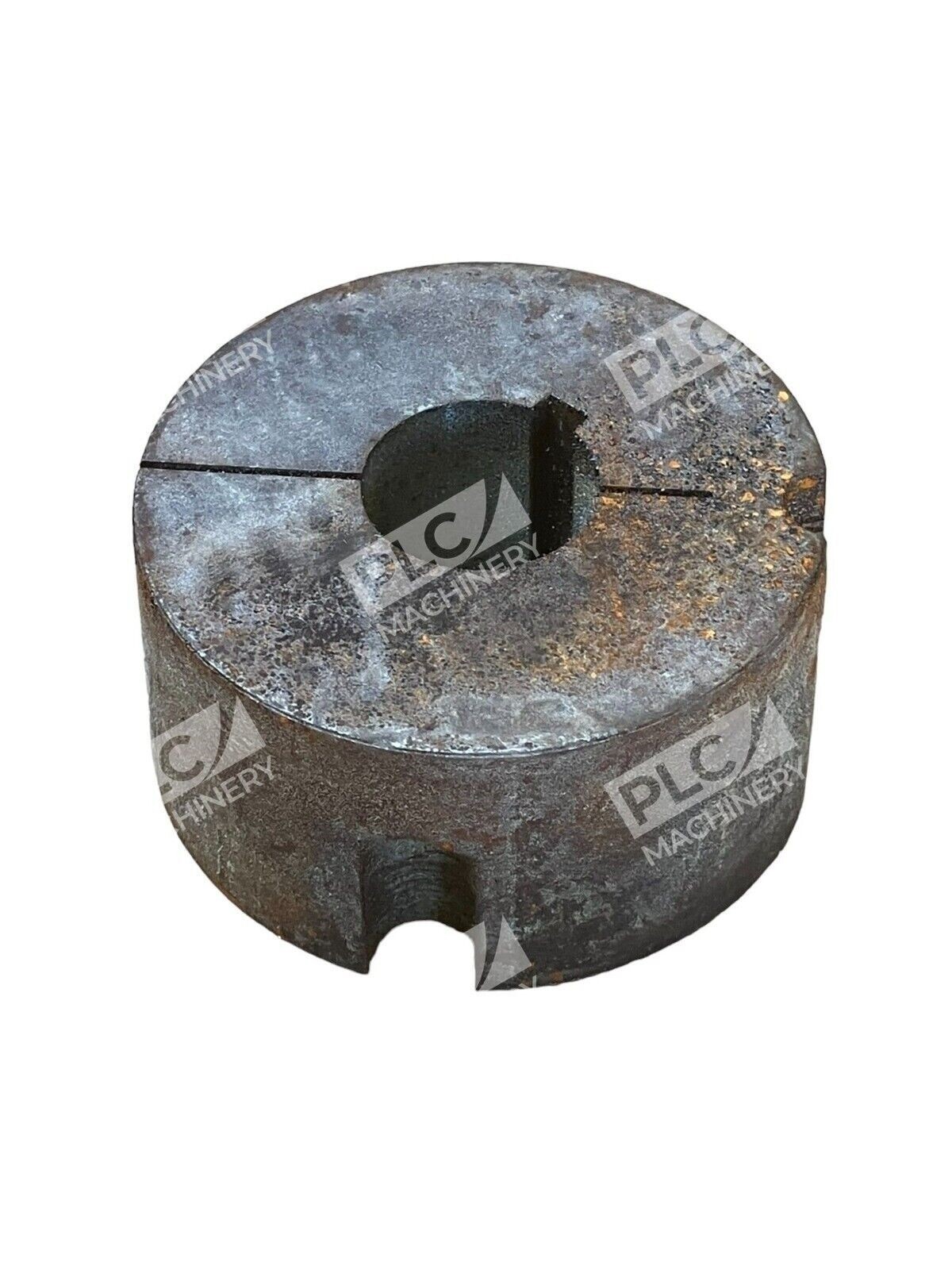

The Dodge 117108 taper-lock bush is a precision shaft-locking component designed for reliable, wobble-free mounting of power transmission components. Part of Dodge’s proven taper-lock bushing line, this 3020 x 1-3/8 KW unit combines a tapered bore with an integral key system to deliver secure, repeatable engagement without the need for pullers or excessive downtime. New in box condition ensures factory integrity.
Key Features
- 8° Tapered Design: Engineered with an 8° taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble
- Integral Key System: Available with an optional integral key in popular sizes for a more precise fit
- Precise Fit: Clearances between key and bushing are automatically eliminated, providing a more precise fit. Provides full key even in maximum bore sizes
- Easy Installation & Removal: Space required to loosen bushing using screws as jackscrews—no puller required
- Compact Flangeless Design: Dodge Taper-Lock bushings are flangeless for clean, compact application and are engineered with an 8° taper and a flush-mounted design
Technical Specifications
| Manufacturer | Dodge (formerly Rexnord Power Transmission) |

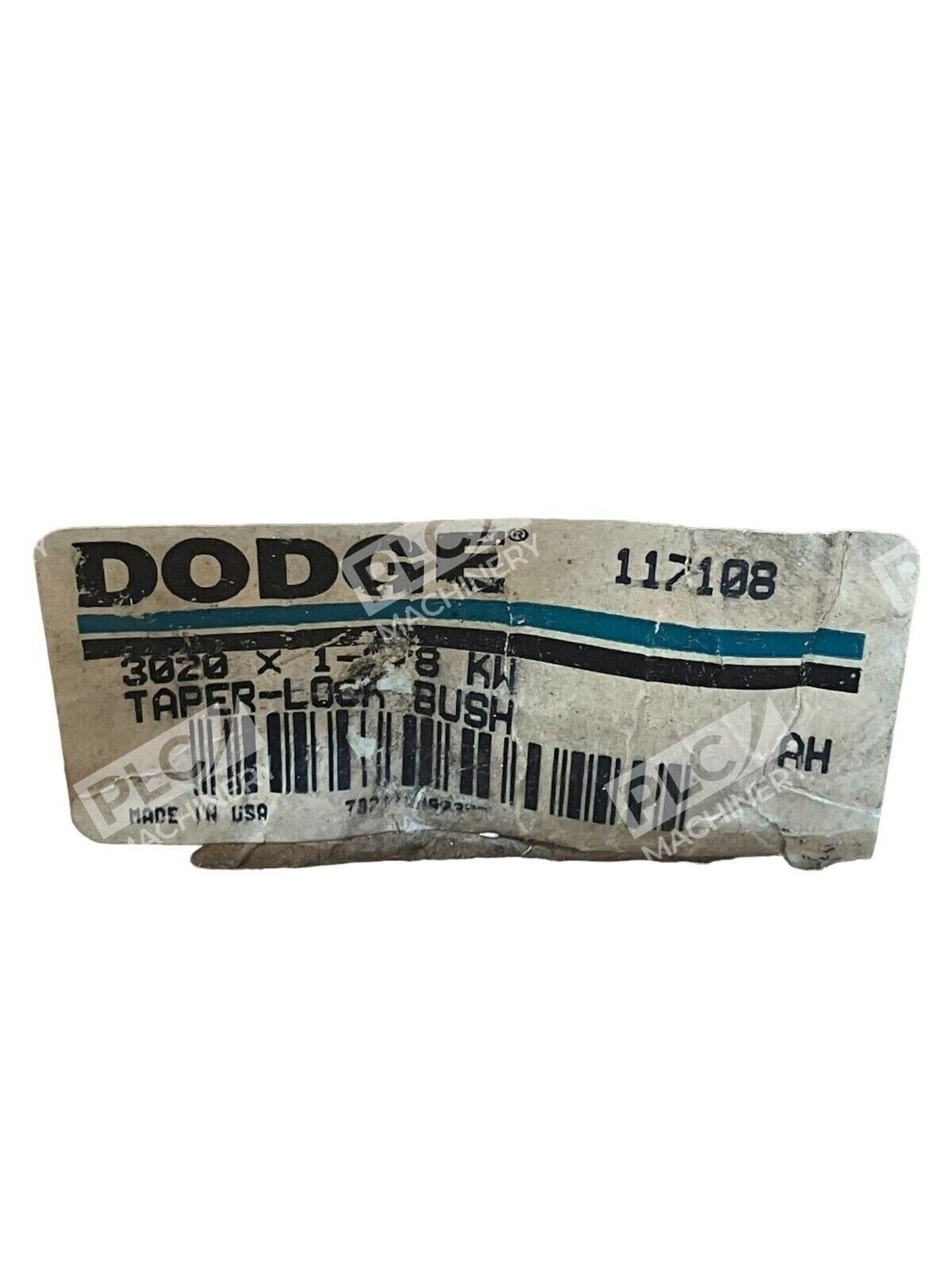

| Part Number | 117108 |

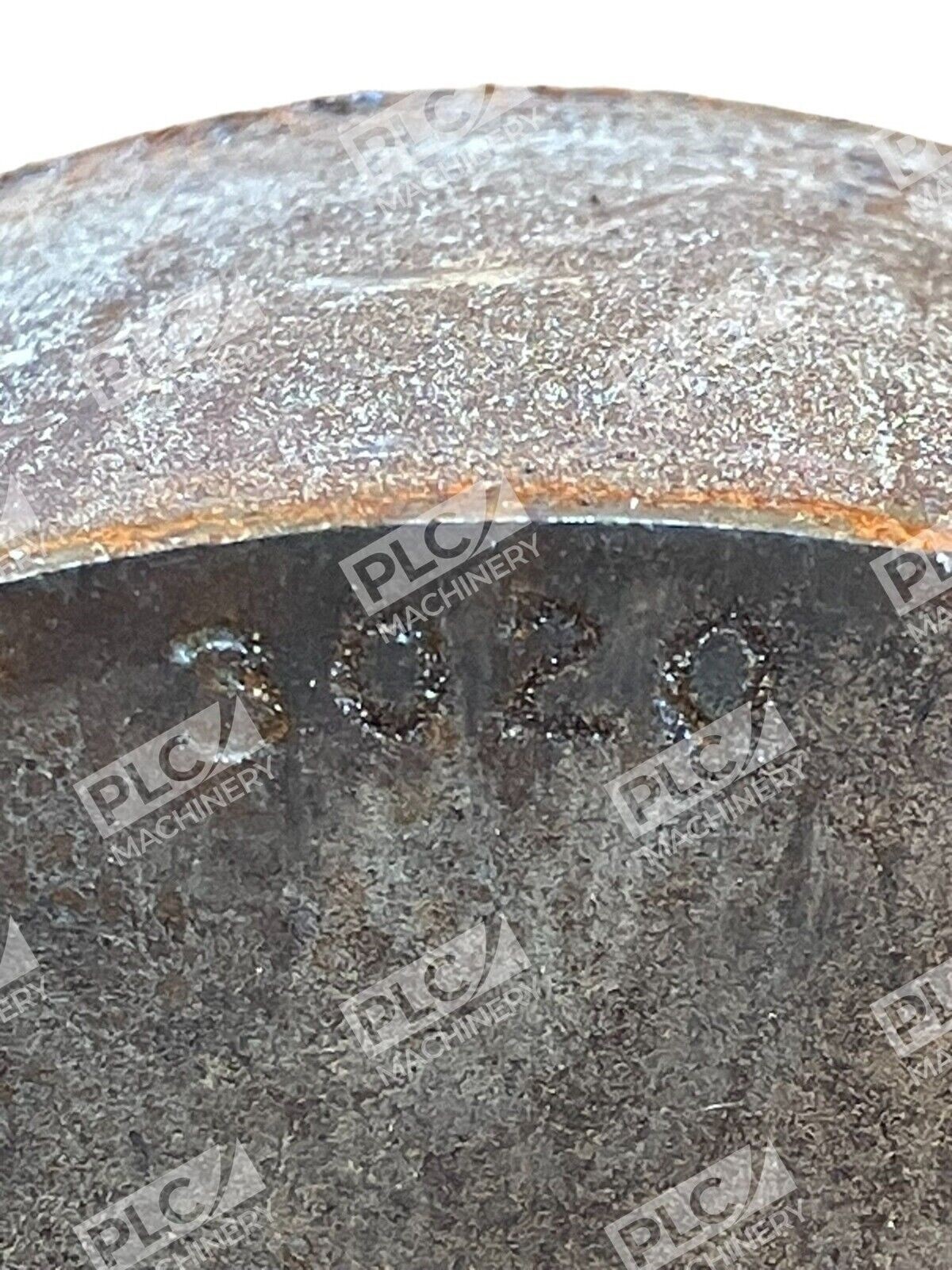

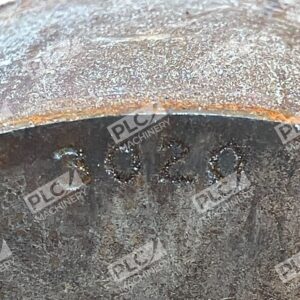

| Bushing Size | 3020 |
| Bore Diameter | 1-3/8 inch |
| Keyway Type | KW (Integral Key) |
| Taper Angle | 8° |
| Design Type | Taper-Lock with Integral Key |

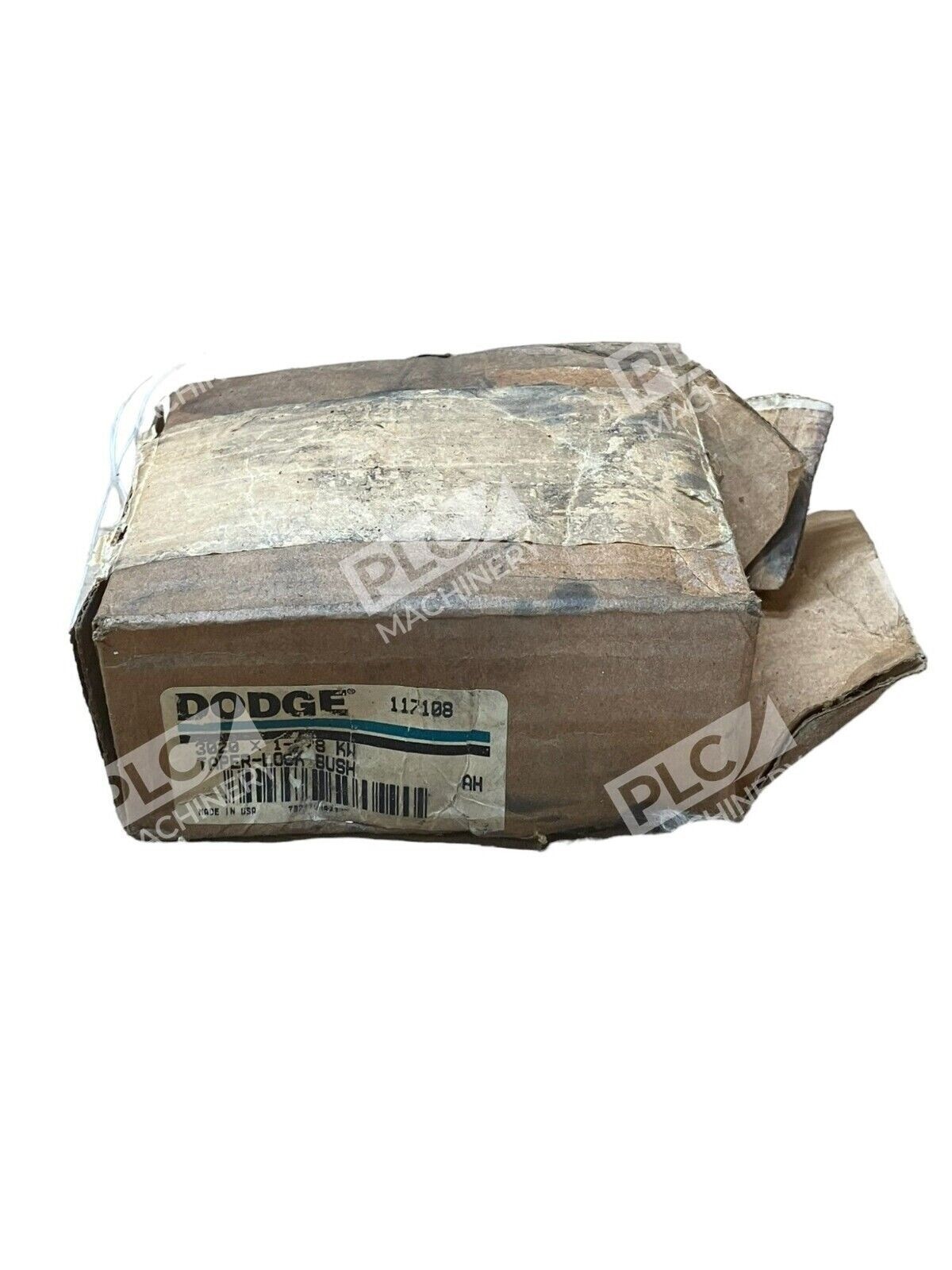

| Condition | New in Box |
| Material | Ductile Iron (Standard) |
Typical Applications
Taper-locking bushings are used to mount sprockets, pulleys, and couplings onto shafts. The bushing’s cylindrical body gradually becomes larger in diameter from one end to the other and has a linear split down the body. Common uses include:
- Belt and chain drive systems
- Pulley mounting on motor shafts
- Sprocket and gear coupling installations
- Power transmission equipment in manufacturing and automation
- Replacement in maintenance/rebuild applications
Compatibility & Replacements
Compatible With
- Dodge power transmission hubs and sprockets
- Sheaves sized for 1-3/8″ bore shafts
- Belt and chain drive assemblies with standard shaft sizing
- Motor shafts and driven equipment requiring taper-lock mounting
Replaces / Drop-In Replacement For
- Dodge 117108 original equipment (direct OEM replacement)
- Verify specific hub and bore requirements with your application engineering documentation before ordering
Works With
- Dodge taper-lock hubs and adapters in the 3020 size range
- Standard power transmission shafts (motor, gearbox, and driven equipment)
- Belt drives, chain drives, and coupled shaft systems
- Industrial automation and manufacturing equipment
