Overview

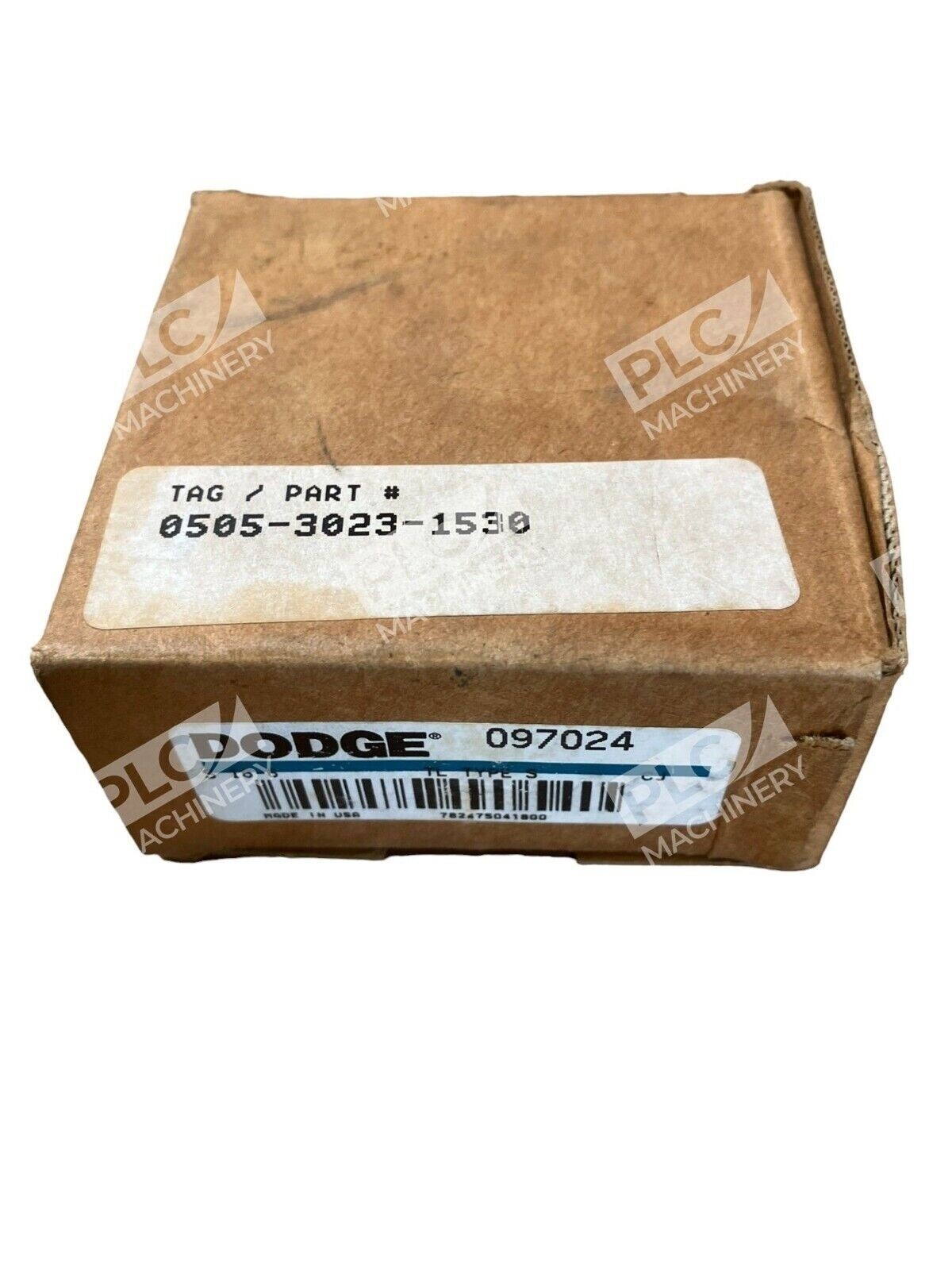

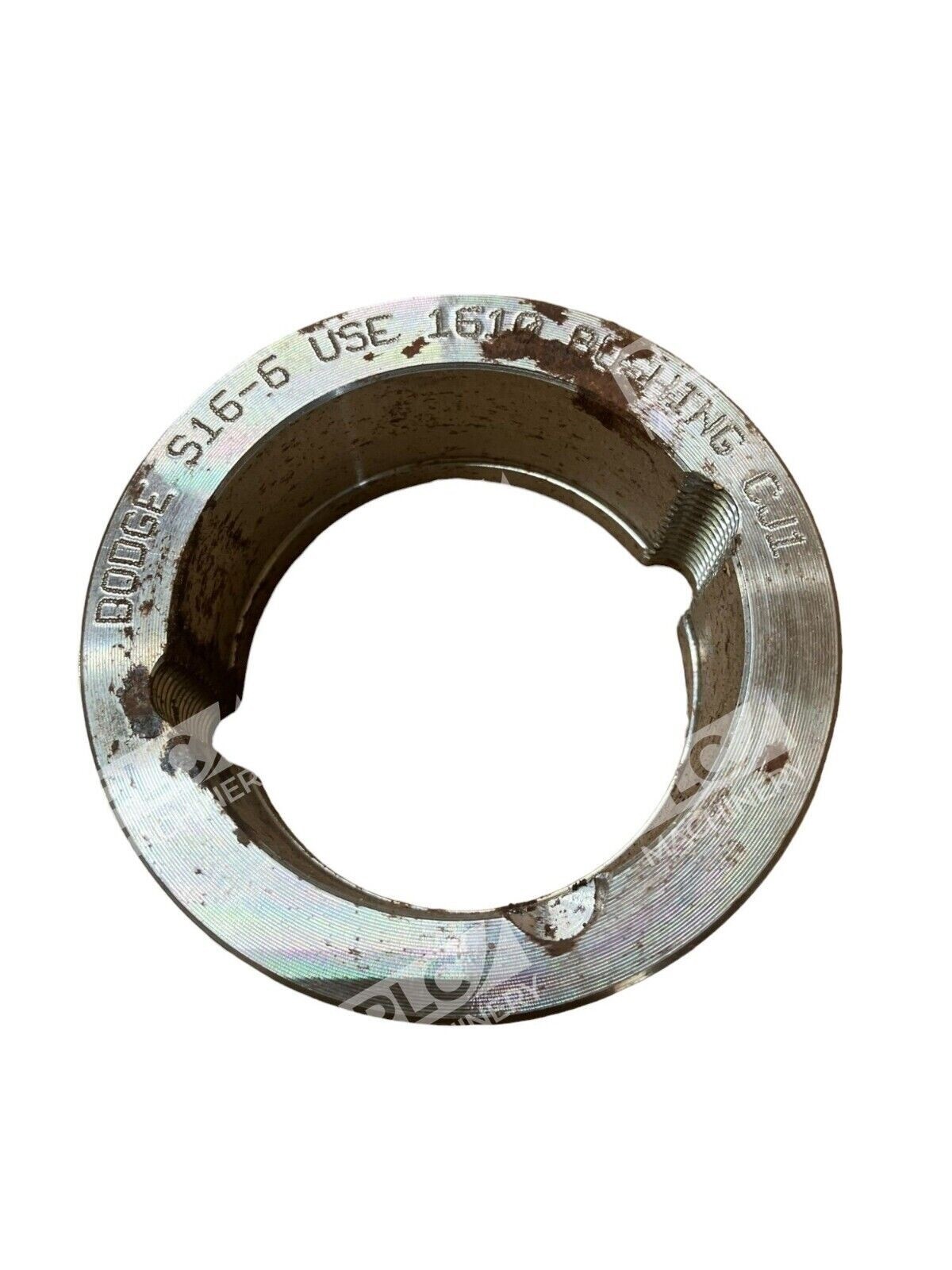

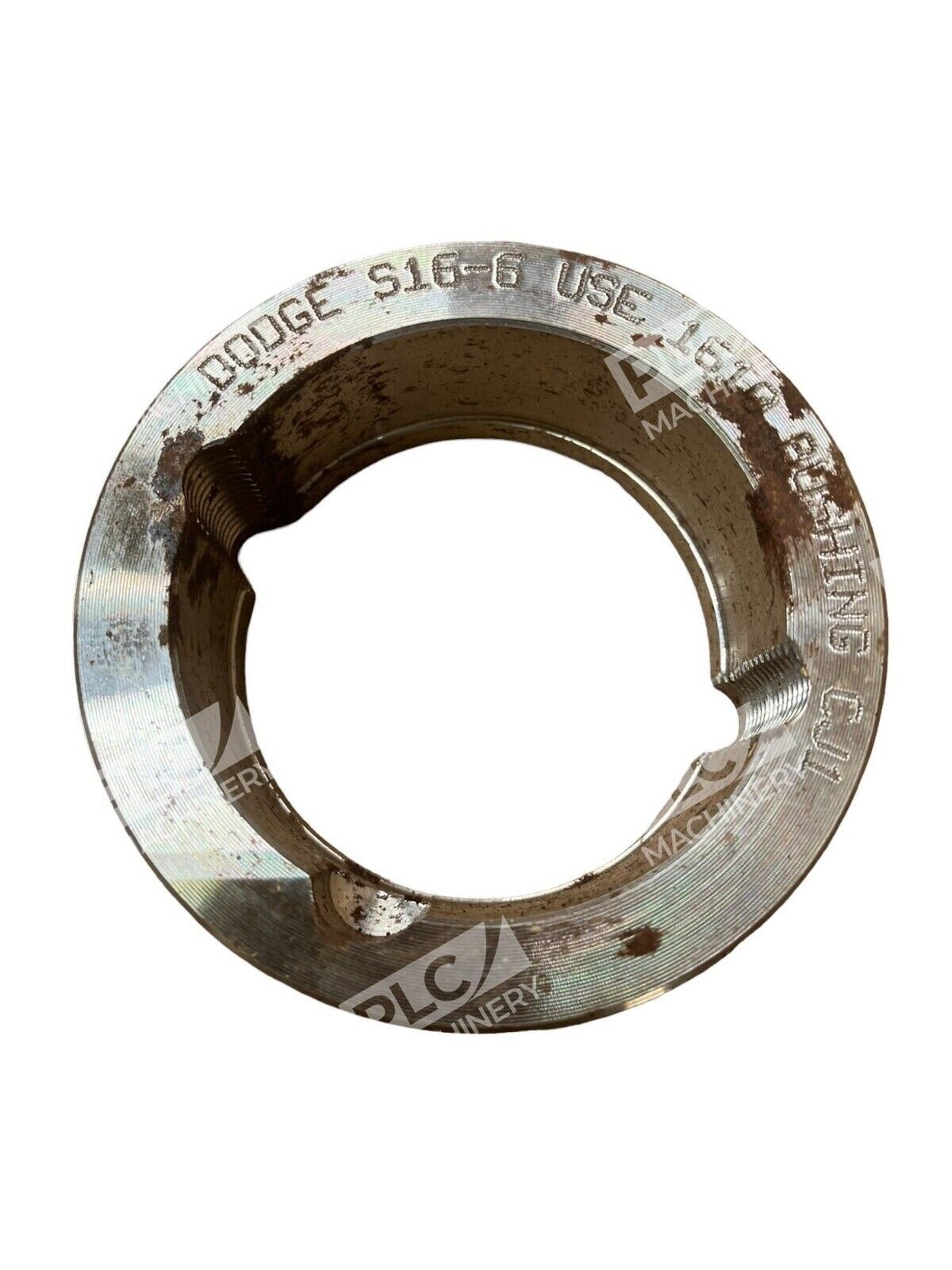

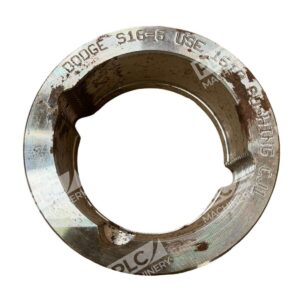

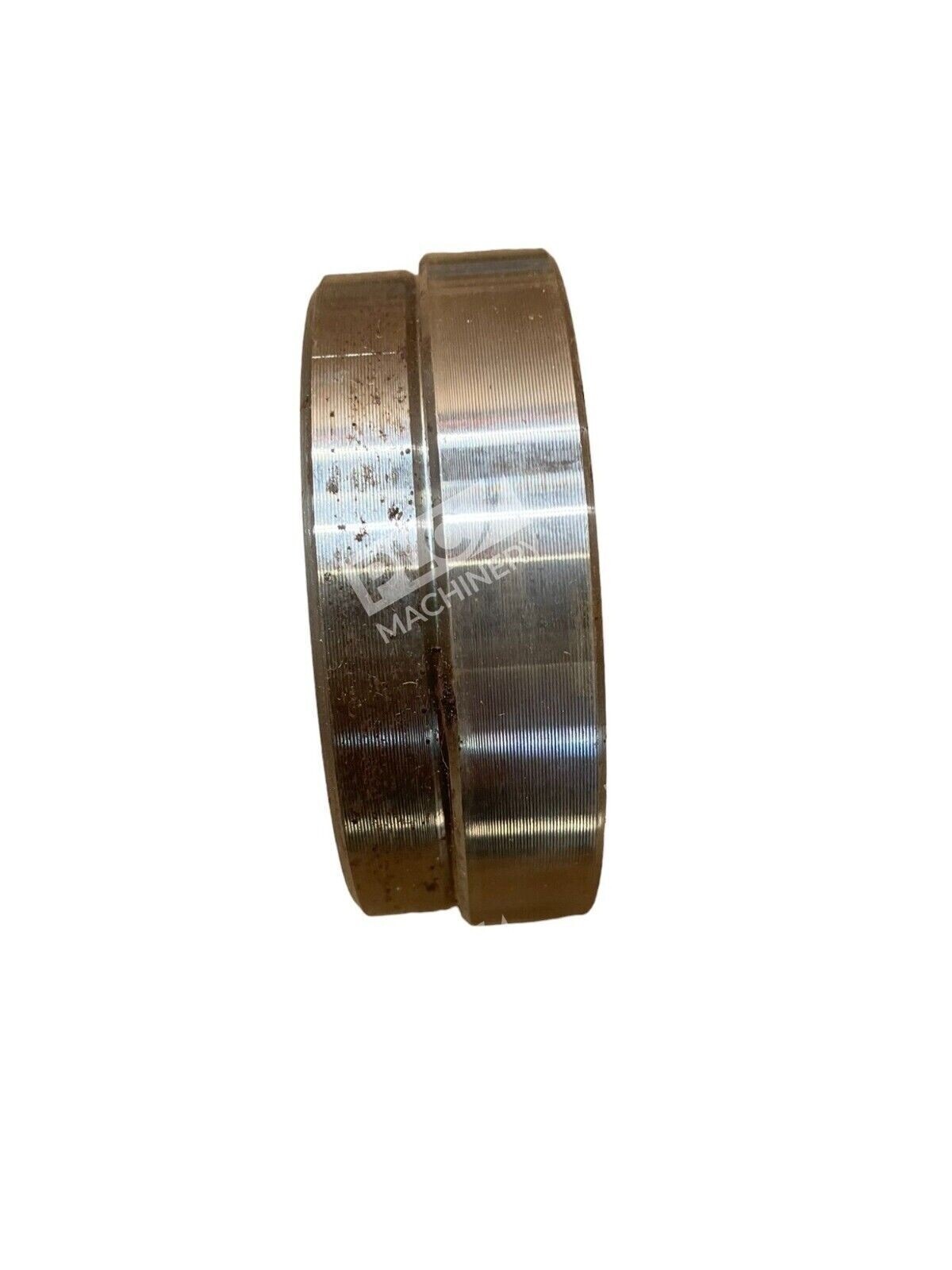

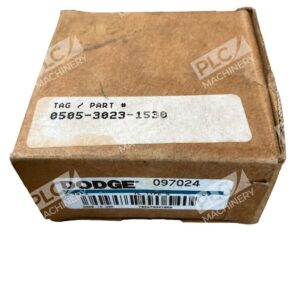

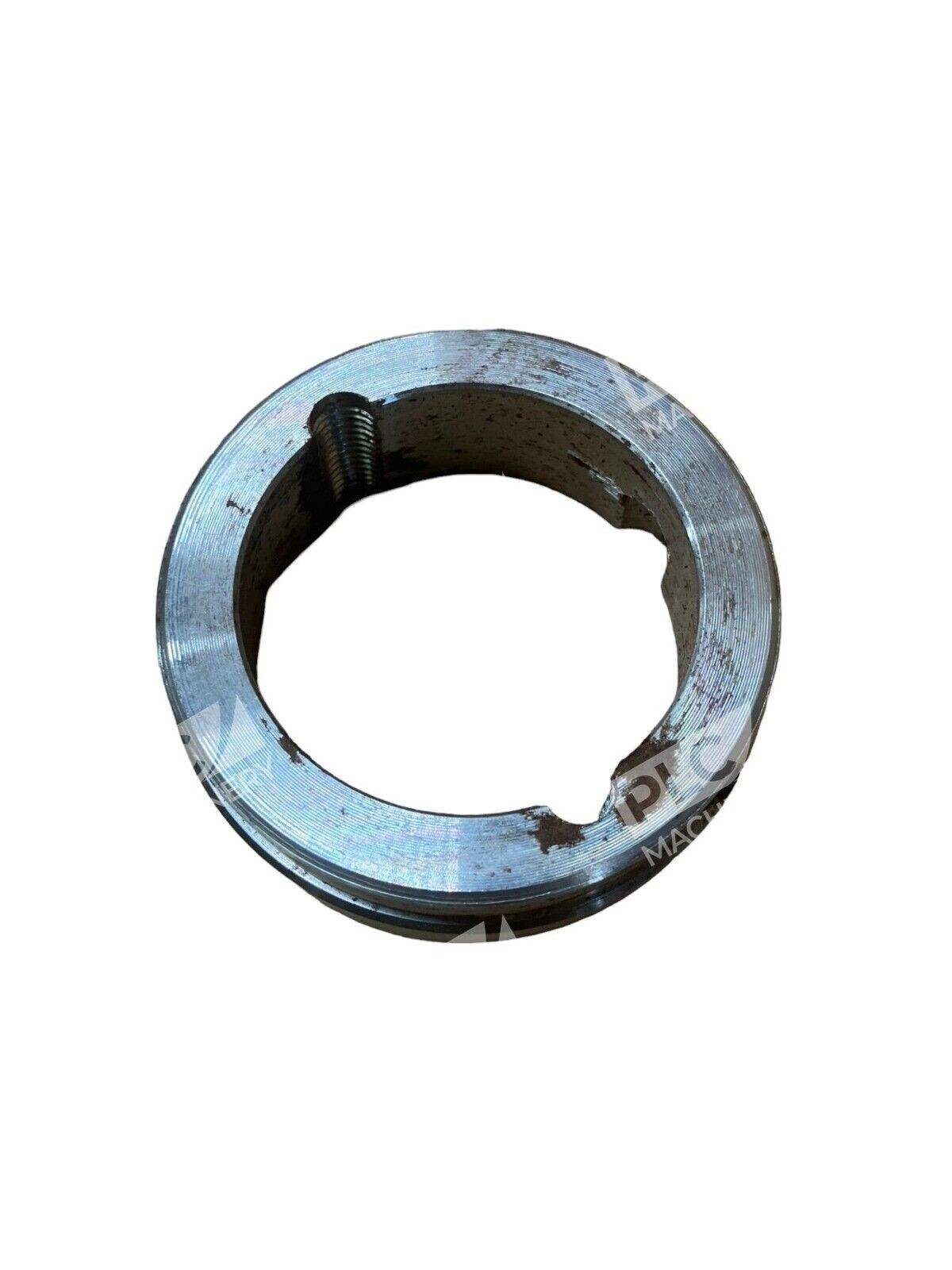

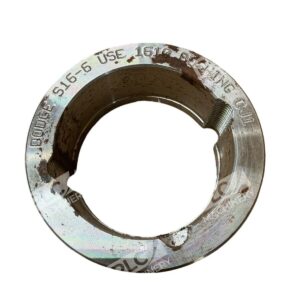

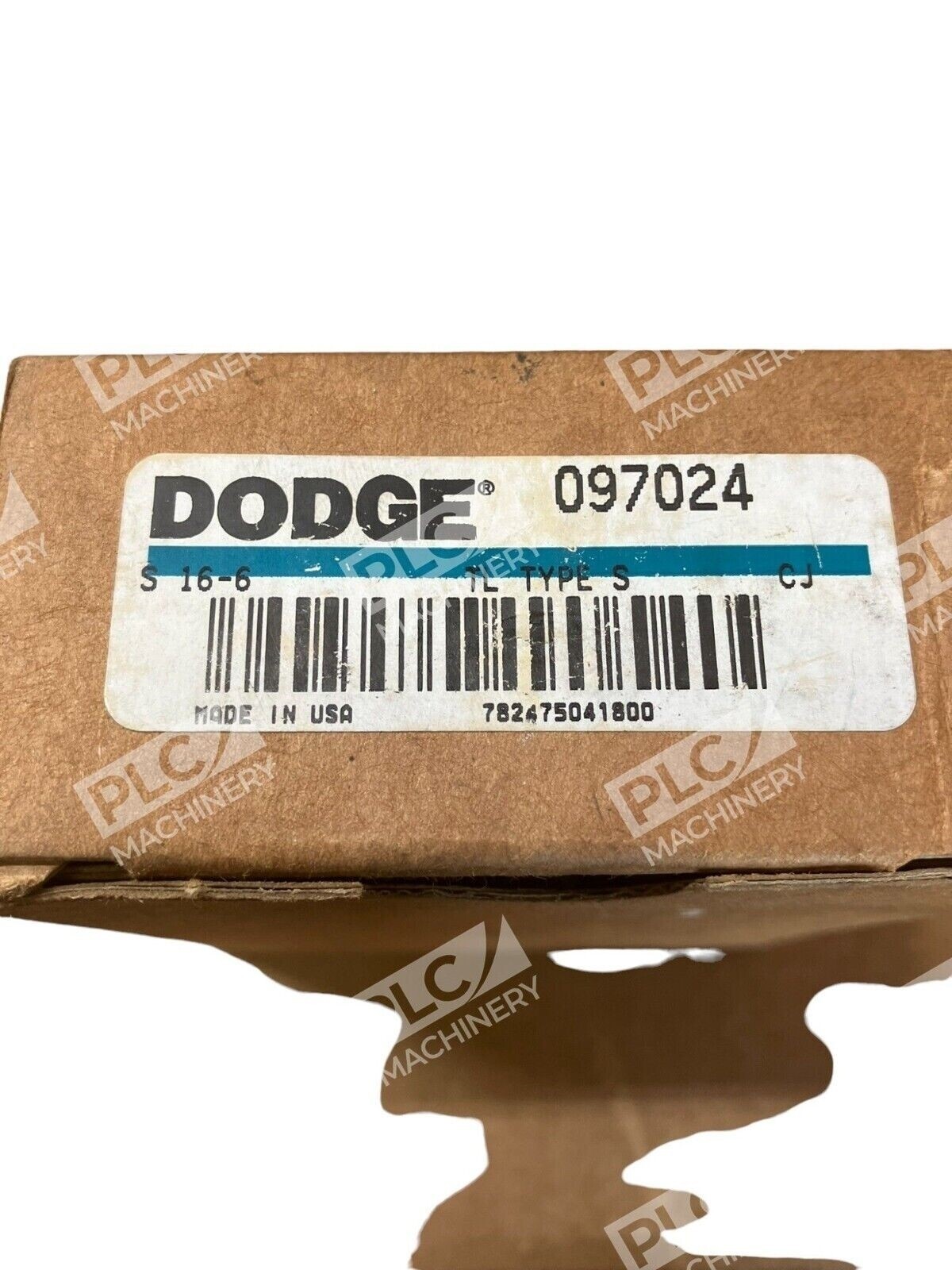

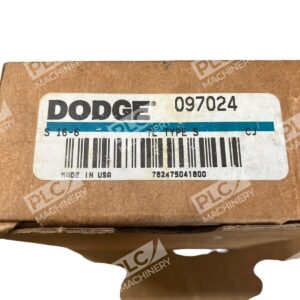

The Dodge 097024 S16-6 TL is a precision weld-on hub designed for applications requiring secure shaft mounting. This Taper-Lock Type S hub is manufactured from 1015-1025 steel and features a 2-1/4″ bore diameter, making it suitable for smaller sprockets, pulleys, and fan rotors. The hub arrives drilled, tapped, and taper-bored to accept standard taper-lock bushings, eliminating the need for additional machining.
Key Features
- Taper-Lock Type S design—originally engineered for small-diameter sprocket applications
- 1015-1025 steel construction for durability and rigidity
- Pre-drilled, tapped, and taper-bored for immediate bushing installation
- Two bolt holes on 2.13″ bolt circle diameter for secure fastening
- Compact 1″ overall length facilitates space-constrained installations
- Suitable for light-to-medium duty power transmission applications
Technical Specifications
- Bore Diameter: 2-1/4″ (2.25″)
- Outside Diameter: 3″
- Pilot Diameter: 2-7/8″
- Bolt Circle Diameter: 2.13″
- Number of Bolt Holes: 2
- Overall Length: 1″
- Material: 1015-1025 Steel
- Bushing Type: Taper-Lock Standard (accepts S16-6 bushings)
- Hub Style: Weld-On
- Model Series: S16-6
Typical Applications
The Dodge 097024 weld-on hub is ideal for mounting precision components onto rotating shafts in:
- Fan blade assemblies and rotor mounting
- Sprocket and chain drive systems
- Pulley and belt-drive applications
- Plate sprocket installations requiring firm shaft engagement
- Industrial machinery requiring light-to-medium torque transmission
Compatibility & Replacements
Compatible With
- Taper-Lock S16-6 bushings and sleeves
- Dodge industrial power transmission component systems
- Standard industrial shafting (2-1/4″ diameter)
Replaces / Drop-In Replacement For
- This is an OEM Dodge part—verify compatibility with your system integrator before ordering if replacing an existing hub from another manufacturer
Works With
- All standard Taper-Lock Type S bushing kits
- Industrial coupling and power transmission assemblies using S-series hubs
