Overview

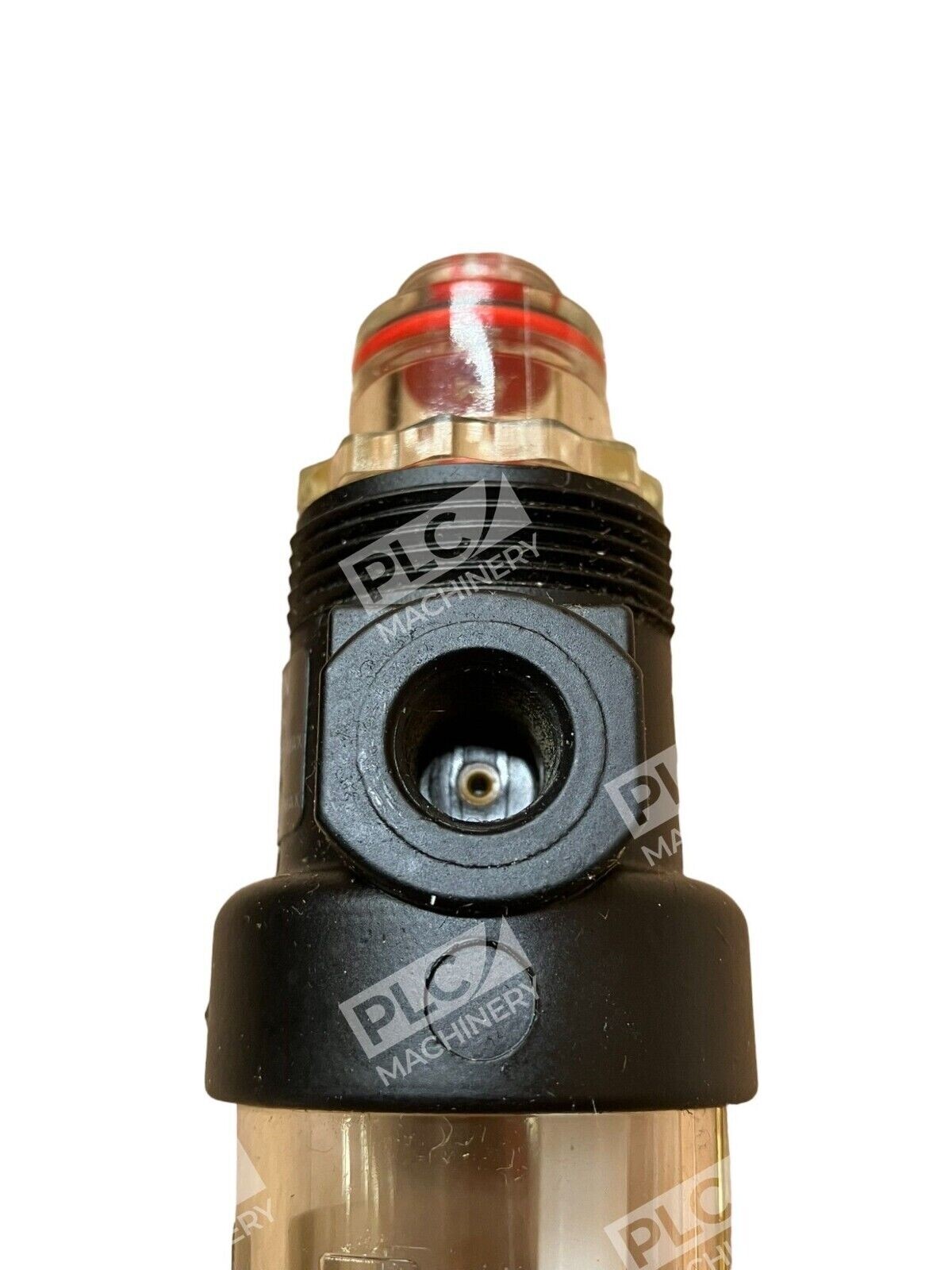

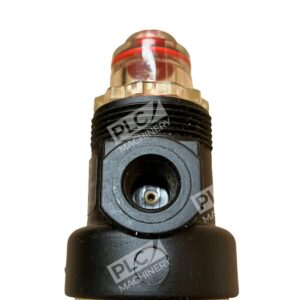

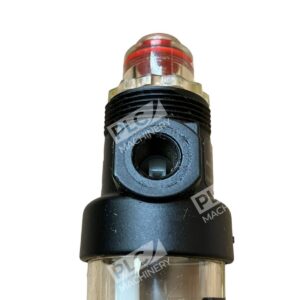

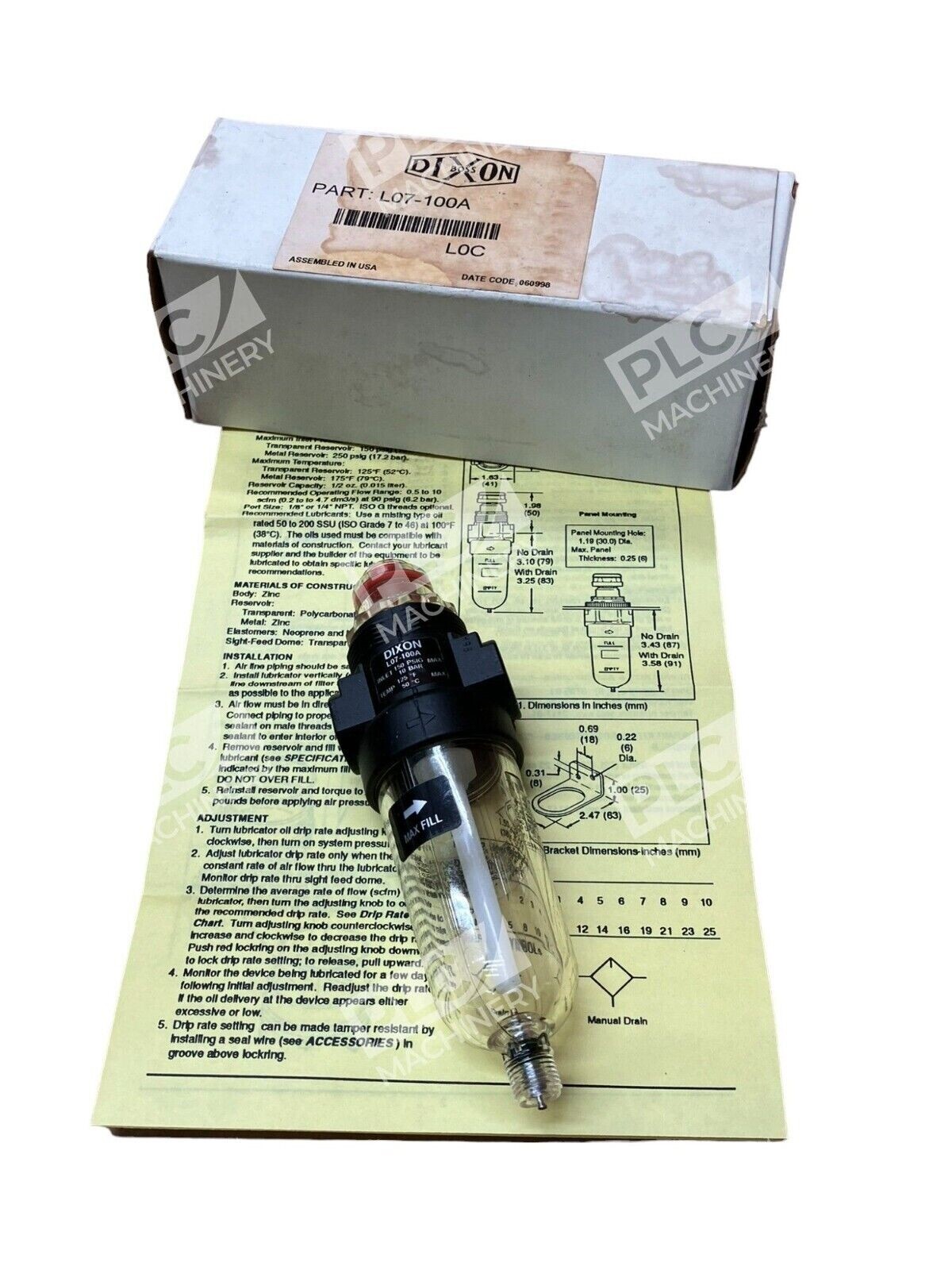

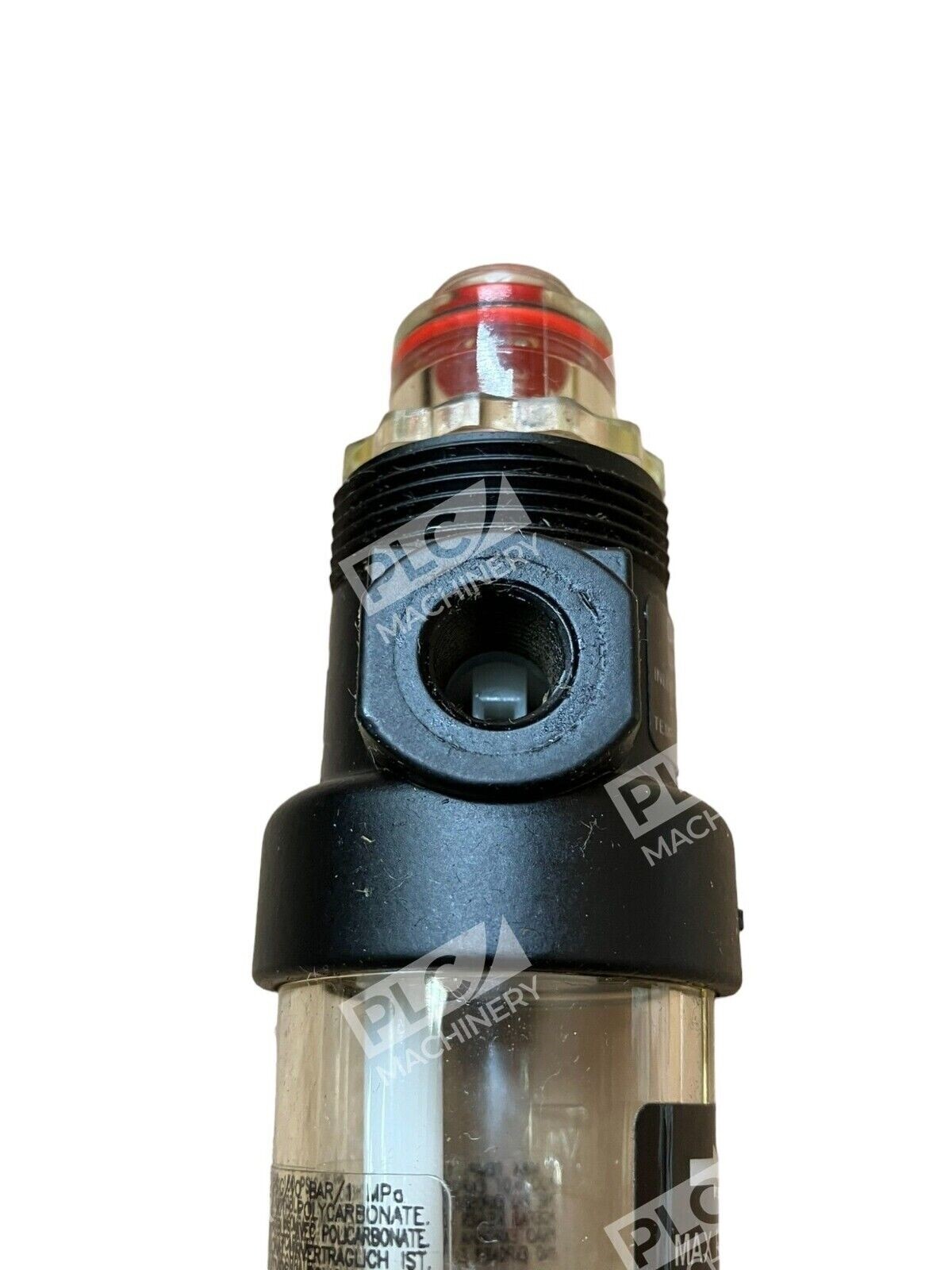

The Dixon L07-100A is a Series 1 miniature lubricator (FRL component) engineered for compressed air systems in industrial automation and motion control. This 1/8″ Series-1 mini lubricator features a transparent bowl and is rated at 150 PSI maximum pressure, making it suitable for precision pneumatic tooling, controls, and small-bore actuator systems. The compact design and proven Dixon reliability ensure consistent oil-mist delivery in space-constrained environments.
Key Features
- Transparent bowl with 1 oz. reservoir for easy oil level visibility

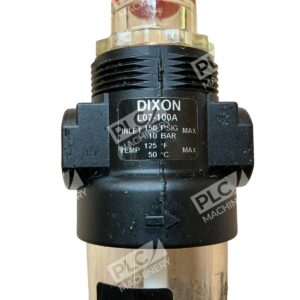

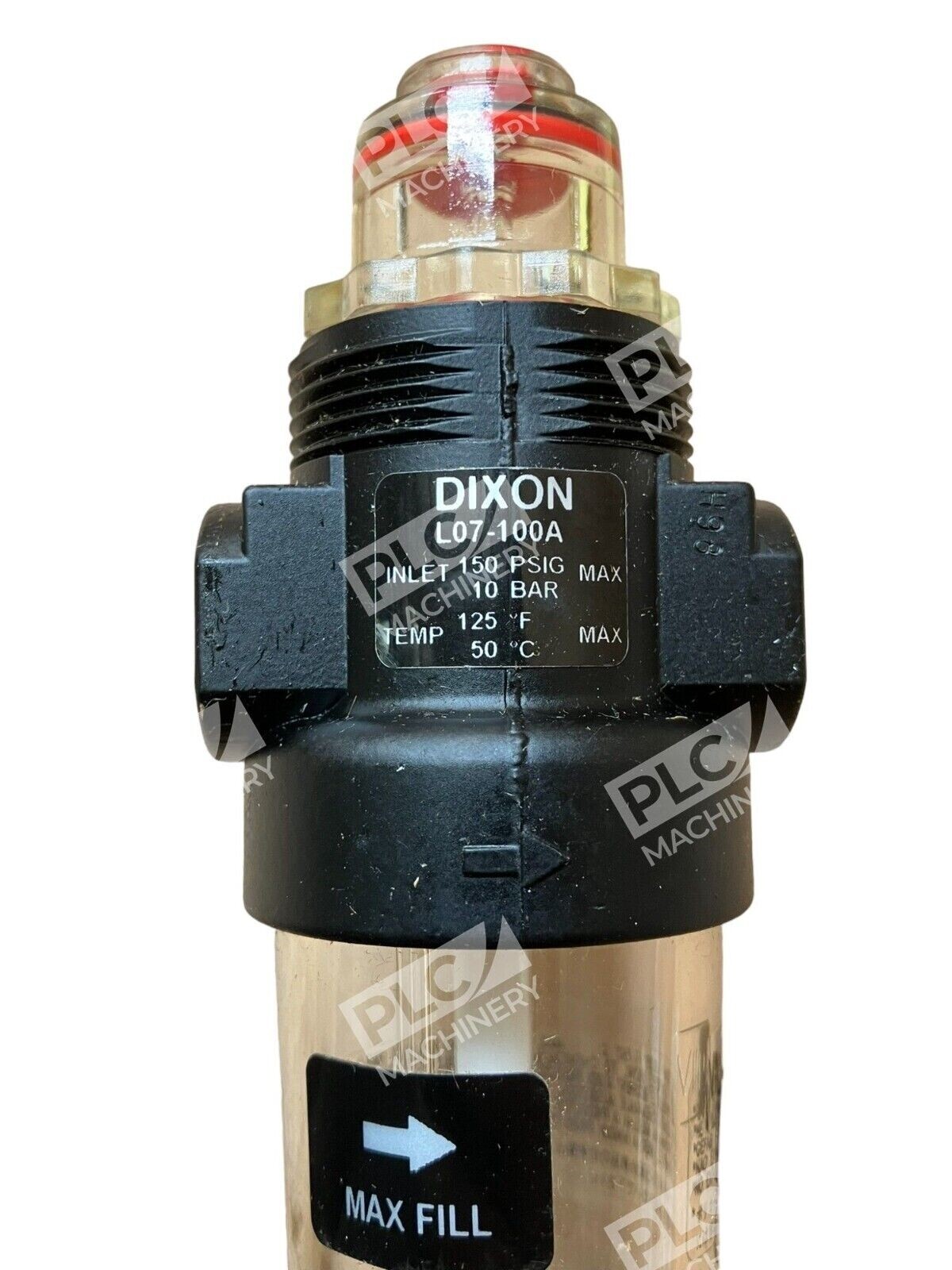

- 150 PSI maximum pressure rating
- 10 SCFM flow capacity
- 1/8″ port size for miniature circuits
- Series 1 standard FRL design for drop-in replacement capability
- Designed for air service only
Technical Specifications
The Dixon L07-100A is built to ISO and ANSI standards for pneumatic components, delivering consistent performance in demanding industrial environments.
Typical Applications
- Miniature pneumatic controls and automation circuits
- Precision air tool lubrication systems
- Laboratory and test rig pneumatic networks
- Compact industrial actuator assemblies
- Instrumentation and measurement systems requiring pneumatic actuation
Compatibility & Replacements
Compatible With
- Series 1 miniature FRL assemblies
- 1/8″ pneumatic networks and circuits
- Industrial compressed air systems (air service only)
- Standard pneumatic regulators and filters with 1/8″ ports
- Miniature pneumatic valves and actuators
Replaces / Drop-In Replacement For
- Norgren L07-100-MPAA
Works With
- ISO 4401 and ANSI standard 1/8″ pneumatic circuits
- Manual and semi-automatic lubrication systems
- Compressed air networks rated 90–150 PSI
