Overview

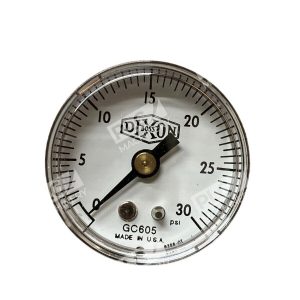

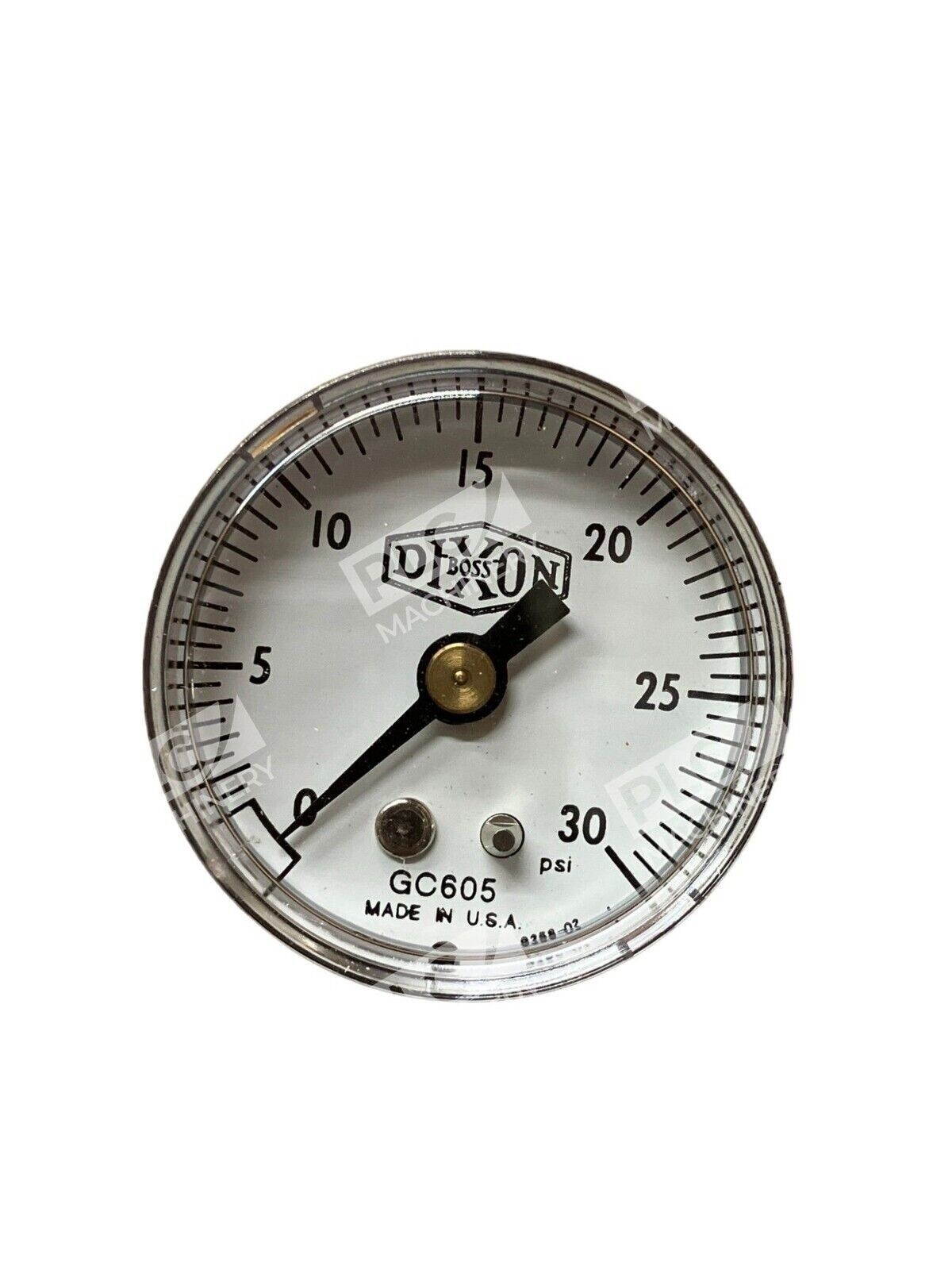

The Dixon Boss GC605 is a standard dry pressure gauge engineered for long-term reliability in industrial fluid transfer applications. With a 0–30 PSI measurement range and center back mount design, the GC605 delivers accurate pressure monitoring in pneumatic systems, hydraulic lines, compressors, pumps, and machine tool installations. Its corrosion-resistant ABS plastic case and bronze safety bourdon tube construction make it ideal for non-corrosive and moderately harsh environments.
Key Features
- Pressure Range: 0–30 PSI with 5 PSI major graduations and 0.5 PSI minor increments for precise readings
- Accuracy: ASME B40.1 Grade B (±3–2–3% accuracy) ensures reliable measurement across the operating range
- PowerFlex™ Movement: Polyester segment design resists shock, vibration, and pulsation common in industrial duty cycles
- Durable Construction: ABS plastic case with corrosion-resistant finish, polycarbonate window, and black aluminum pointer
- Bronze Bourdon Tube: C-shaped safety tube rated for low-pressure applications (600 PSI and below)
- Temperature Range: Operates reliably from –40°F to +150°F (–40°C to +66°C)
Technical Specifications
- Model Number: GC605
- Pressure Range: 0–30 PSI
- Dial Diameter: 1-1/2 inches
- Connection Type: 1/8″ NPT center back mount
- Case Material: ABS plastic (corrosion-resistant)
- Window Material: Polycarbonate
- Pointer: Black aluminum
- Bourdon Tube: C-shaped bronze safety tube
- Movement Type: PowerFlex™ with polyester segment
- Accuracy Class: ASME B40.1, Grade B (±3–2–3%)
- Operating Temperature: –40°F to +150°F (–40°C to +66°C)
- Figure Interval: 5 PSI
- Gradient Interval: 0.5 PSI
Typical Applications
The Dixon Boss GC605 is widely used in industrial and commercial settings where accurate low-pressure monitoring is essential:
- Pneumatic and compressed air systems
- Hydraulic circuits and pressure lines
- Pump discharge monitoring
- Compressor outlet pressure indication
- Machine tool hydraulic systems
- Plumbing and water pressure applications
- HVAC and refrigeration systems
Compatibility & Replacements
Compatible With
- Pneumatic and hydraulic system test points with 1/8″ NPT ports
- Air compressor discharge lines rated 0–30 PSI
- Low-pressure gauge blocks and manifold banks
- Pump test and monitoring installations
- Any standard industrial fluid transfer system using 1/8″ NPT connections
Replaces / Drop-In Replacement For
- GC605 (direct replacement for existing units)
- GC200 (for systems requiring lower range; GC200 is 0–15 PSI equivalent)
- Other standard dry gauges in the 0–30 PSI range with 1-1/2″ dial and center back mount configuration
Works With
- Standard 1/8″ NPT pneumatic and hydraulic fittings
- Gauge isolation ball valves and snubbers
- Pressure transducers and secondary measurement instruments
- Industrial hose assemblies and manifold systems
- Diagnostic test equipment and pressure measurement stations
