Overview

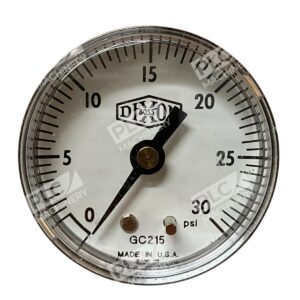

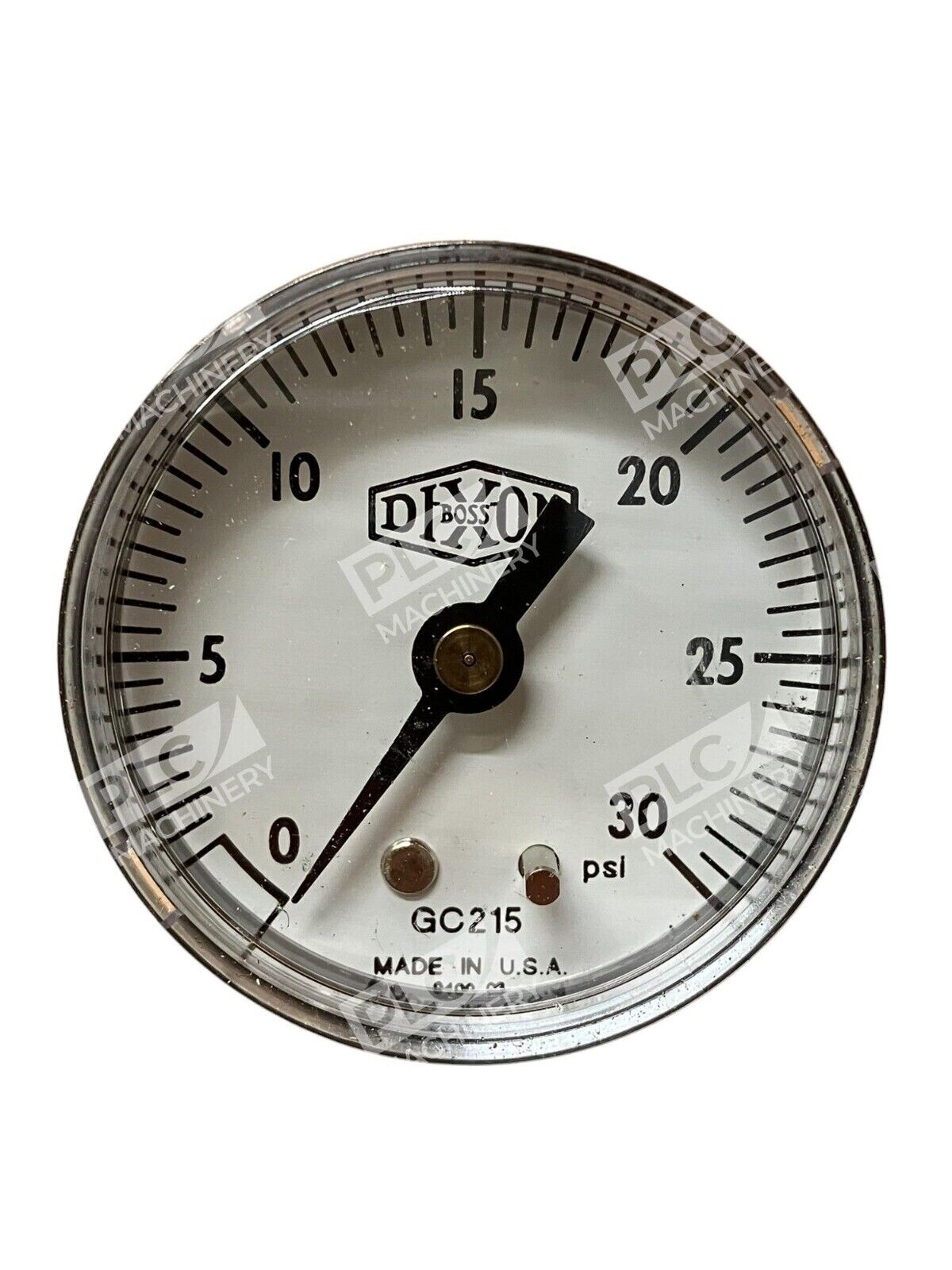

The Dixon GC215 pressure gauge is a standard dry gauge engineered for reliable pressure monitoring in hydraulic, pneumatic, compressor, and machine tool applications. With a pressure range of 0–30 psi, 1/4″ connection size, 2″ dial, +/−3-2-3% accuracy, and operating temperature range of −40 to 150°F, this gauge delivers consistent performance in demanding industrial environments. All gauges supplied by Dixon are designed for long, reliable service under rugged conditions, with typical applications on pumps, hydraulic and pneumatic systems, compressors, and machine tools where non-corrosive movement is essential.
Key Features
- PowerFlex movement with polyester segment, designed to resist the effects of shock, vibration and pulsation
- ABS case with polycarbonate lens material and aluminum pointer
- Center back mount configuration for flexible installation
- Low-pressure range (0–30 psi) for precise measurement in low-flow and low-pressure systems
- Maintenance-free dry gauge design with no liquid fill required
Technical Specifications
The following specifications define the Dixon GC215 performance envelope:
Typical Applications
Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement. The 0–30 psi range makes it particularly suited for:
- Low-pressure hydraulic circuit monitoring
- Pneumatic system pressure verification
- Compressor discharge pressure indication
- Machine coolant and fluid system pressure checks
- Industrial equipment maintenance and diagnostics
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT (National Pipe Thread) hydraulic and pneumatic connections
- Low-pressure hydraulic and pneumatic circuits (up to 30 psi operating pressure)
- Compressor outlet ports with 1/4″ mounting provisions
- Machine tool and industrial equipment with center back mount gauge ports
Replaces / Drop-In Replacement For
- Other standard 2″ dry pressure gauges rated 0–30 psi with 1/4″ center back mount connection
- Verify specific gauge model compatibility with your equipment before ordering
Works With
- Pneumatic system regulators and distributors with 1/4″ gauge ports
- Hydraulic power units and manifolds featuring 1/4″ cbm gauge connections
- Portable pressure test kits and diagnostic equipment
- OEM equipment designed for 0–30 psi gauge installation
